Dynemech Jackup mounts provides isolation solutions for various machines mounting conditions. The Dynemech jackup mounts also provides for high machine leveling capabilities. These jackup mounts provide high load capacity and best level stability. The bottom design provides for non-skid properties for the jackup mount the jackup mount also provide very good passive vibration isolation.

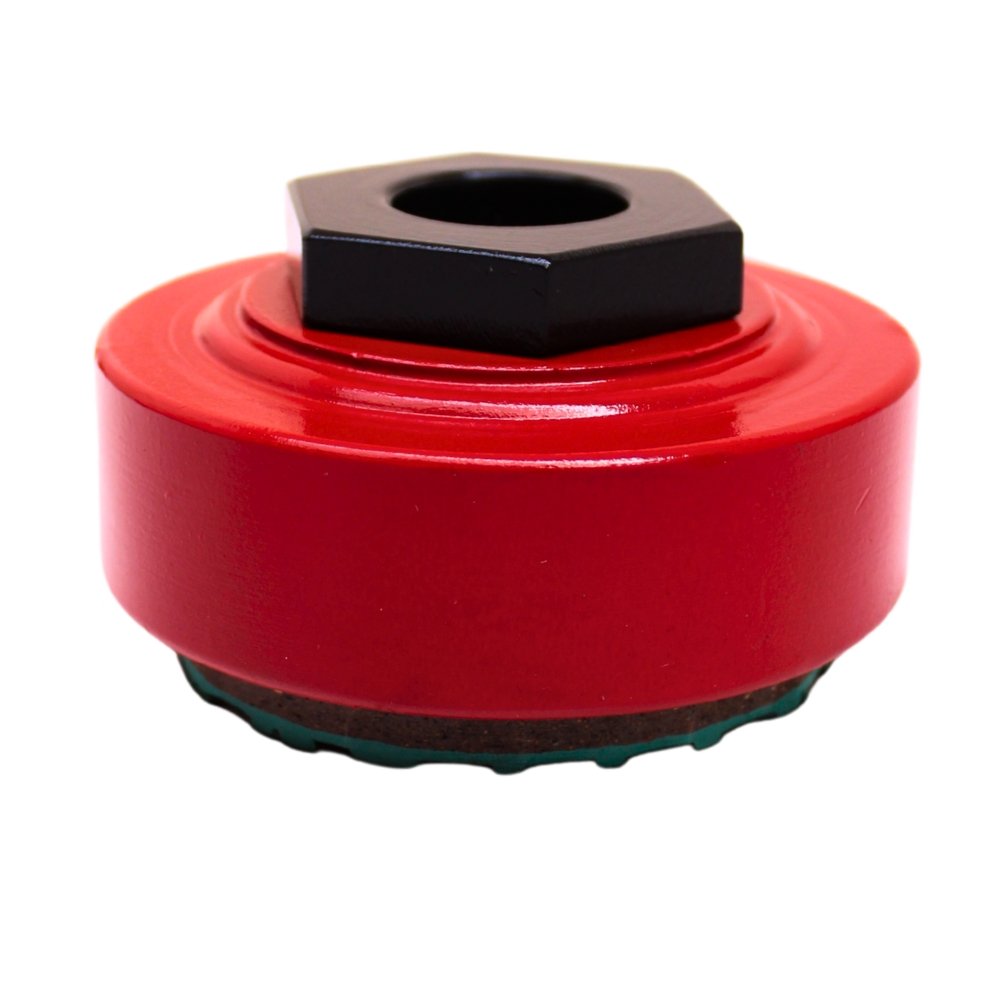

DJM-T
| Model | Load Capacity (Kg) | Height (H) (mm) | Dia (D)(mm) |
|---|---|---|---|
| DJM0-T-U-FG-RD | 850 | 49 | 90 |
| DJM1-T-U-FG-RD | 1500 | 49 | 120 |
| DJM2-T-U-FG-RD | 2500 | 49 | 160 |
| DJM0-T-M-FG-RD | 440 | 49 | 90 |
| DJM1-T-M-FG-RD | 860 | 49 | 120 |
| DJM2-T-M-FG-RD | 1680 | 49 | 160 |
| DJM0-T-I-FG-RD | 610 | 59 | 90 |
| DJM1-T-I-FG-RD | 1210 | 59 | 120 |
| DJM2-T-I-FG-RD | 2310 | 59 | 160 |
