Dhs2
Model

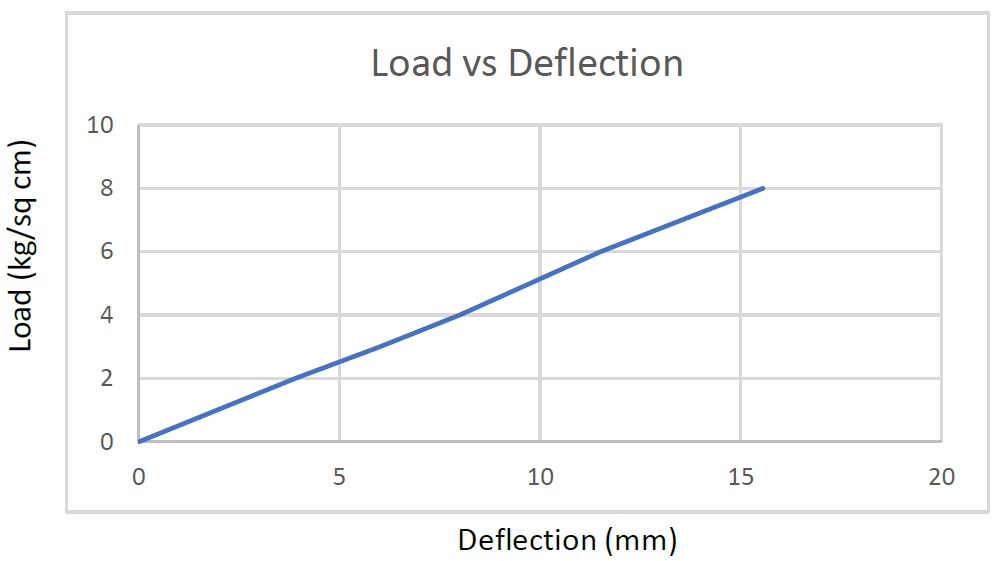

Load vs Deflection

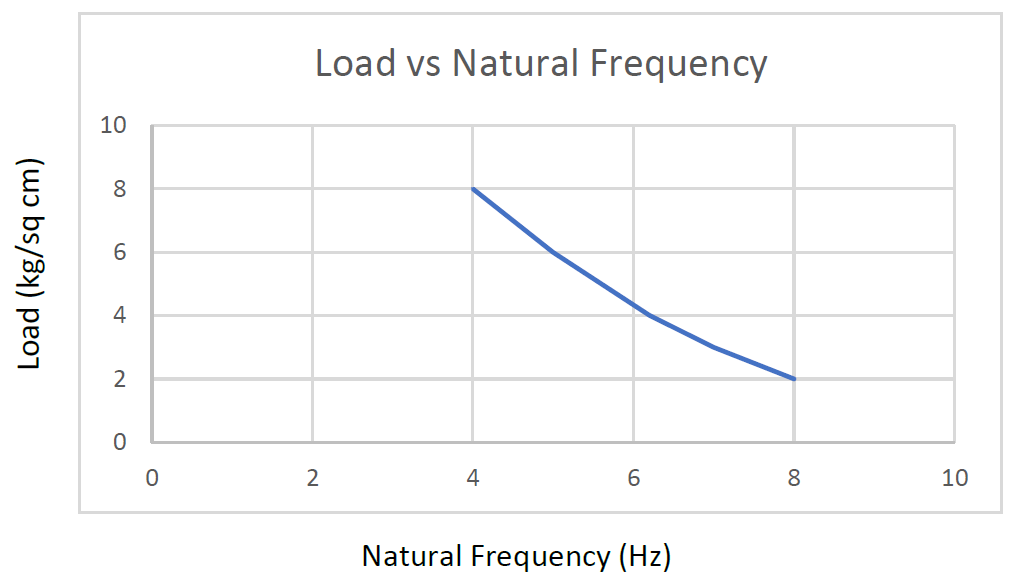

Load vs Natural Frequency
Description
Dynemech Anti-vibration Dhs2 Insulation Plate is made from high grade synthetic composite material. This sheet is resistant to water, oils, lubricating oils, fuels, etc. used in shop floor. This sheet has defined stress value and can be placed directly under the machine as per the weight of the machine and no. of mounting positions. This sheet will not deform plastically, if the weight of machine does not exceed maximum load value of this insulation plate.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
Technical Data
Thickness (mm)
65
Hardness (+/-5) (Shore A)
60-65
Tensile Strength (min) Kg/cm²
100
Elongation at break (min) %
300%
Temperature Range ° C
-20 to +70
Load (Kg/ sq cm)
02-08
Natural Frequency (Hz)
8-4
Coeff. of Friction
0.8
Oil & Chemical Resistance
Resistant to fuels, lubricating oils, water etc. used in the shop floor
Construction
Composite material made from Nitrile Rubber
Cork Particles & polyster fiber. The composite material ensures high damping capacity, high compressive strength & high load capacities.
