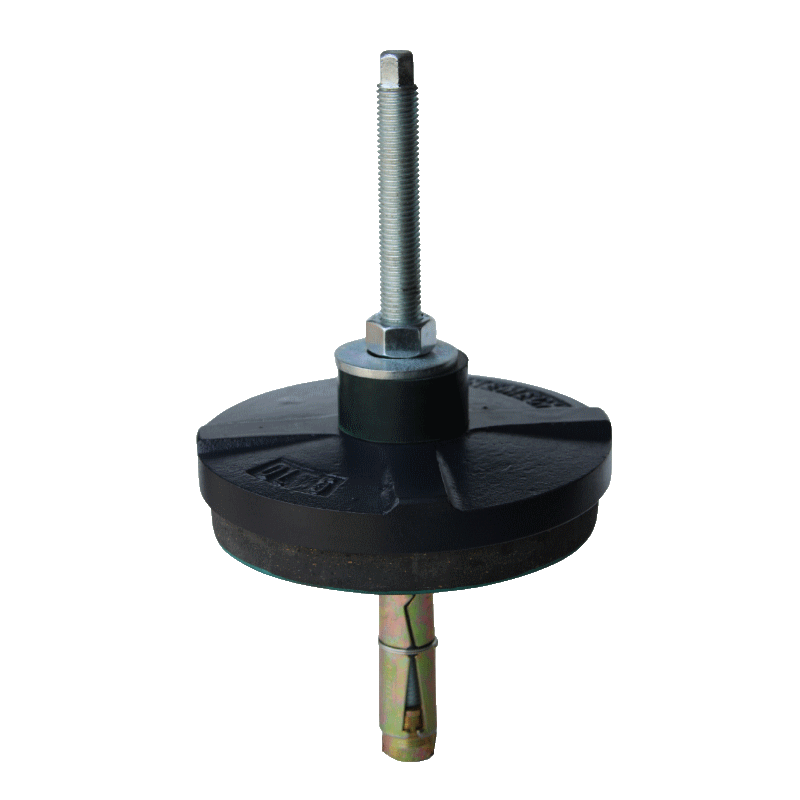

Description

Dynemech DLT series mounts are used in the machines which must be anchored to the floor along with levelling and vibration reduction. Bolts with thru holes are provided in the machine foot, mount and anchored in the floor nut. an insulating disc is provided between the nut and the machine foot to prevent vibration from transmitting in the floor via the bolt. the dimple and the thru hole in the mount are provided as per the bolt specifications of the machine.

Catalogue

Series:

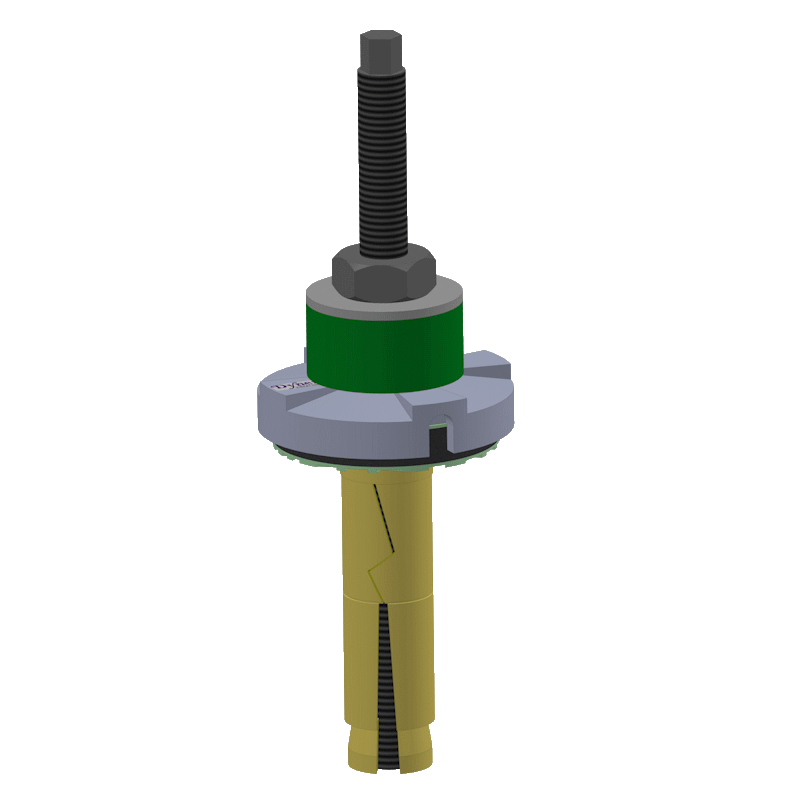

DLT-u

Applications:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-u-55-FG-GR 150 55 21
DLT2-u-85-FG-GR 350 85 28
DLT3-u-112-FG-GR 600 112 28
DLT4-u -135-FG-GR 900 135 30
DLT5-u-160-FG-GR 1400 160 30
DLT6-u-185-FG-GR 1900 185 34
DLT7-u-215-FG-GR 2500 215 35
DLT8-u-249-FG-GR 3500 249 44
DLT9-u-276-FG-GR 4200 276 43

Series:

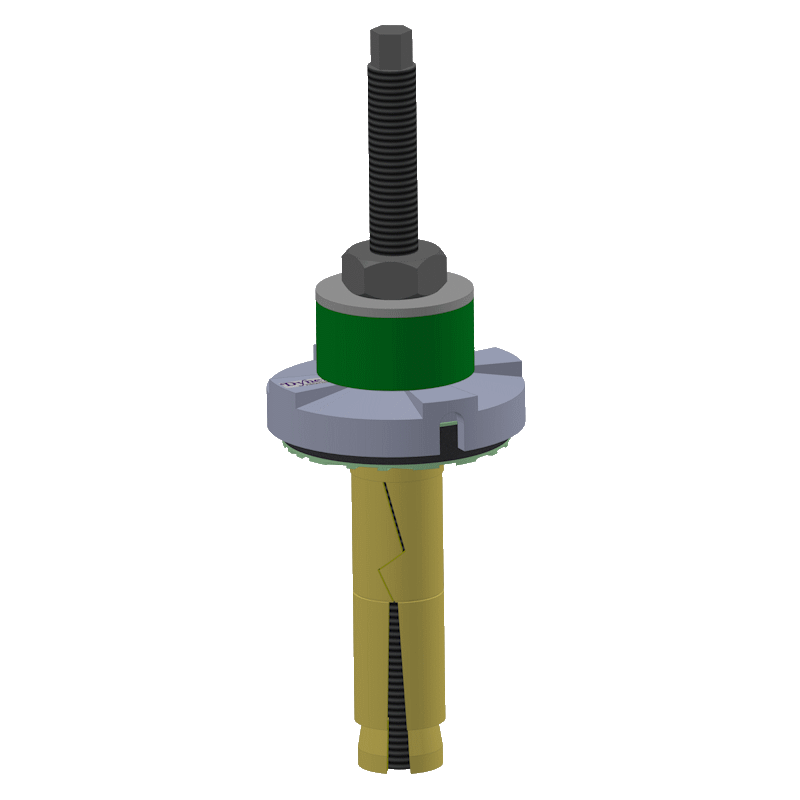

DLT-u-10

Applications:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-u-10-55-FG-GR 150 55 16
DLT2-u-10-85-FG-GR 350 85 23
DLT3-u-10-112-FG-GR 600 112 23
DLT4-u-10 -135-FG-GR 900 135 25
DLT5-u-10-160-FG-GR 1400 160 25
DLT6-u-10-185-FG-GR 1900 185 29
DLT7-u-10-215-FG-GR 2500 215 30
DLT8-u-10-249-FG-GR 3500 249 39
DLT9-u-10-276-FG-GR 4200 276 38

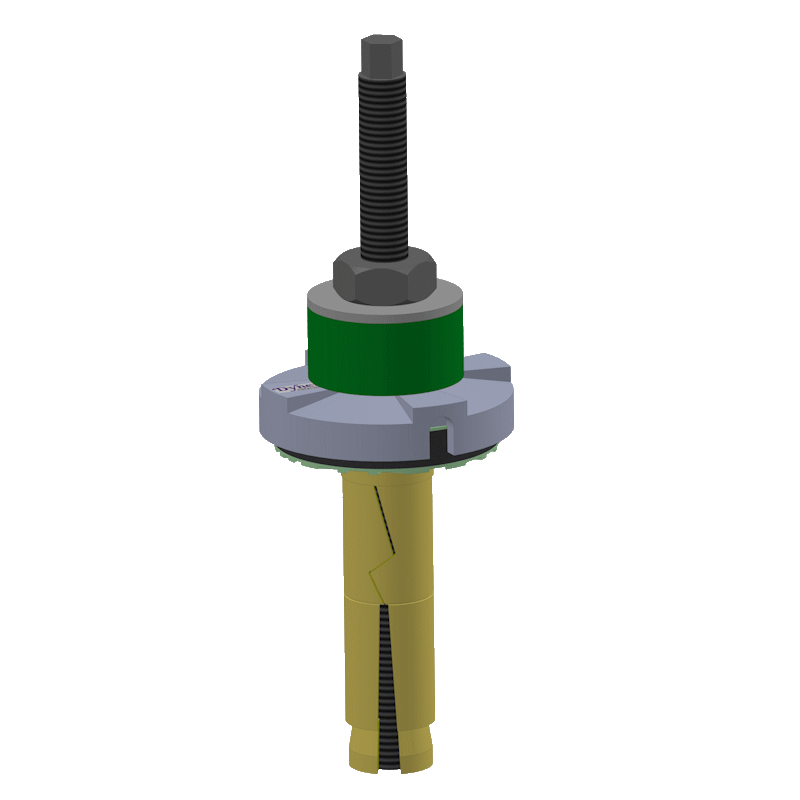

Series:

DLT-u-12

Applications:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-u-12-55-FG-GR 150 55 18
DLT2-u-12-85-FG-GR 350 85 25
DLT3-u-12-112-FG-GR 600 112 25
DLT4-u-12 -135-FG-GR 900 135 27
DLT5-u-12-160-FG-GR 1400 160 27
DLT6-u-12-185-FG-GR 1900 185 31
DLT7-u-12-215-FG-GR 2500 215 32
DLT8-u-12-249-FG-GR 3500 249 41
DLT9-u-12-276-FG-GR 4200 276 40

Series:

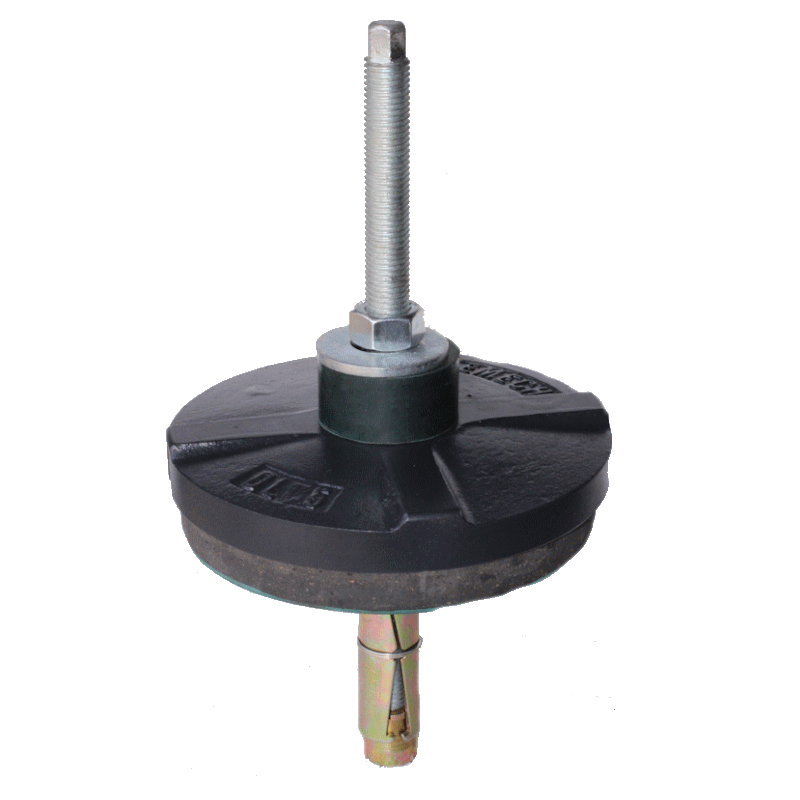

DLT-m

Applications:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-m -55-FG-GR 205 55 21
DLT2-m -85-FG-GR 440 85 28
DLT3-m -112-FG-GR 790 112 28
DLT4-m -135-FG-GR 1230 135 30
DLT5-m -160-FG-GR 1890 160 30
DLT6-m -185-FG-GR 2350 185 34
DLT7-m -215-FG-GR 3240 215 35
DLT8-m-249-FG-GR 3980 249 44
DLT9-m -276-FG-GR 5230 276 43

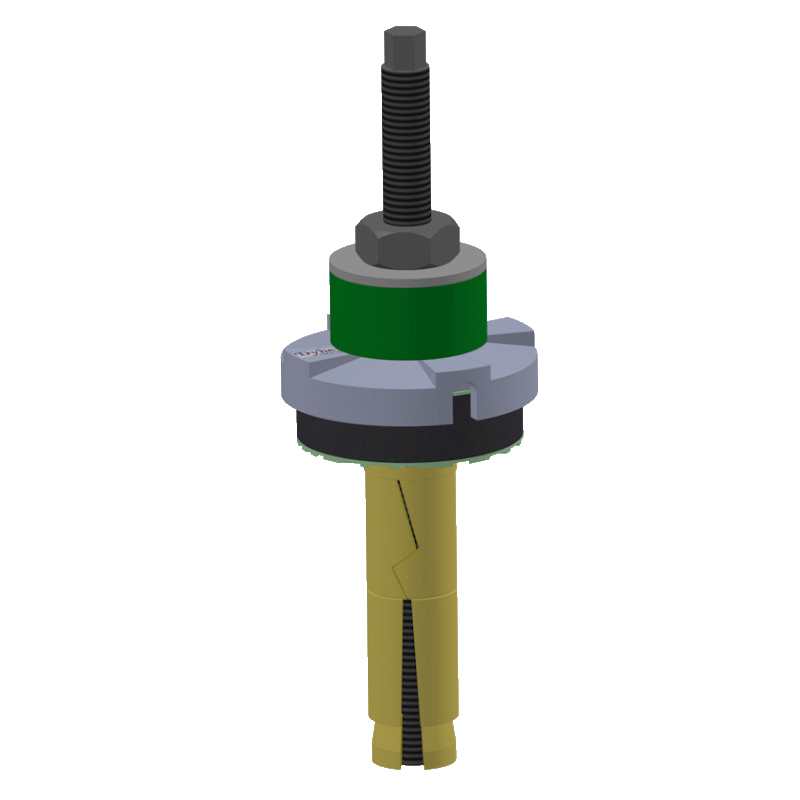

Series:

DLT-i

Applications:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-i -55-FG-GR 290 55 31
DLT2-i -85-FG-GR 620 85 38
DLT3-i -112-FG-GR 1100 112 38
DLT4-i -135-FG-GR 1720 135 40
DLT5-i -160-FG-GR 2640 160 40
DLT6-i -185-FG-GR 3290 185 44
DLT7-i -215-FG-GR 4530 215 45
DLT8-i -249-FG-GR 5570 249 54
DLT9-i -276-FG-GR 7320 276 53

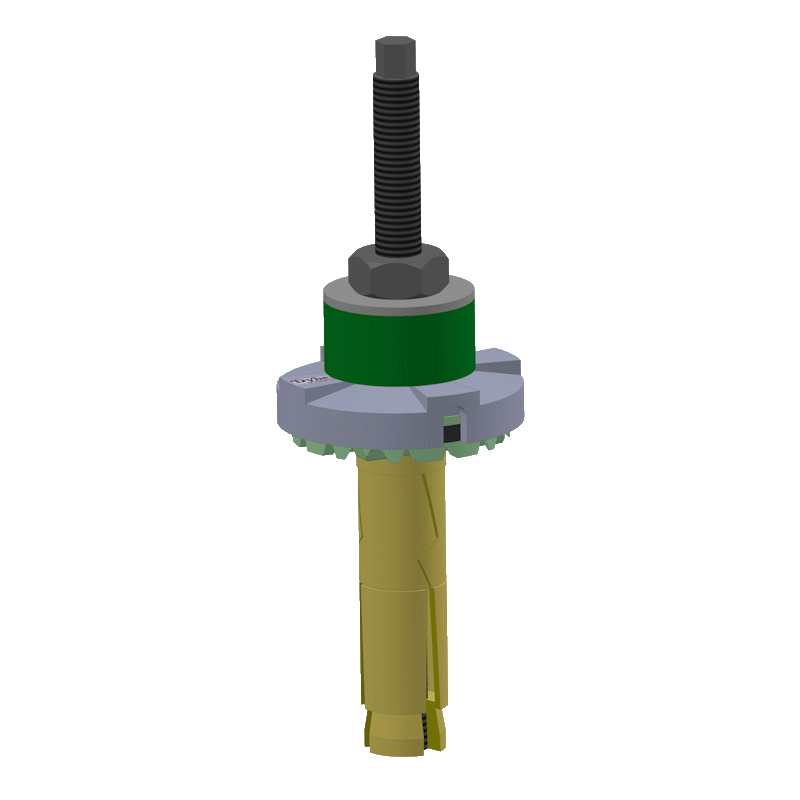

Series:

DLT-p1

Applications:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-p1 -55-FG-GR 70 55 21
DLT2-p1 -85-FG-GR 180 85 28
DLT3-p1 -112-FG-GR 300 112 28
DLT4-p1 -135-FG-GR 490 135 30
DLT5-p1 -160-FG-GR 760 160 30
DLT6-p1 -185-FG-GR 940 185 34
DLT7-p1-215-FG-GR 1500 215 35
DLT8-p1 -249-FG-GR 1590 249 44
DLT9-p1 -276-FG-GR 2090 276 43

Series:

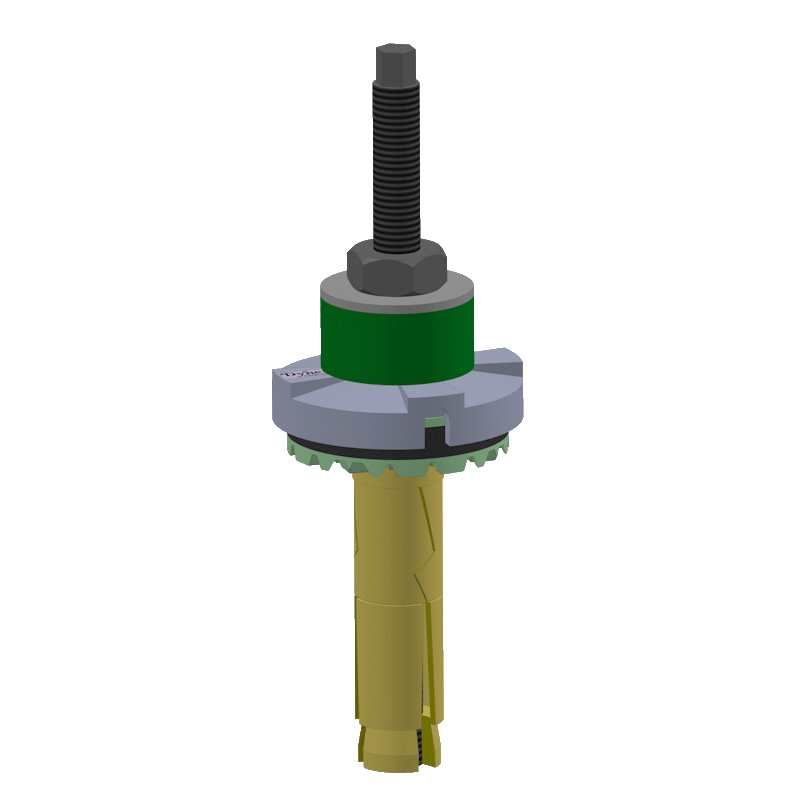

DLT-p2

Applications:

Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-p2-55-FG-GR 100 55 26
DLT2-p2 -85-FG-GR 200 85 33
DLT3-p2-112-FG-GR 400 112 33
DLT4-p2 -135-FG-GR 600 135 35
DLT5-p2 -160-FG-GR 700 160 35
DLT6-p2 -185-FG-GR 1200 185 39
DLT7-p2-215-FG-GR 1500 215 40
DLT8-p2 -249-FG-GR 2000 249 49
DLT9-p2 -276-FG-GR 2500 276 48

Series:

DLT-p3

Applications:

Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-p3 -55-FG-GR 110 55 30
DLT2-p3 -85-FG-GR 270 85 37
DLT3-p3 -112-FG-GR 460 112 37
DLT4-p3 -135-FG-GR 740 135 39
DLT5-p3 -160-FG-GR 1140 160 39
DLT6-p3 -185-FG-GR 1410 185 43
DLT7-p3-215-FG-GR 1950 215 44
DLT8-p3 -249-FG-GR 2390 249 53
DLT9-p3 -276-FG-GR 3140 276 52

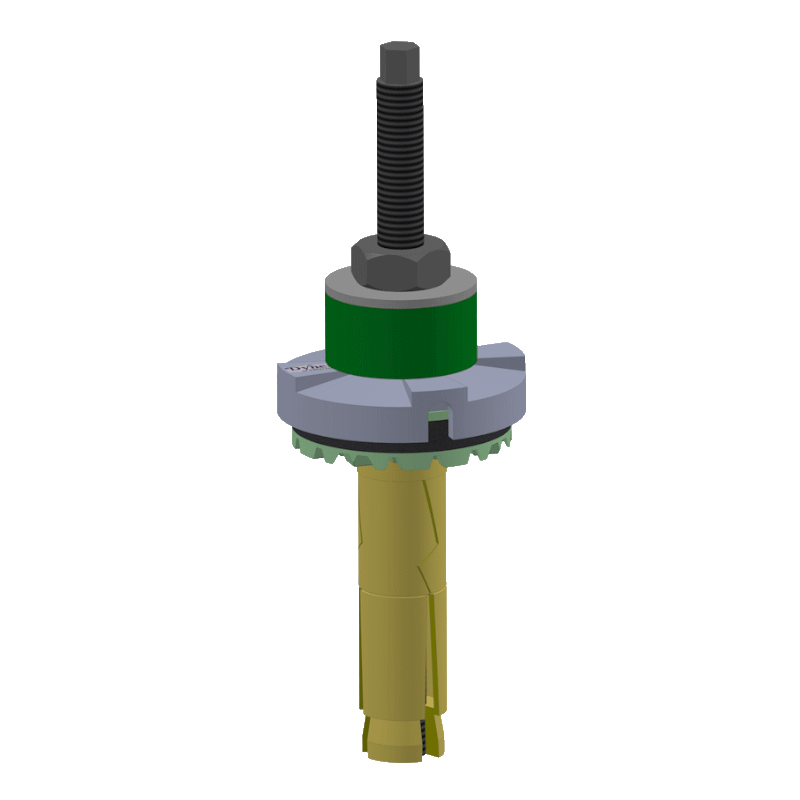

Series:

DLT-s1

Applications:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-s1 -55-FG-GR 110 55 26
DLT2-s1 -85-FG-GR 220 85 33
DLT3-s1 -112-FG-GR 380 112 33
DLT4-s1 -135-FG-GR 620 135 35
DLT5-s1 -160-FG-GR 950 160 35
DLT6-s1 -185-FG-GR 1180 185 39
DLT7-s1-215-FG-GR 1620 215 40
DLT8-s1 -249-FG-GR 2250 249 49
DLT9-s1-276-FG-GR 2620 276 48

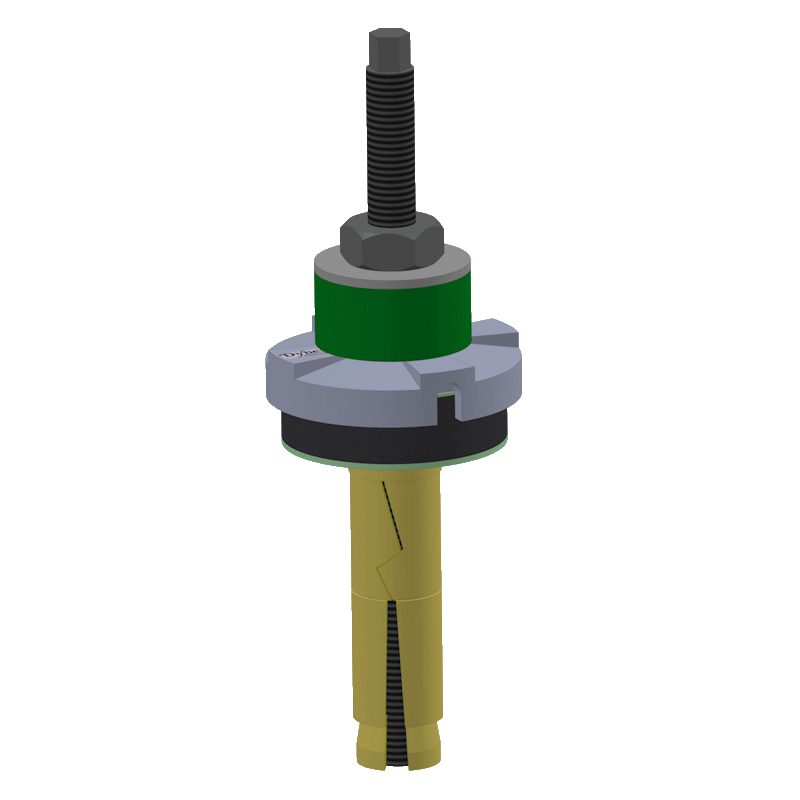

Series:

DLT-s2

Applications:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-s2 -55-FG-GR 125 55 31
DLT2-s2 -85-FG-GR 300 85 38
DLT3-s2 -112-FG-GR 550 112 38
DLT4-s2 -135-FG-GR 850 135 40
DLT5-s2 -160-FG-GR 1250 160 40
DLT6-s2 -185-FG-GR 1700 185 44
DLT7-s2-215-FG-GR 2200 215 45
DLT8-s2 -249-FG-GR 2800 249 54
DLT9-s2 -276-FG-GR 3500 276 53

Series:

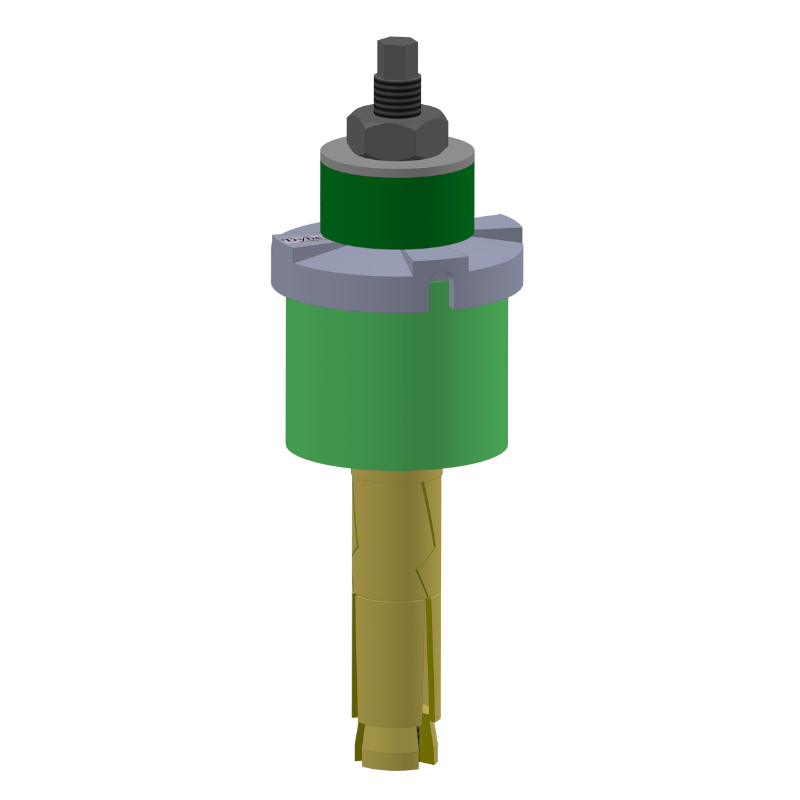

DLT-hs1

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-hs1 -55-FG-GR 410 55 71
DLT2-hs1-85-FG-GR 880 85 78
DLT3-hs1 -112-FG-GR 1570 112 78
DLT4-hs1 -135-FG-GR 2450 135 80
DLT5-hs1 -160-FG-GR 3770 160 80
DLT6-hs1 -185-FG-GR 4700 185 84
DLT7-hs1-215-FG-GR 6470 215 85
DLT8-hs1 -249-FG-GR 7950 249 94
DLT9-hs1 -276-FG-GR 10450 276 93

Series:

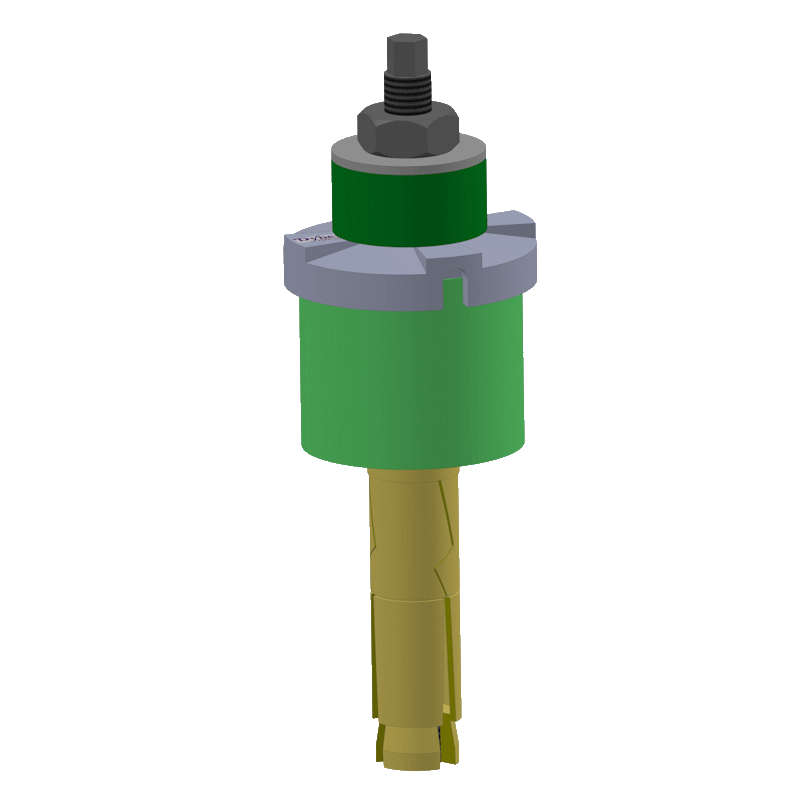

DLT-hs2

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-hs2 -55-FG-GR 160 55 71
DLT2-hs2 -85-FG-GR 350 85 78
DLT3-hs2-112-FG-GR 630 112 78
DLT4-hs2 -135-FG-GR 780 135 80
DLT5-hs2 -160-FG-GR 1510 160 80
DLT6-hs2 -185-FG-GR 1880 185 84
DLT7-hs2-215-FG-GR 2590 215 85
DLT8-hs2 -249-FG-GR 3180 249 94
DLT9-hs2 -276-FG-GR 4180 276 93

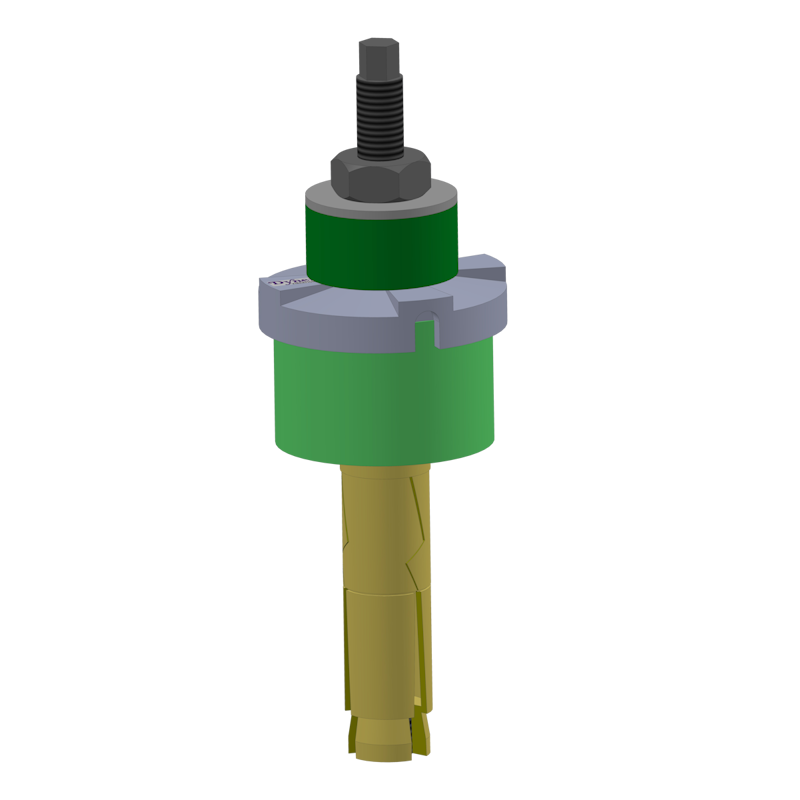

Series:

DLT-hs3

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-hs3 -55-FG-GR 570 55 56
DLT2-hs3 -85-FG-GR 1240 85 63
DLT3-hs3 -112-FG-GR 2200 112 63
DLT4-hs3 -135-FG-GR 3440 135 65
DLT5-hs3 -160-FG-GR 5280 160 65
DLT6-hs3 -185-FG-GR 6580 185 69
DLT7-hs3 -215-FG-GR 9060 215 70
DLT8-hs3 -249-FG-GR 11130 249 79
DLT9-hs3 -276-FG-GR 14640 276 78

Series:

DLT-hs4

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-hs4 -55-FG-GR 245 55 56
DLT2-hs4 -85-FG-GR 530 85 63
DLT3-hs4 -112-FG-GR 940 112 63
DLT4-hs4 -135-FG-GR 1470 135 65
DLT5-hs4 -160-FG-GR 2270 160 65
DLT6-hs4 -185-FG-GR 2820 185 69
DLT7-hs4 -215-FG-GR 3880 215 70
DLT8-hs4 -249-FG-GR 4770 249 79
DLT9-hs4 -276-FG-GR 6270 276 78

Series:

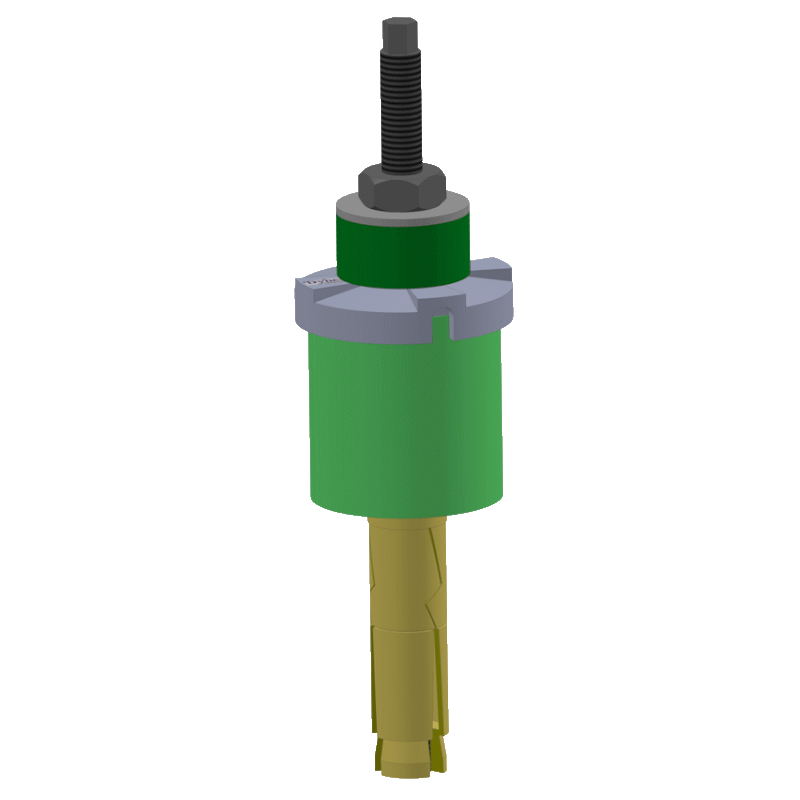

DLT-hs5

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-hs5 -55-FG-GR 570 55 86
DLT2-hs5 -85-FG-GR 1240 85 93
DLT3-hs5 -112-FG-GR 2200 112 93
DLT4-hs5 -135-FG-GR 3440 135 95
DLT5-hs5 -160-FG-GR 5280 160 95
DLT6-hs5 -185-FG-GR 6580 185 99
DLT7-hs5 -215-FG-GR 9060 215 100
DLT8-hs5 -249-FG-GR 11130 249 109
DLT9-hs5 -276-FG-GR 14640 276 108

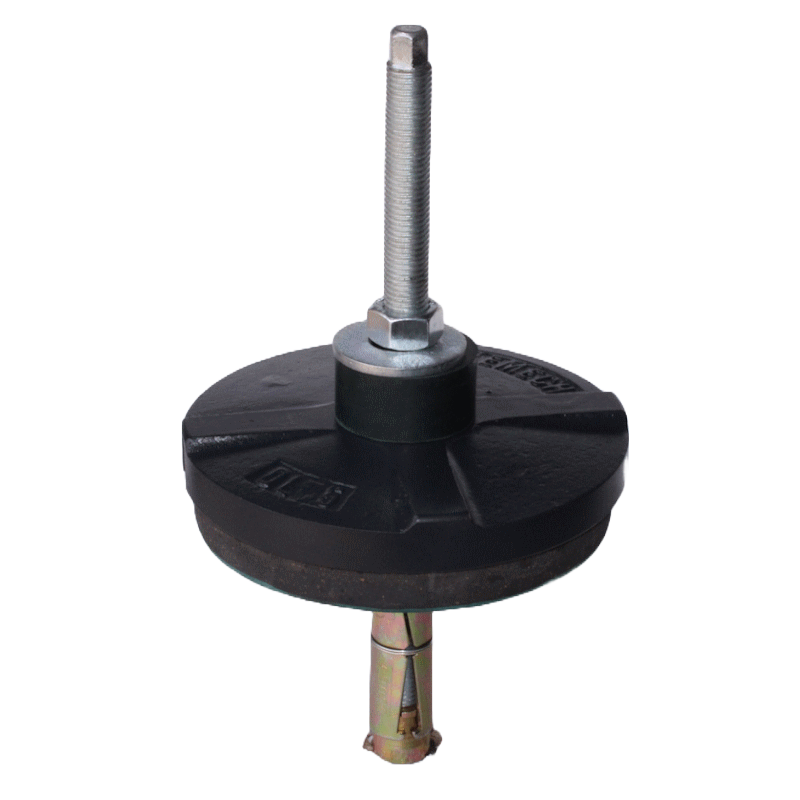

Series:

DLT-h

Applications:

Very Heavy and long bed machines, long machining centres, planners etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-h -55-FG-GR 610 55 21
DLT2-h -85-FG-GR 1330 85 28
DLT3-h -112-FG-GR 2360 112 28
DLT4-h -135-FG-GR 3680 135 30
DLT5-h -160-FG-GR 5660 160 30
DLT6-h -185-FG-GR 7050 185 34
DLT7-h -215-FG-GR 9700 215 35
DLT8-h -249-FG-GR 11930 249 44
DLT9-h -276-FG-GR 15680 276 43

Series:

DLT-a2
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLT1-a2 -55-FG-GR 190 55 14
DLT2-a2 -85-FG-GR 450 85 21
DLT3-a2 -112-FG-GR 800 112 21
DLT4-a2 -135-FG-GR 1150 135 23
DLT5-a2 -160-FG-GR 1750 160 23
DLT6-a2 -185-FG-GR 2400 185 27
DLT7-a2 -215-FG-GR 3200 215 28
DLT8-a2 -249-FG-GR 3975 249 37
DLT9-a2 -276-FG-GR 4900 276 36
