Description

Dynemech DLS series mounts, developed in stainless steel finds application in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries. Provide vibration isolation with complete hygienic seal and corrosion resistance.

Catalogue

Series:

DLs-u

Applications:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-u-55 150 55 21
DLS2-u-85 350 85 28
DLS3-u-112 600 112 28
DLS4-u-135 900 135 30
DLS5-u-160 1400 160 30
DLS6-u-185 1900 185 34
DLS7-u-215 2500 215 35
DLS8-u-249 3500 249 44
DLS9-u-276 4200 276 43

Series:

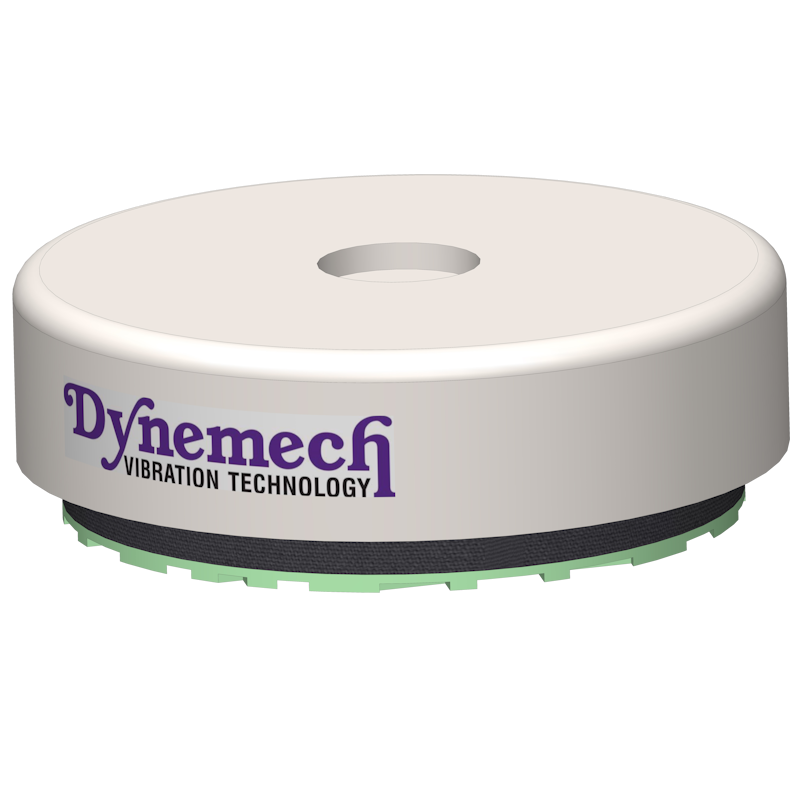

DLs-u-10

Applications:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-u-10-55 150 55 16
DLS2-u-10-85 350 85 23
DLS3-u-10-112 600 112 23
DLS4-u-10-135 900 135 25
DLS5-u-10-160 1400 160 25
DLS6-u-10-185 1900 185 29
DLS7-u-10-215 2500 215 30
DLS8-u-10-249 3500 249 39
DLS9-u-10-276 4200 276 38

Series:

DLs-u-12

Applications:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-u-12-55 150 55 18
DLS2-u-12-85 350 85 25
DLS3-u-12-112 600 112 25
DLS4-u-12-135 900 135 27
DLS5-u-12-160 1400 160 27
DLS6-u-12-185 1900 185 31
DLS7-u-12-215 2500 215 32
DLS8-u-12-249 3500 249 41
DLS9-u-12-276 4200 276 40

Series:

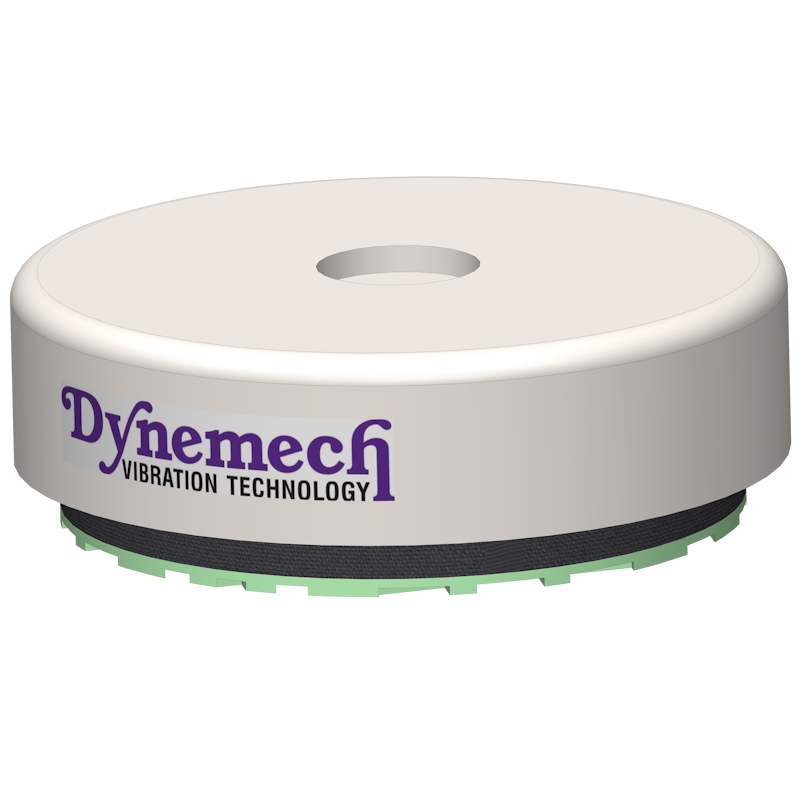

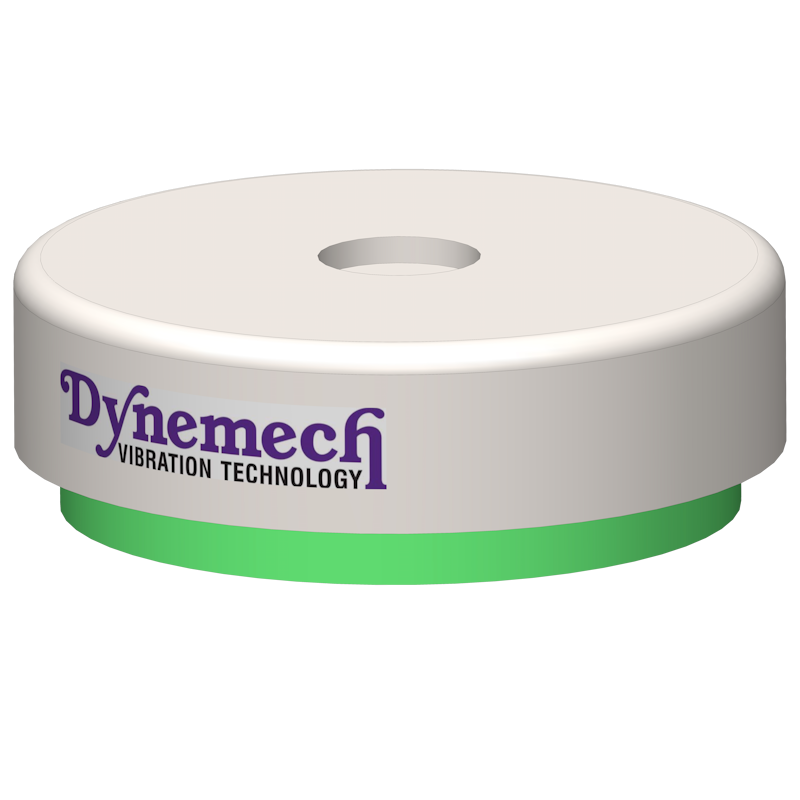

DLs-m

Applications:

Lathe Machines, Milling Machines, Grinding Machines, Machining Centres, Turning Centres etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-m-55 190 55 21
DLS2-m-85 450 85 28
DLS3-m-112 800 112 28
DLS4-m-135 1150 135 30
DLS5-m-160 1750 160 30
DLS6-m-185 2400 185 34
DLS7-m-215 3200 215 35
DLS8-m-249 4000 249 44
DLS9-m-276 5000 276 43

Series:

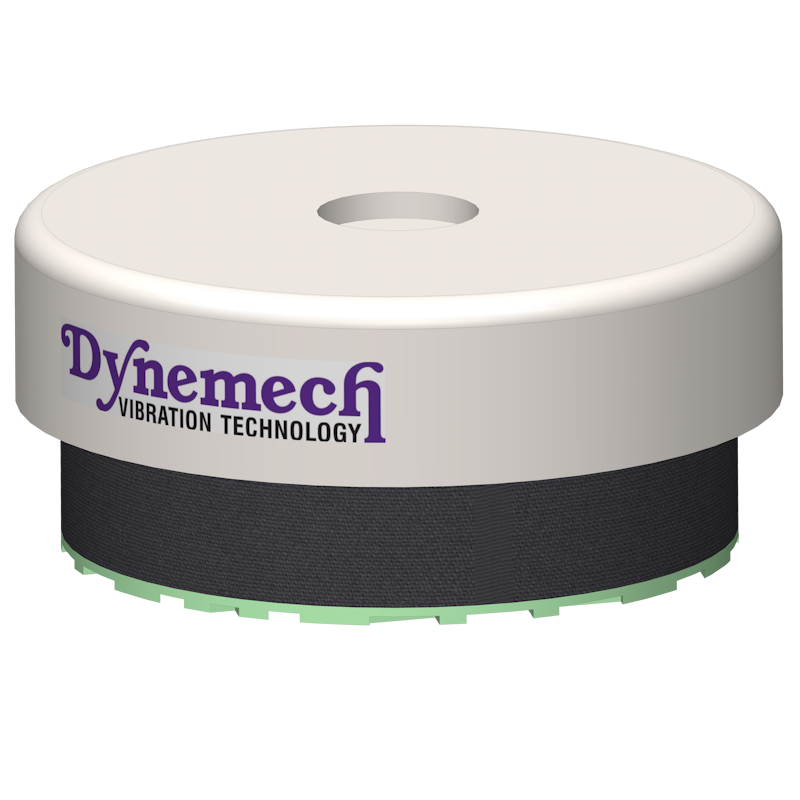

DLs-i

Applications:

Power Presses, Punching Machines, Stamping Machines, Shearing Machines etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-I-55 250 55 31
DLS2-I-85 575 85 38
DLS3-I-112 1000 112 38
DLS4-I-135 1600 135 40
DLS5-I-160 2300 160 40
DLS6-I-185 3100 185 44
DLS7-I-215 4000 215 45
DLS8-I-249 5200 249 54
DLS9-I-276 6500 276 53

Series:

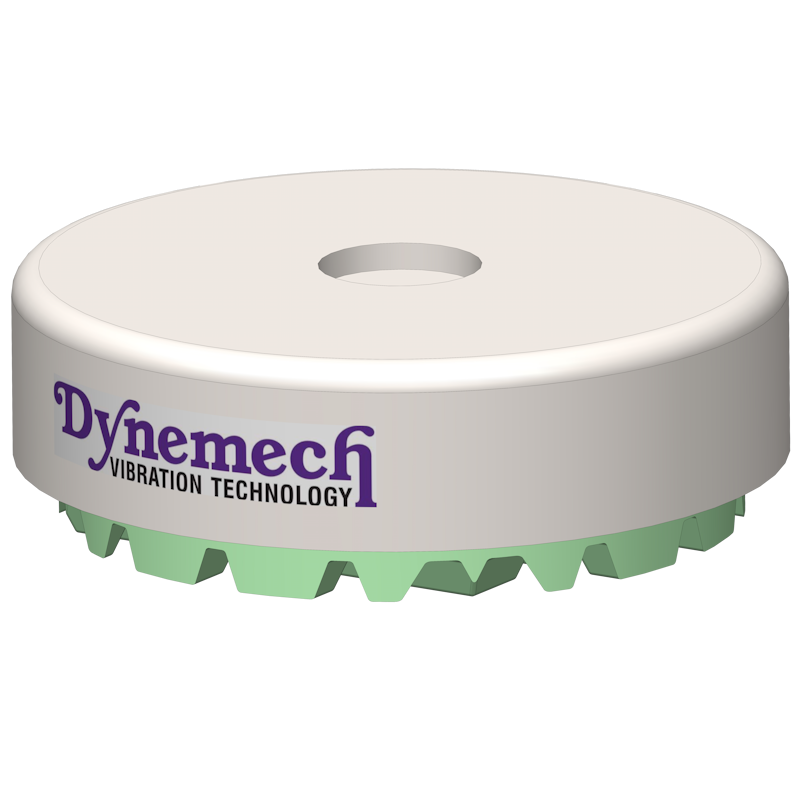

DLs-p1

Applications:

Tuned to low natural frequency; suitable for passive vibration control of Measuring & Testing Machines, Grinders etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-p1-55 75 55 21
DLS2-p1-85 175 85 28
DLS3-p1-112 300 112 28
DLS4-p1-135 500 135 30
DLS5-p1-160 700 160 30
DLS6-p1-185 950 185 34
DLS7-p1-215 1250 215 35
DLS8-p1-249 1500 249 44
DLS9-p1-276 1900 276 43

Series:

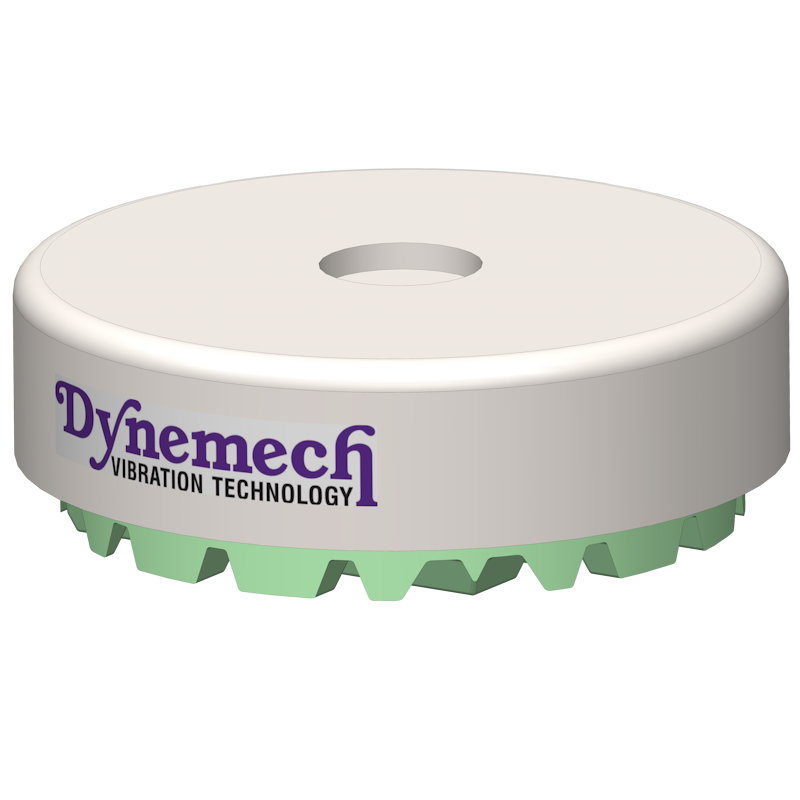

DLs-p2

Applications:

Suitable for passive vibration control of Measuring & Testing Machines; maintains machine stability along the vibration reduction.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-p2-55 80 55 26
DLS2-p2-85 220 85 33
DLS3-p2-112 410 112 33
DLS4-p2-135 620 135 35
DLS5-p2-160 900 160 35
DLS6-p2-185 1200 185 39
DLS7-p2-215 1600 215 40
DLS8-p2-249 2000 249 49
DLS9-p2-276 2600 276 48

Series:

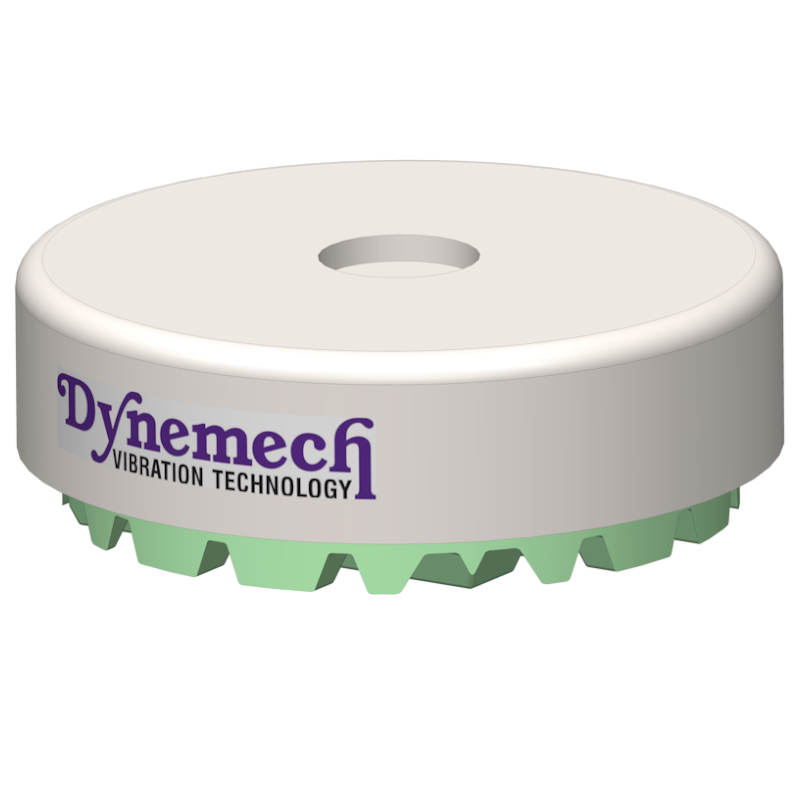

DLs-p3

Applications:

Tuned to low natural frequency; suitable for both active & passive vibration isolation of metrology and production machines.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-p3-55 95 55 30
DLS2-p3-85 270 85 37
DLS3-p3-112 490 112 37
DLS4-p3-135 740 135 39
DLS5-p3-160 1060 160 39
DLS6-p3-185 1400 185 43
DLS7-p3-215 1950 215 44
DLS8-p3-249 2400 249 53
DLS9-p3-276 3150 276 52

Series:

DLs-s1

Applications:

Light Weight Presses, Tool Room Machines, Compressors etc. on ground floors and upper floors.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-s1-55 80 55 26
DLS2-s1-85 200 85 33
DLS3-s1-112 375 112 33
DLS4-s1-135 575 135 35
DLS5-s1-160 800 160 35
DLS6-s1-185 1100 185 39
DLS7-s1-215 1500 215 40
DLS8-s1-249 1900 249 49
DLS9-s1-276 2400 276 48

Series:

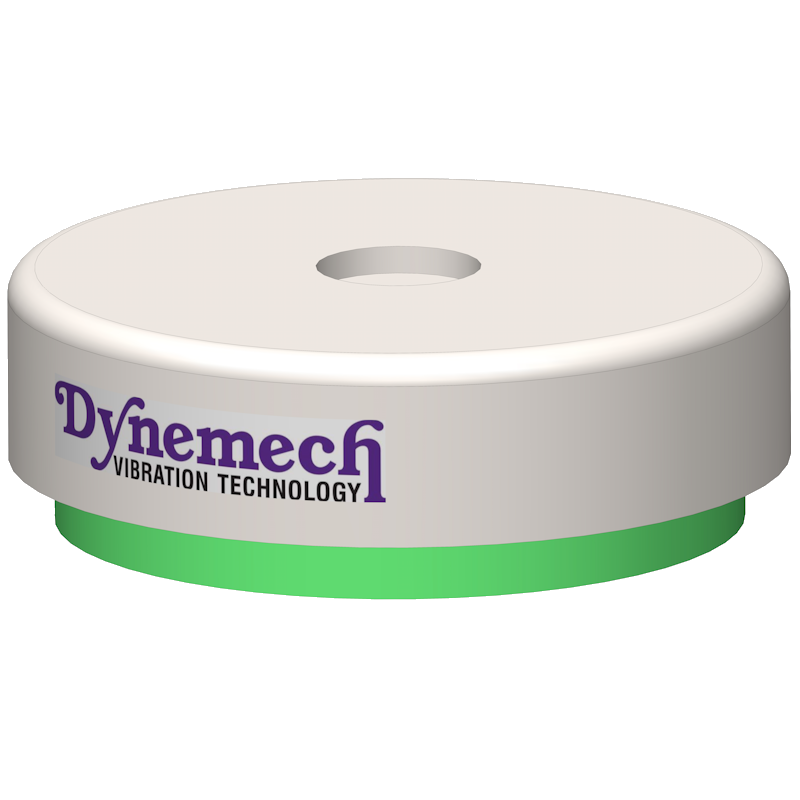

DLs-s2

Applications:

High vibration insulation for both active and passive range, Medium Presses, Stamping Machines, also well suited for high-speed rotating machines on upper floors.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-s2-55 125 55 31
DLS2-s2-85 300 85 38
DLS3-s2-112 550 112 38
DLS4-s2-135 850 135 40
DLS5-s2-160 1250 160 40
DLS6-s2-185 1700 185 44
DLS7-s2-215 2200 215 45
DLS8-s2-249 2800 249 54
DLS9-s2-276 3500 276 53

Series:

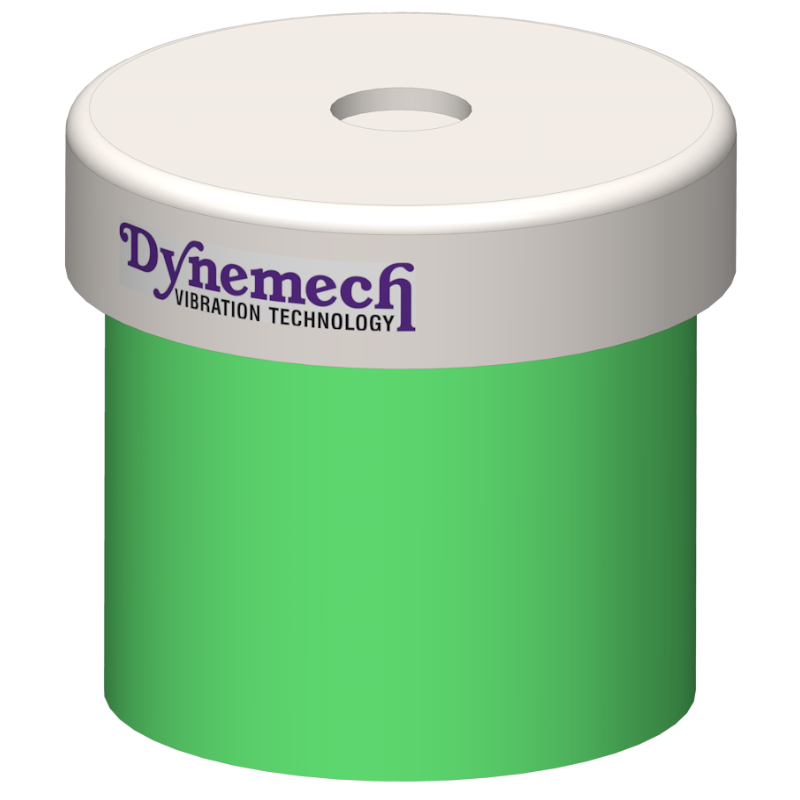

DLs-hs1

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-hs1-55 300 55 71
DLS2-hs1-85 880 85 78
DLS3-hs1-112 1630 112 78
DLS4-hs1-135 2450 135 80
DLS5-hs1-160 3530 160 80
DLS6-hs1-185 4750 185 84
DLS7-hs1-215 6470 215 85
DLS8-hs1-249 7950 249 94
DLS9-hs1-276 10450 276 93

Series:

DLs-hs2

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-hs2-55 120 55 71
DLS2-hs2-85 350 85 78
DLS3-hs2-112 650 112 78
DLS4-hs2-135 980 135 80
DLS5-hs2-160 1410 160 80
DLS6-hs2-185 1900 185 84
DLS7-hs2-215 2590 215 85
DLS8-hs2-249 3180 249 94
DLS9-hs2-276 4180 276 93

Series:

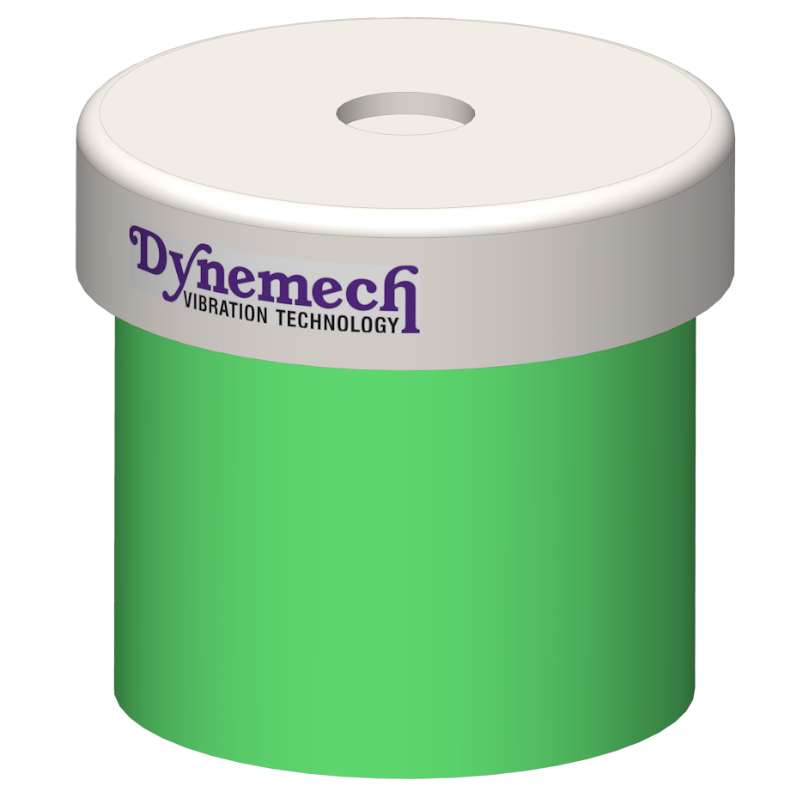

DLs-hs3

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-hs3-55 430 55 56
DLS2-hs3-85 1240 85 63
DLS3-hs3-112 2290 112 63
DLS4-hs3-135 3440 135 65
DLS5-hs3-160 4950 160 65
DLS6-hs3-185 6500 185 69
DLS7-hs3-215 9070 215 70
DLS8-hs3-249 11140 249 79
DLS9-hs3-276 17870 276 78

Series:

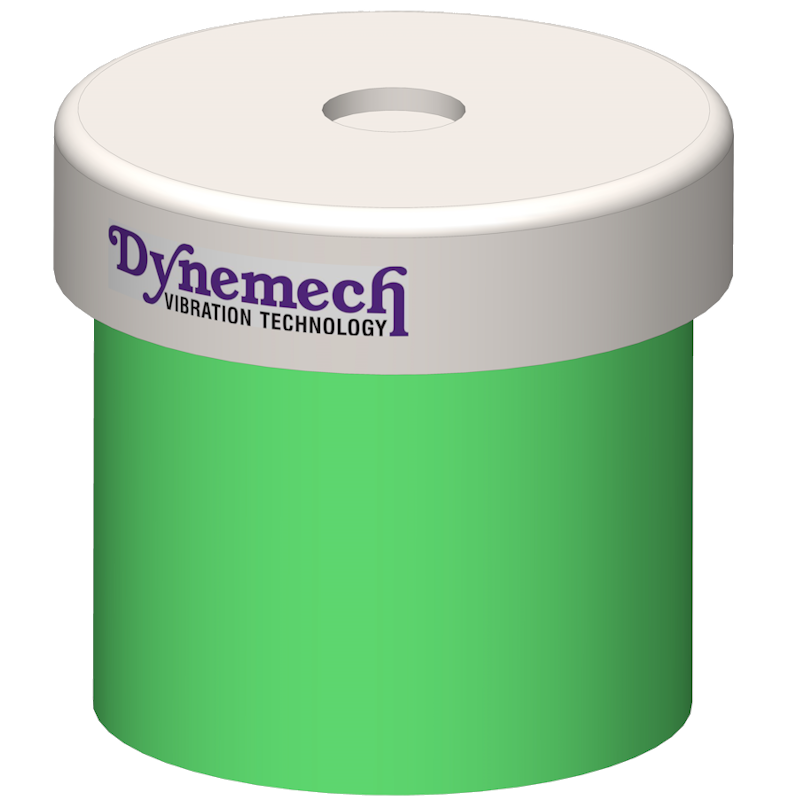

DLs-hs4

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-hs4-55 180 55 56
DLS2-hs4-85 530 85 63
DLS3-hs4-112 980 112 63
DLS4-hs4-135 1470 135 65
DLS5-hs4-160 2120 160 65
DLS6-hs4-185 2850 185 69
DLS7-hs4-215 3880 215 70
DLS8-hs4-249 4770 249 79
DLS9-hs4-276 6270 276 78

Series:

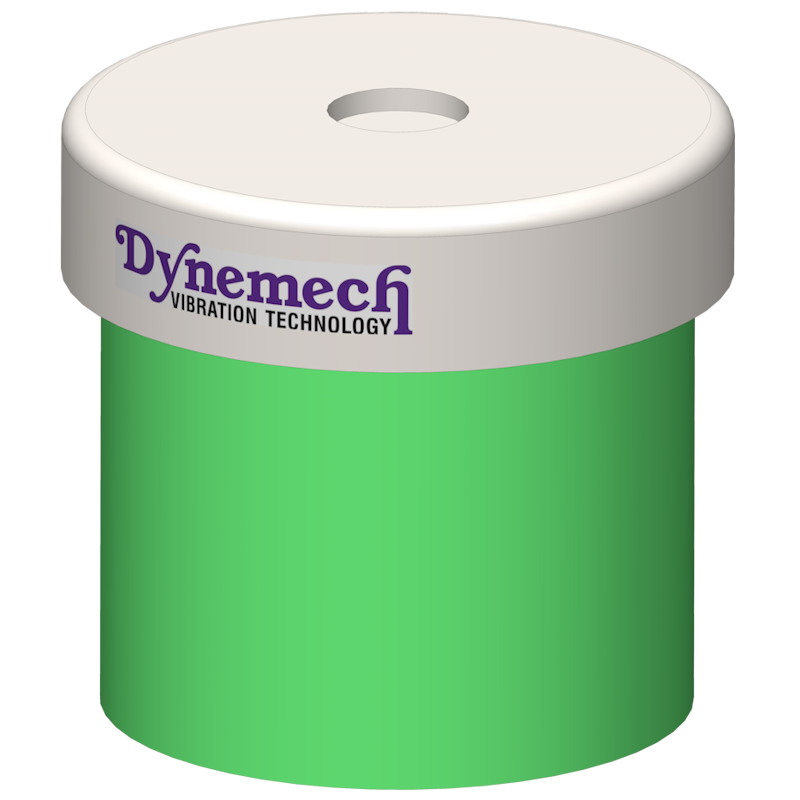

DLs-hs5

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-hs5-55 430 55 86
DLS2-hs5-85 1240 85 93
DLS3-hs5-112 2290 112 93
DLS4-hs5-135 3440 135 95
DLS5-hs5-160 4950 160 95
DLS6-hs5-185 6500 185 99
DLS7-hs5-215 9070 215 100
DLS8-hs5-249 11140 249 109
DLS9-hs5-276 17870 276 108

Series:

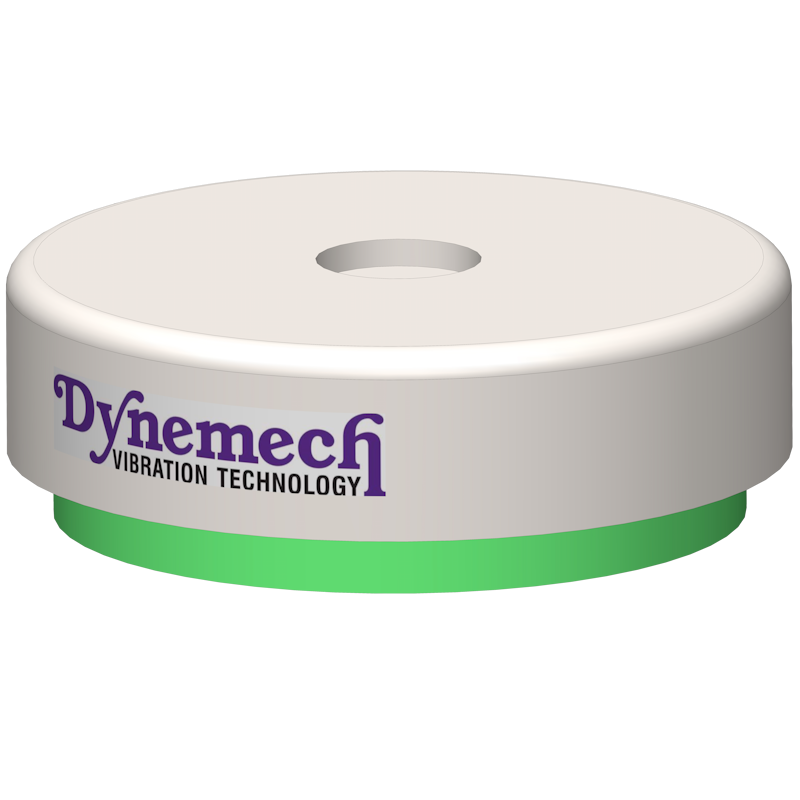

DLs-h

Applications:

Very Heavy and Long Bed Machines, Long Machining Centres, Planners etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DLS1-h-55 460 55 21
DLS2-h-85 1330 85 28
DLS3-h-112 2450 112 28
DLS4-h-135 3680 135 30
DLS5-h-160 5300 160 30
DLS6-h-185 7140 185 34
DLS7-h-215 9700 215 35
DLS8-h-249 11930 249 44
DLS9-h-276 15690 276 43
