TSOH1-DP-SP1-135

Model
Adjustment Configuration

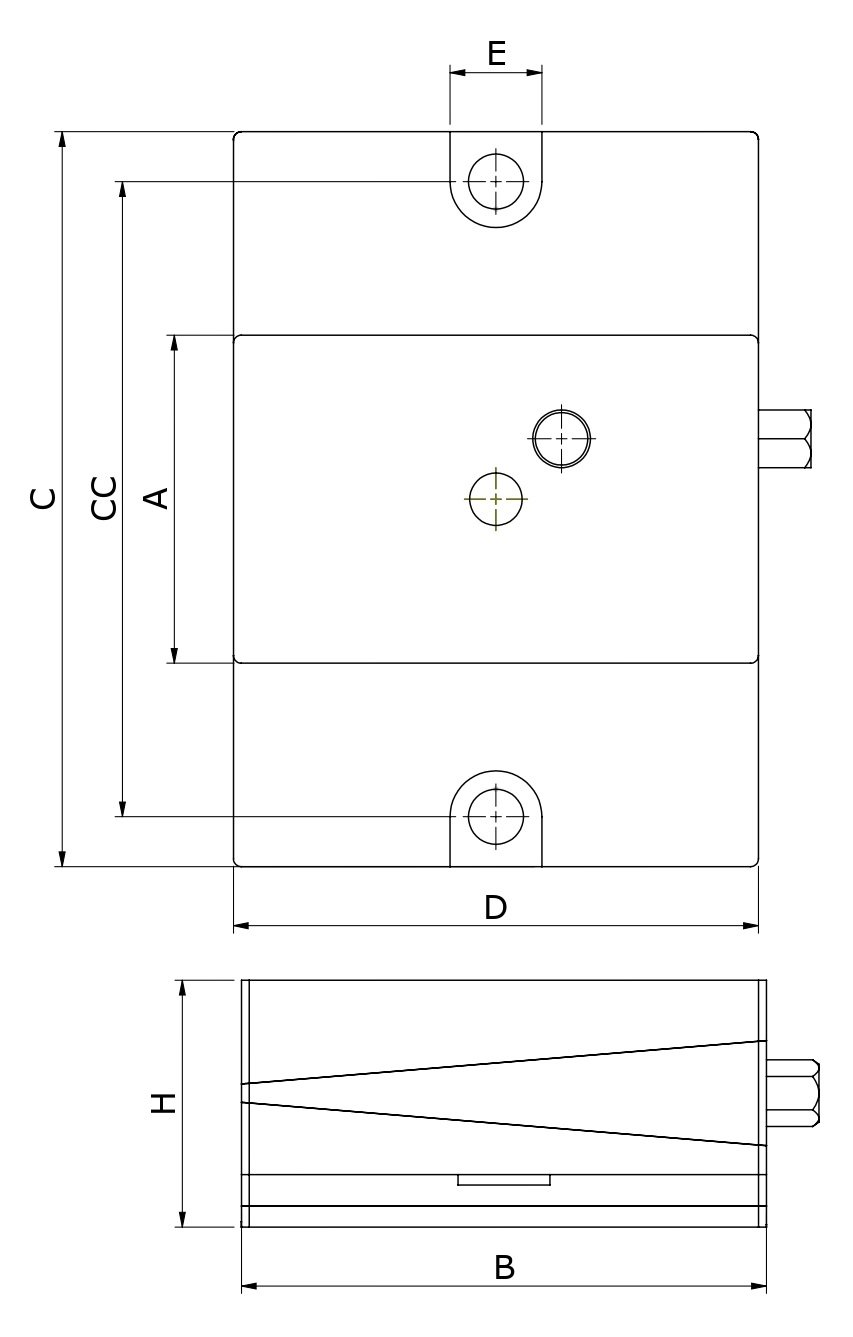

Dimensional Details
Installation 01
Installation 02

Description

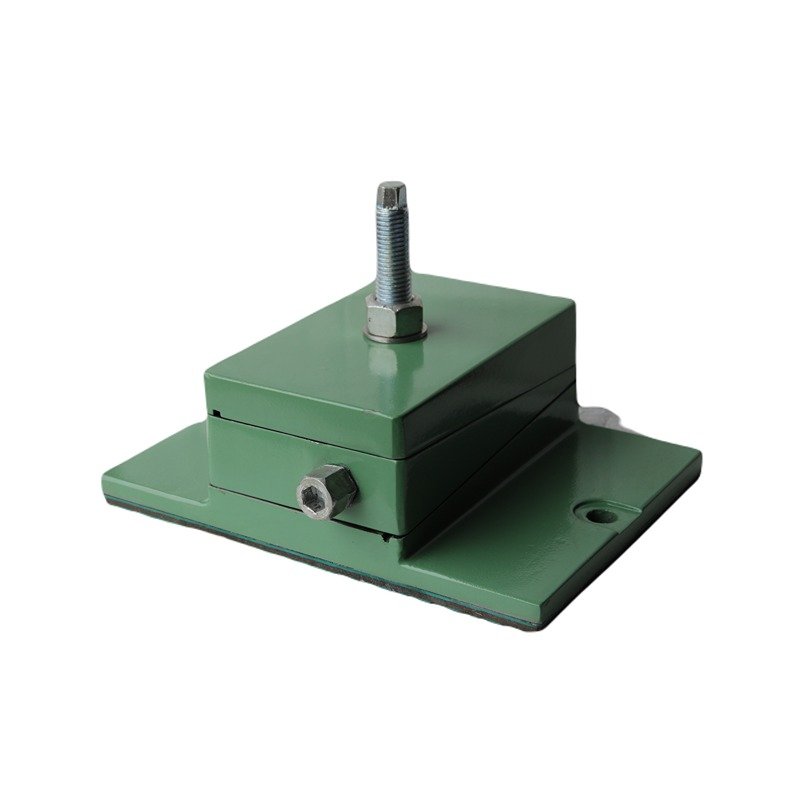

Taper Shim Levelling Mounts, Series TSOH have a flange at the bottom to provide precise levelling after fixing the structure to the ground for stiff support to the equipment. Their innovative casted taper shim plate design ensures optimal weight distribution, resulting in remarkable horizontal stability across the entire levelling range. Despite the tendency of machines to move, the floor anchor functions to increase stability rather than even for machines which produce high horizontal forces or for machines in which the center of gravity lies much above the center of the machine such as pressure die casting, injection molding machines, presses, industrial pumps and stamping machines.

Technical Data

Model Catologue
Load Capacity Kg/pc
2000
Adjustment Range (mm)
10
Height H (mm)
135
Top Plate (AxB)
250×125
Bottom plate (CxD)
250×200
Threaded Hole
M18
CC (mm)
210
E (mm)
32
