SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degree despite the angle difference between machine base and foundation. The pressure on the insulation plates remain even. thus, better alignment is possible. variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirenments.
DTSP1-p1-22T-FG-GR
Model

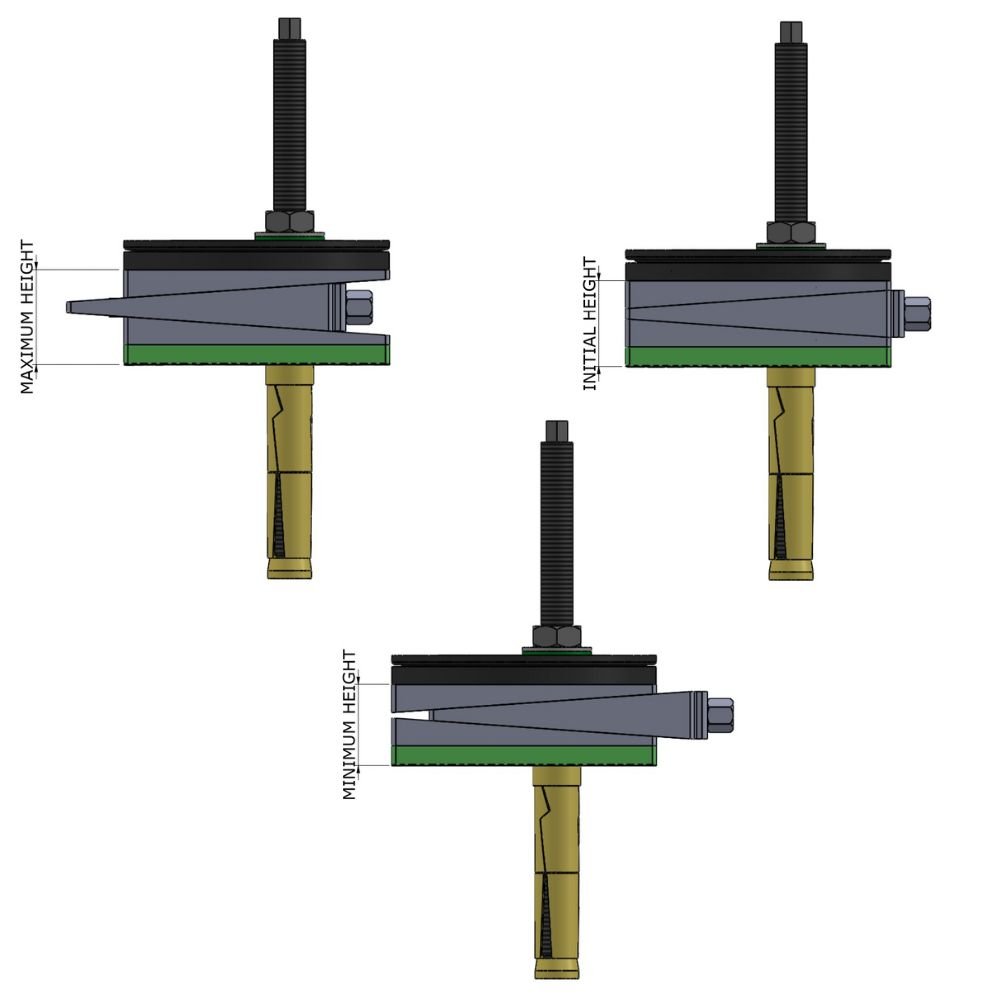

Adjustment Configuration

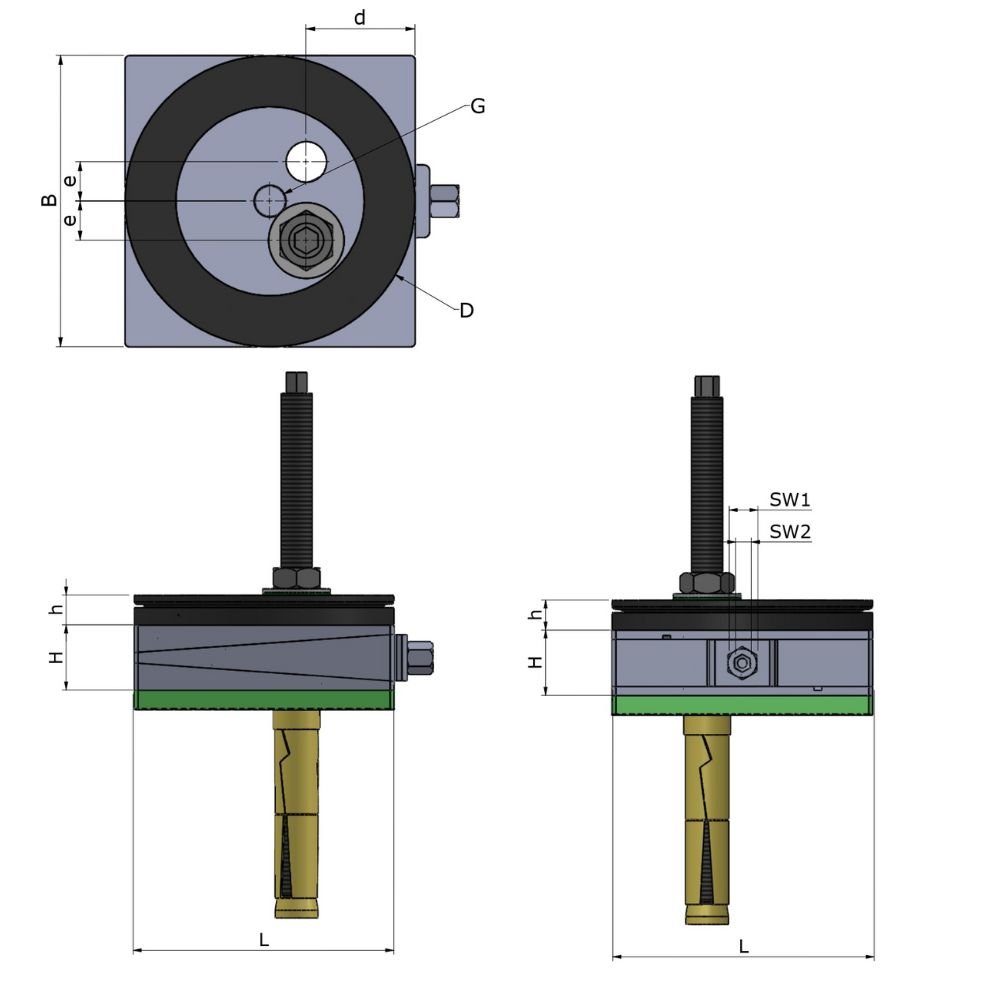

Dimensional Details

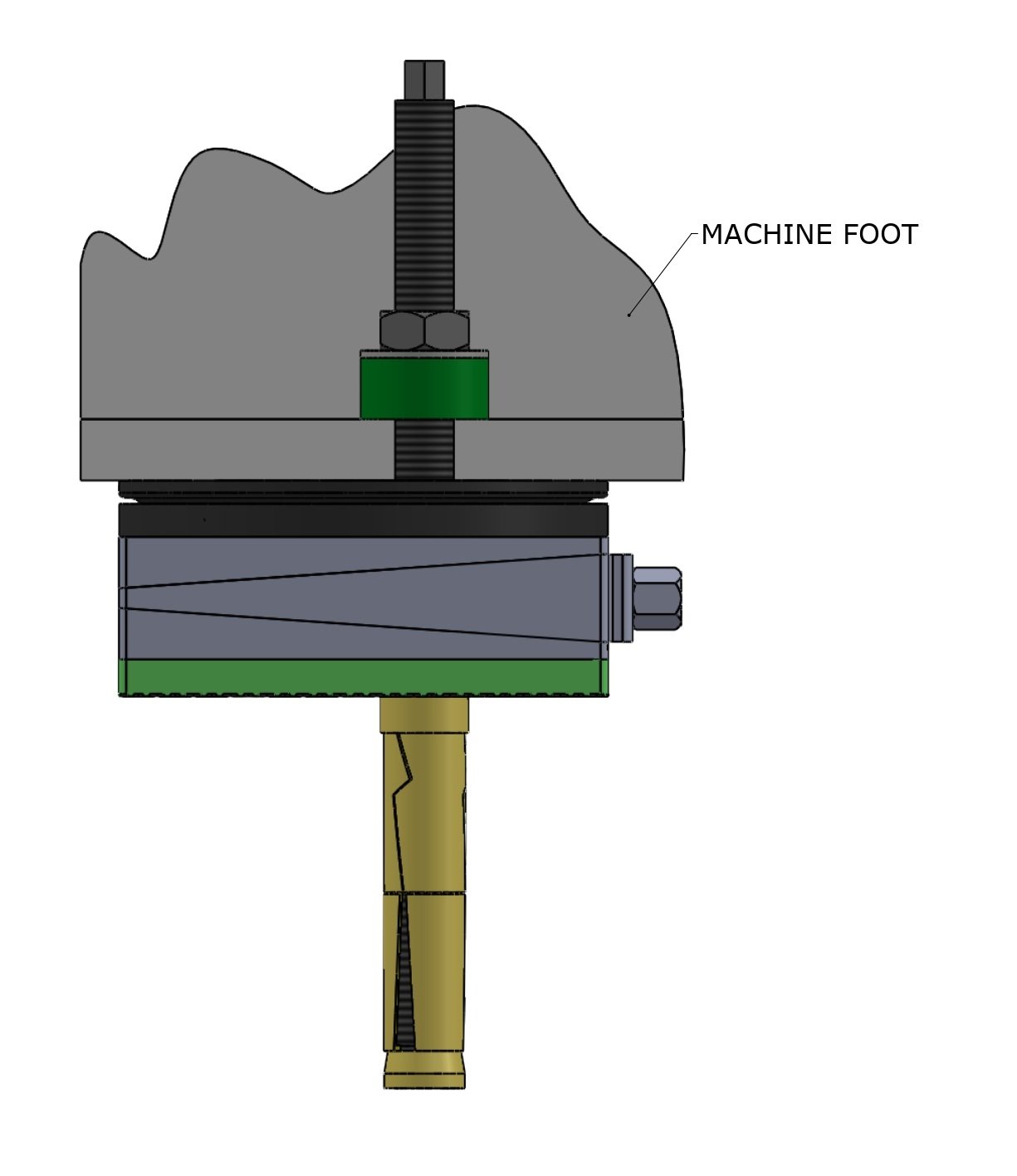

Installation 01

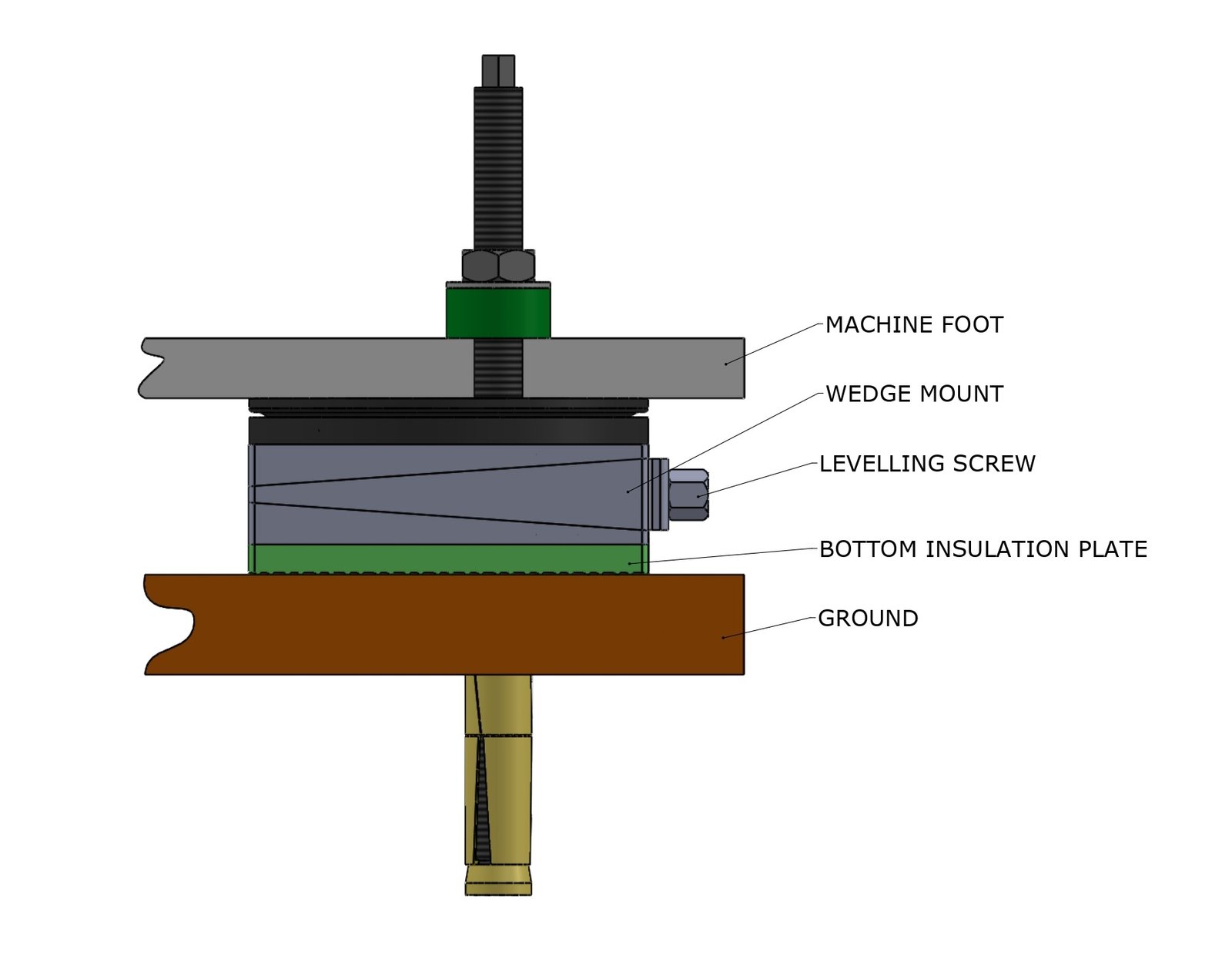

Installation 02
Description
Application:
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Technical Data
Load Capacity Kg/pc
530
Length (L) mm
115
Width (B) mm
115
Height (H) at mean position (mm)
59
Adjst. Range with Anchor Nut (mm)
+4/-4
Bottom pad Type
Dp1
d (mm)
50
D (mm)
110
Bottom pad Thickness (mm)
15
SW1 (mm)
19
SW2 (mm)
10
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
7
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
BORE* (mm)
22
h (mm)
19
e (mm)
24
