Dynemech Wedge mounts, Series DTP have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DT.
DTP7-p2-155-32T-FG-DG
Model

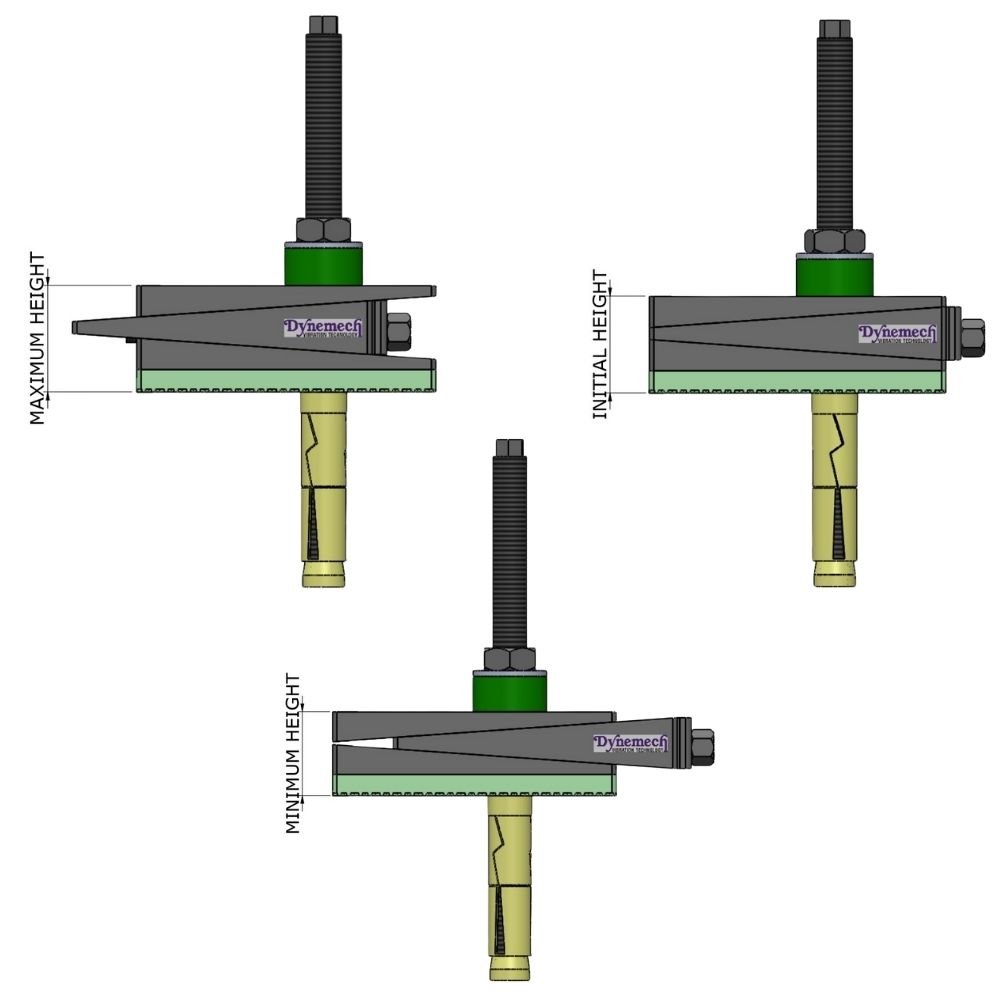

Adjustment Configuration

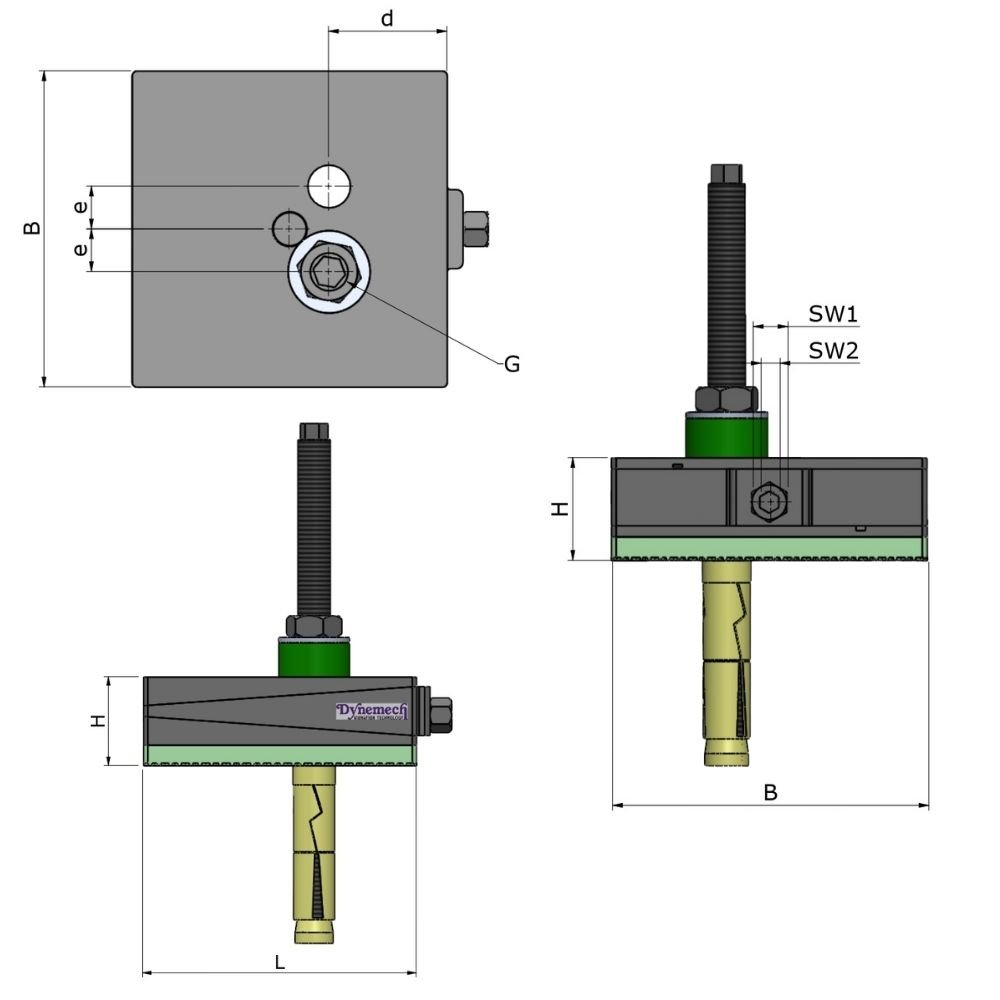

Dimensional Details

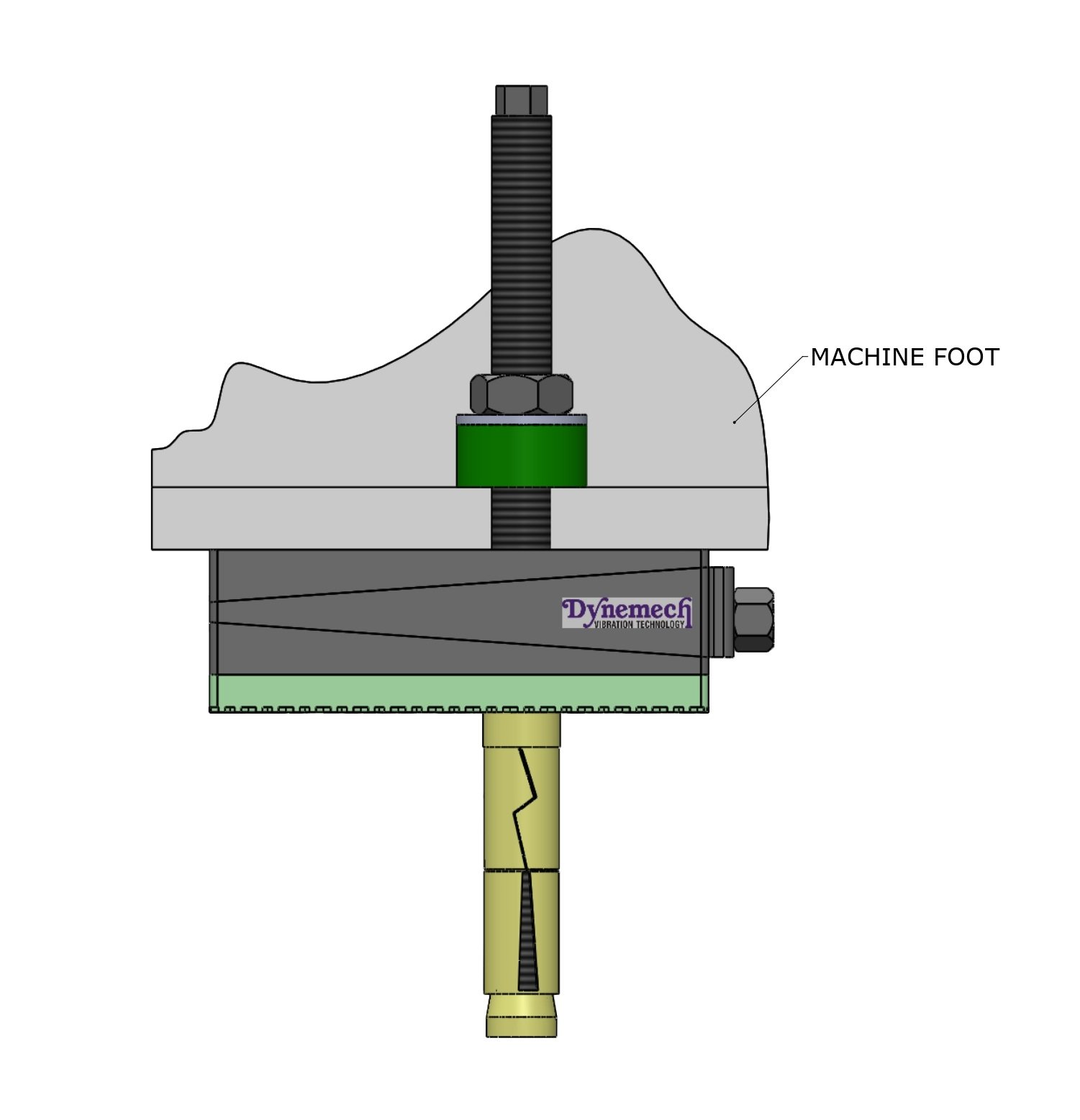

Installation 01

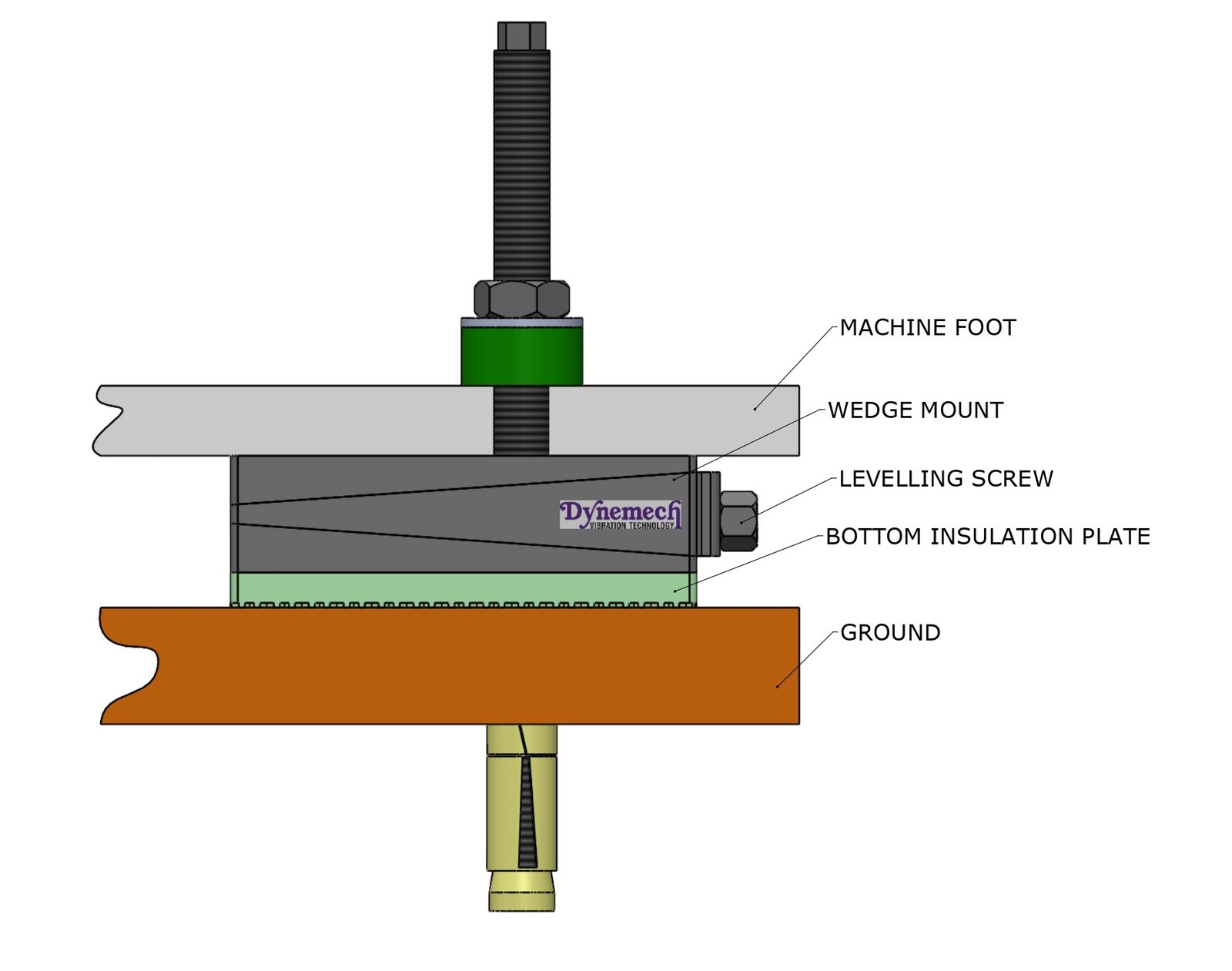

Installation 02
Description
Application:
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Technical Data
Model Catologue
Load Capacity Kg/pc
10000
Length (L) mm
400
Width (B) mm
500
Height (H) at mean position (mm)
155
Adjustment Range (mm)
+10/-10
Bottom pad Type
Dp2
d (mm)
200
Bottom pad Thickness (mm)
20
SW1 (mm)
39
SW2 (mm)
22
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
12
Temperature Range (°C)
From -15 to 80
Color
Dark Grey/Green
Bore G (mm)
32
e (mm)
70
