DTP0-p2-105-18T-FG-DG
Model

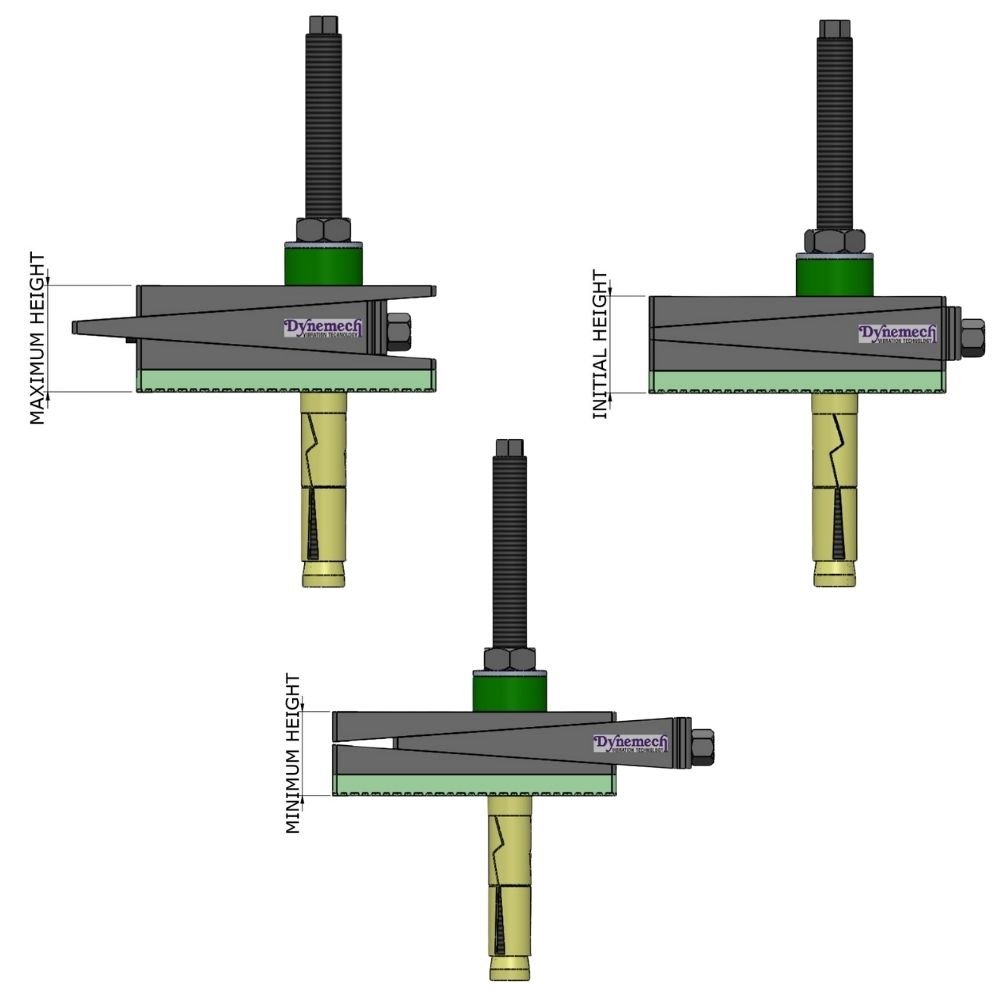

Adjustment Configuration

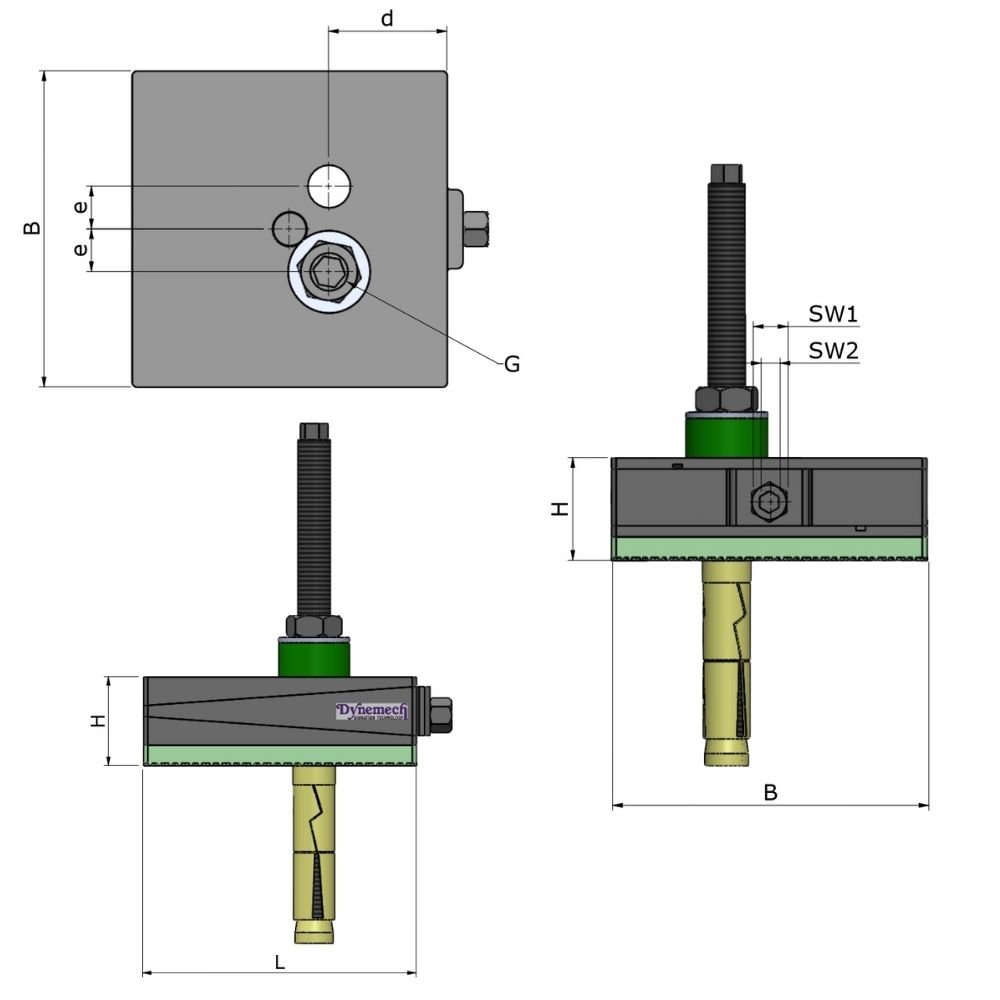

Dimensional Details

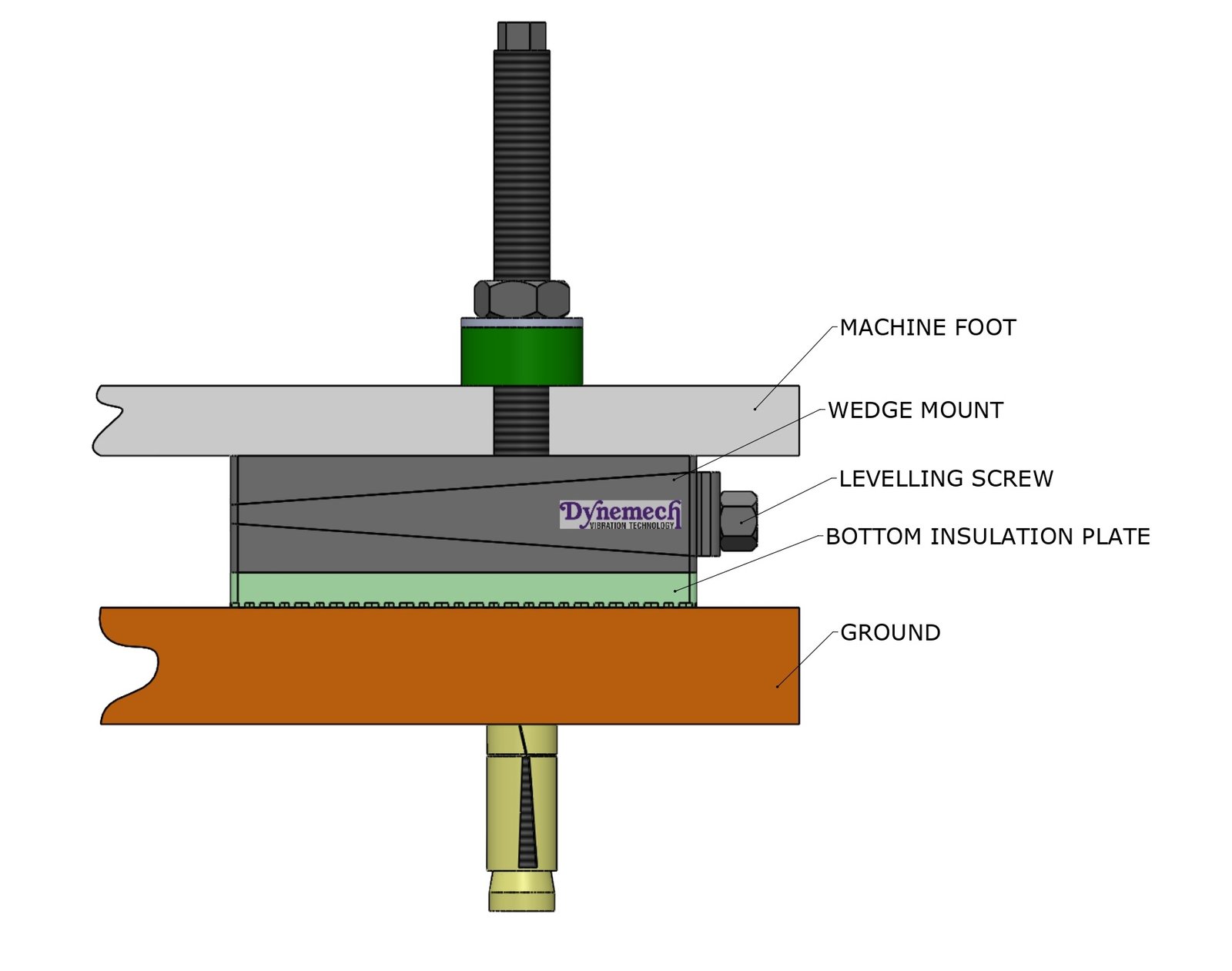

Installation 01

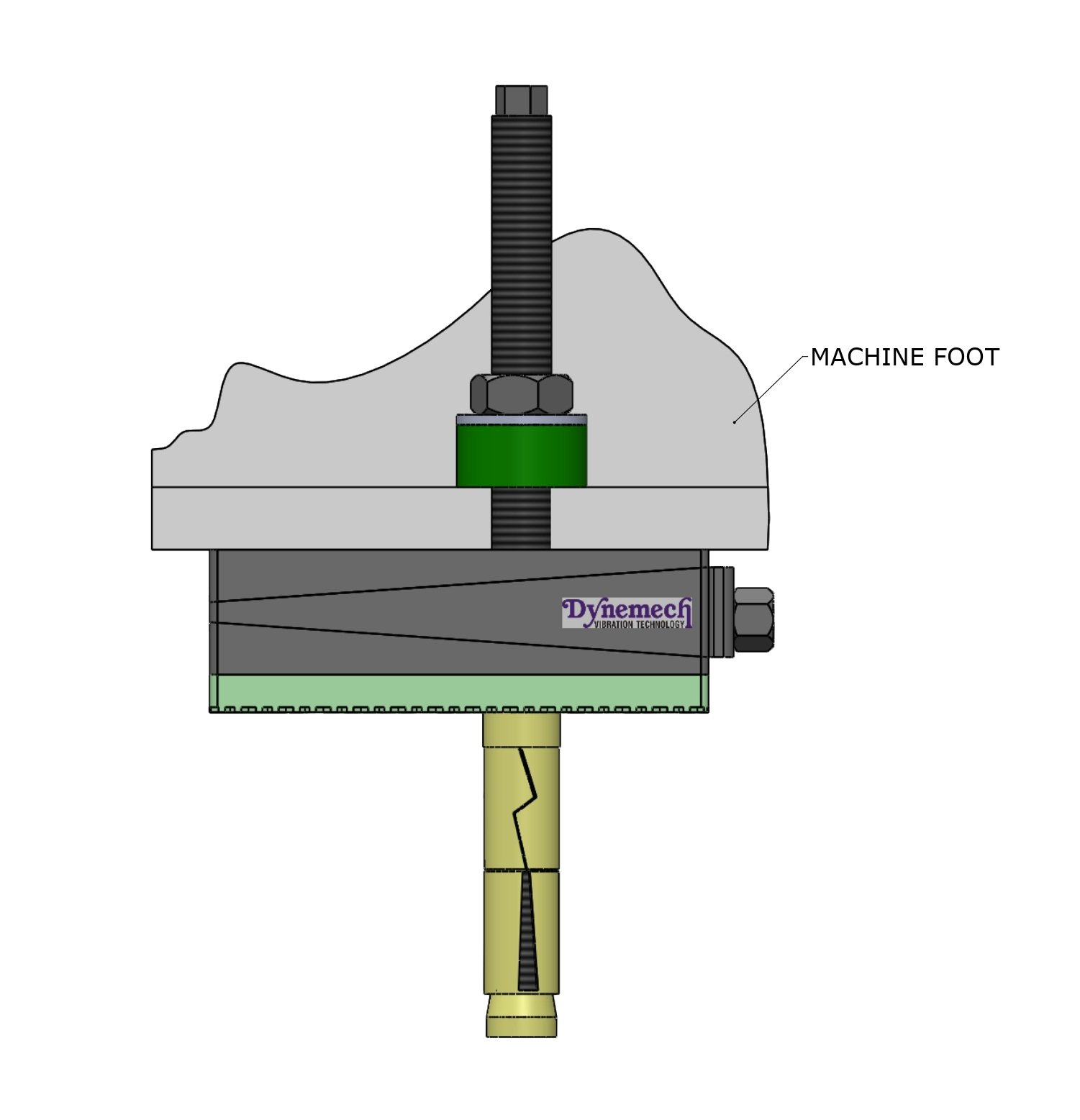

Installation 02
Description
Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application:
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Technical Data
Load Capacity Kg/pc
500
Length (L) mm
100
Width (B) mm
100
Height (H) at mean position (mm)
105
Adjustment Range (mm)
+3/-3
Bottom pad Type
Dp2
d (mm)
42
Bottom pad Thickness (mm)
20
SW1 (mm)
19
SW2 (mm)
10
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
12
Temperature Range (°C)
From -15 to 80
Color
Dark Grey/Green
Bore G (mm)
18
e (mm)
23
