Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DTP5-m-100-28T-FG-DG
Model

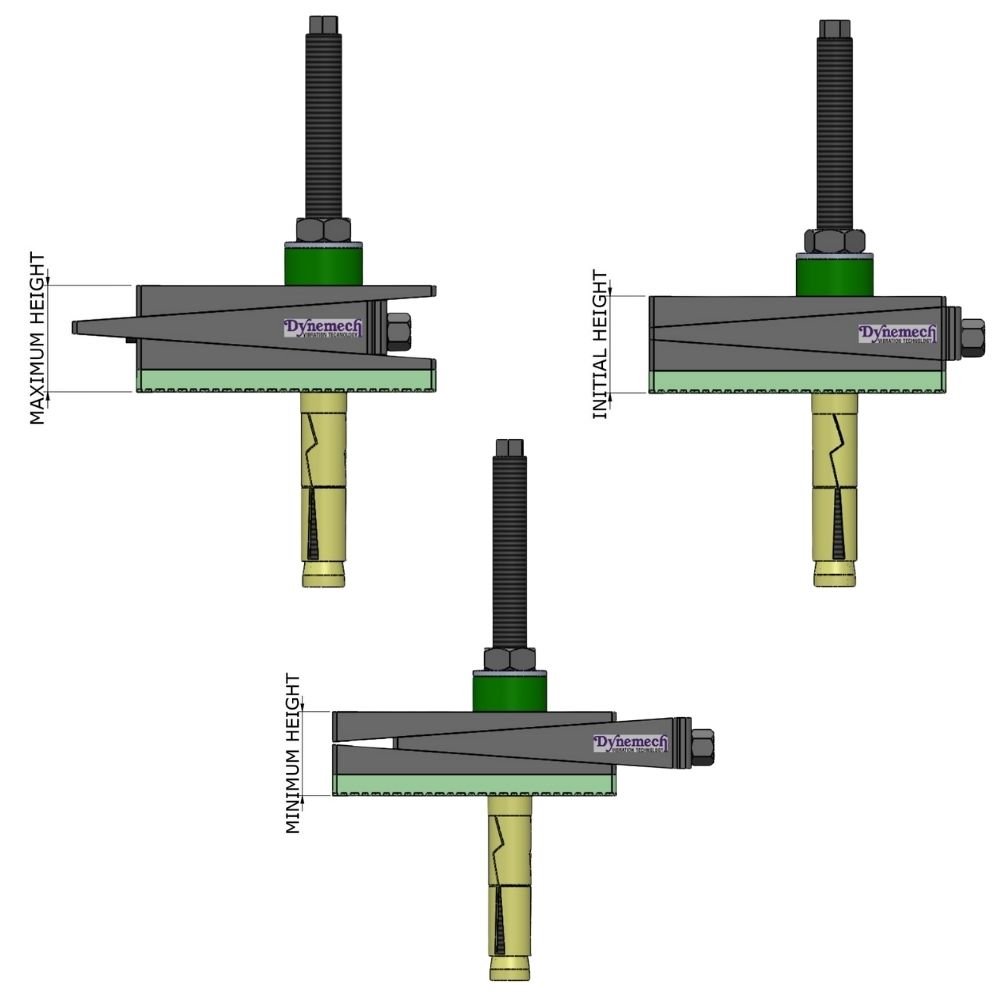

Adjustment Configuration

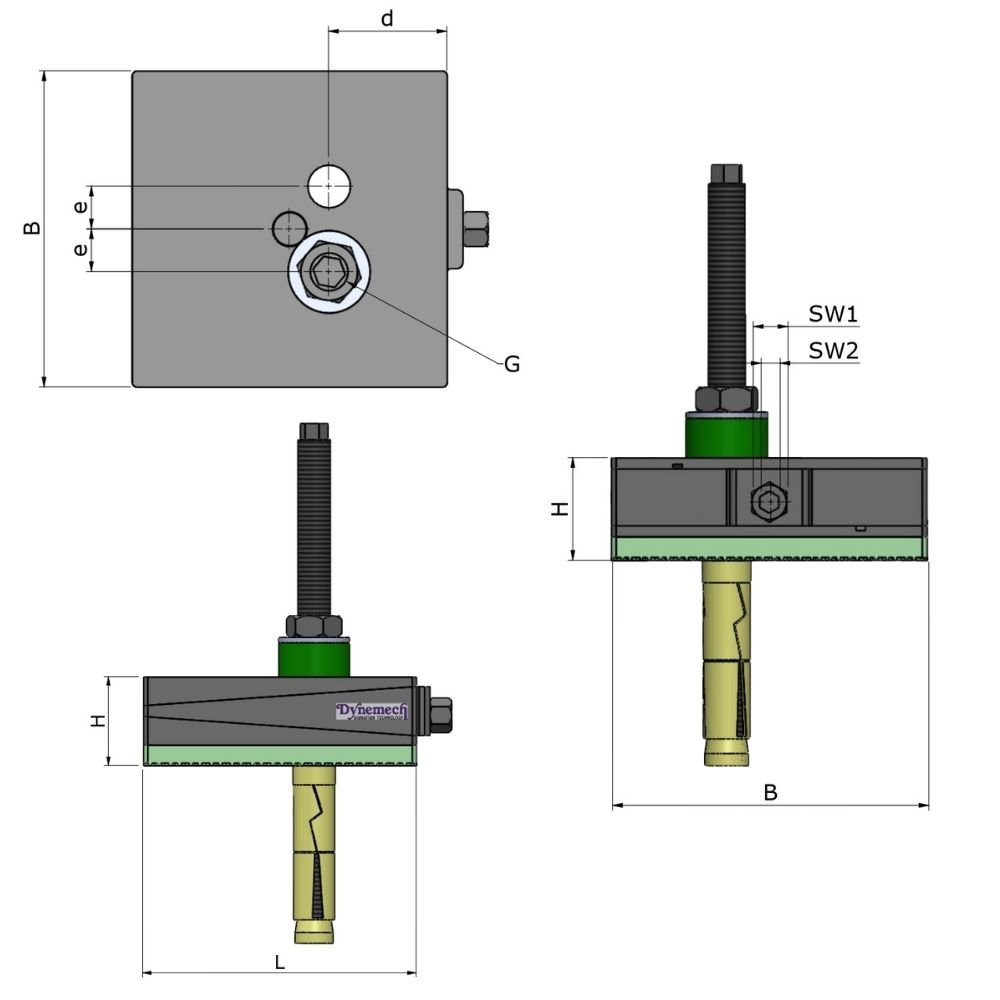

Dimensional Details

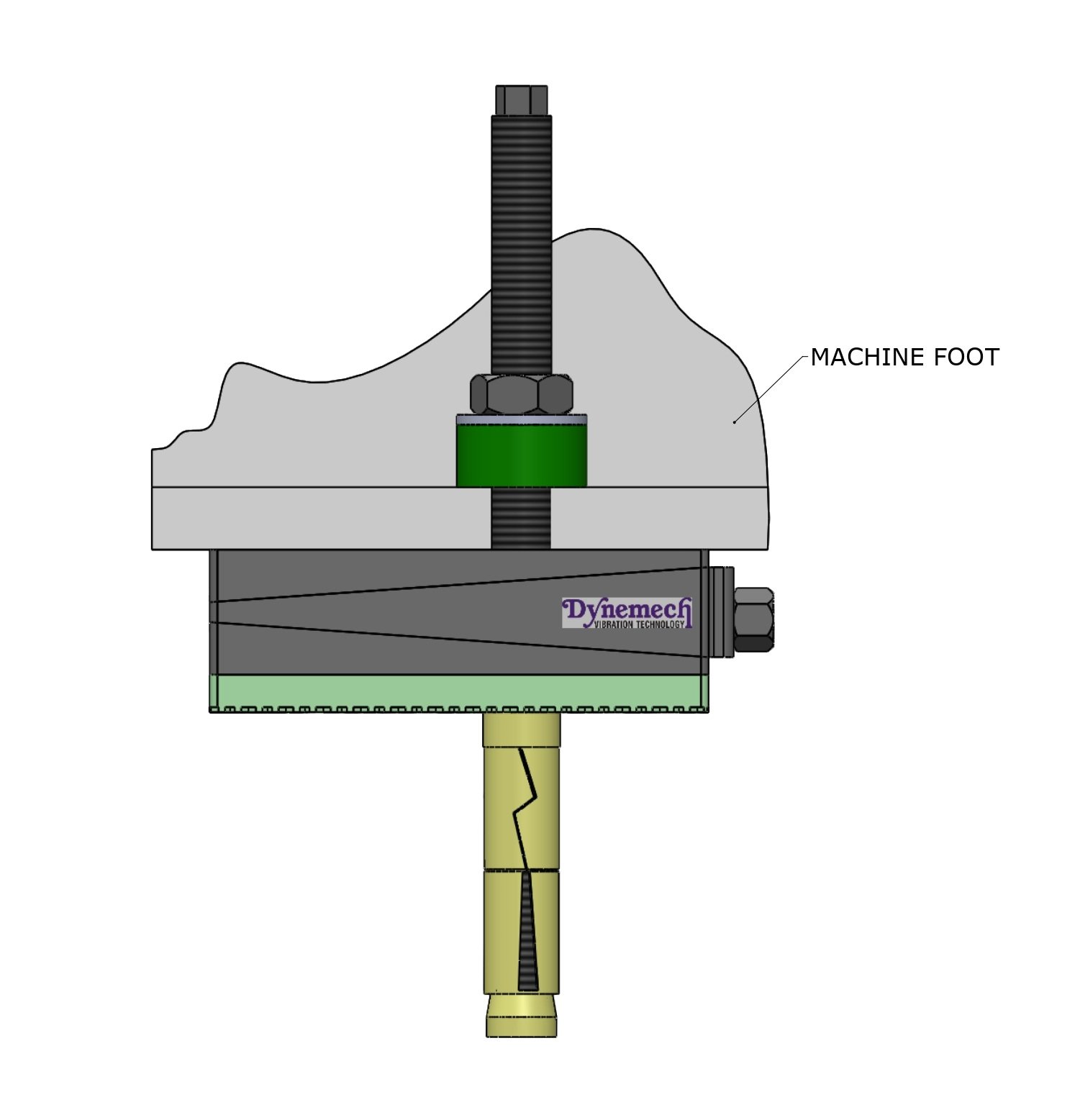

Installation 01

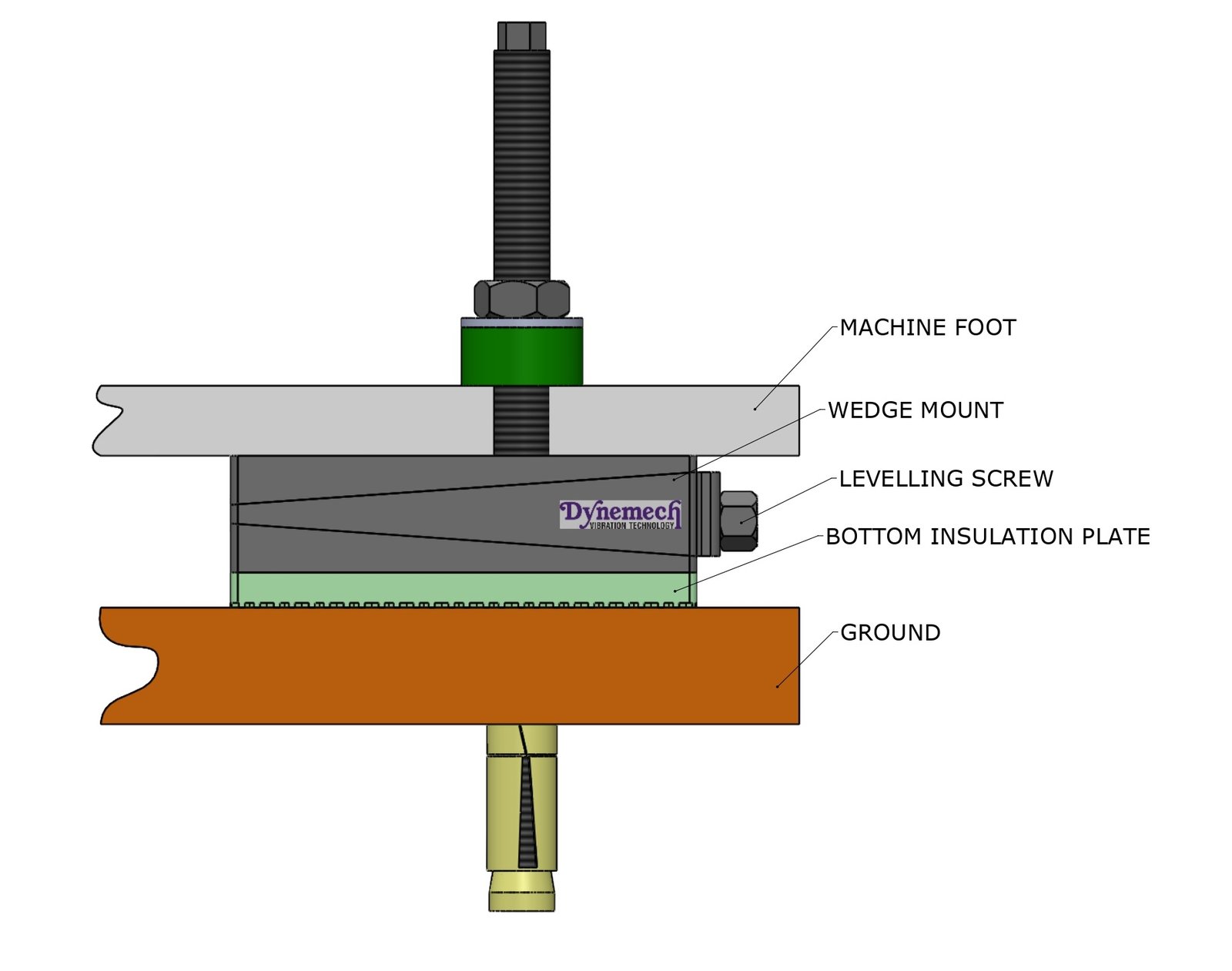

Installation 02
Description
Application:
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Technical Data
Model Catologue
Load Capacity Kg/pc
8000
Length (L) mm
250
Width (B) mm
320
Height (H) at mean position (mm)
100
Adjustment Range (mm)
+9/-9
Bottom pad Type
Dm
d (mm)
125
Bottom pad Thickness (mm)
15
SW1 (mm)
32
SW2 (mm)
18
Coeff. of Friction against Concrete
0.7
Natural Frequency at Max. Load (Hz)
30
Temperature Range (°C)
From -15 to 80
Color
Dark Grey/Green
Bore G (mm)
28
e (mm)
55
