Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DTP6-hs3-135-30T-FG-DG
Model

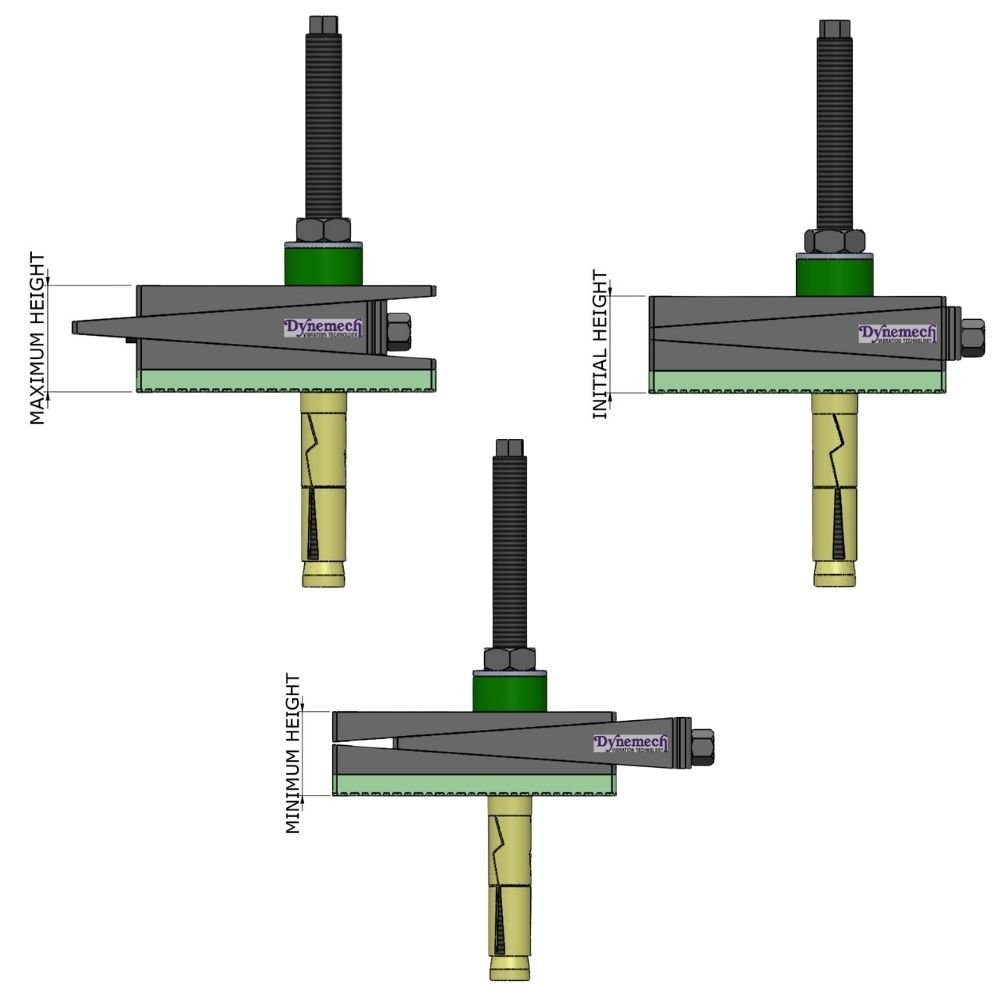

Adjustment Configuration

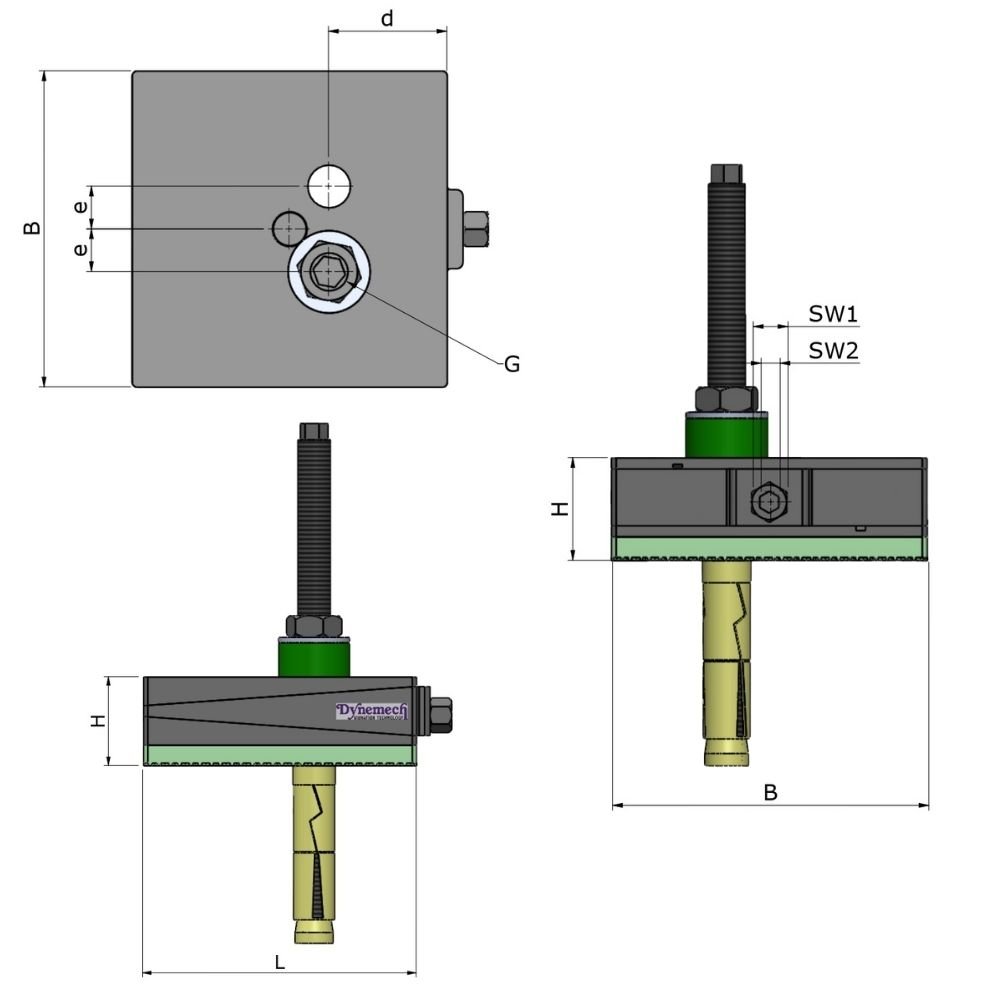

Dimensional Details

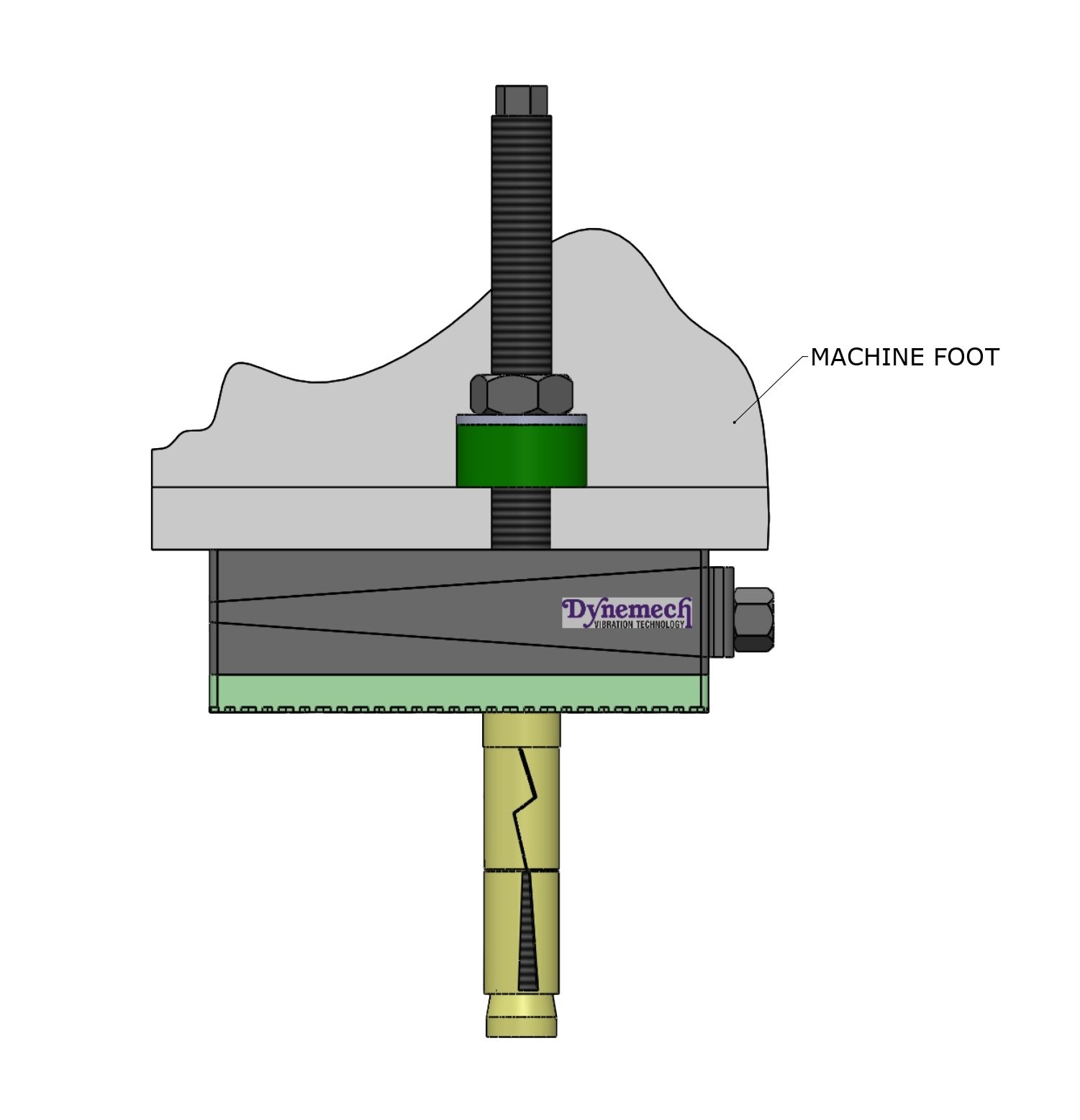

Installation 01

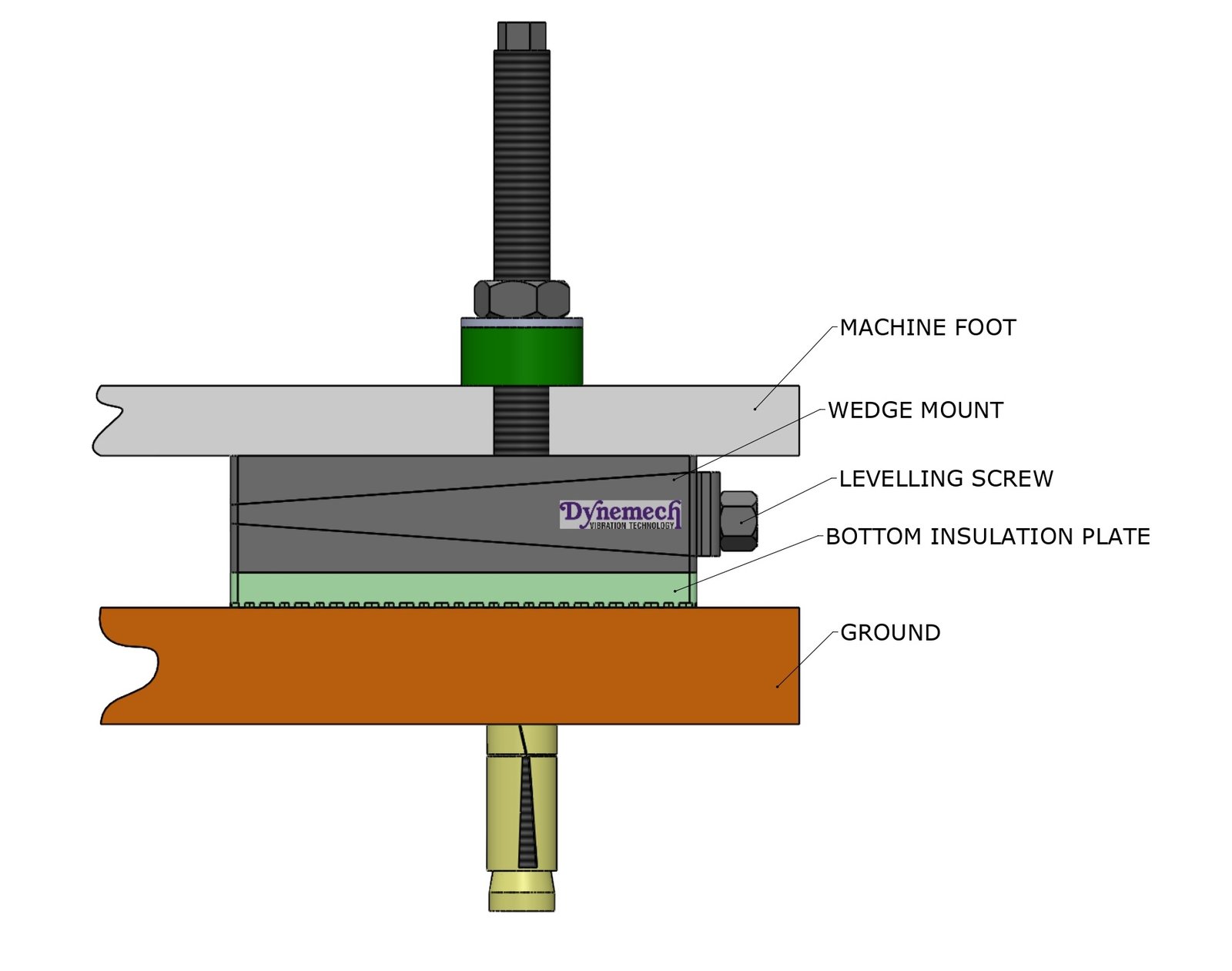

Installation 02
Description
Application:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Technical Data
Model Catologue
Load Capacity Kg/pc
33600
Length (L) mm
300
Width (B) mm
400
Height (H) at mean position (mm)
135
Adjustment Range (mm)
+10/-10
Bottom pad Type
Dhs3
d (mm)
148
Bottom pad Thickness (mm)
50
SW1 (mm)
32
SW2 (mm)
18
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
7
Temperature Range (°C)
From -15 to 80
Color
Dark Grey/Green
Bore G (mm)
30
e (mm)
50
