Dynemech Wedge mounts, Series DTOP-150 mounts is designed for machines which are top heavy or have eccentric motion or machines which must be anchored to the ground. Boring machine, Drilling and milling machines, machining centres, special purpose machines, long lathes, long planers, power presses etc.
DTOP1-u-150-26T-FG-GR
Model

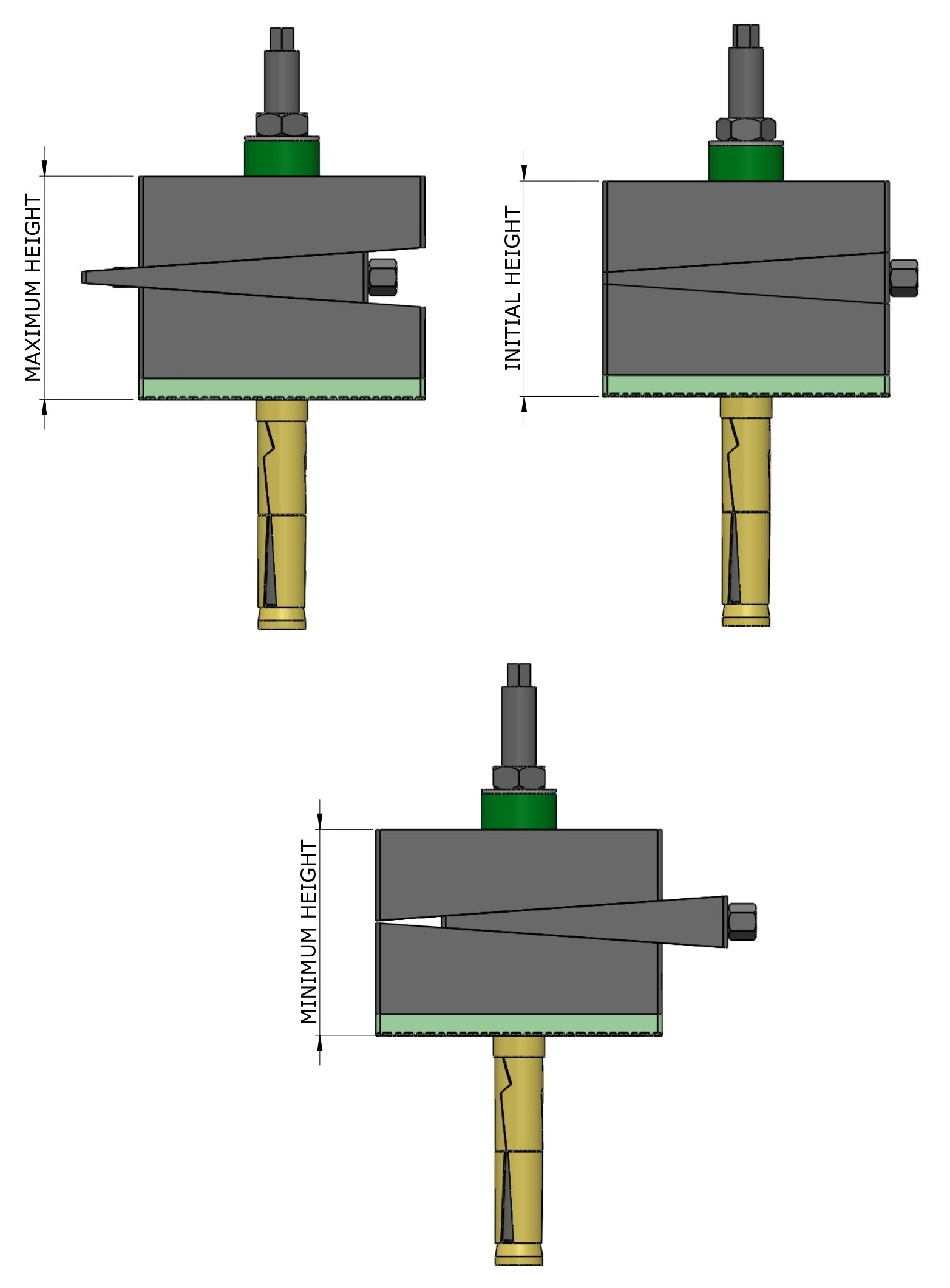

Adjustment Configuration

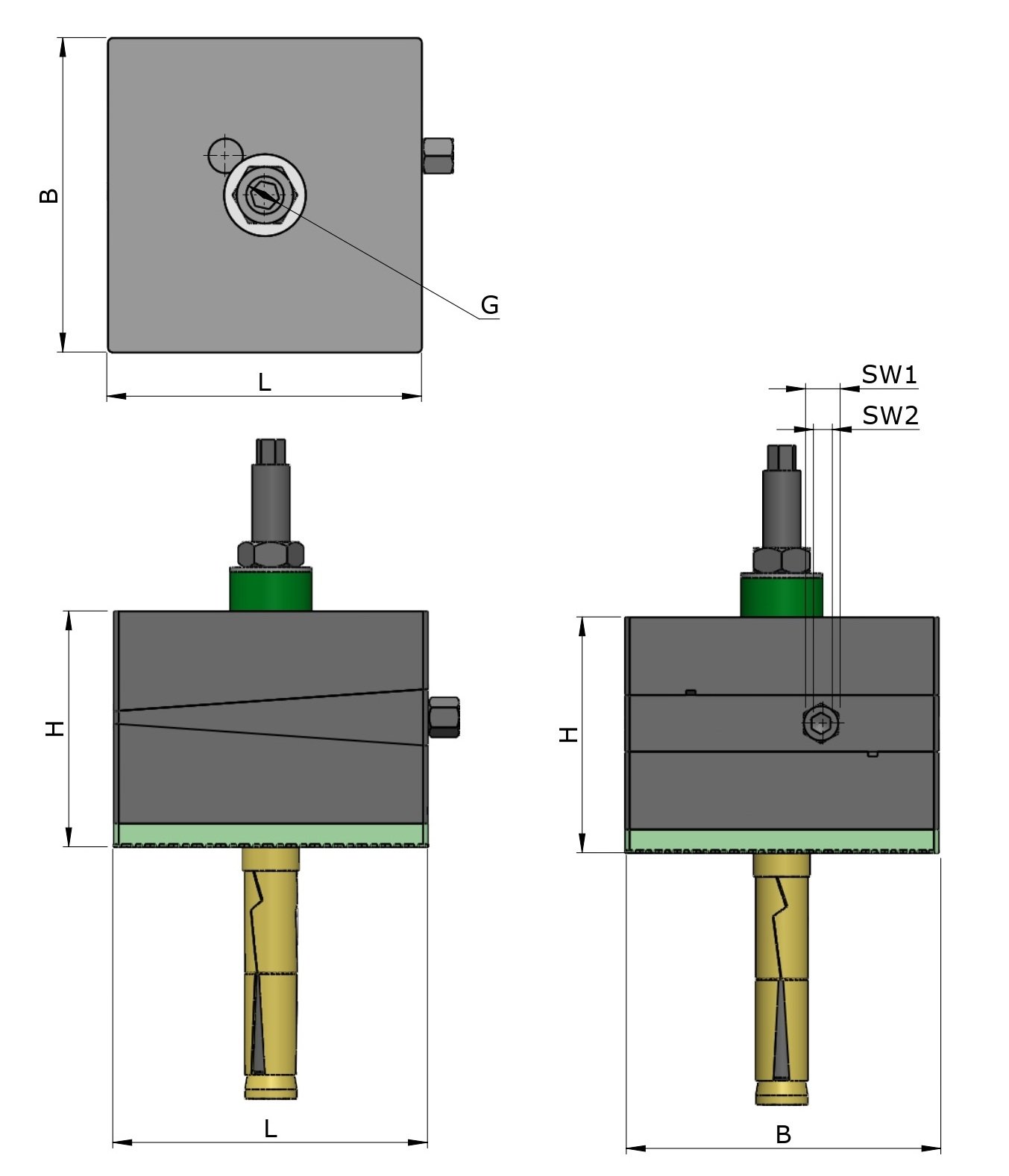

Dimensional Details

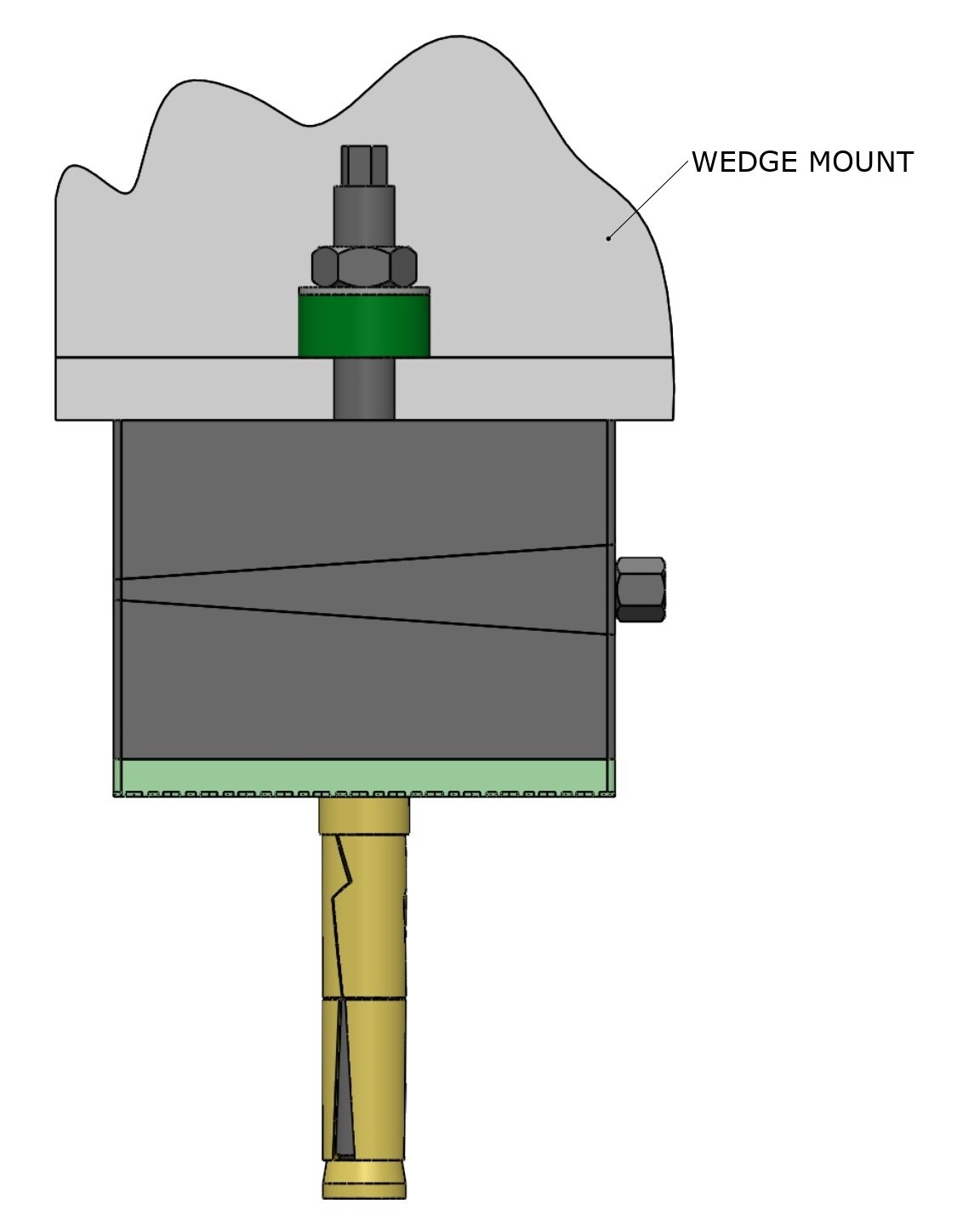

Installation 01

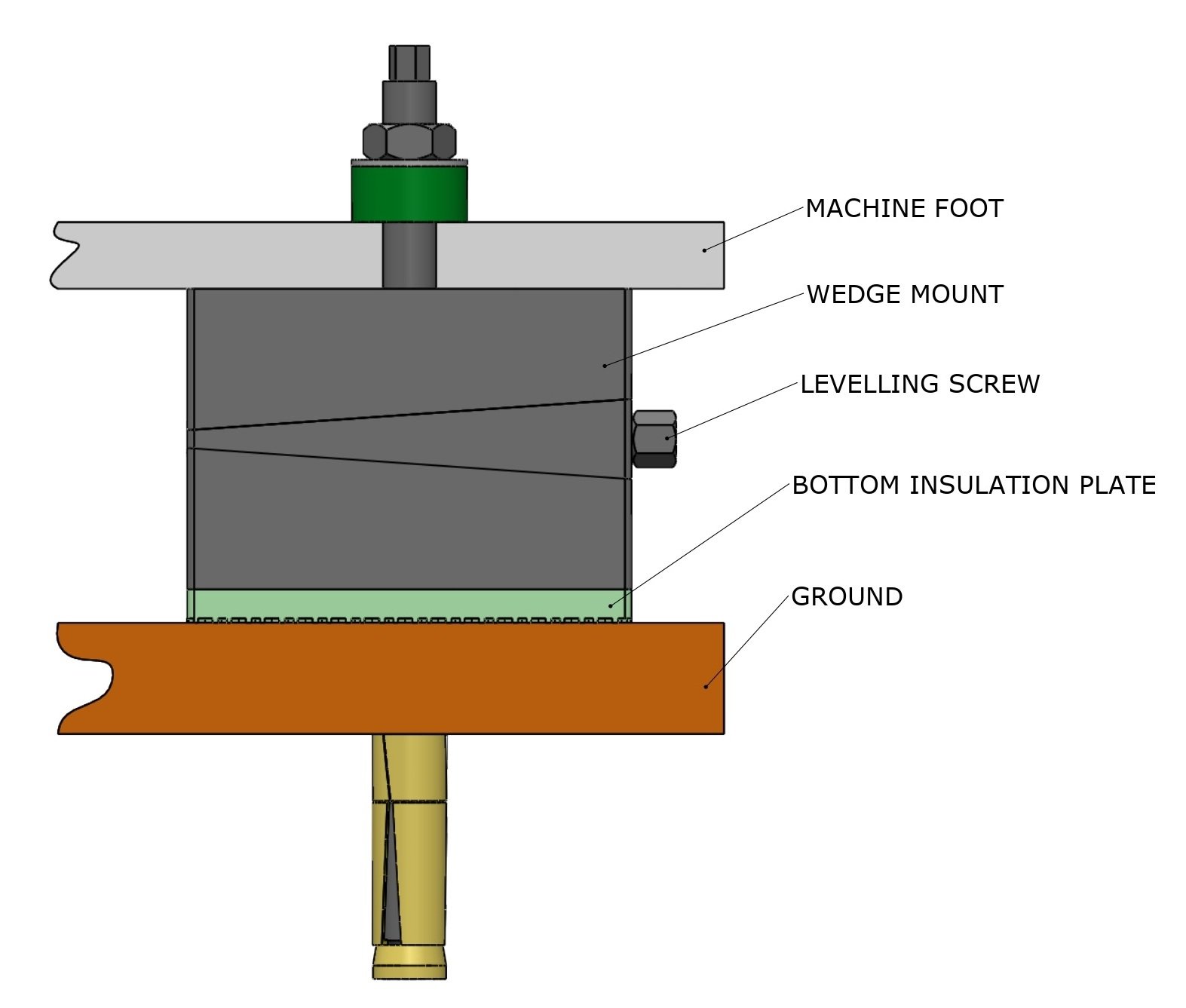

Installation 02
Description
Application:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Technical Data
Model Catologue
Load Capacity Kg/pc
1100
Length (L) mm
115
Width (B) mm
115
Height (H) at mean position (mm)
150
Adjustment Range (mm)
+4/-4
Bottom pad Type
Du
Bottom pad Thickness (mm)
15
SW1 (mm)
19
SW2 (mm)
10
Coeff. of Friction against Concrete
0.9
Natural Frequency at Max. Load (Hz)
18
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
BORE* Ø(mm) G"
26
