DTHOP1-hs4-25T-FG-DG

Model

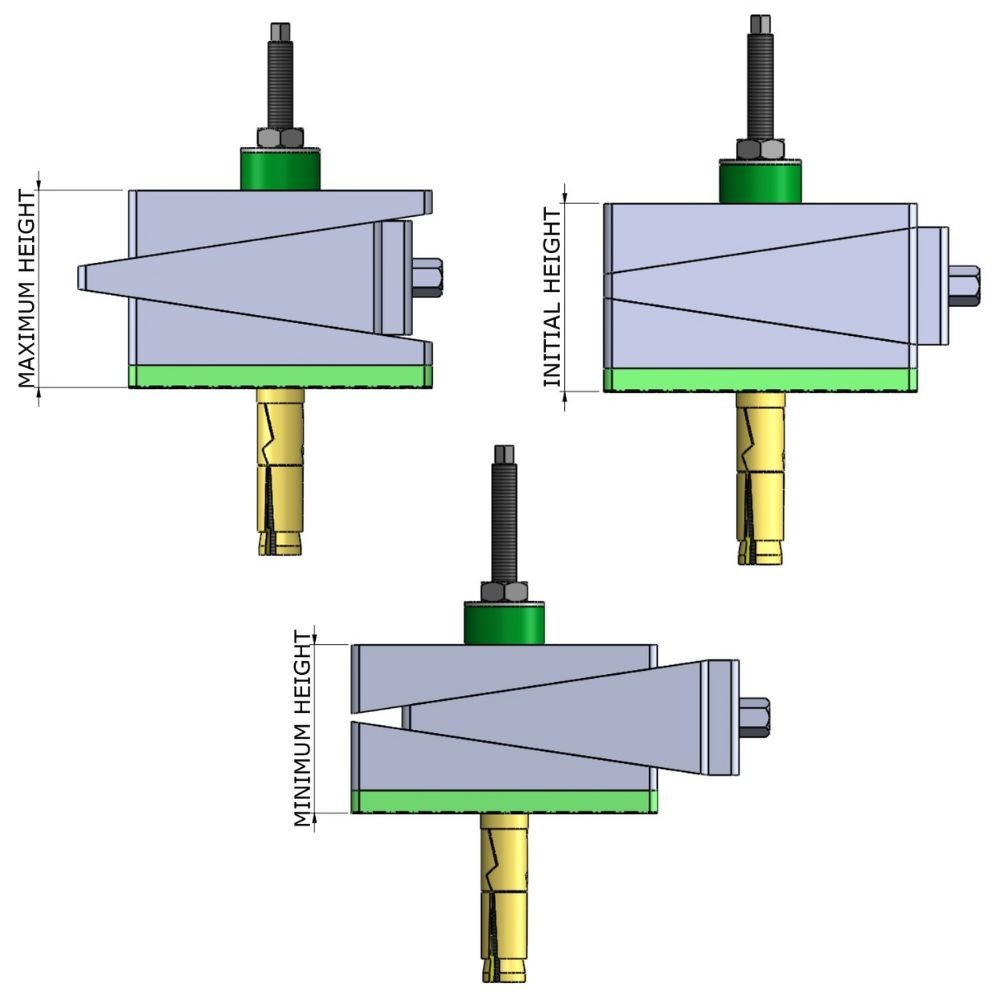

Adjustment Configuration

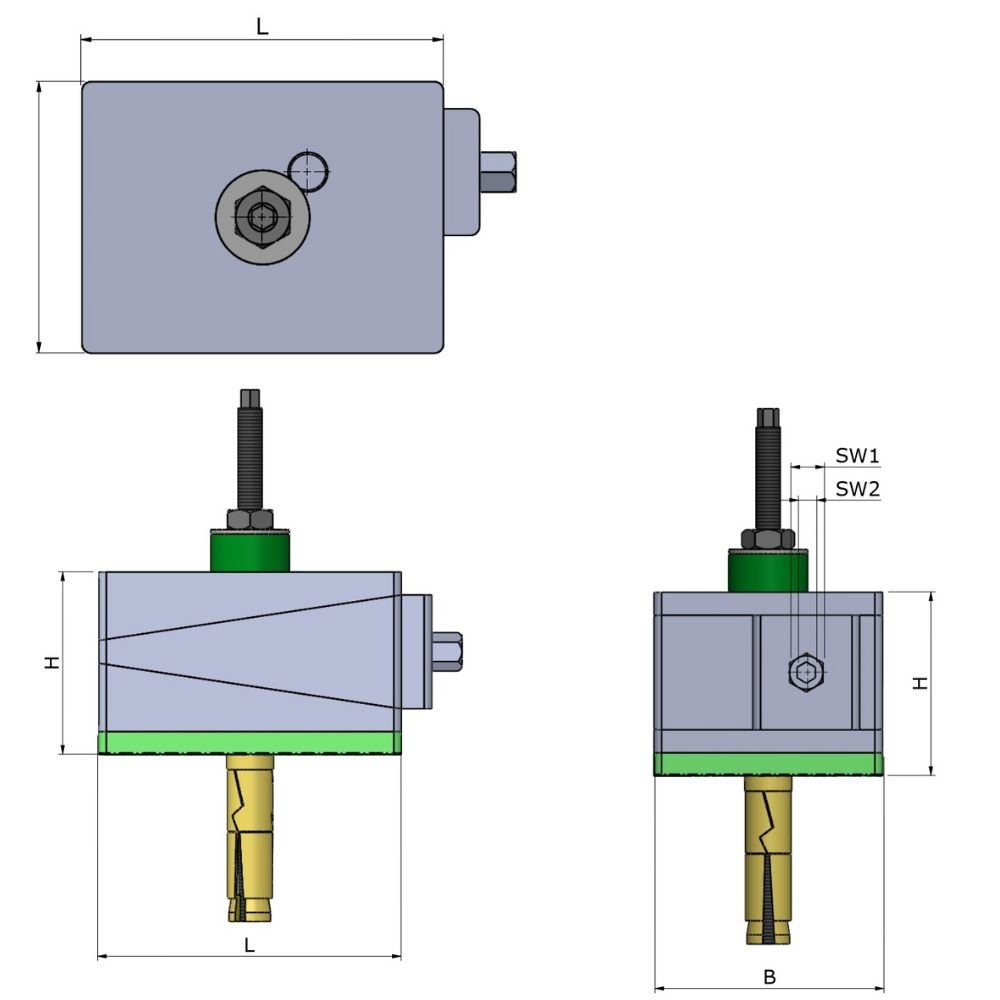

Dimensional Details

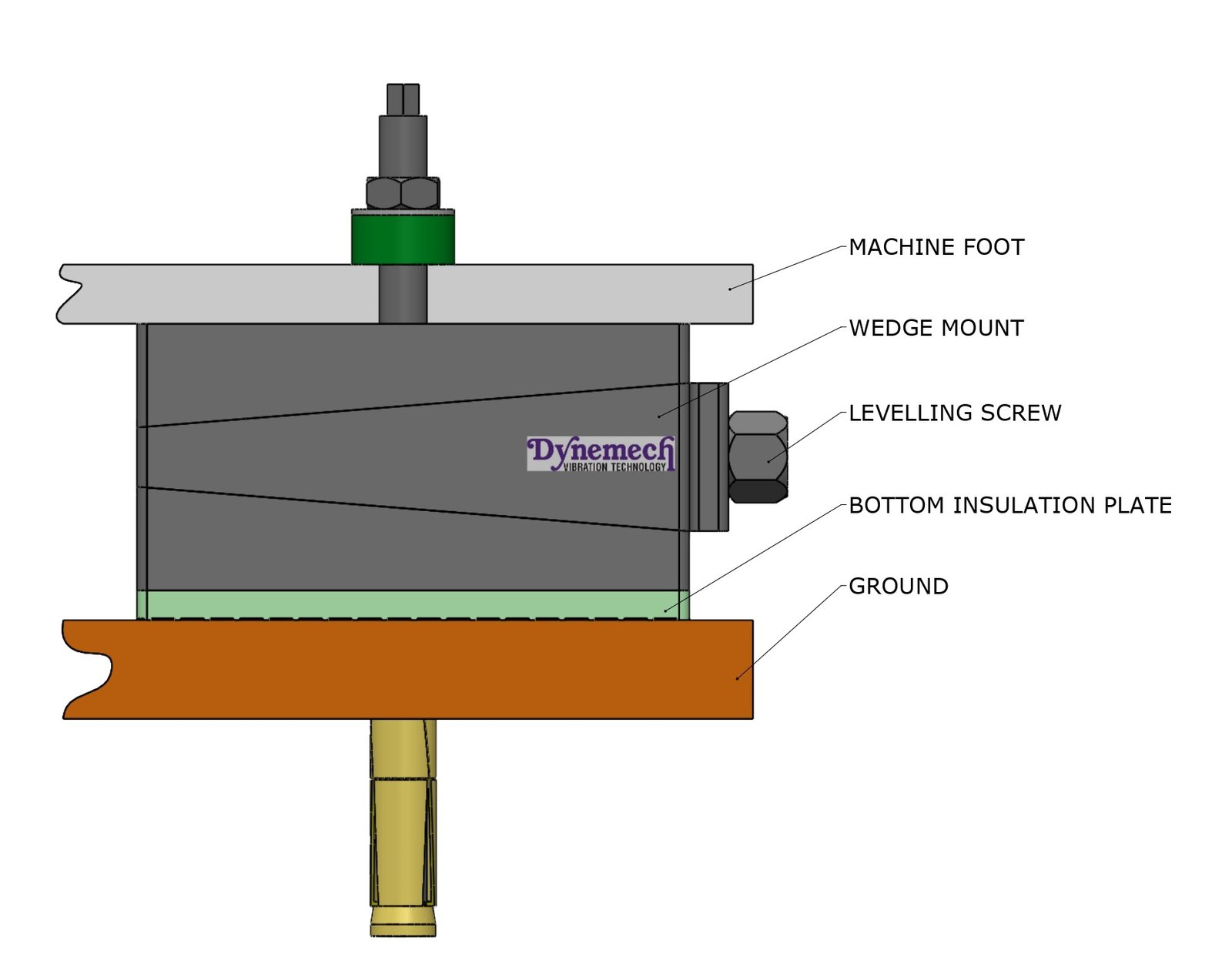

Installation 01

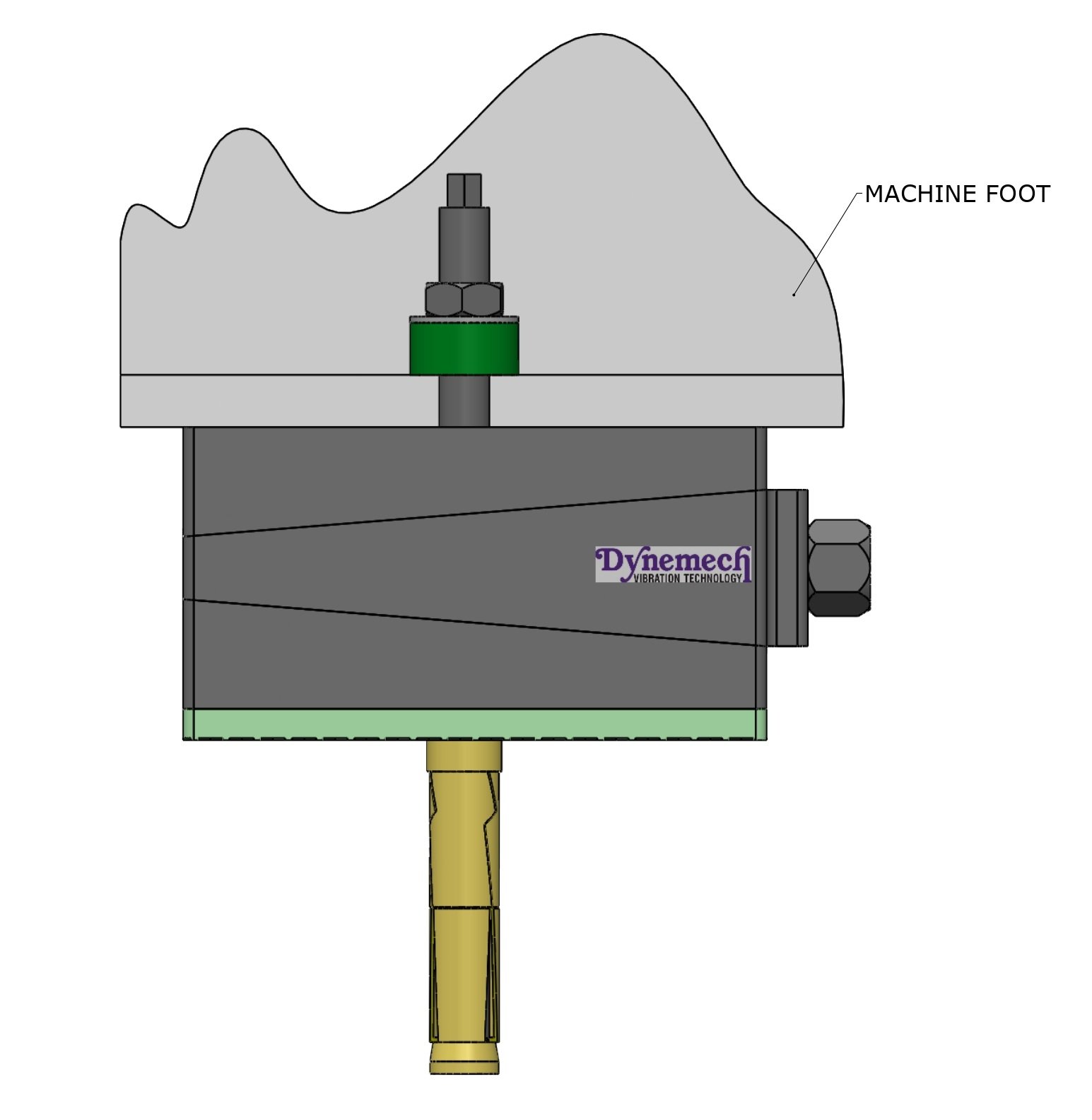

Installation 02

Description

Dynemech Wedge mounts, Series DTHOP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTHOP has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.

Technical Data

Model Catologue
Load Capacity Kg/pc
3000
Length (L) mm
200
Width (B) mm
125
Height (H) at mean position (mm)
185
Adjustment Range (mm)
+8/-8
Bottom pad Type
Dhs4
Bottom pad Thickness (mm)
50
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
5
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
BORE* (mm)
25
