Dynemech Wedge mounts, Series DTH mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DTH3-u-10-28T-FG-DG
Model
Adjustment Configuration

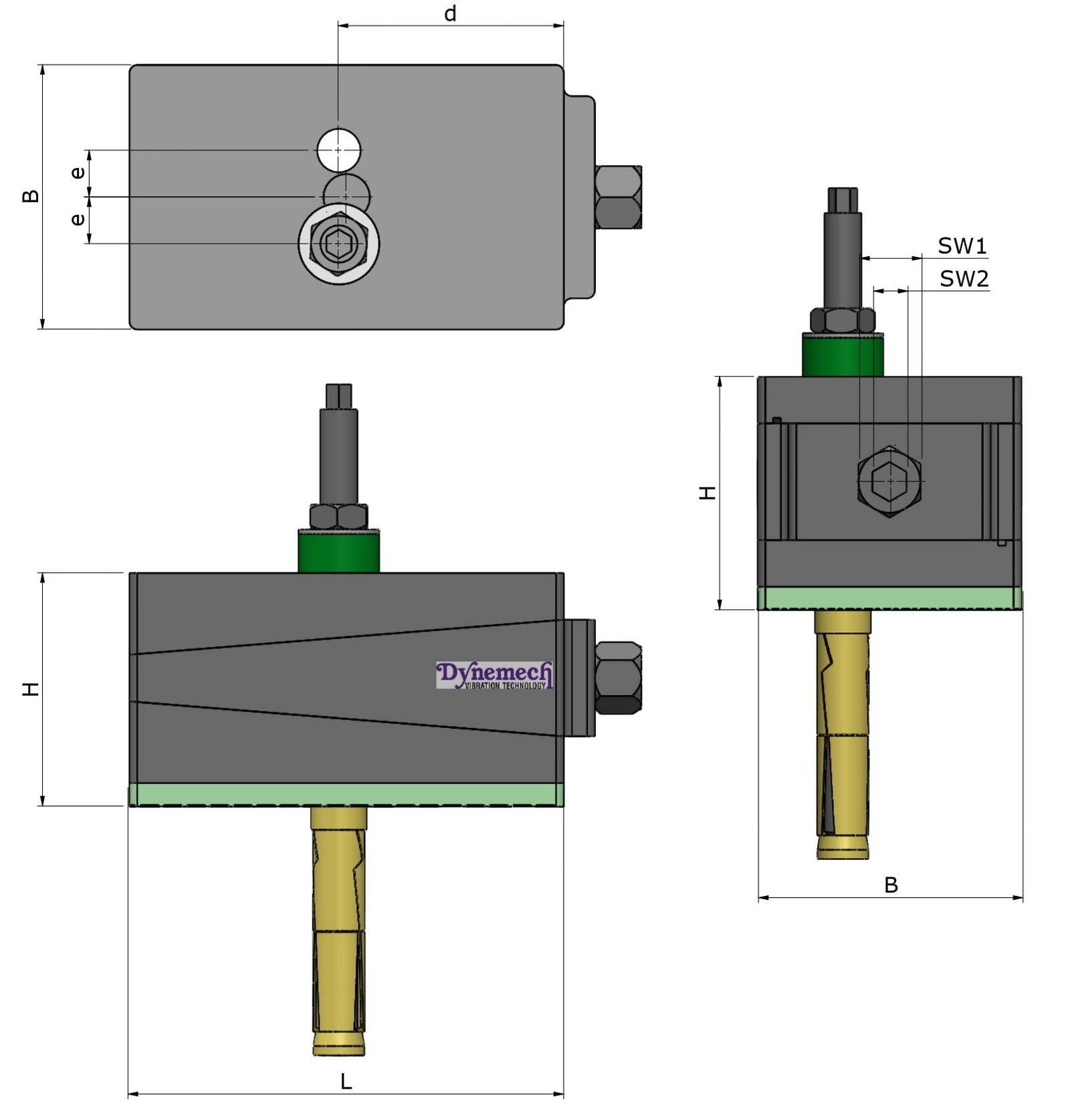

Dimensional Details

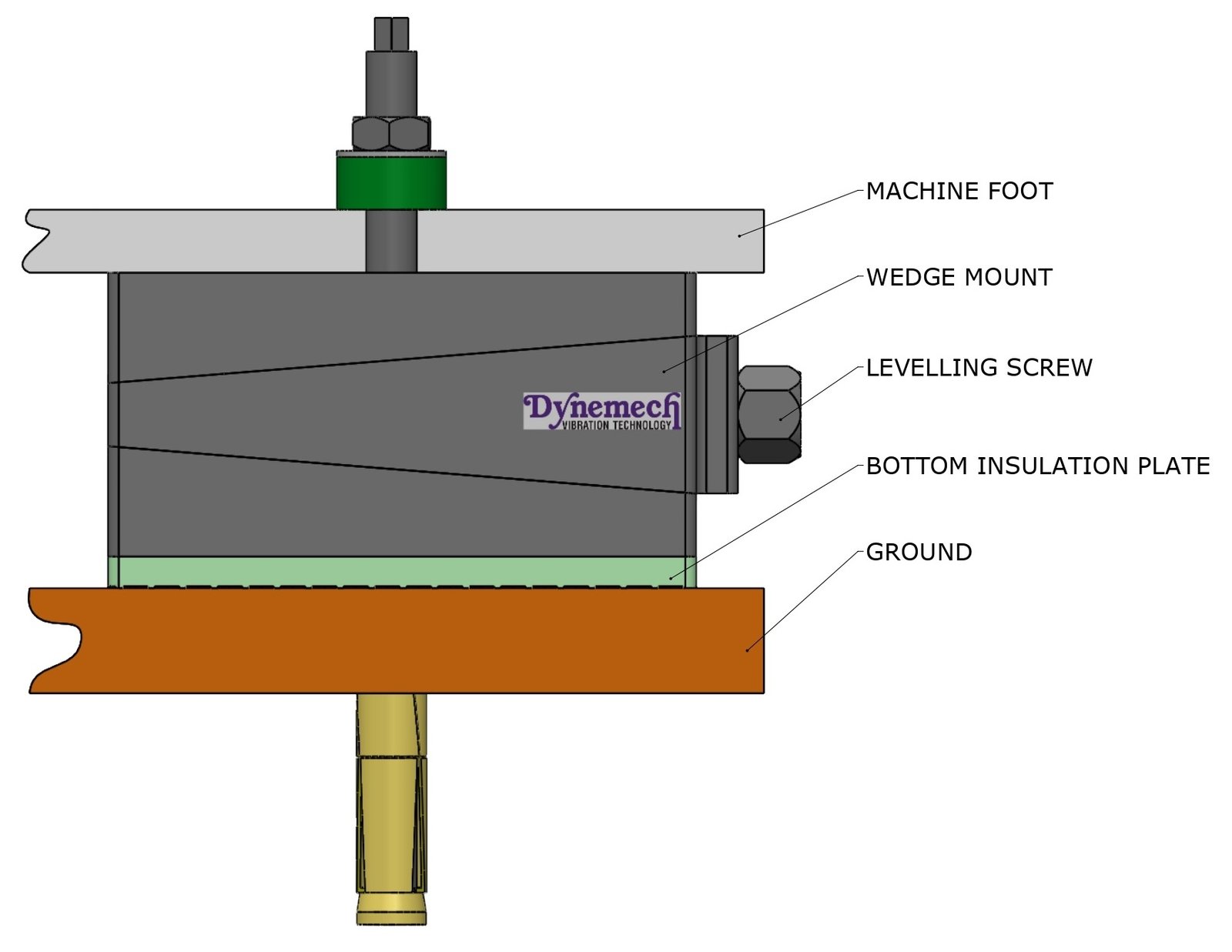

Installation 01

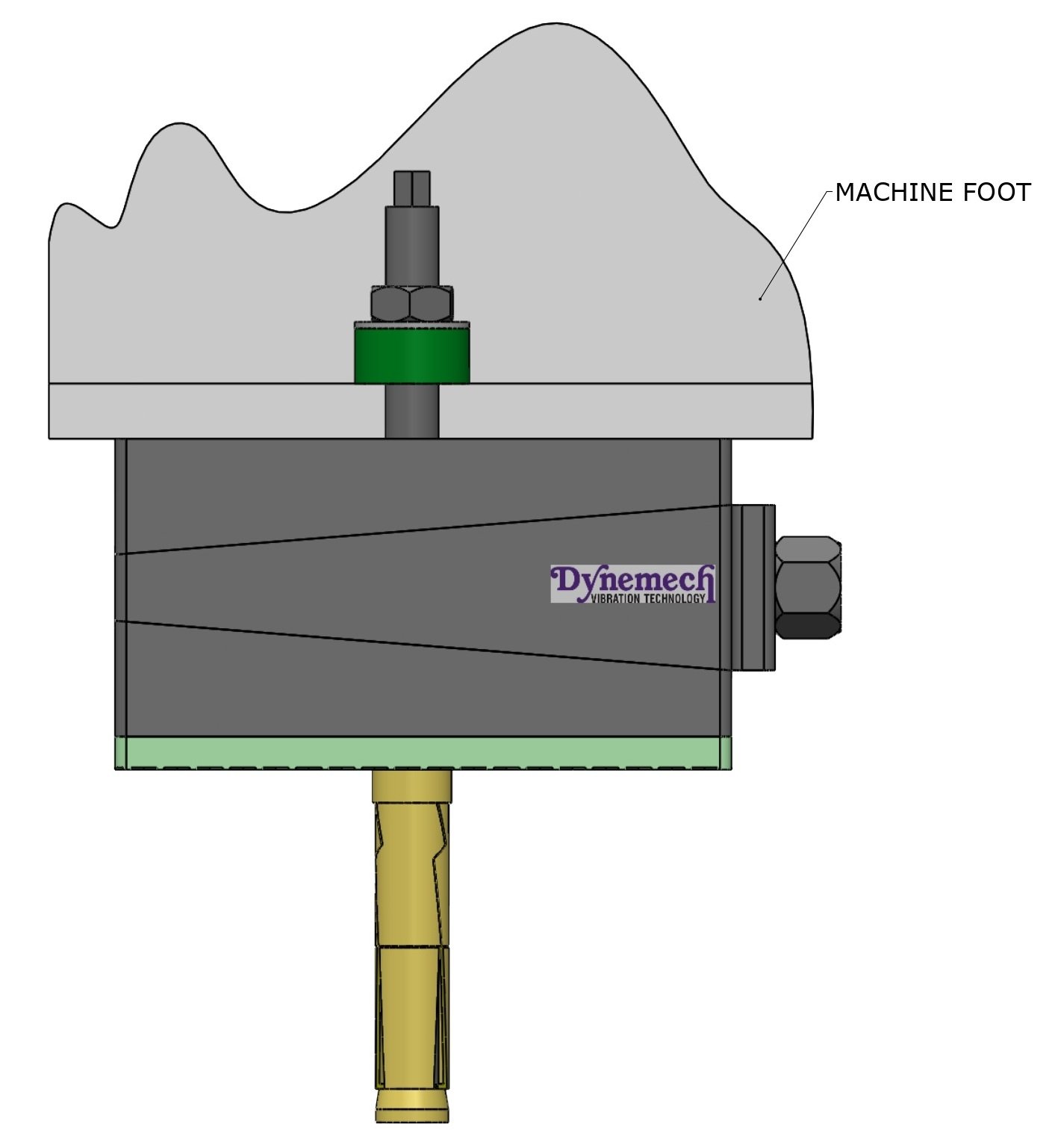

Installation 02
Description
Application:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Technical Data
Model Catologue
Load Capacity Kg/pc
4200
Length (L) mm
280
Width (B) mm
170
Height (H) at mean position (mm)
145
Adjustment Range (mm)
+12.5/-12.5
Bottom pad Type
Du-10
d (mm)
145
Bottom pad Thickness (mm)
10
SW1 (mm)
39
SW2 (mm)
22
Coeff. of Friction against Concrete
0.9
Natural Frequency at Max. Load (Hz)
25
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
BORE* (mm)
28
e (mm)
30
