DTH1-m-25T-FG-DG
Model

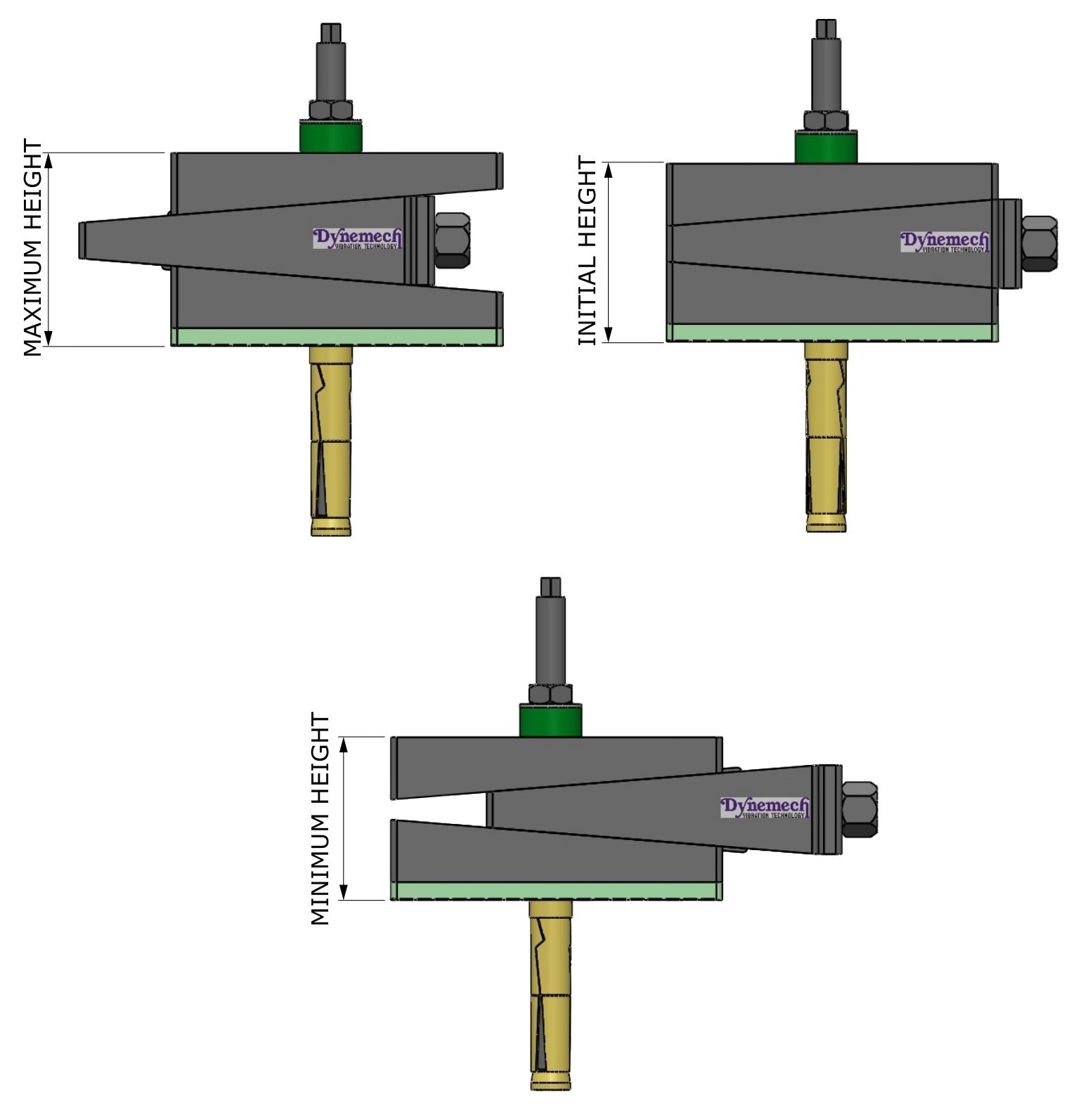

Adjustment Configuration

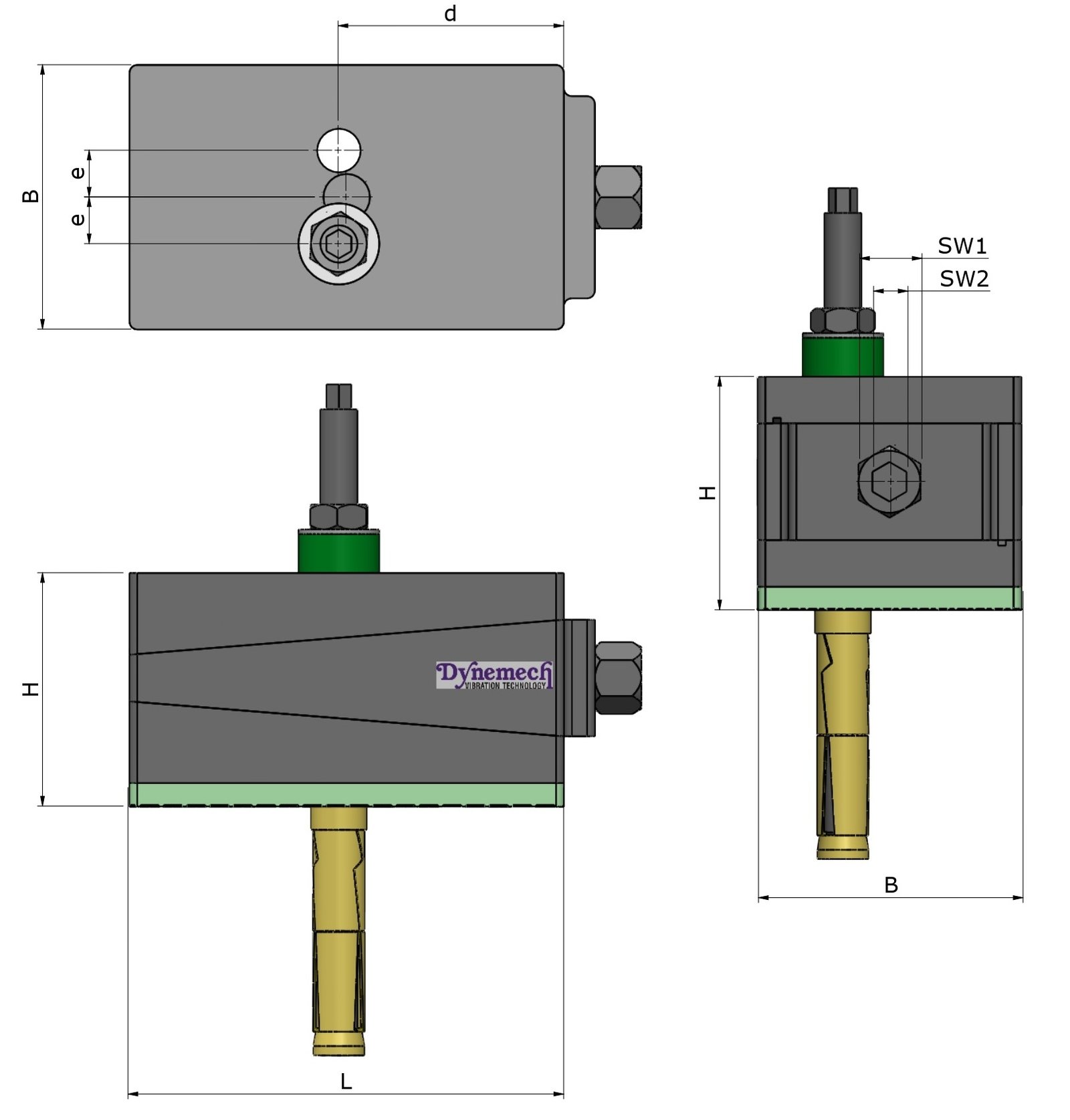

Dimensional Details

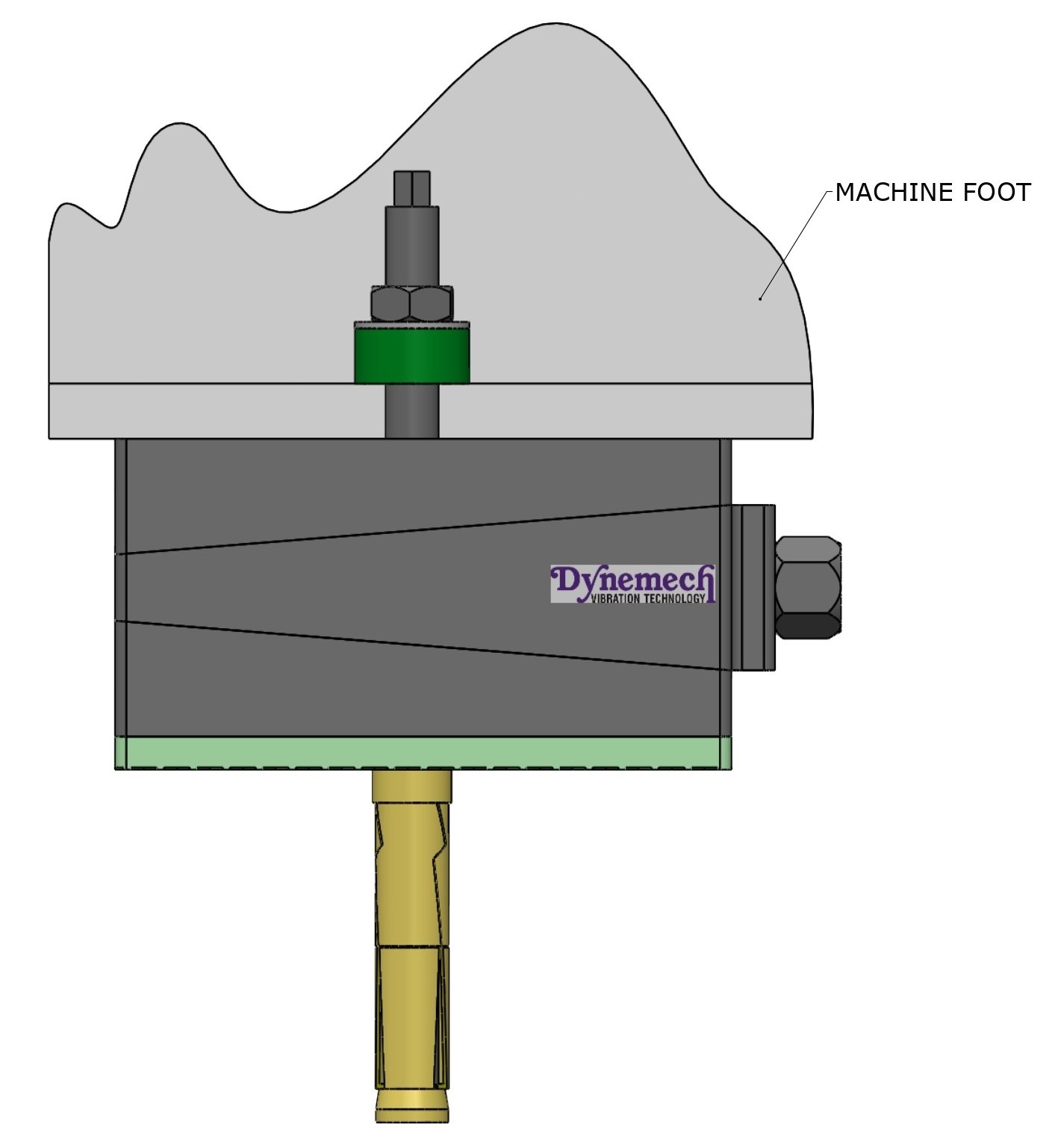

Installation 01

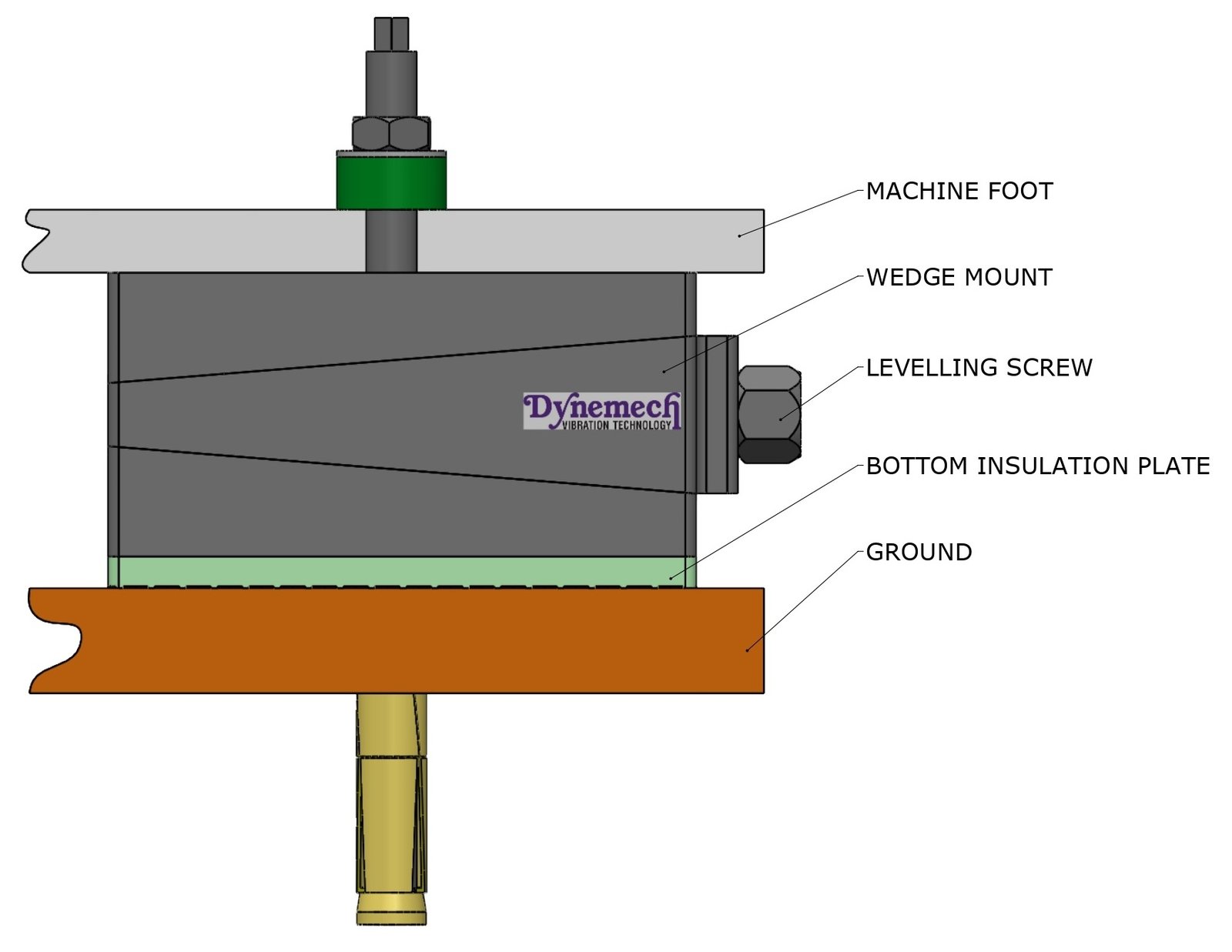

Installation 02
Description
Dynemech Wedge mounts, Series DTH mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application:
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Technical Data
Load Capacity Kg/pc
2500
Length (L) mm
200
Width (B) mm
125
Height (H) at mean position (mm)
88
Adjustment Range (mm)
+8/-8
Bottom pad Type
Dm
d (mm)
75
Bottom pad Thickness (mm)
15
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
0.7
Natural Frequency at Max. Load (Hz)
30
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
BORE* (mm)
25
e (mm)
25
