DTH3-i-28T-FG-DG

Model

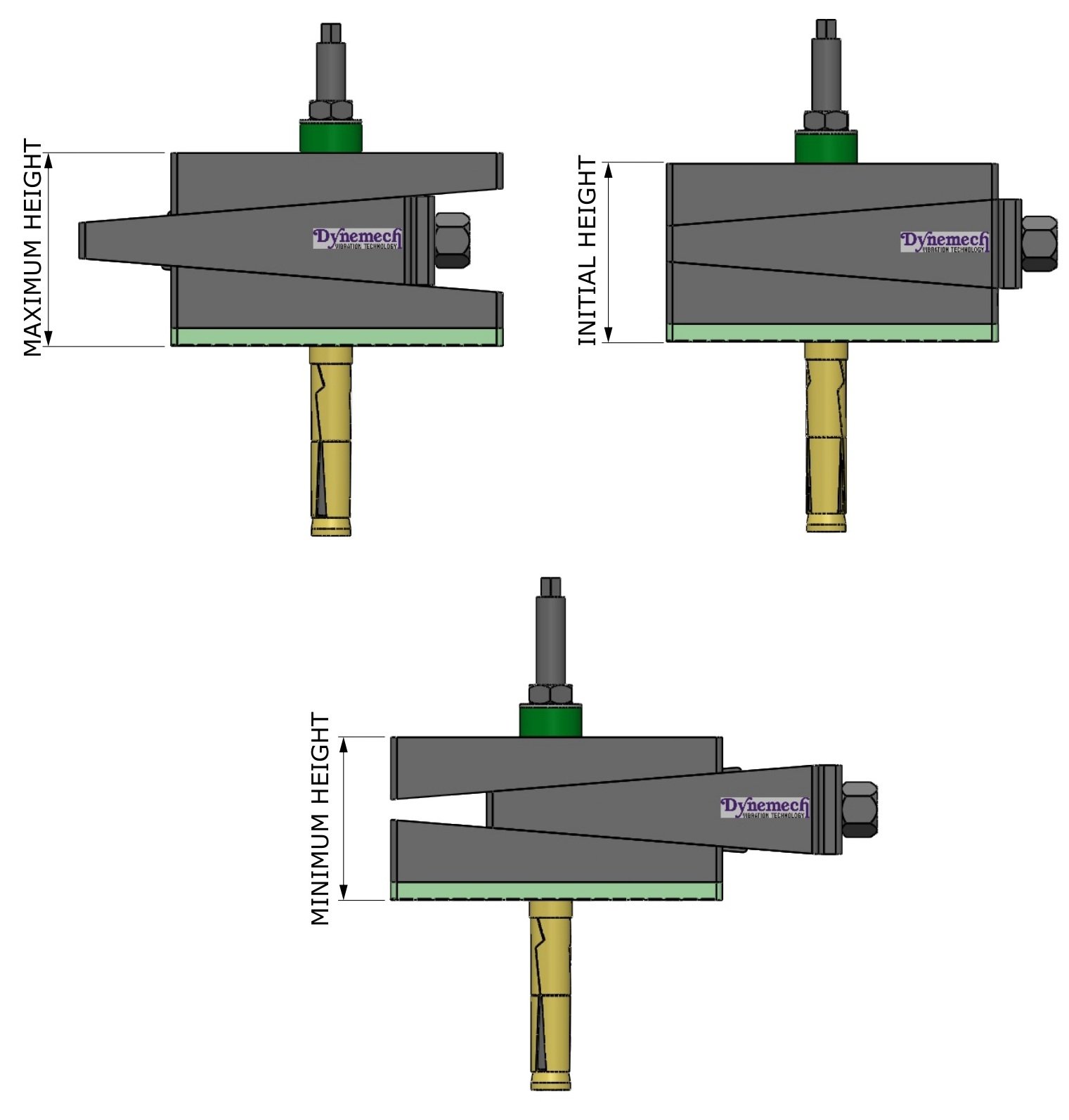

Adjustment Configuration

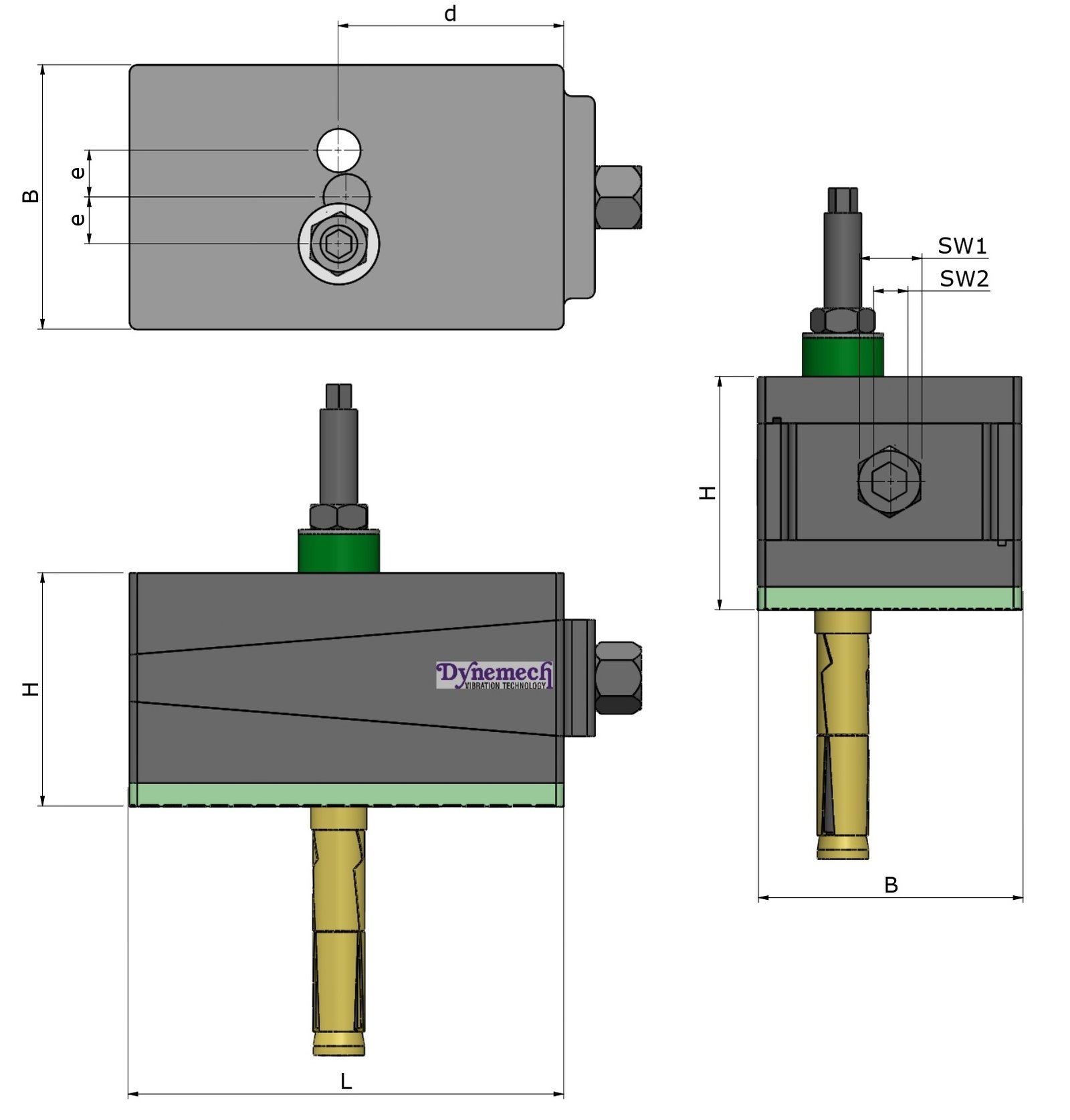

Dimensional Details
Installation 01
Installation 02

Description

Dynemech Wedge mounts, Series DTH mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.

Application:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

Technical Data

Model Catologue
Load Capacity Kg/pc
6400
Length (L) mm
280
Width (B) mm
170
Height (H) at mean position (mm)
160
Adjustment Range (mm)
+12.5/-12.5
Bottom pad Type
Di
d (mm)
145
Bottom pad Thickness (mm)
25
SW1 (mm)
39
SW2 (mm)
22
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
7
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
BORE* (mm)
28
e (mm)
30
