DFP5-s2-112-A1-FG-DG
Model
Adjustment Configuration

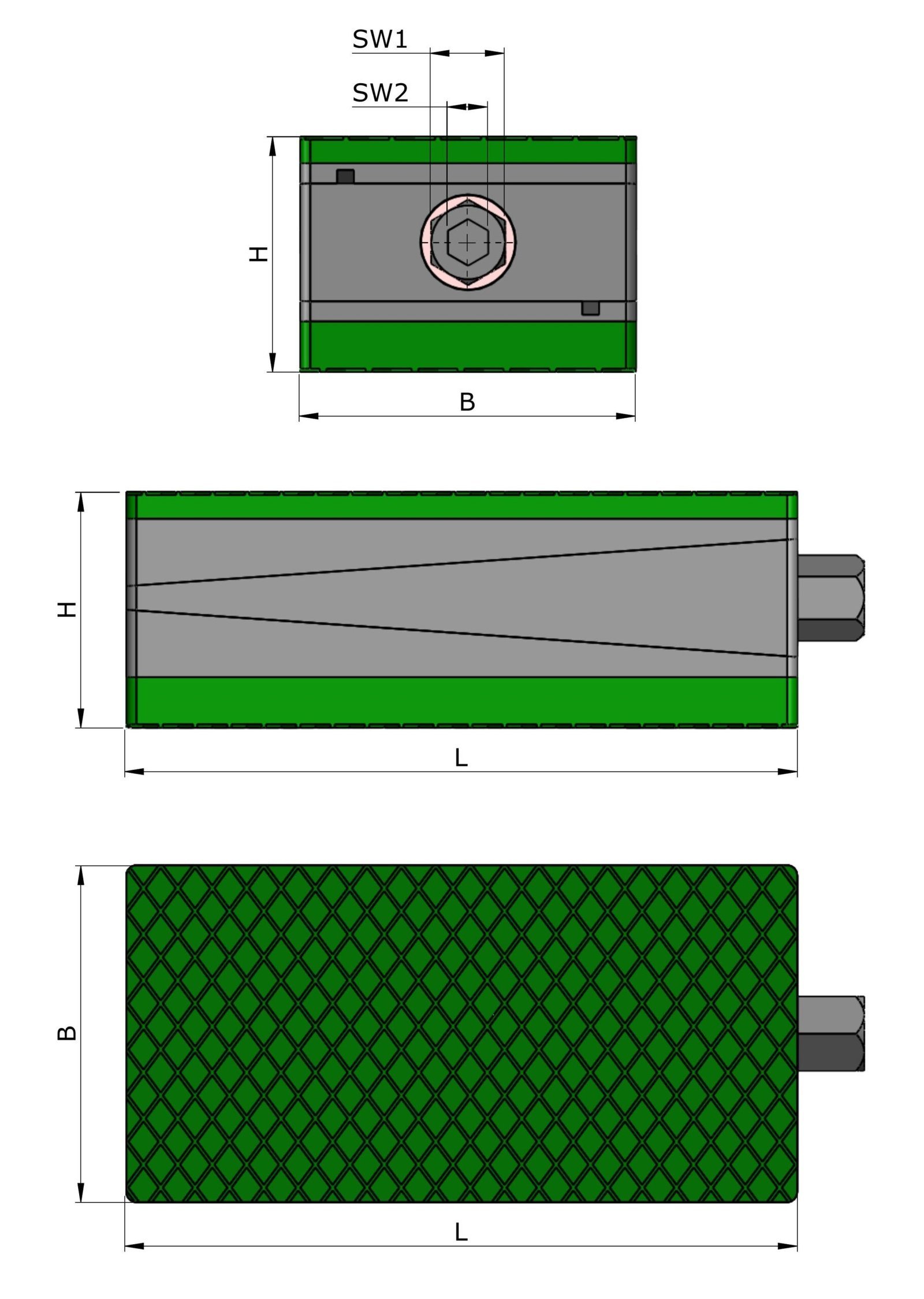

Dimensional Details

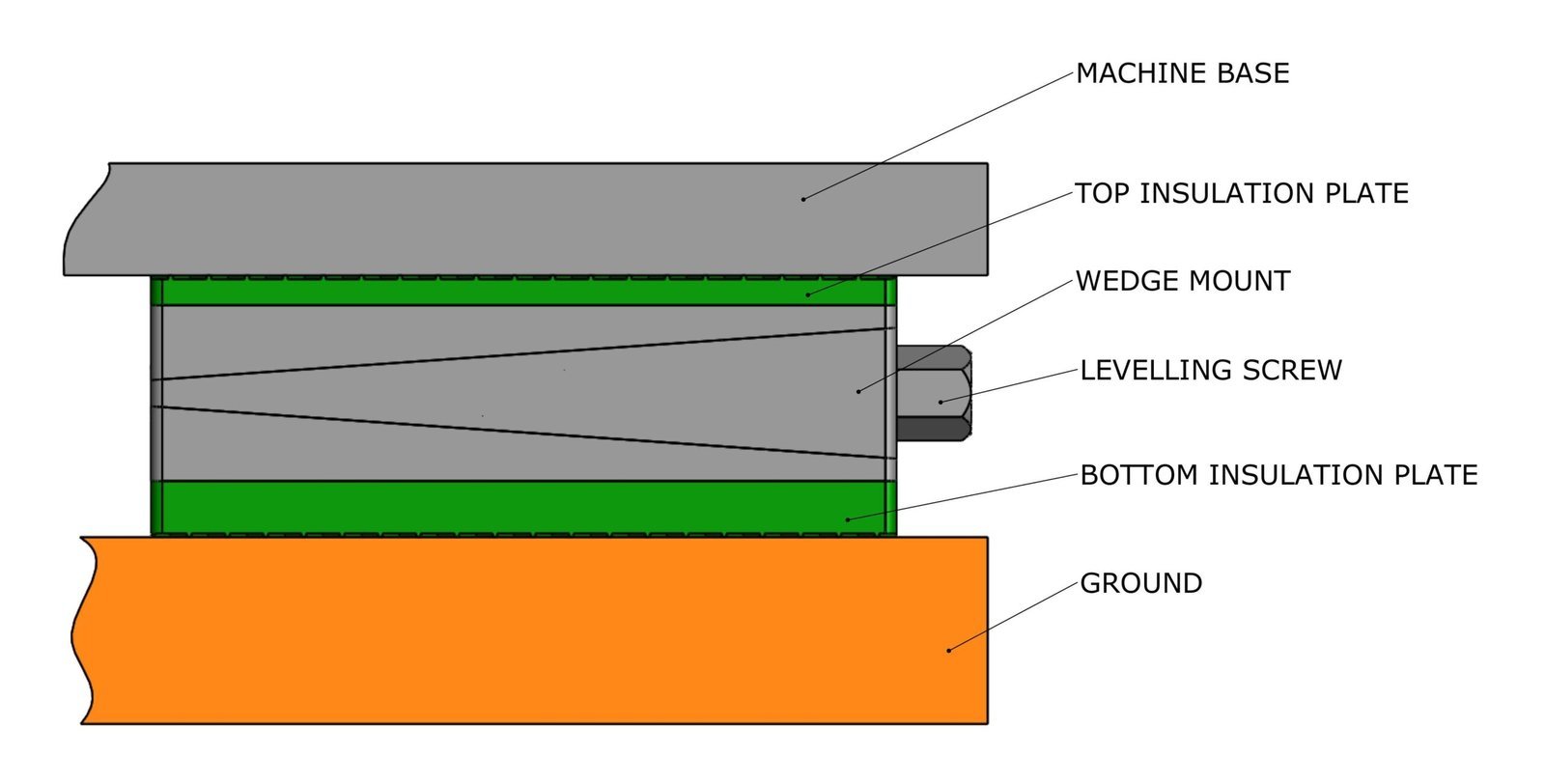

Installation 01

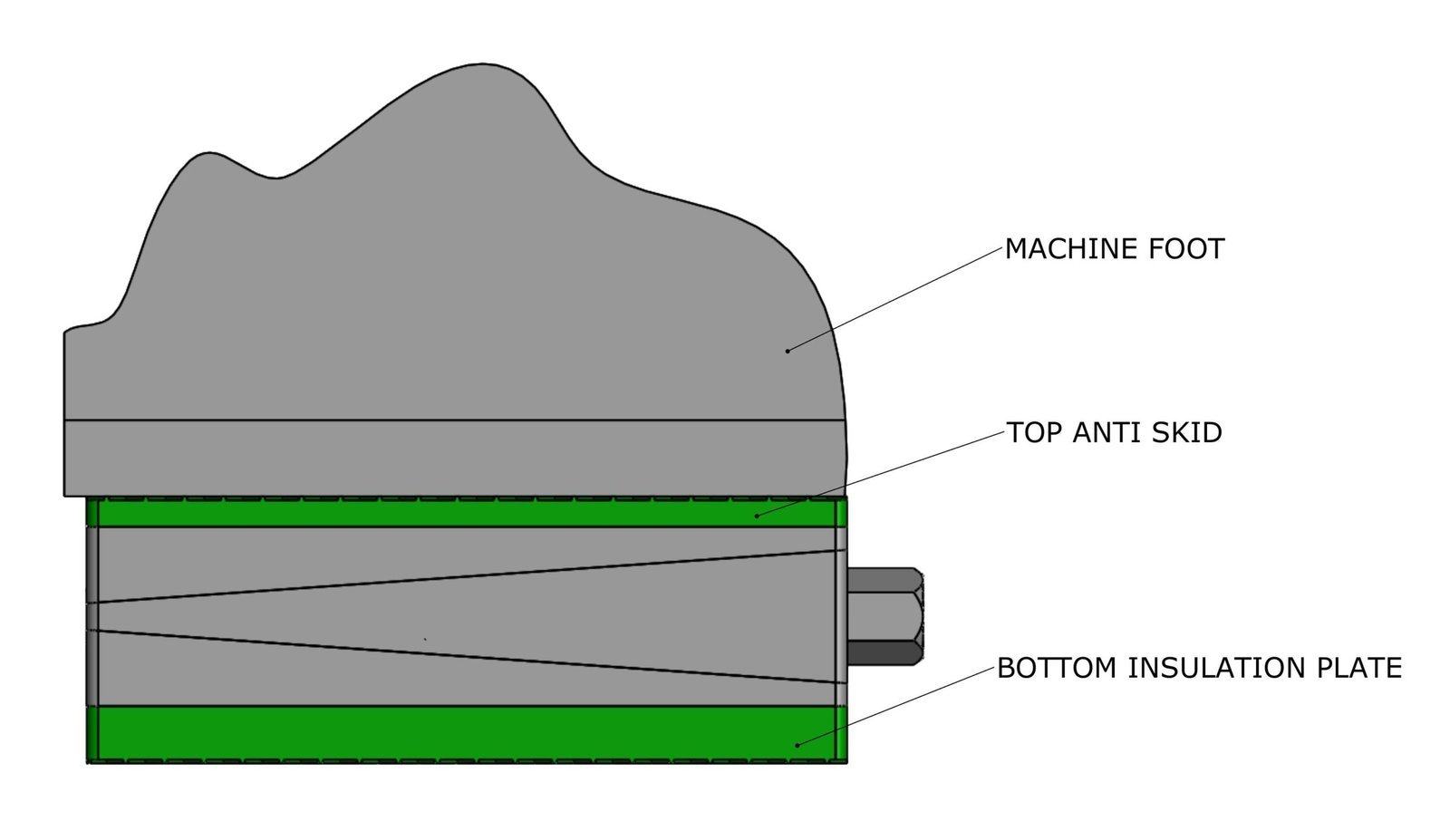

Installation 02
Description
Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application:
Medium Presses, Punching Presses, Centerless Grinding Machine, Gear Shaper, High Speed Machines on upper floors.
Technical Data
Load Capacity Kg/pc
3500
Length (L) mm
200
Width (B) mm
250
Height (H) at mean position (mm)
112
Adjustment Range (mm)
+9/-9
Bottom pad Type
Ds2
Bottom pad Thickness (mm)
25
Top pad Type
Da1
Top pad Thickness (mm)
2
SW1 (mm)
27
SW2 (mm)
14
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
8
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
