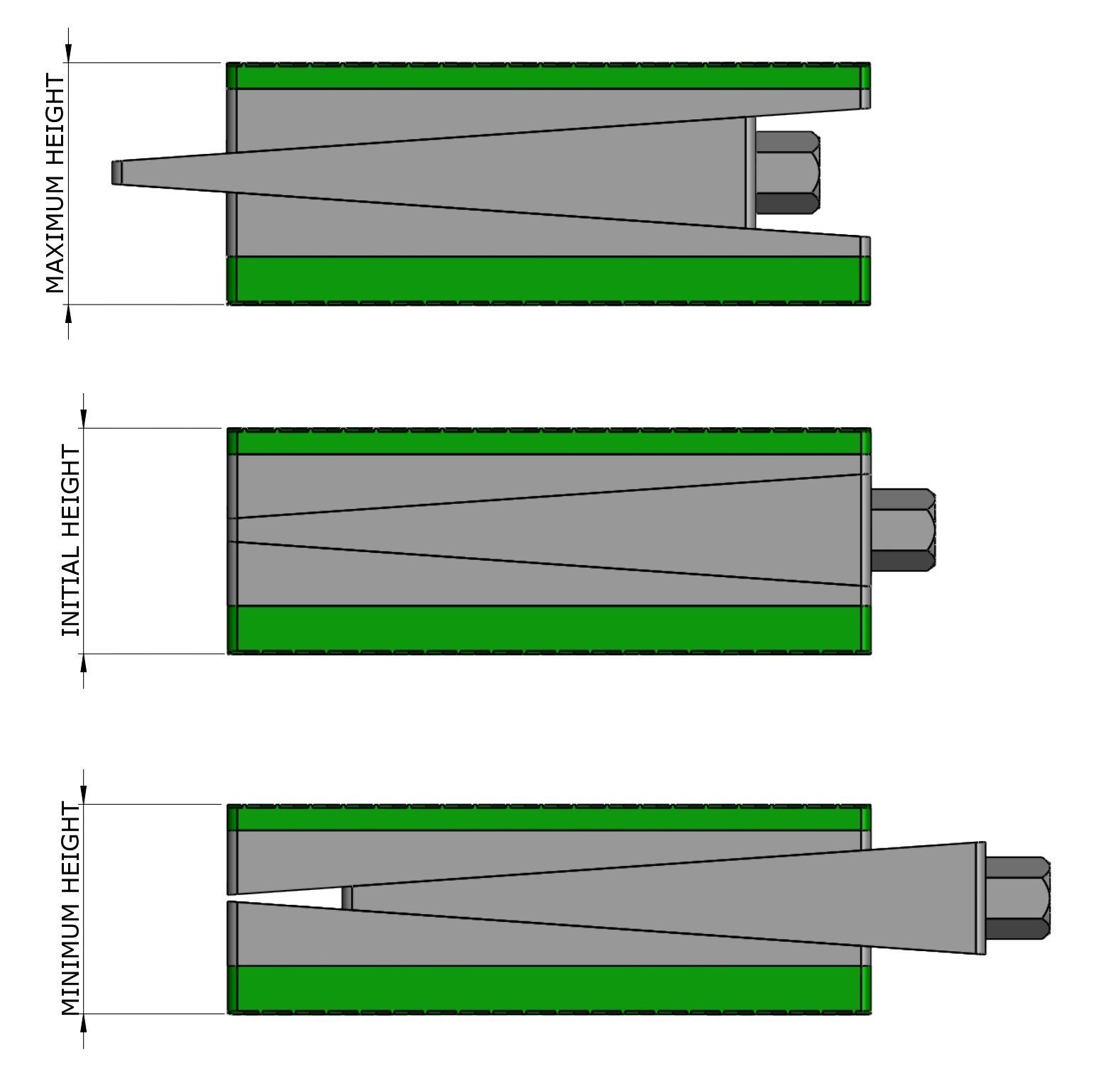

Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
DFP-s2-100
Description
Catalogue
Series:
DFP-s2-100
Applications:
Medium Presses, Stamping machines, also well suited for high speed rotating machines on upper floors.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DFP1-s2-112-A1-FG-DG | 350 | 105 | 55 | 112 |
| DFP2-s2-112-A1-FG-DG | 800 | 150 | 75 | 112 |
| DFP3-s2-112-A1-FG-DG | 1400 | 200 | 100 | 112 |
| DFP4-s2-112-A1-FG-DG | 2800 | 200 | 200 | 112 |
| DFP5-s2-112-A1-FG-DG | 3500 | 200 | 250 | 112 |
| DFP6-s2-112-A1-FG-DG | 5500 | 250 | 320 | 112 |
| DFP7-s2-112-A1-FG-DG | 8500 | 300 | 400 | 112 |
| DFP8-s2-112-A1-FG-DG | 14000 | 400 | 500 | 112 |
