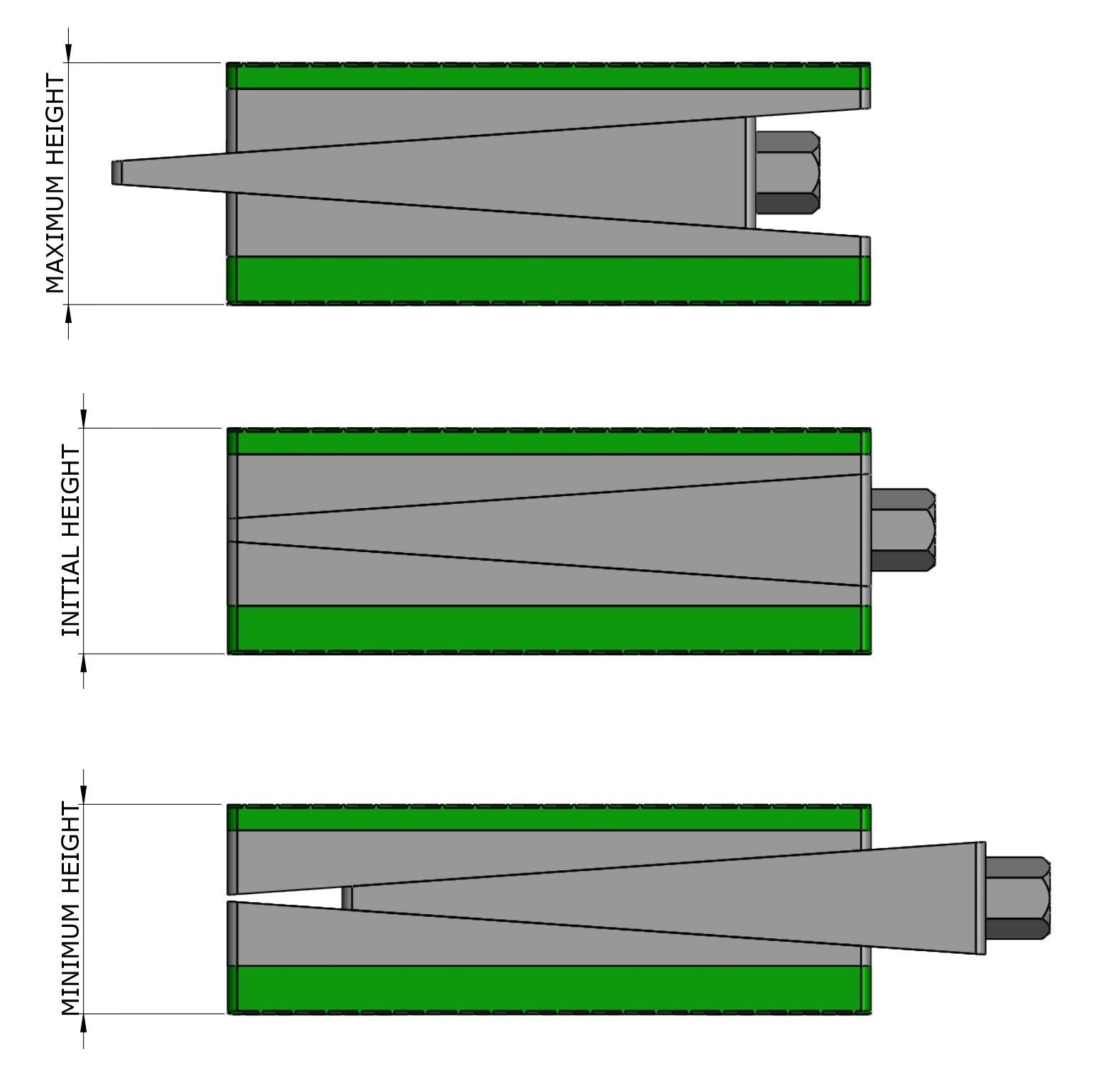

Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
DFP-p3-100
Description
Catalogue
Series:
DFP-p3-100
Applications:
Suitable for both active & passive vibration isolation of metrology and production machines.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DFP1-p3-111-A1-FG-DG | 340 | 105 | 55 | 111 |
| DFP2-p3-111-A1-FG-DG | 670 | 150 | 75 | 111 |
| DFP3-p3-111-A1-FG-DG | 1200 | 200 | 100 | 111 |
| DFP4-p3-111-A1-FG-DG | 2400 | 200 | 200 | 111 |
| DFP5-p3-111-A1-FG-DG | 3000 | 200 | 250 | 111 |
| DFP6-p3-111-A1-FG-DG | 4800 | 250 | 320 | 111 |
| DFP7-p3-111-A1-FG-DG | 7200 | 300 | 400 | 111 |
| DFP8-p3-111-A1-FG-DG | 12000 | 400 | 500 | 111 |
