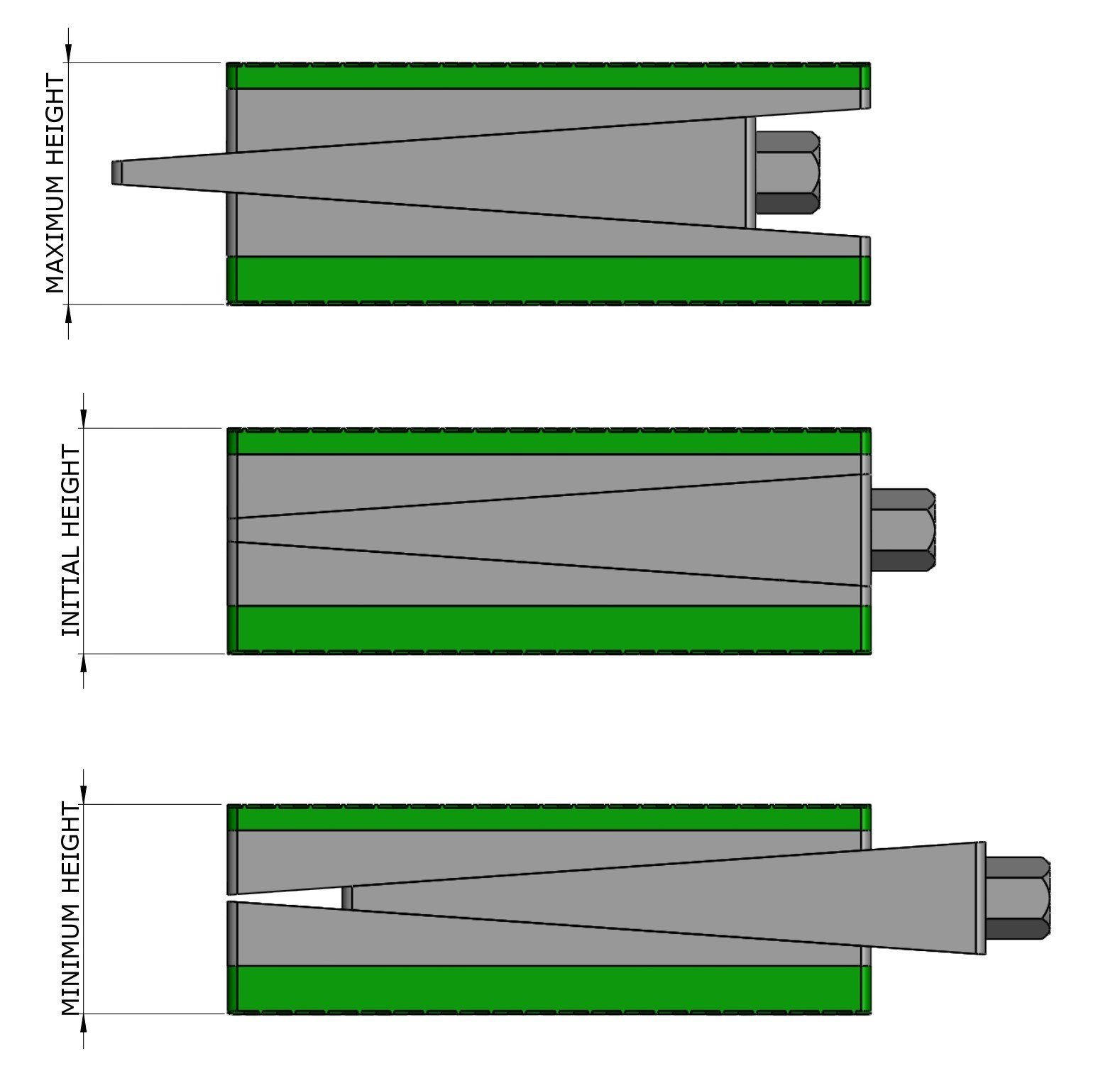

Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
DFP-hs2-100
Description
Catalogue
Series:
DFP-hs2-100
Applications:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DFP1-hs2-152-A1-FG-DG | 460 | 105 | 55 | 152 |
| DFP2-hs2-152-A1-FG-DG | 900 | 150 | 75 | 152 |
| DFP3-hs2-152-A1-FG-DG | 1600 | 200 | 100 | 152 |
| DFP4-hs2-152-A1-FG-DG | 3200 | 200 | 200 | 152 |
| DFP5-hs2-152-A1-FG-DG | 4000 | 200 | 250 | 152 |
| DFP6-hs2-152-A1-FG-DG | 6400 | 250 | 320 | 152 |
| DFP7-hs2-152-A1-FG-DG | 9600 | 300 | 400 | 152 |
| DFP8-hs2-152-A1-FG-DG | 16000 | 400 | 500 | 152 |
