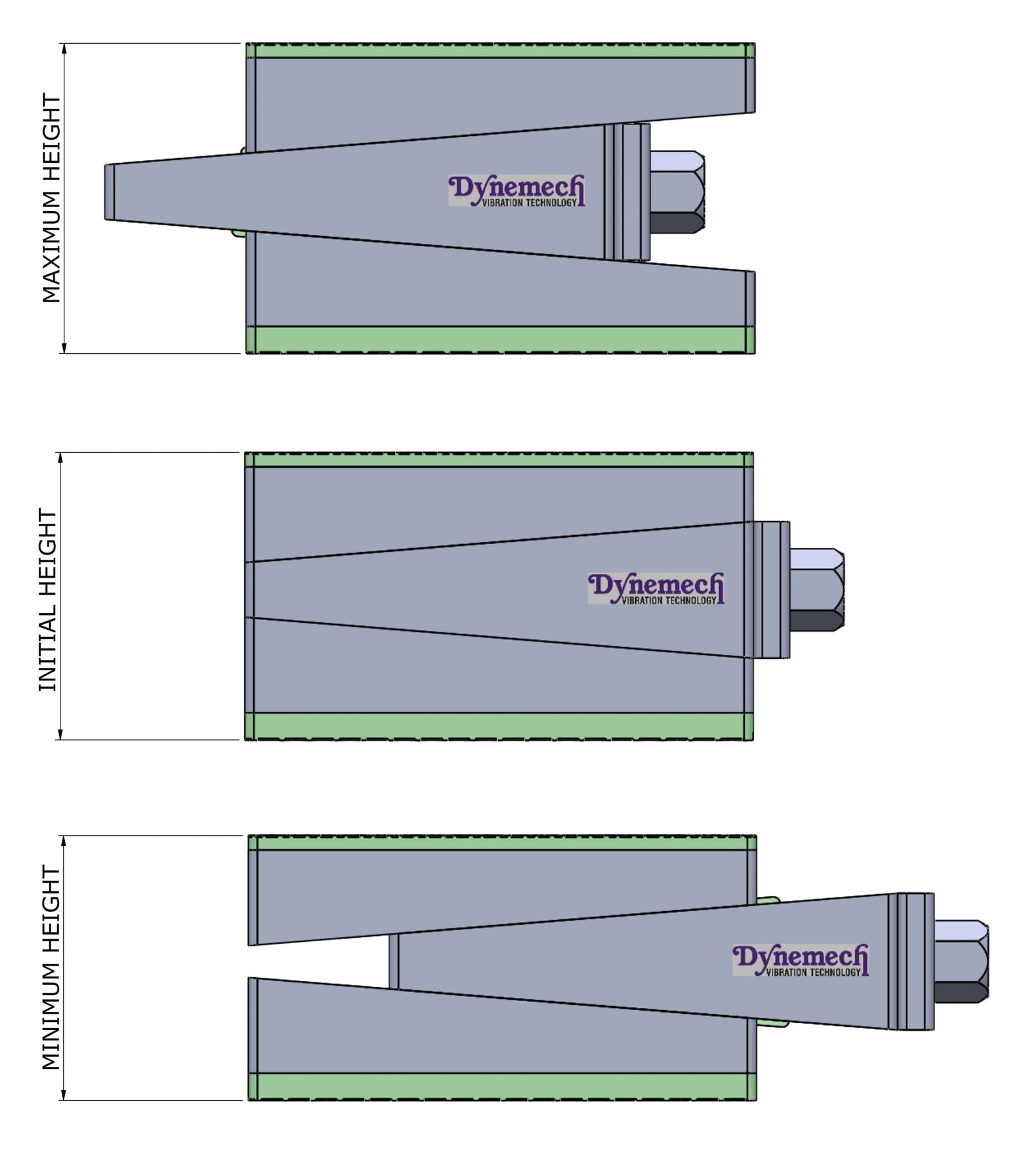

Adjustment Configuration

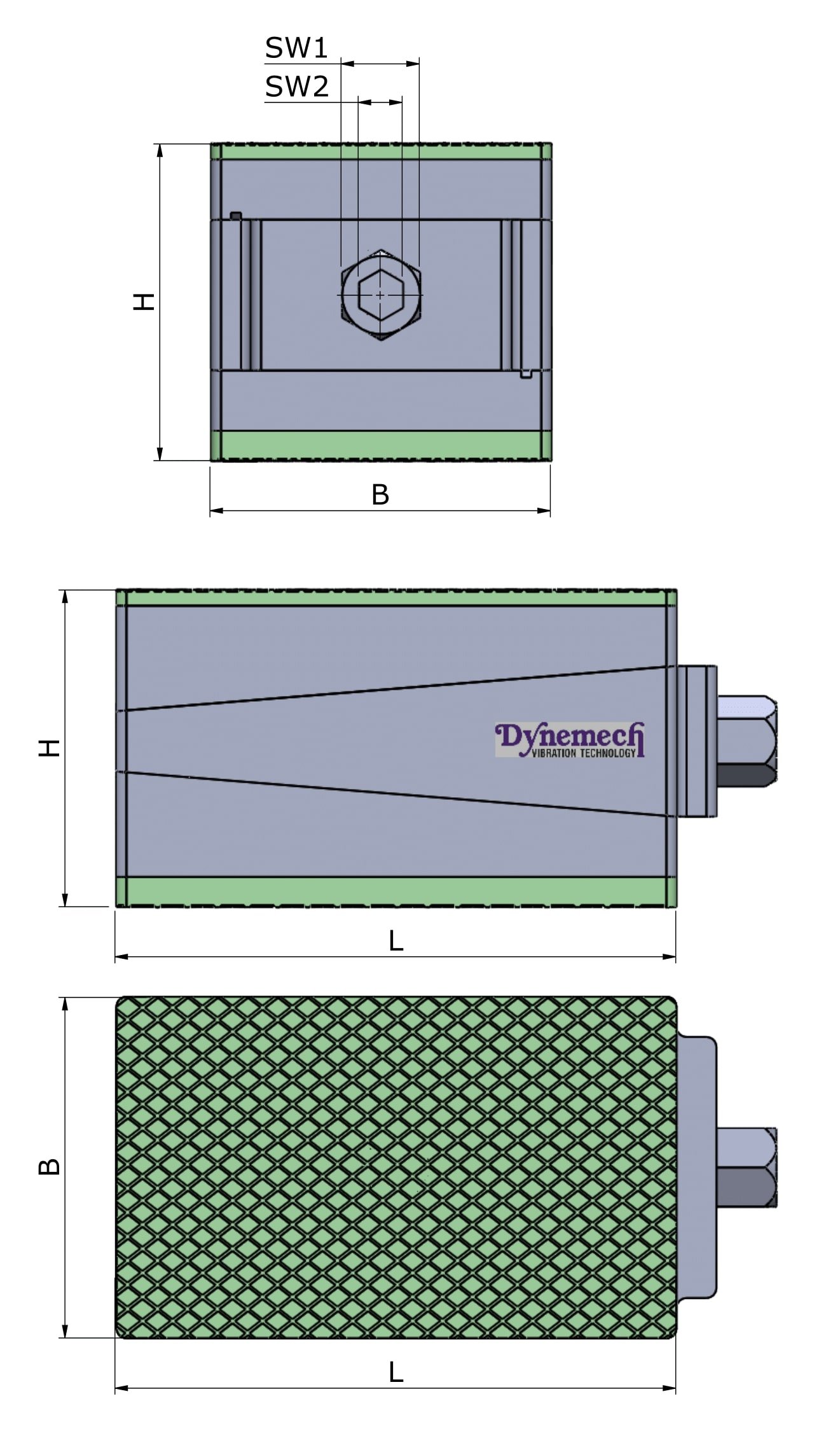

Dimensional Details

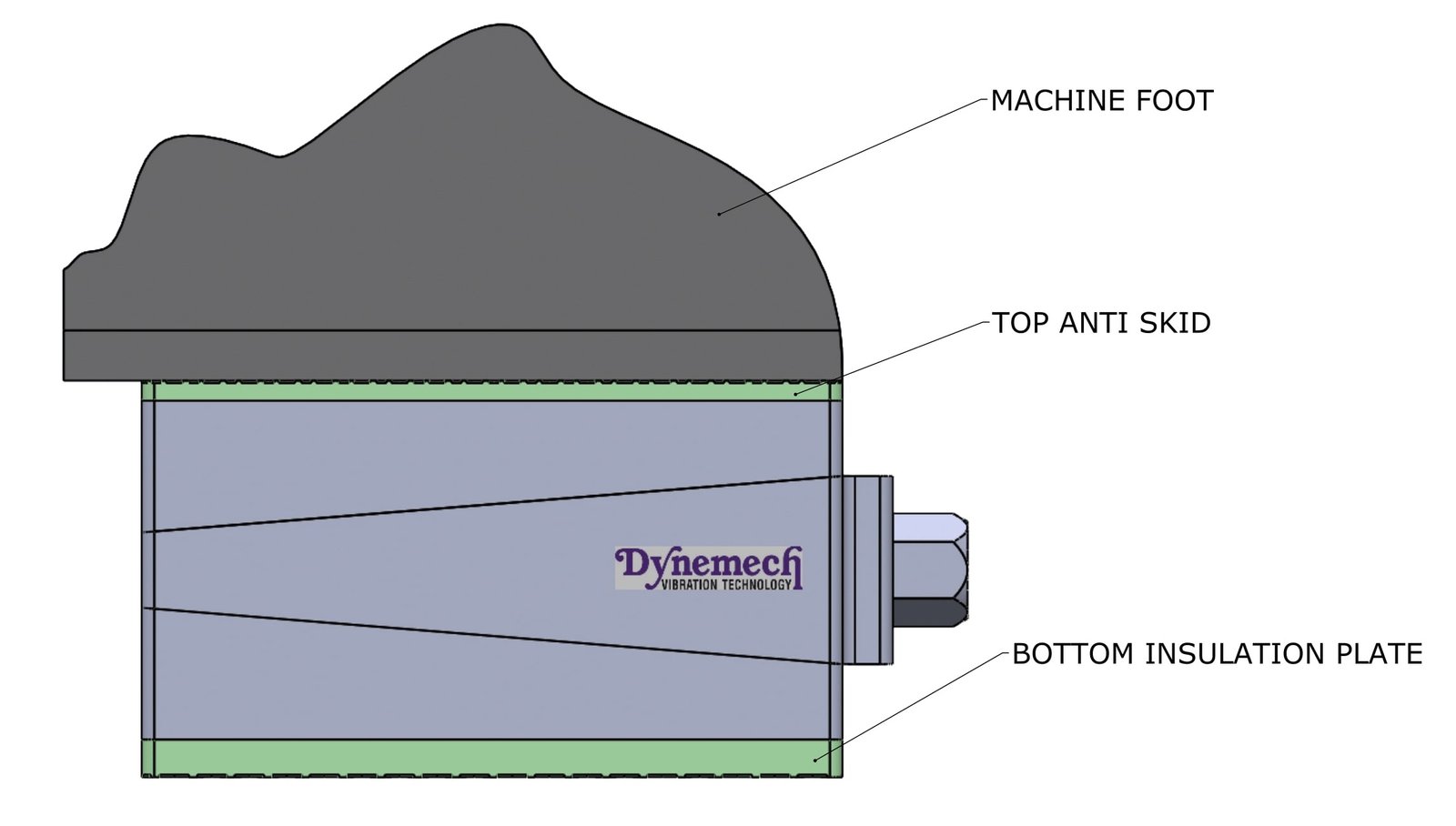

Installation 01

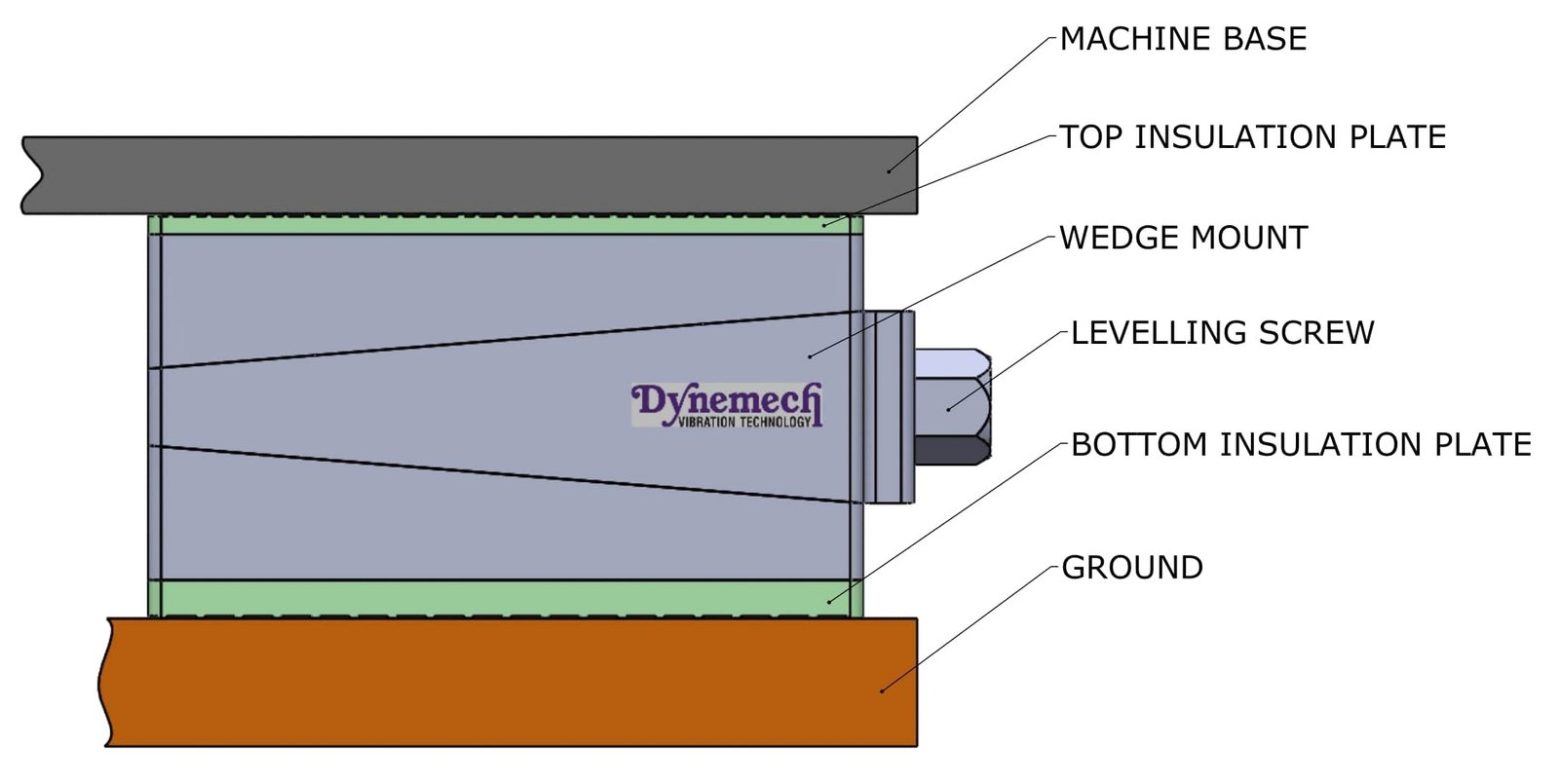

Installation 02
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application:
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Technical Data
Load Capacity Kg/pc
4284
Length (L) mm
280
Width (B) mm
170
Height (H) at mean position (mm)
155
Adjustment Range (mm)
+12.5/-12.5
Bottom pad Type
Du-12
Bottom pad Thickness (mm)
12
Top pad Type
Da2
Top pad Thickness (mm)
8
SW1 (mm)
39
SW2 (mm)
22
Coeff. of Friction against Concrete
0.9
Natural Frequency at Max. Load (Hz)
20
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
