DFHP3-s2-a1-162-FG-DG
Model

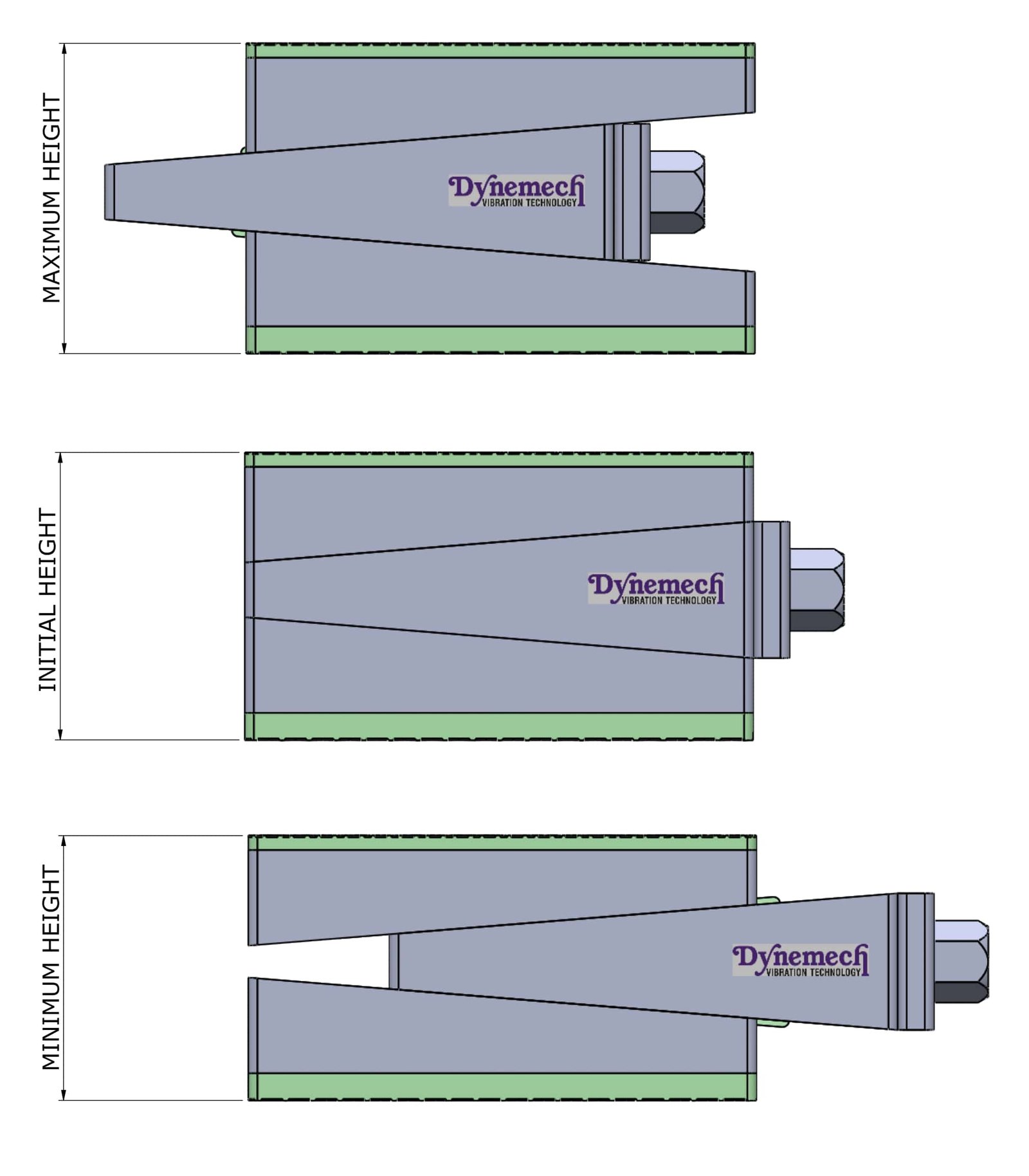

Adjustment Configuration

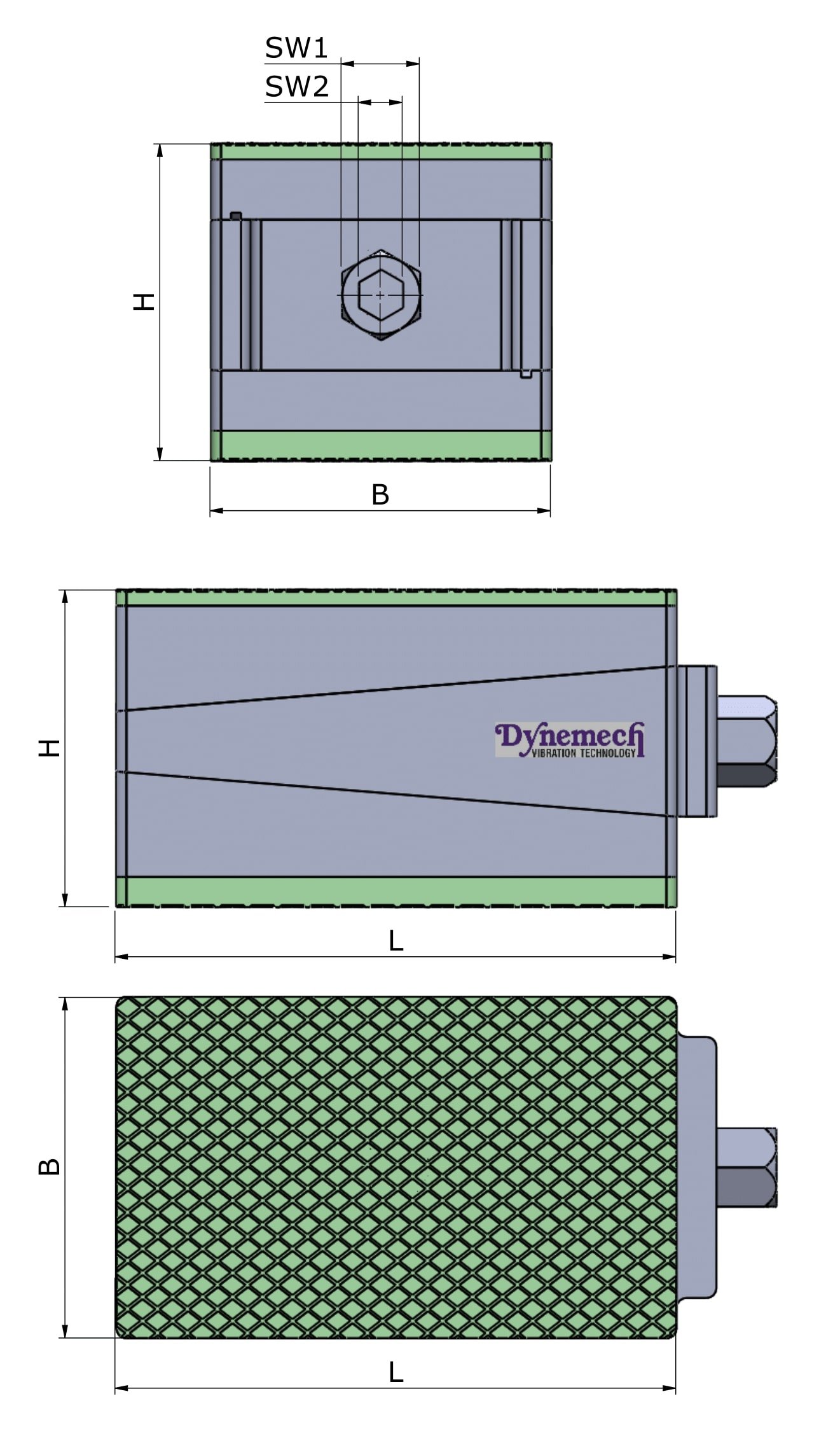

Dimensional Details

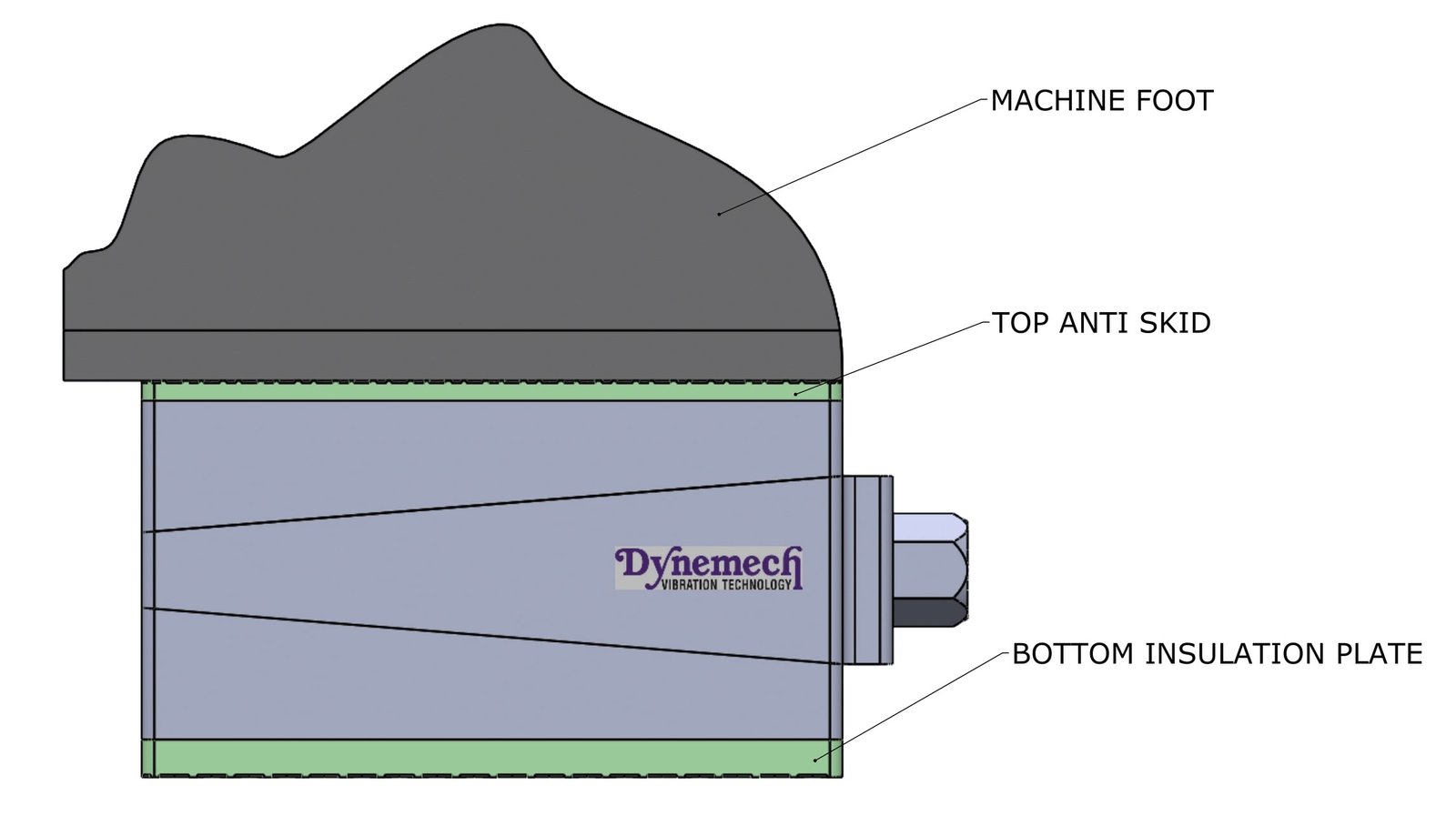

Installation 01

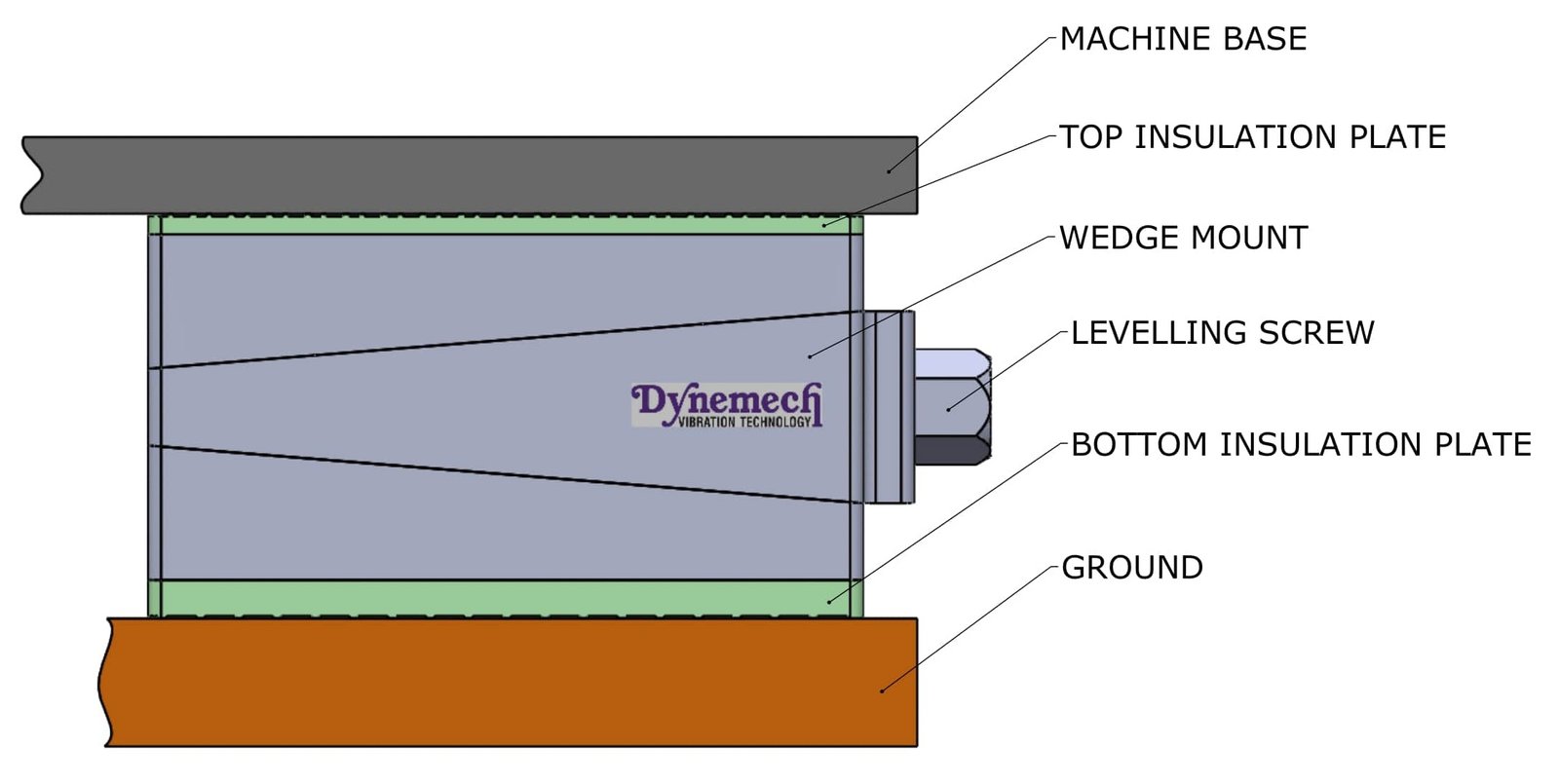

Installation 02
Description

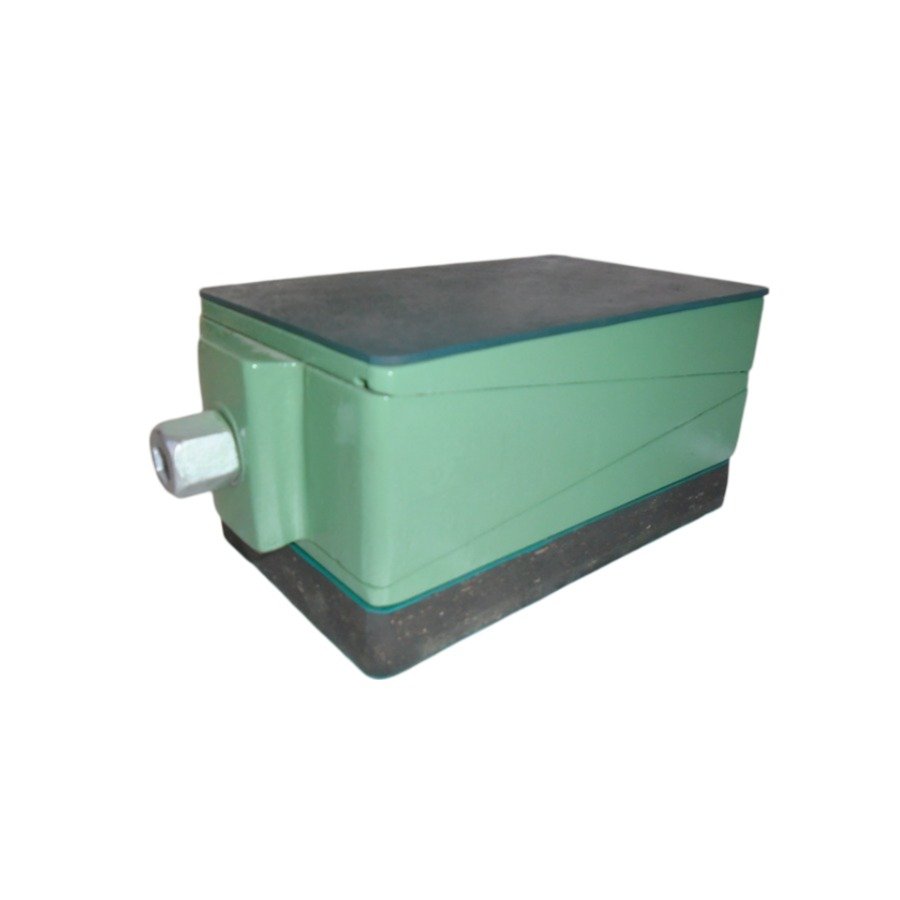

Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application:
Medium Presses, Stamping machines, also well suited for high speed rotating machines on upper floors.
Technical Data
Load Capacity Kg/pc
3800
Length (L) mm
280
Width (B) mm
170
Height (H) at mean position (mm)
162
Adjustment Range (mm)
+12.5/-12.5
Bottom pad Type
Ds2
Bottom pad Thickness (mm)
25
Top pad Type
Da1
Top pad Thickness (mm)
2
SW1 (mm)
39
SW2 (mm)
22
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
8
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
