Description

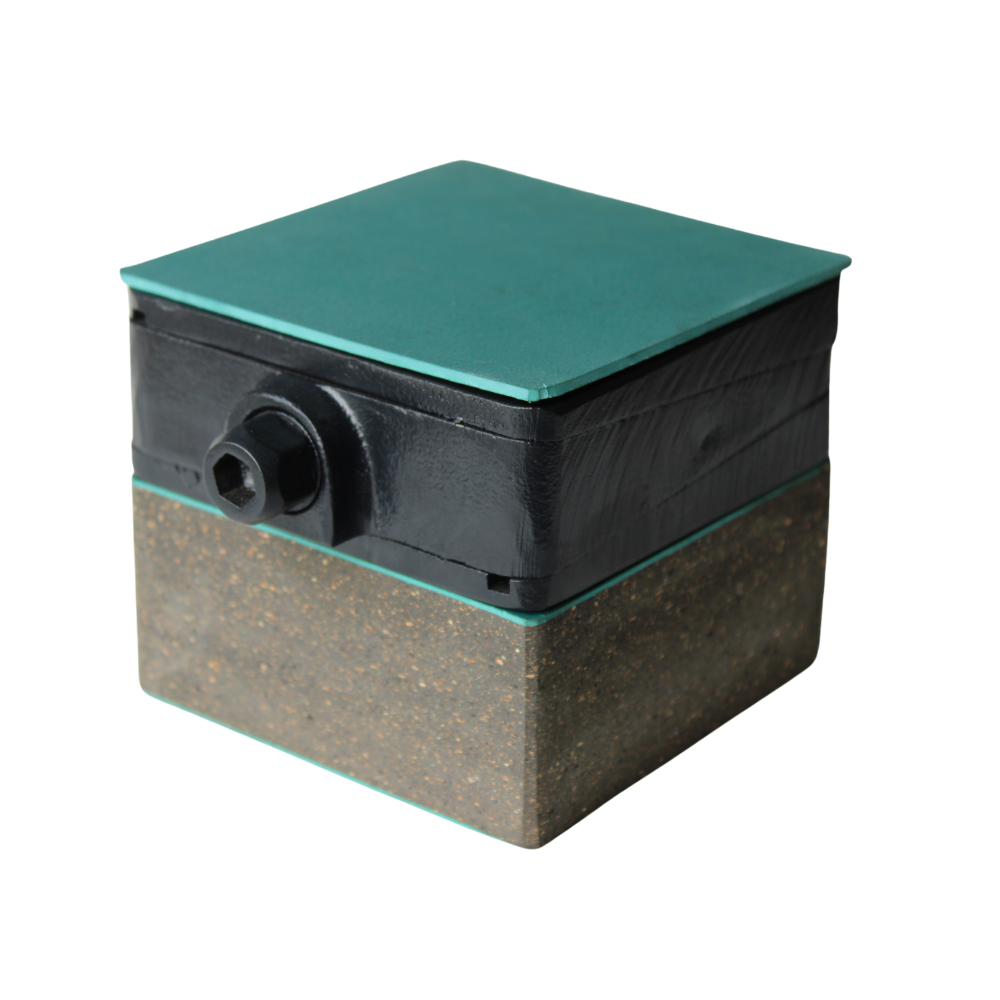

Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.

Catalogue

Series:

DF-hs3

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Model Load Capacity(Kg/pc) Length (L) mm Width (B) mm Height (H) (mm)
DF1-hs3-A2-FG-DG 1600 105 55 95
DF2-hs3-A2-FG-DG 3100 150 75 98
DF3-hs3-A2-FG-DG 5600 200 100 105
DF4-hs3-A2-FG-DG 11200 200 200 108
DF5-hs3-A2-FG-DG 14000 200 250 128
DF6-hs3-A2-FG-DG 22400 250 320 133
DF7-hs3-A2-FG-DG 33600 300 400 133
DF8-hs3-A2-FG-DG 56000 400 500 138
