Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DBF2-M-A1-FG-DG
Model
Adjustment Configuration

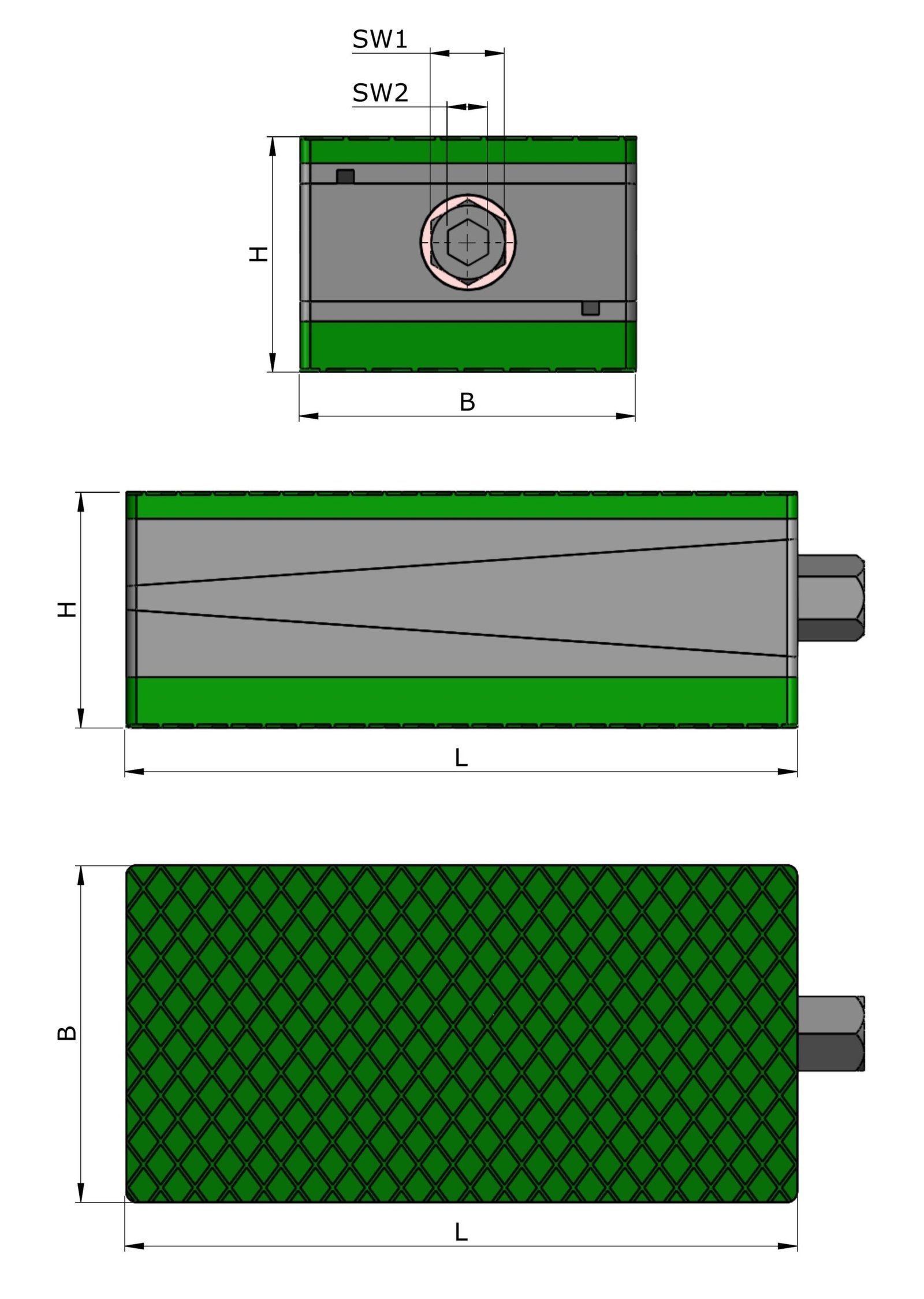

Dimensional Details

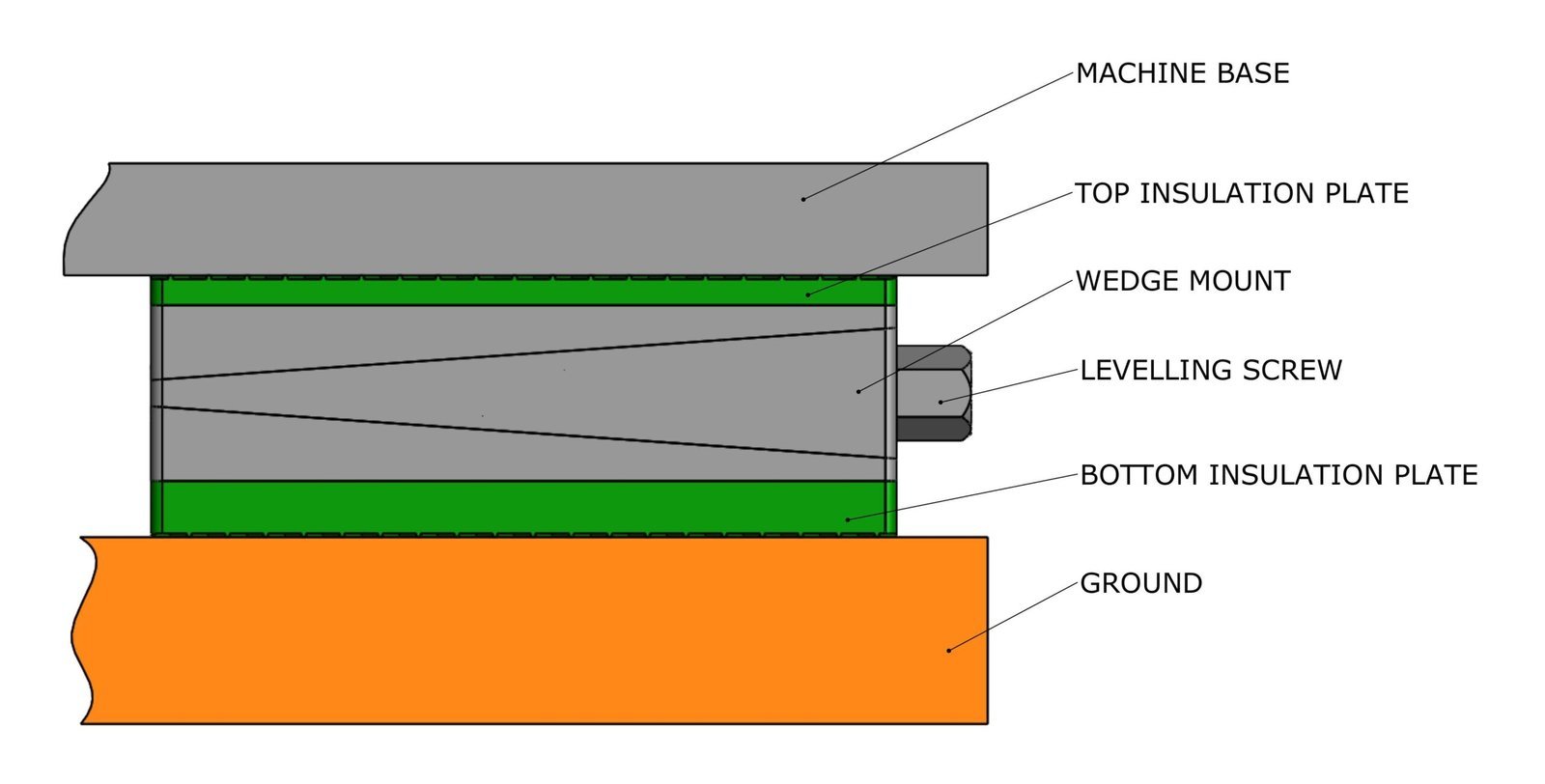

Installation 01

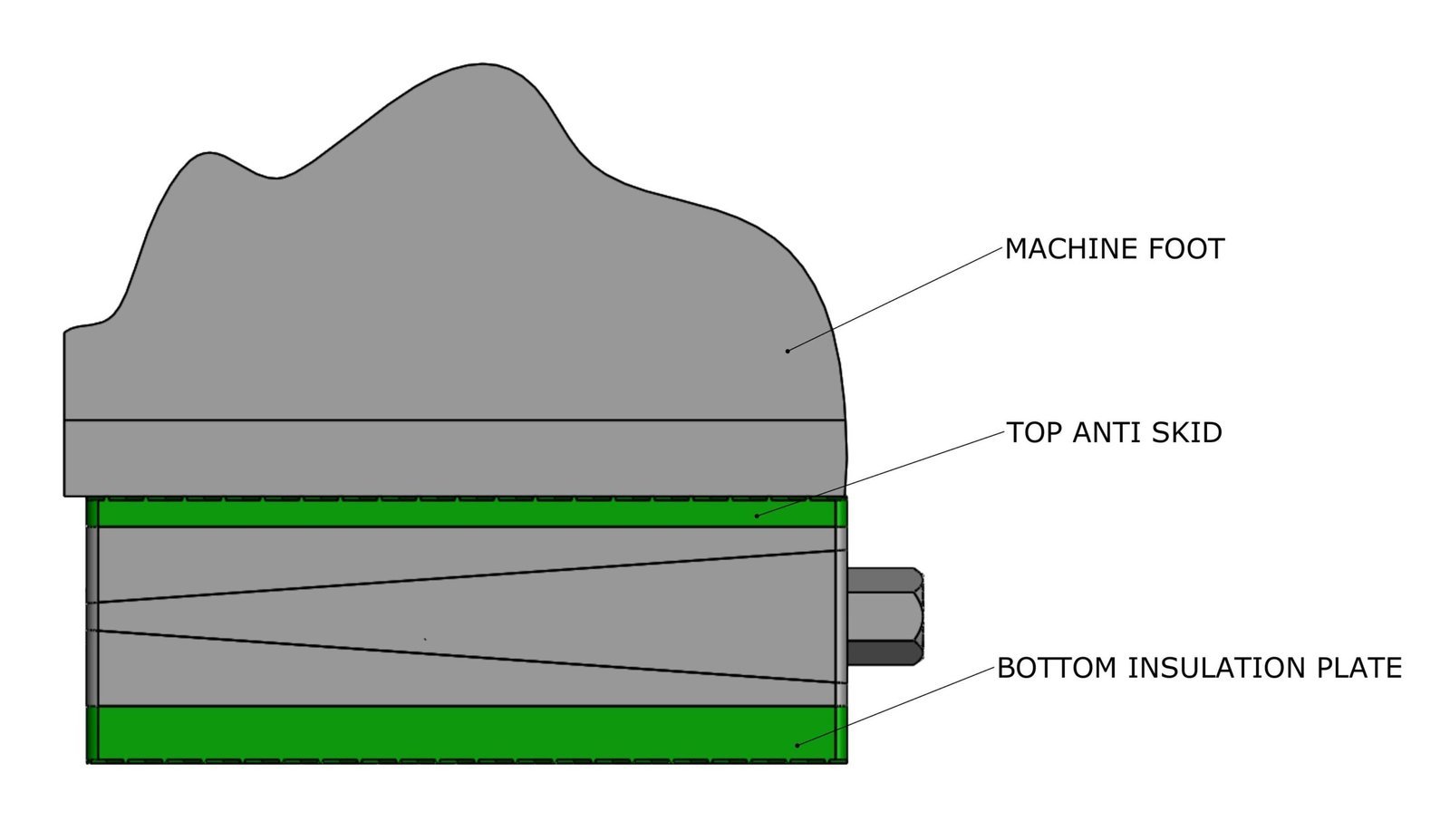

Installation 02
Description
Application:
Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines,
Drilling Machines, Turning Centres, Transfer Lines etc.
Technical Data
Model Catologue
Load Capacity Kg/pc
1400
Length (L) mm
115
Width (B) mm
115
Height (H) at mean position (mm)
61
Adjustment Range (mm)
+4/-4
Bottom pad Type
Dm
Bottom pad Thickness (mm)
15
Top pad Type
Da1
Top pad Thickness (mm)
2
SW1 (mm)
19
SW2 (mm)
10
Coeff. of Friction against Concrete
0.7
Natural Frequency at Max. Load (Hz)
30
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
