DBP4-hs2-150-FG-M20x2.5×200-S-Z-8-DG
Model

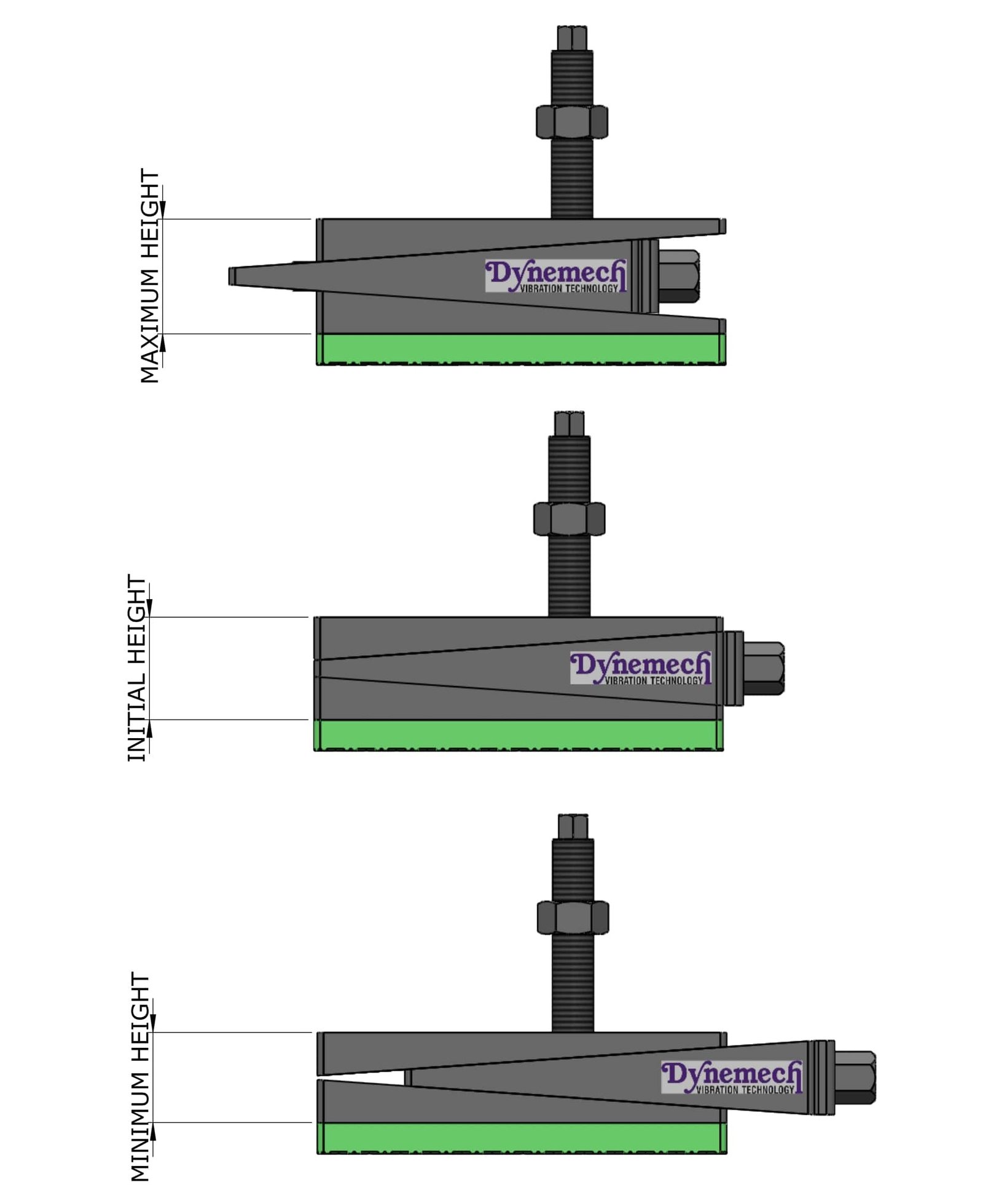

Adjustment Configuration

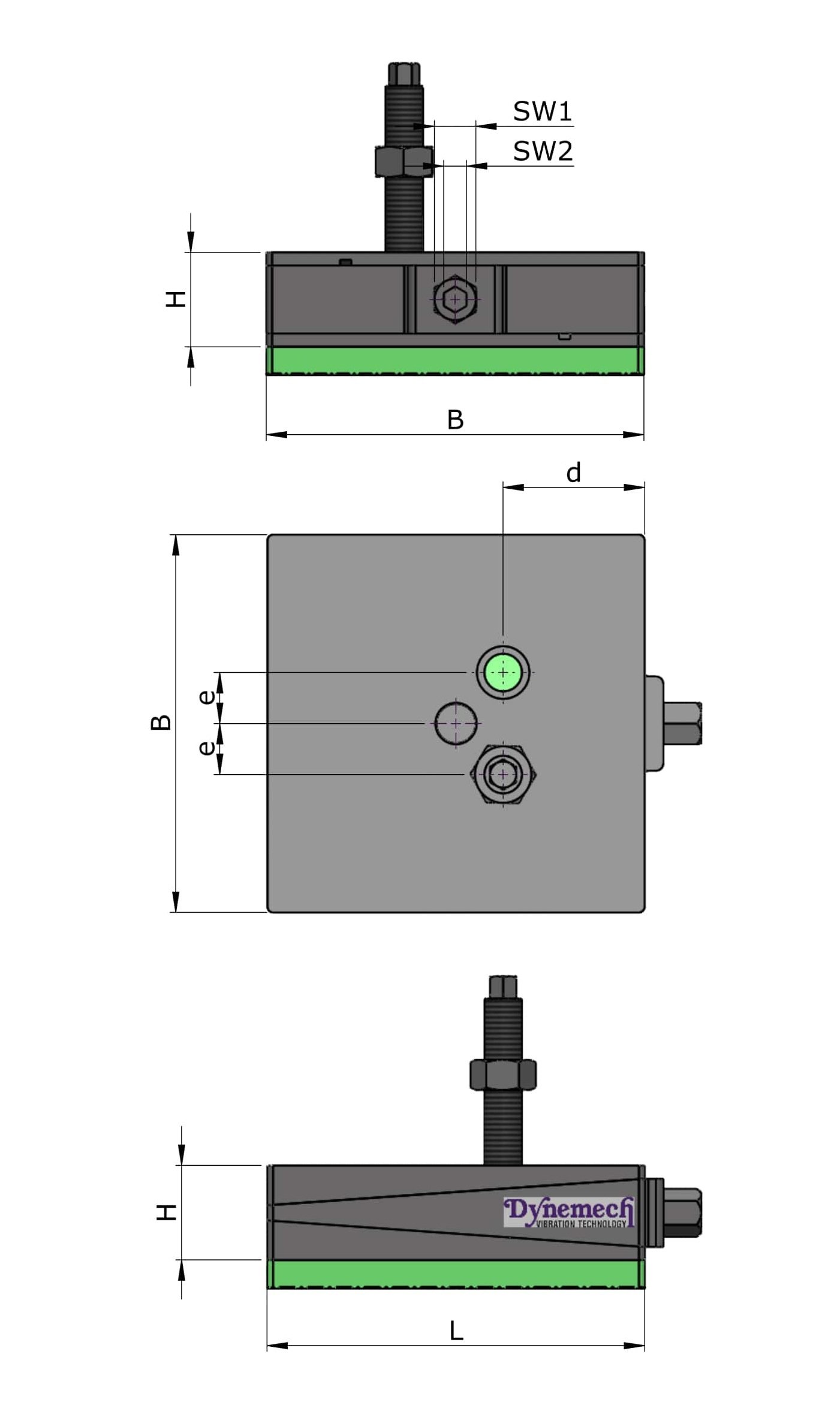

Dimensional Details

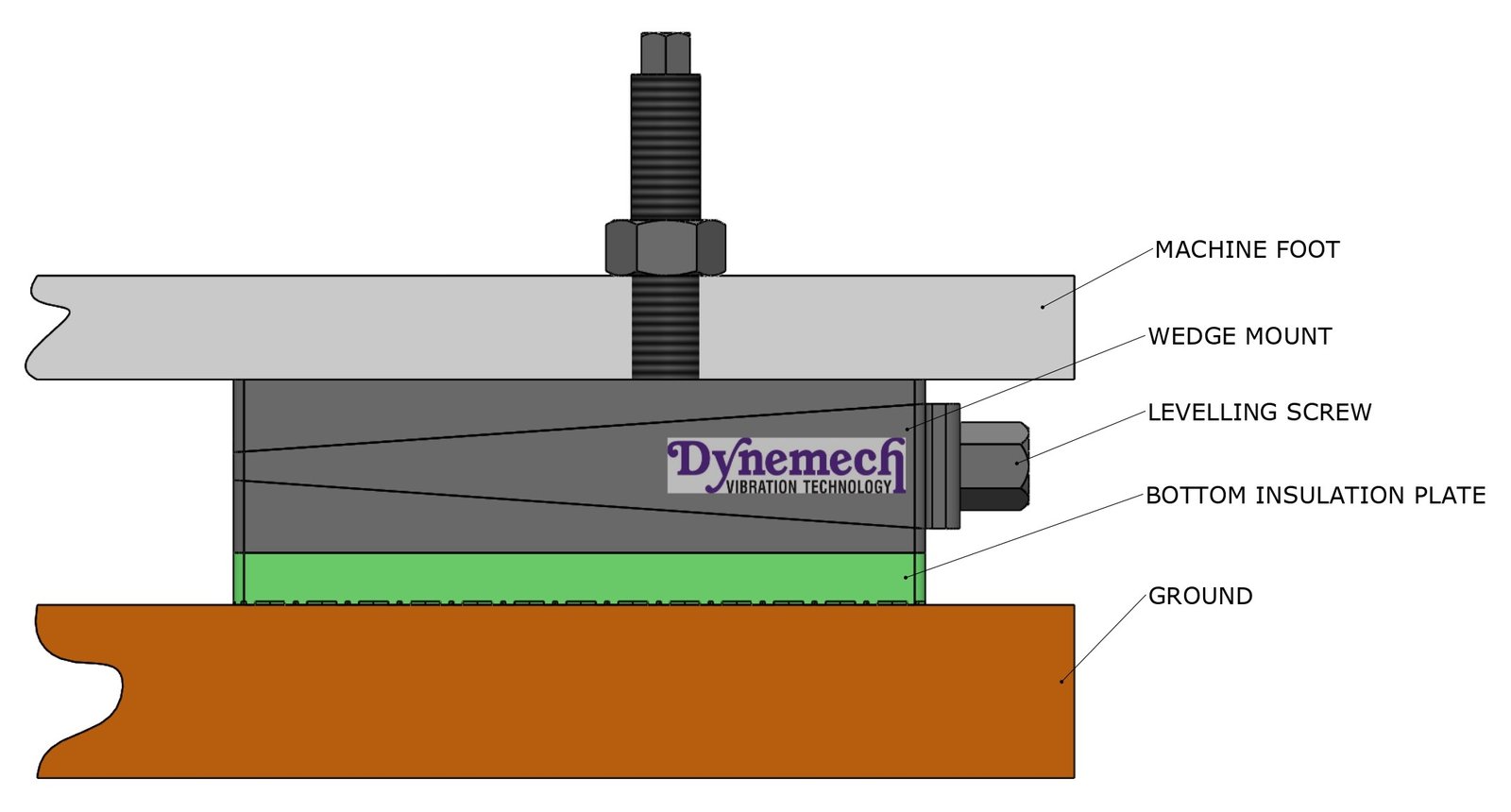

Installation 01
Installation 02
Description
Dynemech Wedge mounts, Series DBP-100 have a height of 100mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Technical Data
Load Capacity Kg/pc
4000
Length (L) mm
200
Width (B) mm
250
Height (H) at mean position (mm)
150
Adjustment Range (mm)
+9/-9
Bottom pad Type
Dhs2
d (mm)
95
Bottom pad Thickness (mm)
65
Bolt Size (mm)
M20
SW1 (mm)
27
SW2 (mm)
14
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
4
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
e (mm)
27
