Dynemech Wedge mounts, Series DBOP-100 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DBOP6-p3-109-FG-S-Z-GR
Model

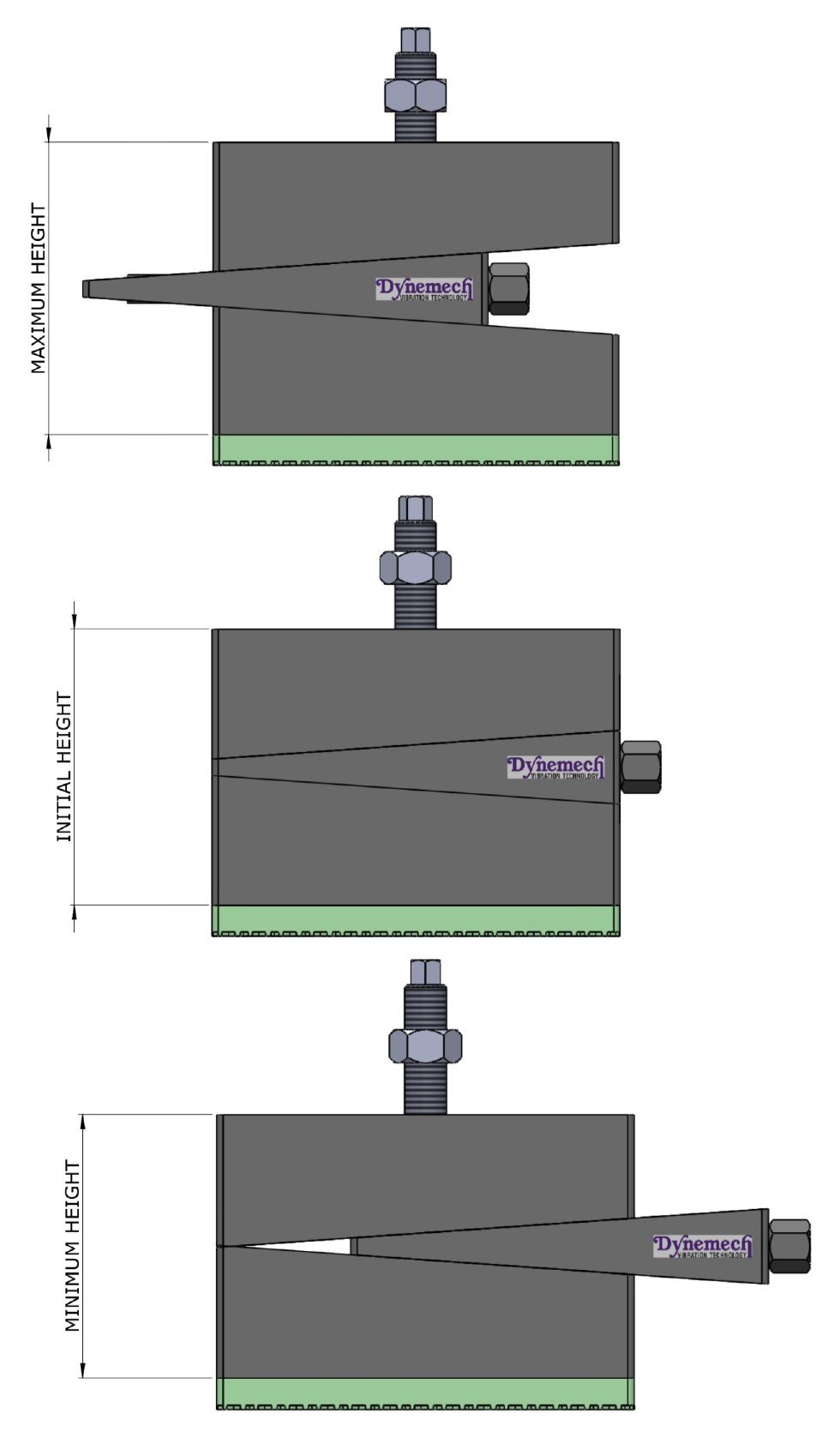

Adjustment Configuration

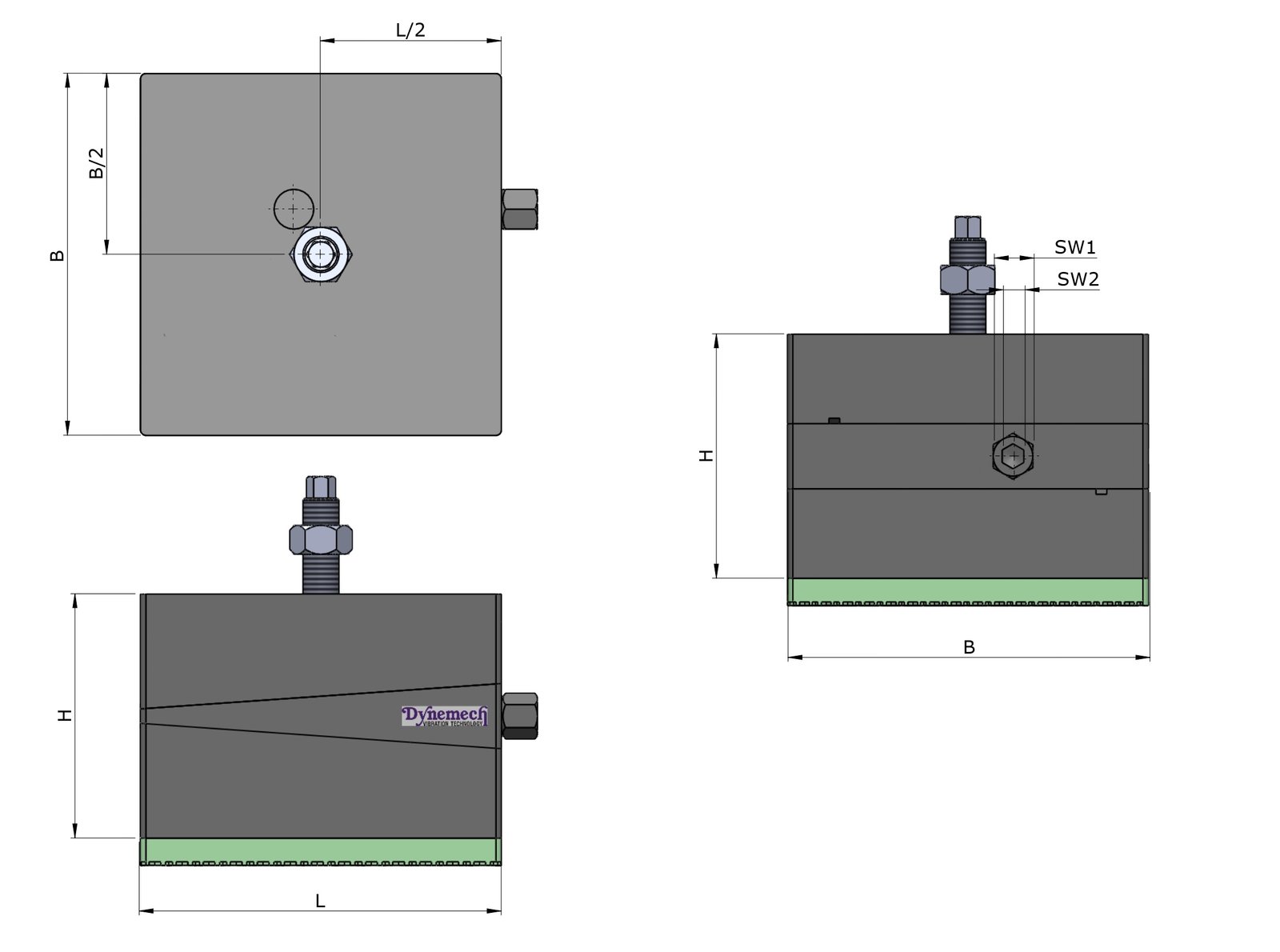

Dimensional Details

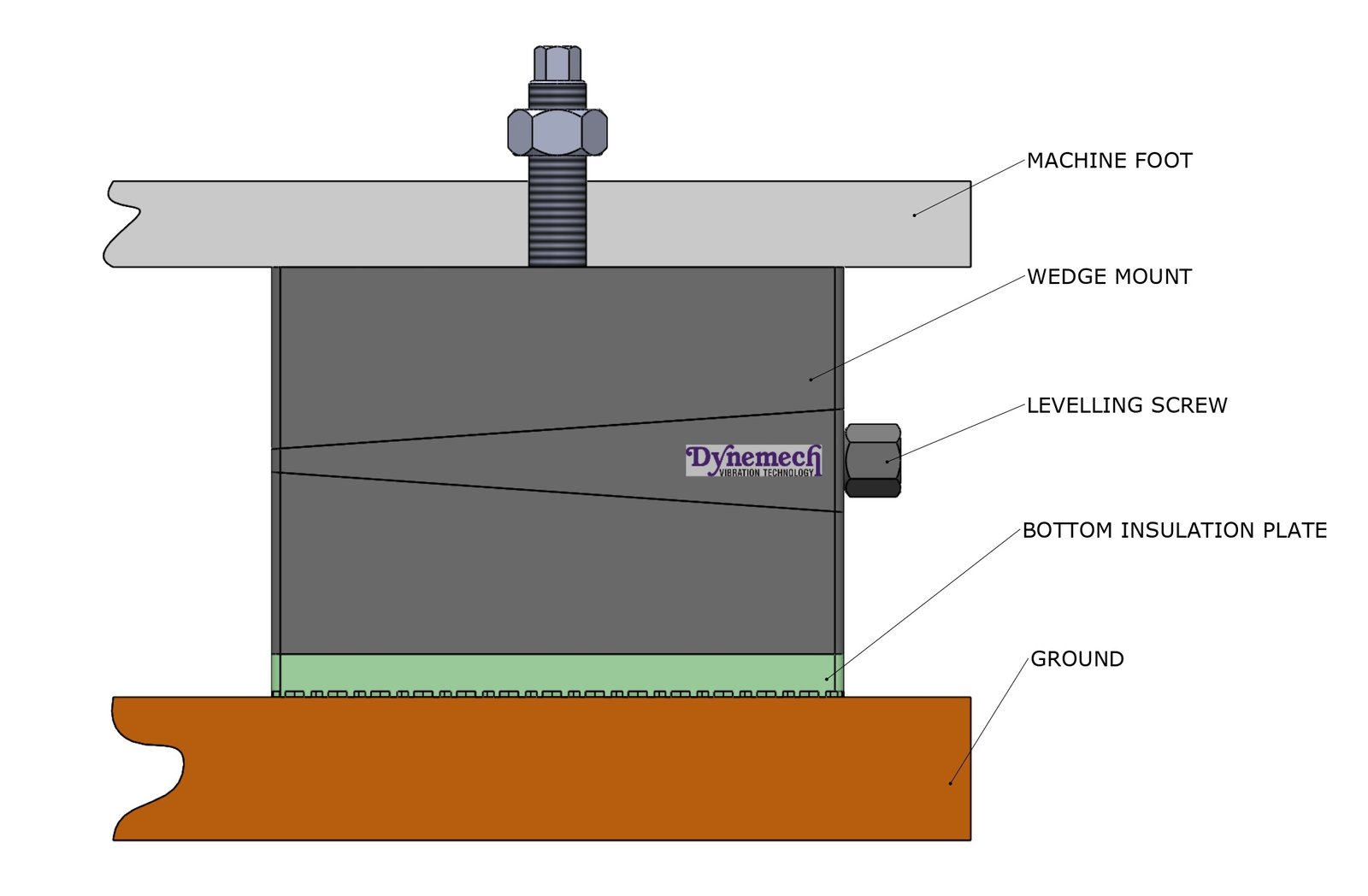

Installation 01

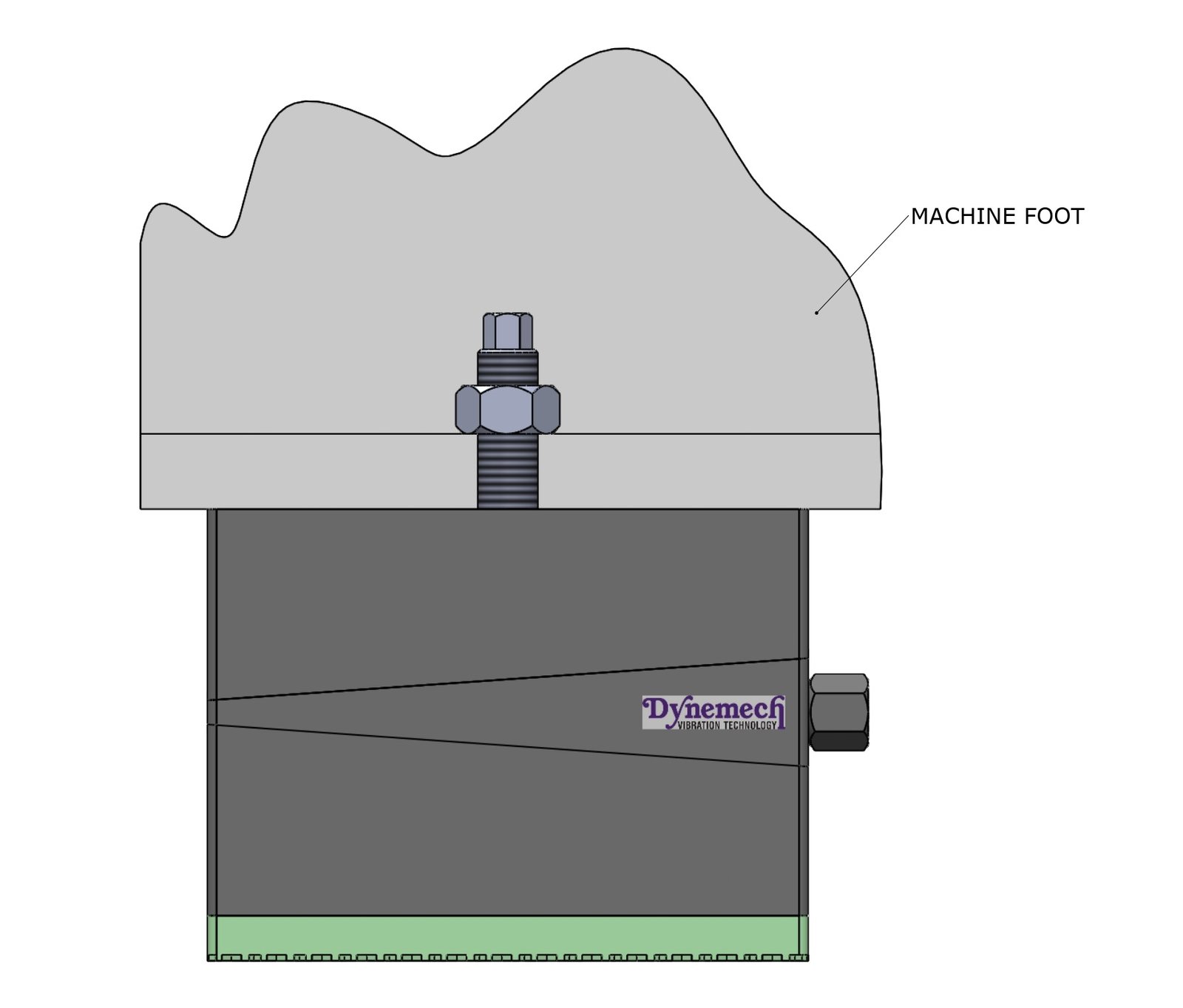

Installation 02
Description
Application:
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Technical Data
Model Catologue
Load Capacity Kg/pc
7200
Length (L) mm
300
Width (B) mm
400
Height (H) at mean position (mm)
109
Adjustment Range (mm)
+10/-10
Bottom pad Type
Dp3
d (mm)
150
Bottom pad Thickness (mm)
24
BOLT SIZE (mm)
M16/18/20/22/24
SW1 (mm)
32
SW2 (mm)
18
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
7
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
