DBOP5-a1-87-FG-S-Z-GR
Model

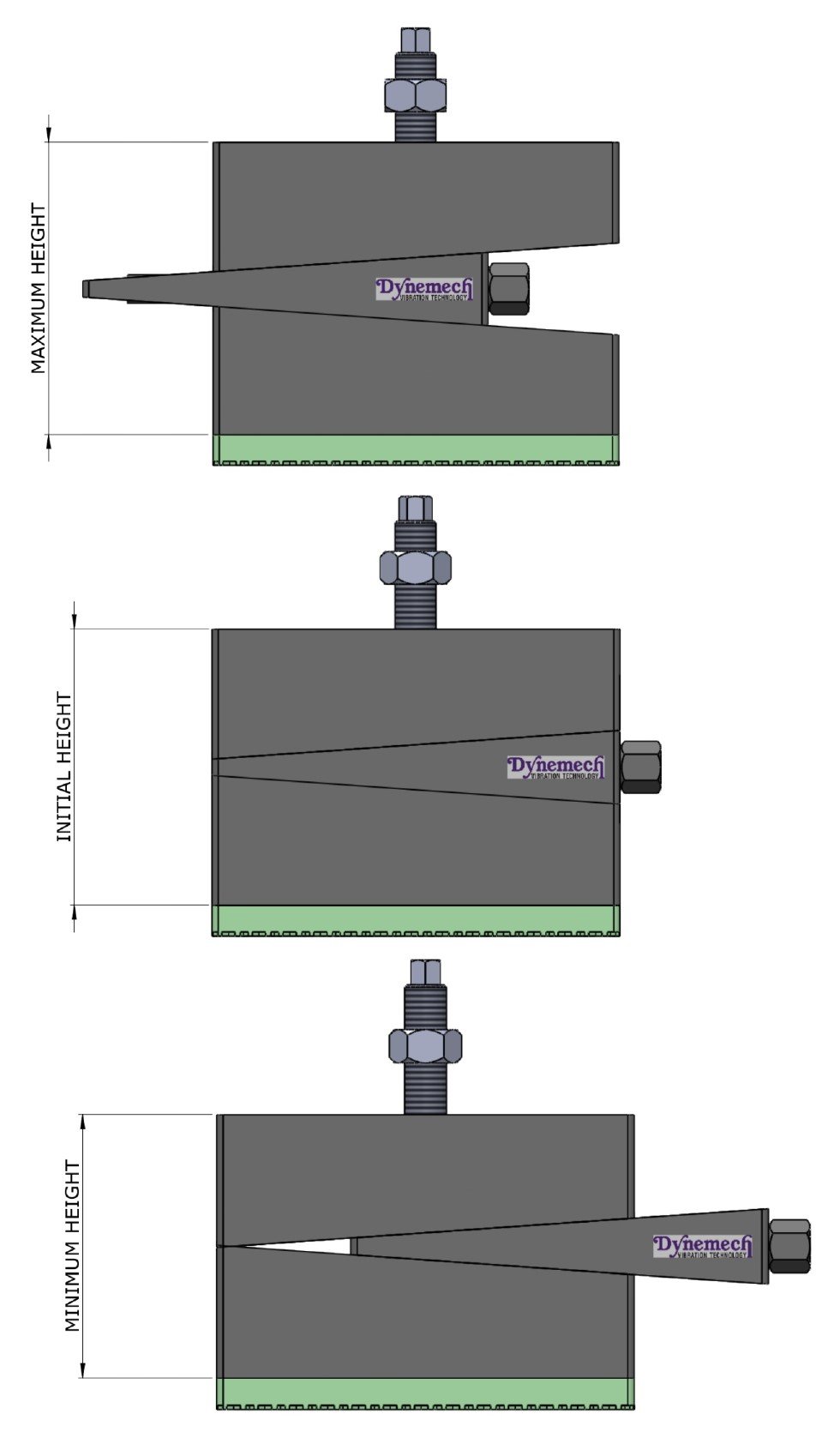

Adjustment Configuration

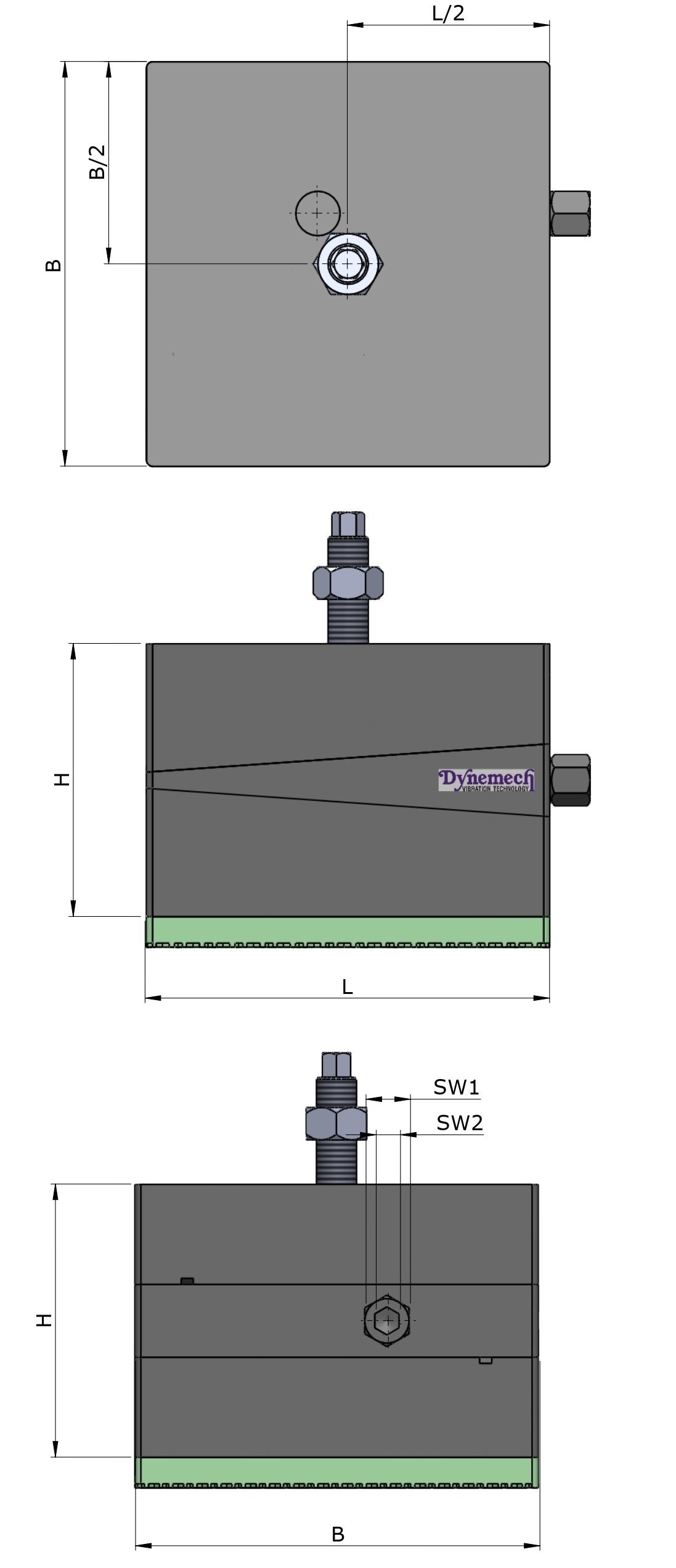

Dimensional Details

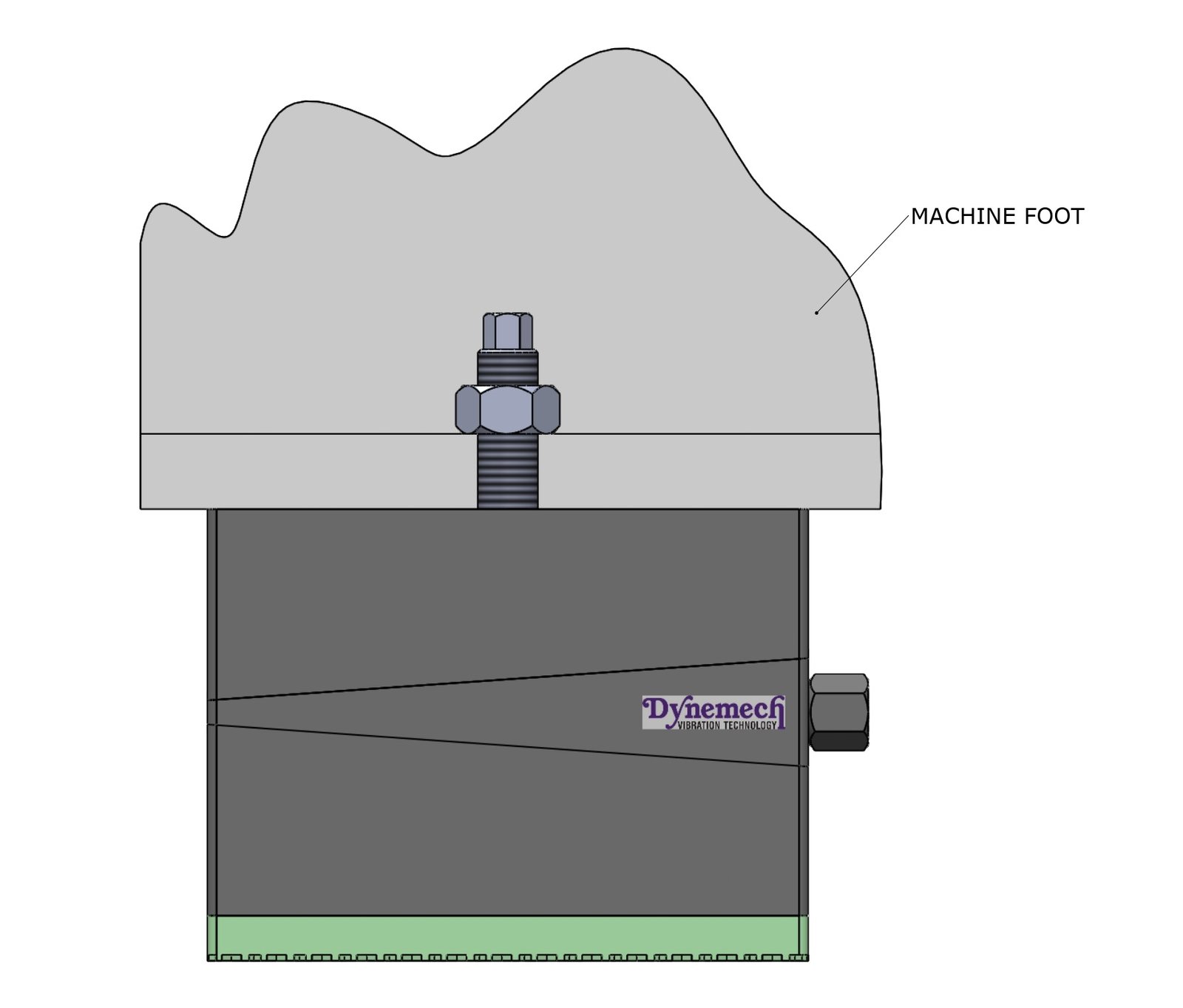

Installation 01

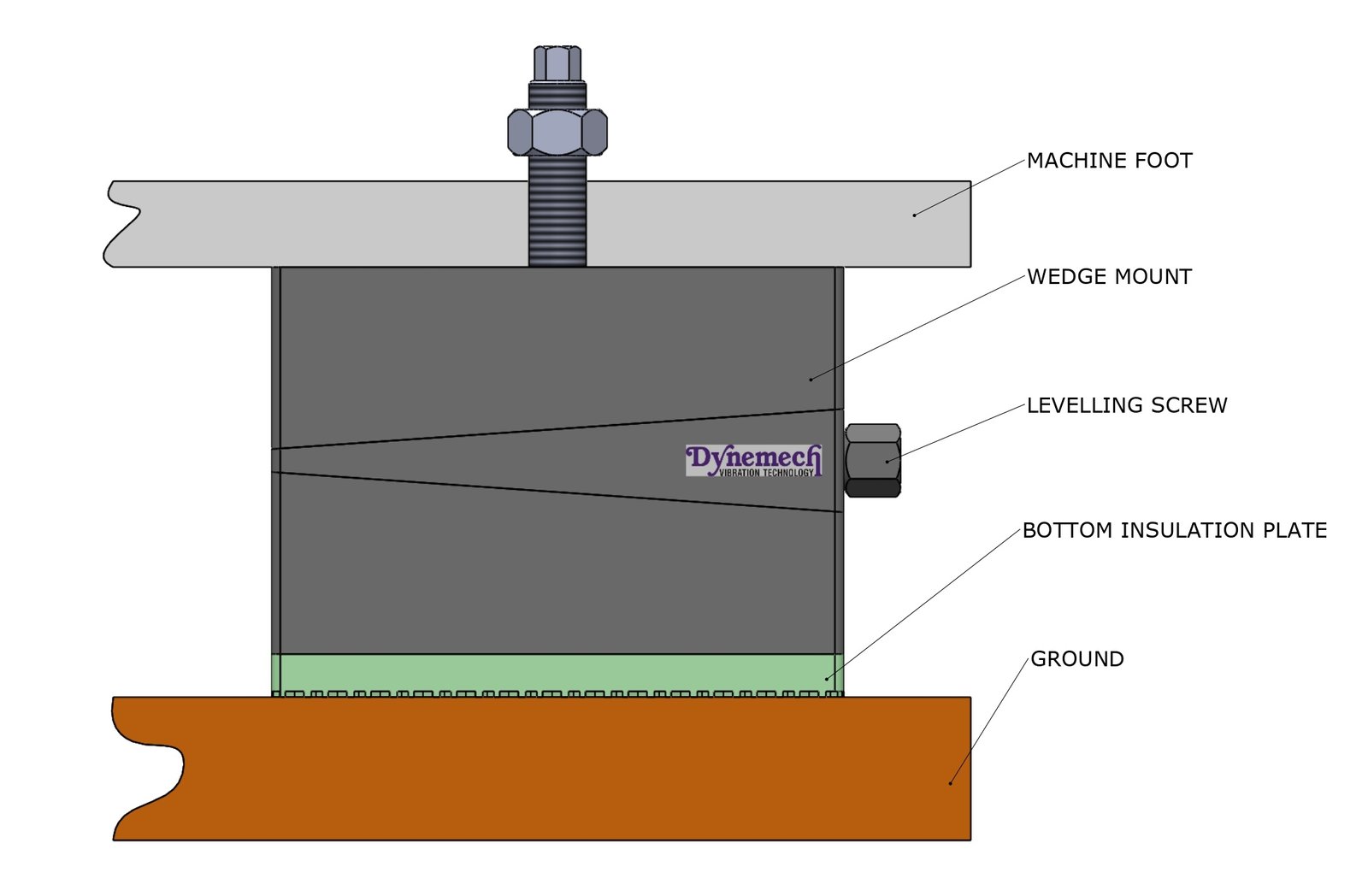

Installation 02
Description
Dynemech Wedge mounts, Series DBOP-100 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application:
Extrusion Machine, Pressure Die, Casting Machine, Injection Moulding Machines, CNC Turning Machines, VMC Machines, Grinding Machines Etc.
Technical Data
Load Capacity Kg/pc
14400
Length (L) mm
250
Width (B) mm
320
Height (H) at mean position (mm)
87
Adjustment Range (mm)
+9/-9
Bottom pad Type
Da1
d (mm)
125
Bottom pad Thickness (mm)
2
Bolt Size (mm)
M16/18/20/22/24
SW1 (mm)
32
SW2 (mm)
18
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
70
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
