Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.

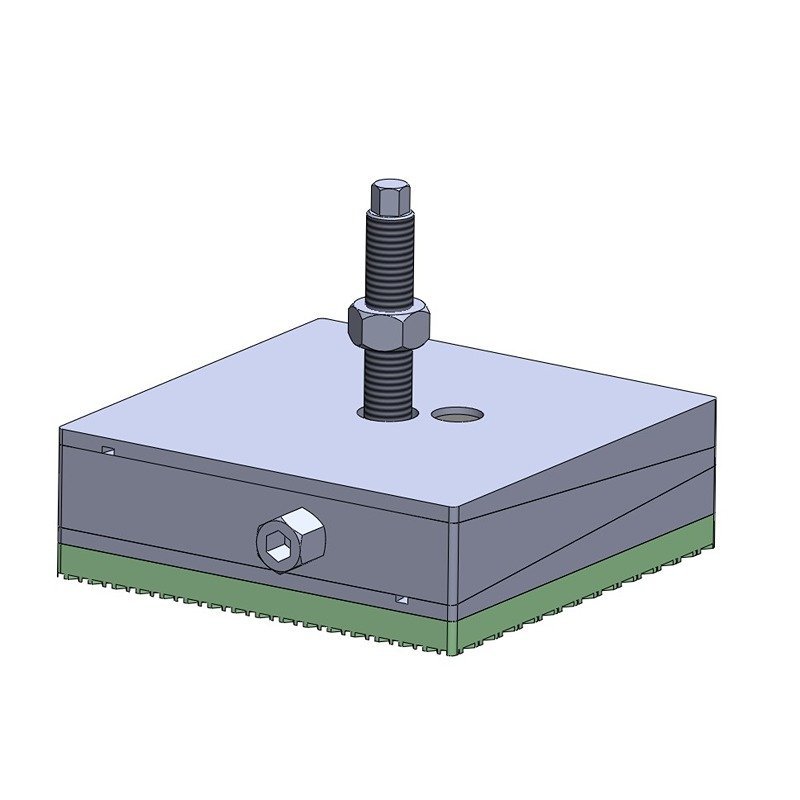

DBO5-u-10-FG-S-Z-GR
Model

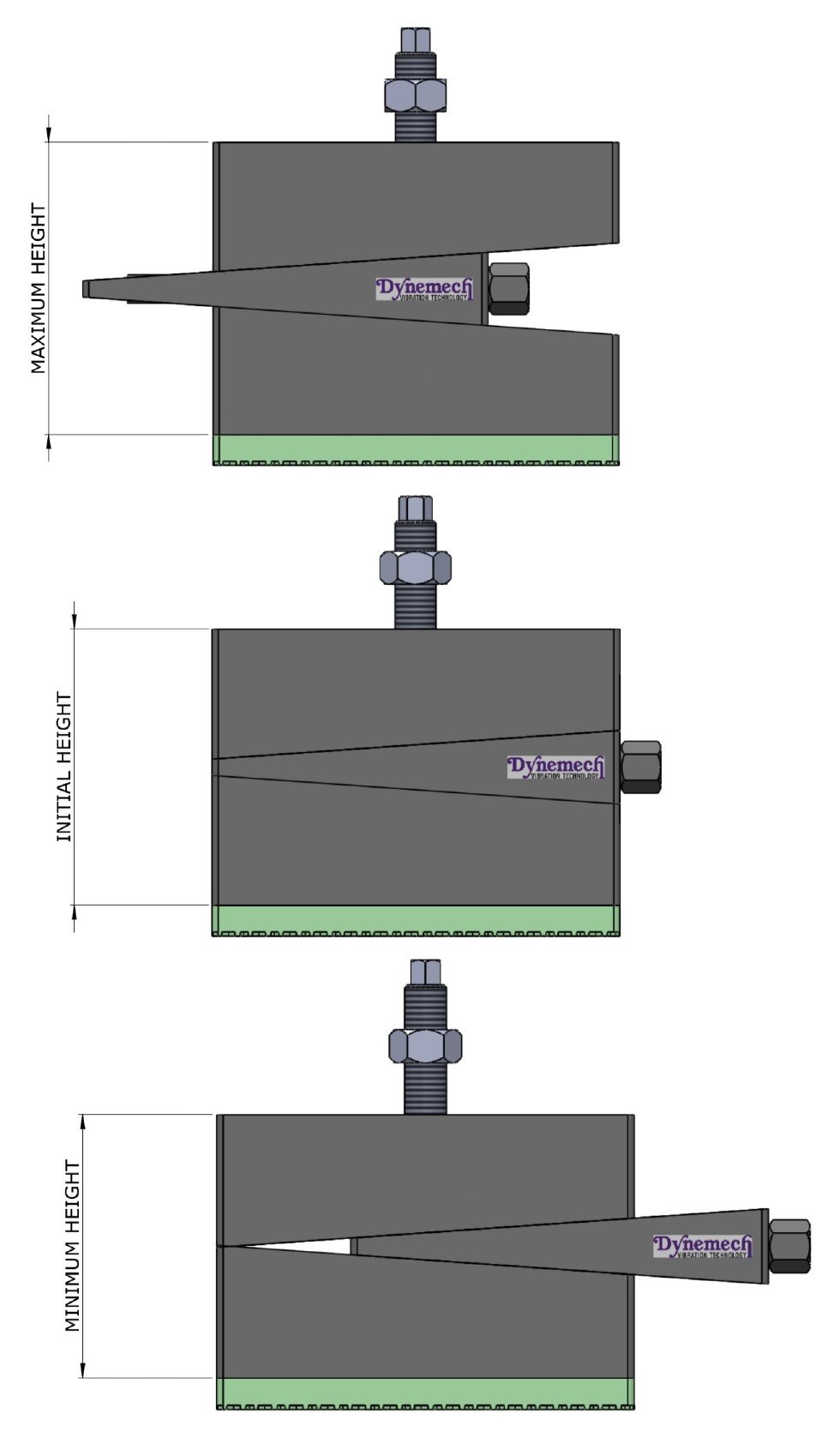

Adjustment Configuration

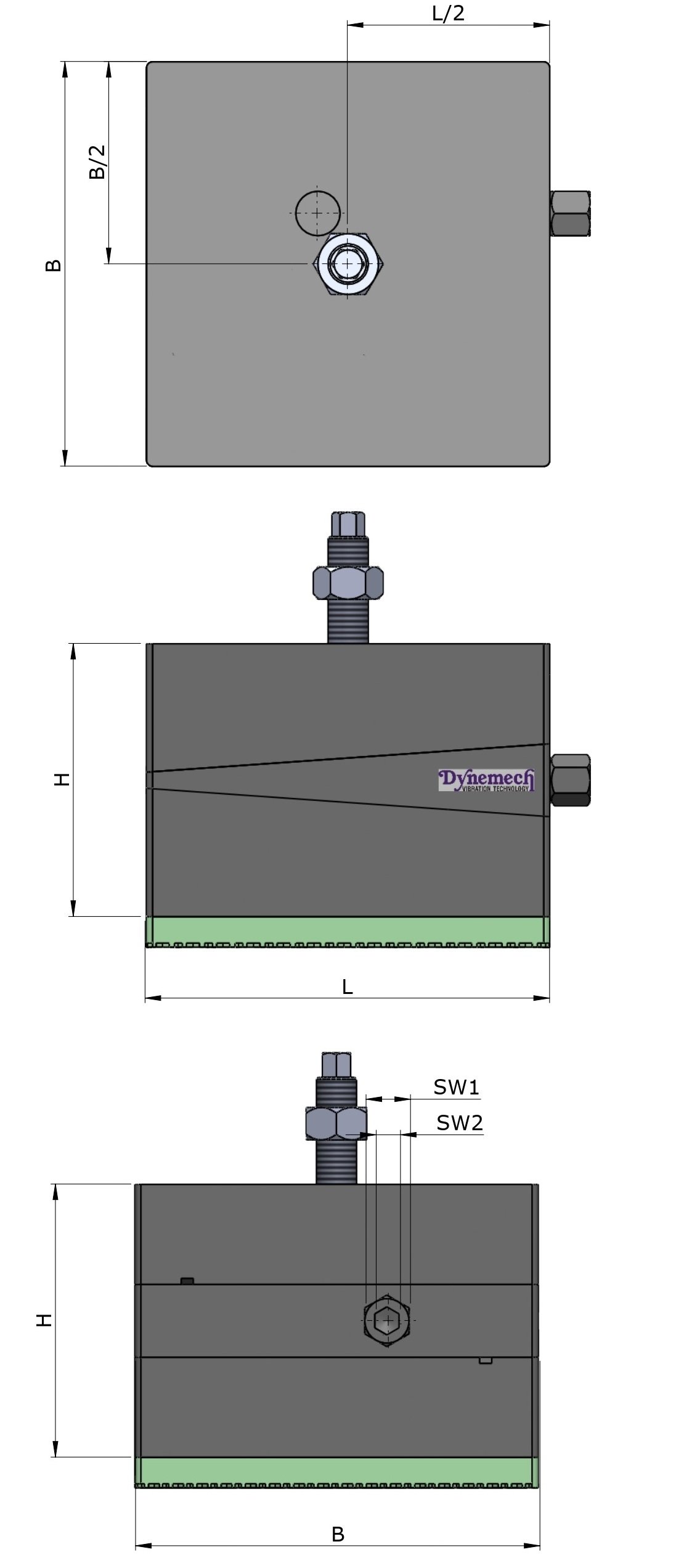

Dimensional Details

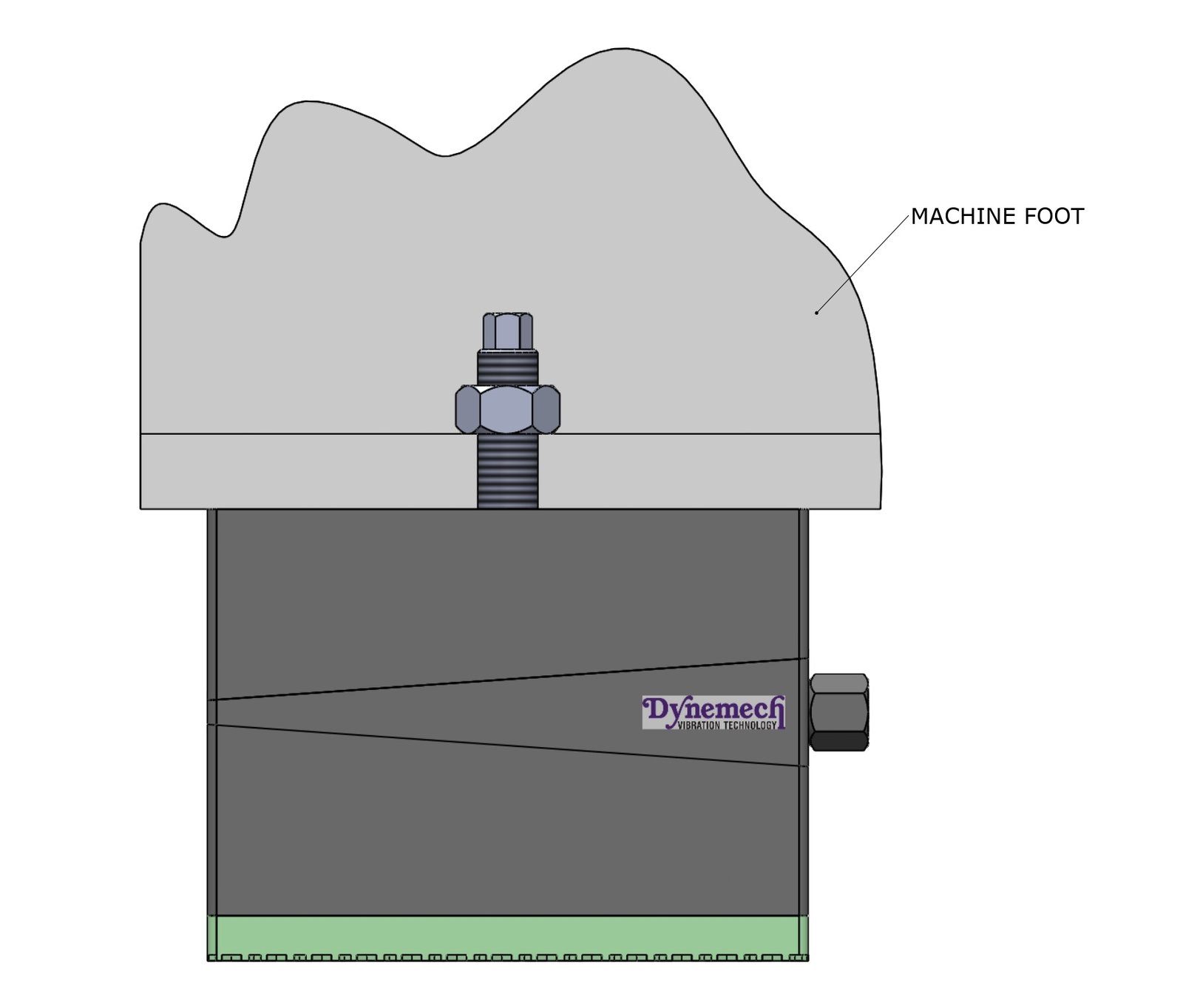

Installation 01

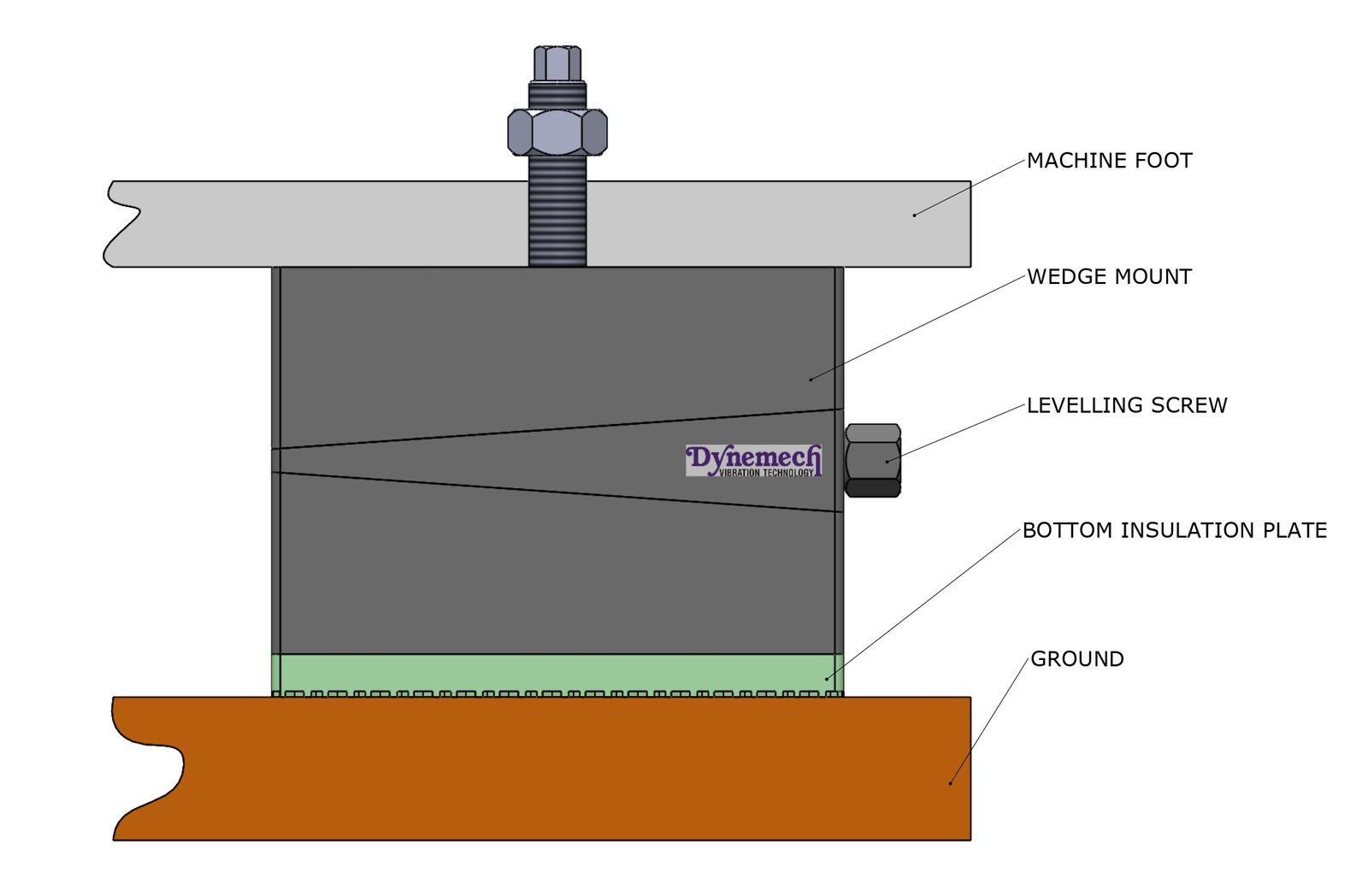

Installation 02
Description
Application:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Technical Data
Model Catologue
Load Capacity Kg/pc
6400
Length (L) mm
250
Width (B) mm
320
Height (H) at mean position (mm)
85
Adjustment Range (mm)
+9/-9
Bottom pad Type
Du-10
Bottom pad Thickness (mm)
10
BOLT SIZE (mm)
M16/18/20/22/24
SW1 (mm)
32
SW2 (mm)
18
Coeff. of Friction against Concrete
0.9
Natural Frequency at Max. Load (Hz)
25
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
