Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DBO3-a2-FG-S-Z-GR
Model

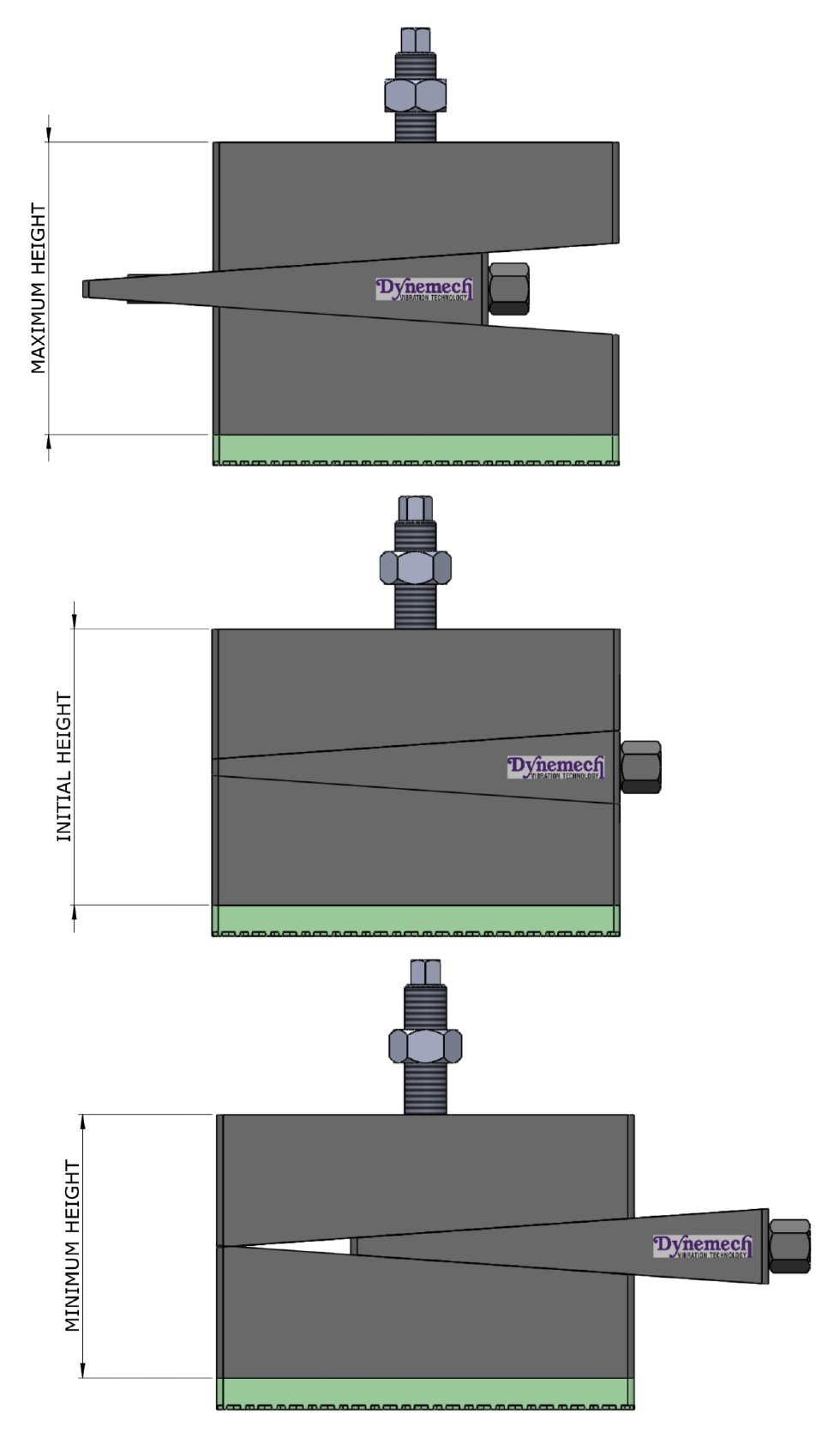

Adjustment Configuration

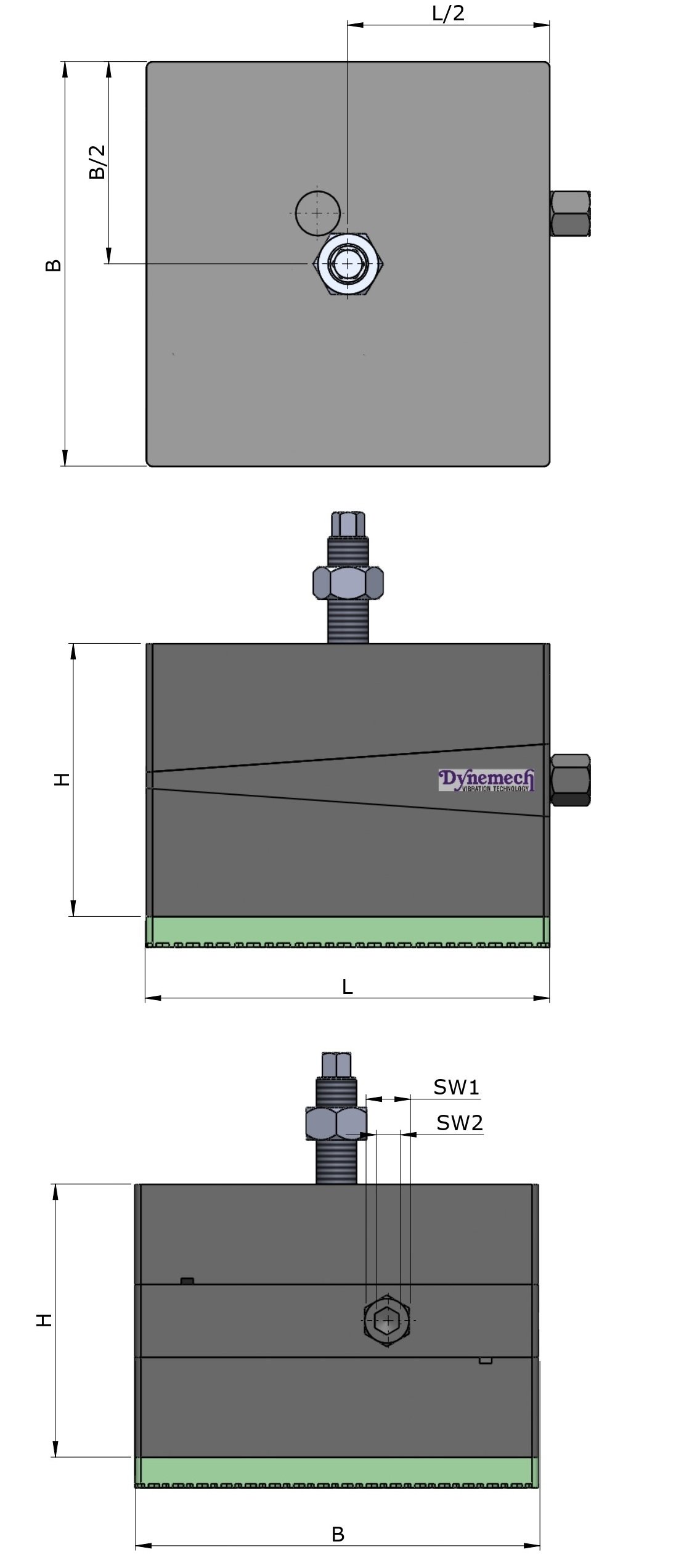

Dimensional Details

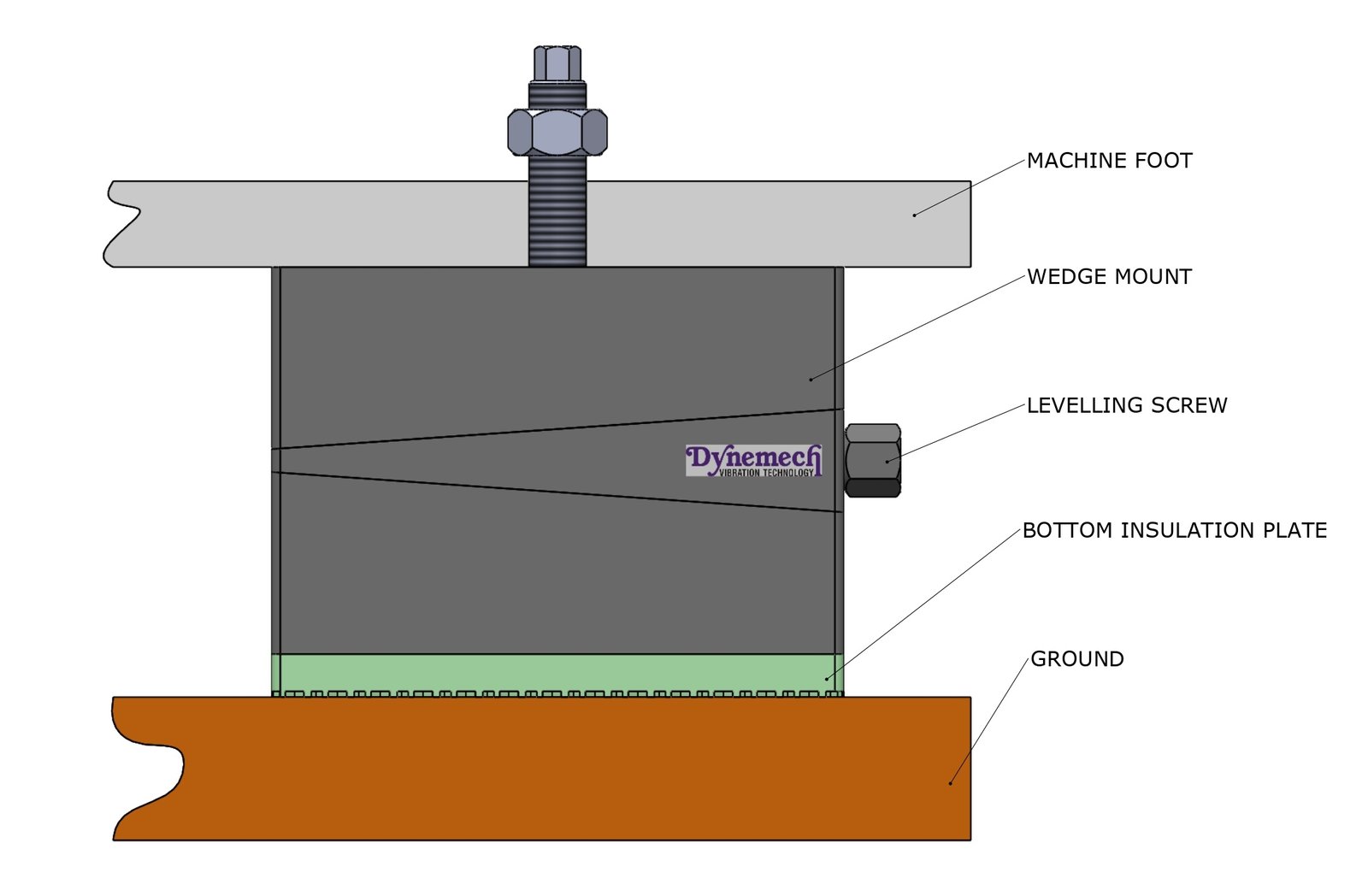

Installation 01

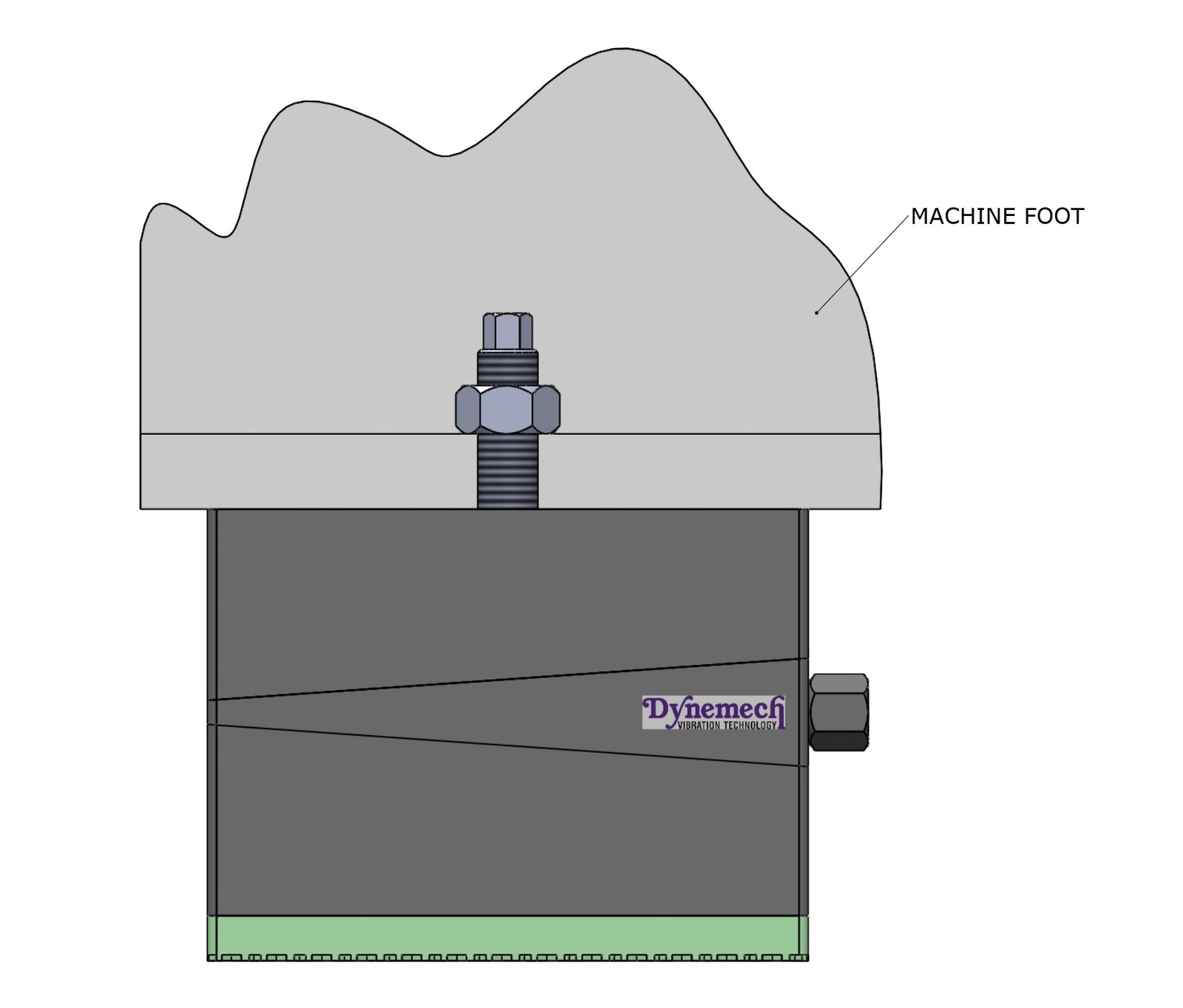

Installation 02
Description
Technical Data
Model Catologue
Load Capacity Kg/pc
4000
Length (L) mm
200
Width (B) mm
200
Height (H) at mean position (mm)
58
Adjustment Range (mm)
+6/-6
Bottom pad Type
Da2
Bottom pad Thickness (mm)
8
BOLT SIZE (mm)
M16/18/20/22/24
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
0.9
Natural Frequency at Max. Load (Hz)
45
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
