Dynemech Wedge mounts, Series DBHOP-150 mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBHOP-150 has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
DBHOP3-u-10-145-M20-FG-DG
Model

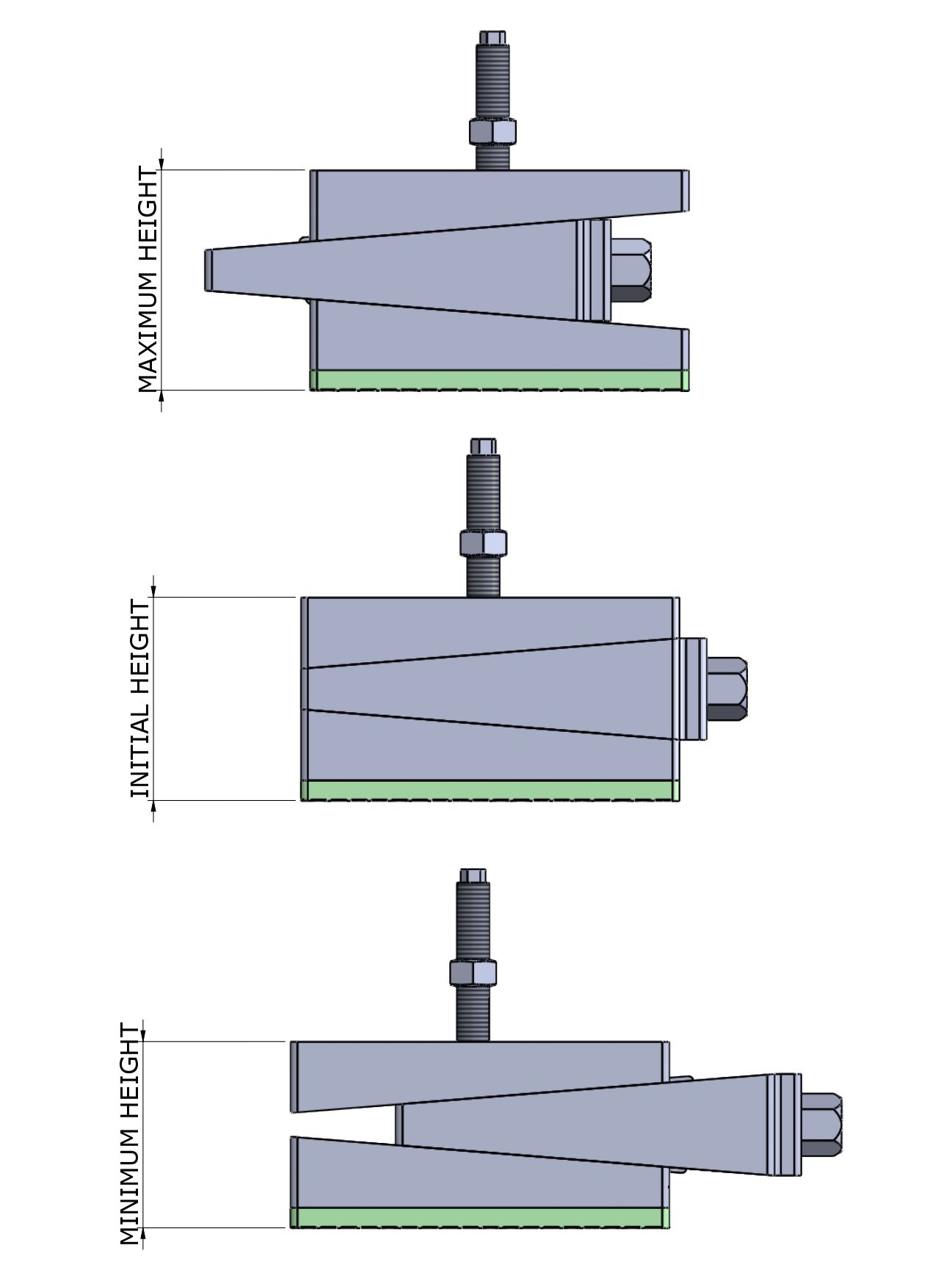

Adjustment Configuration

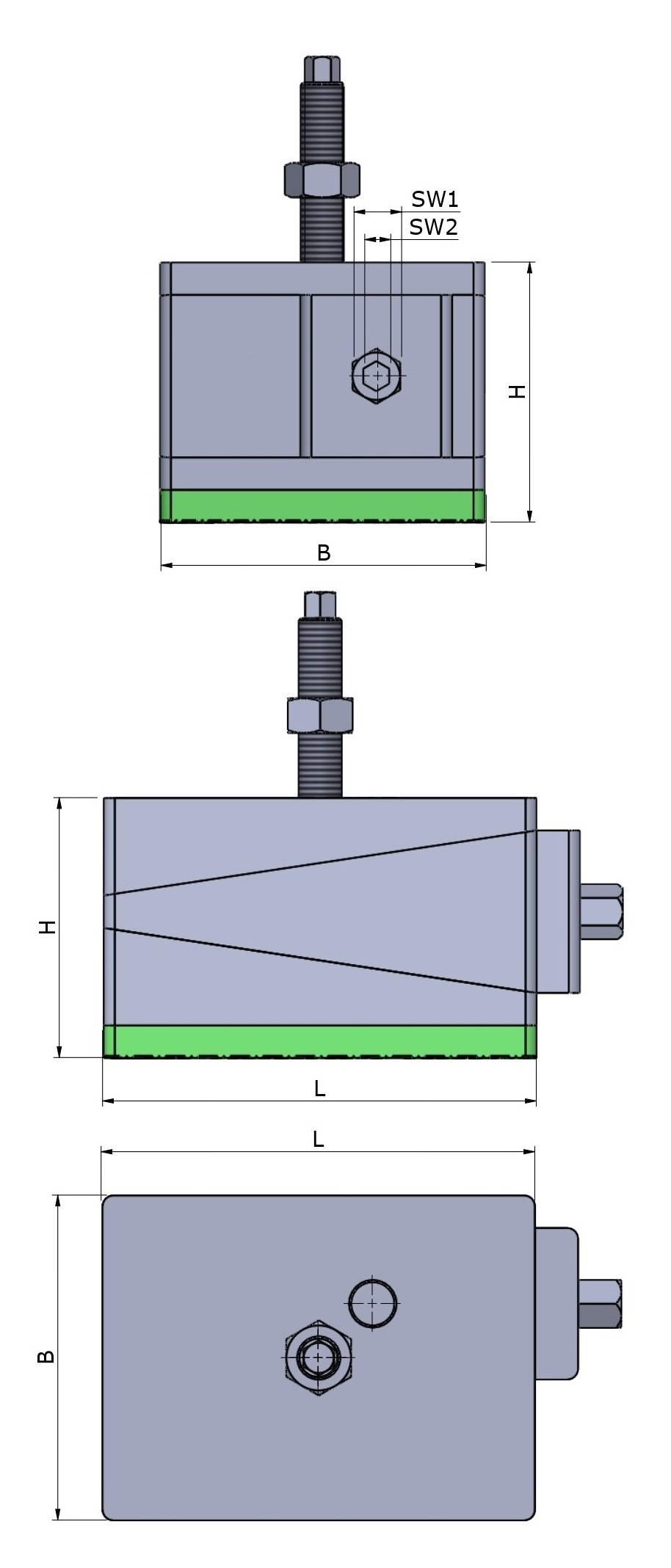

Dimensional Details

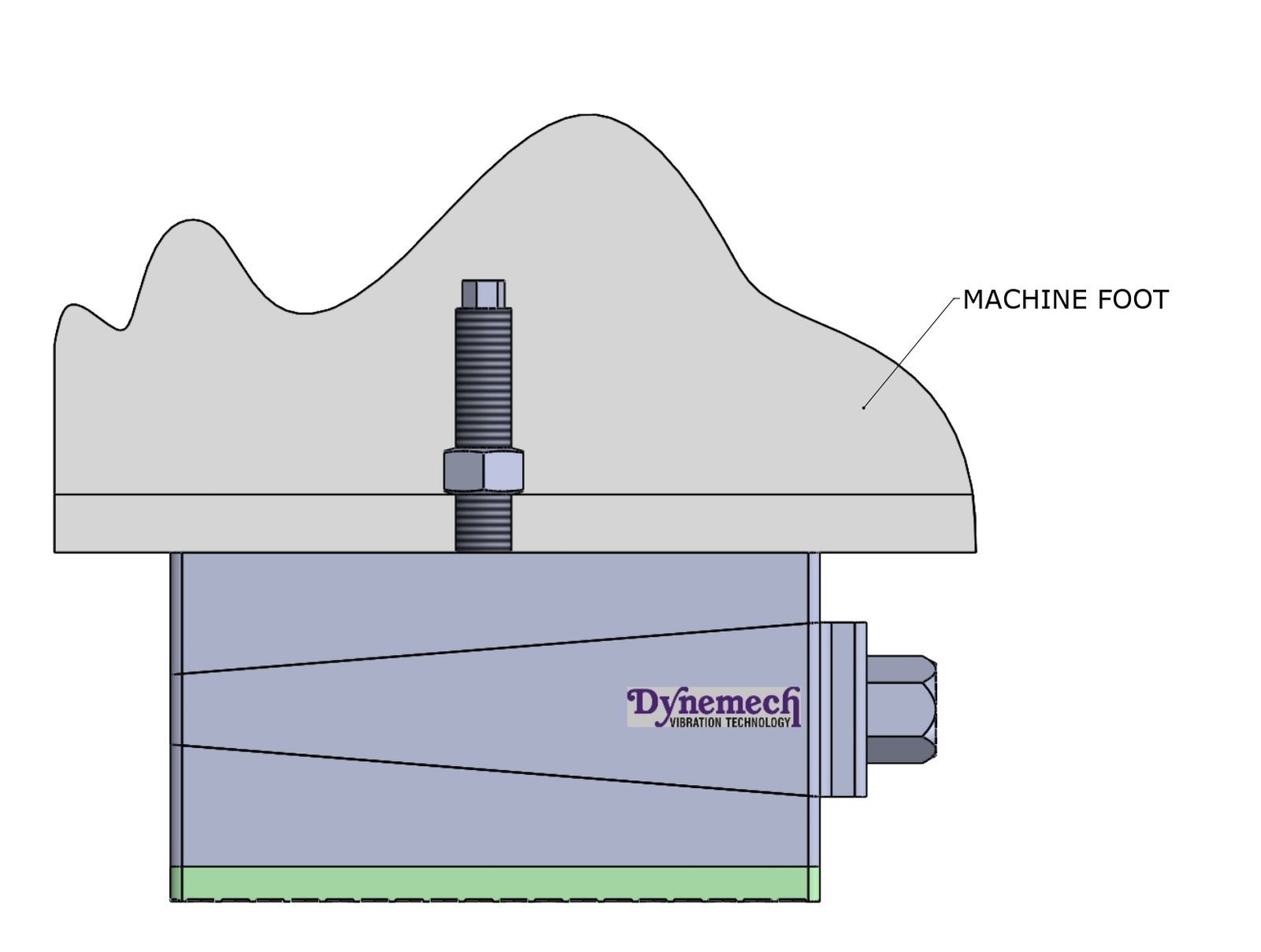

Installation 01

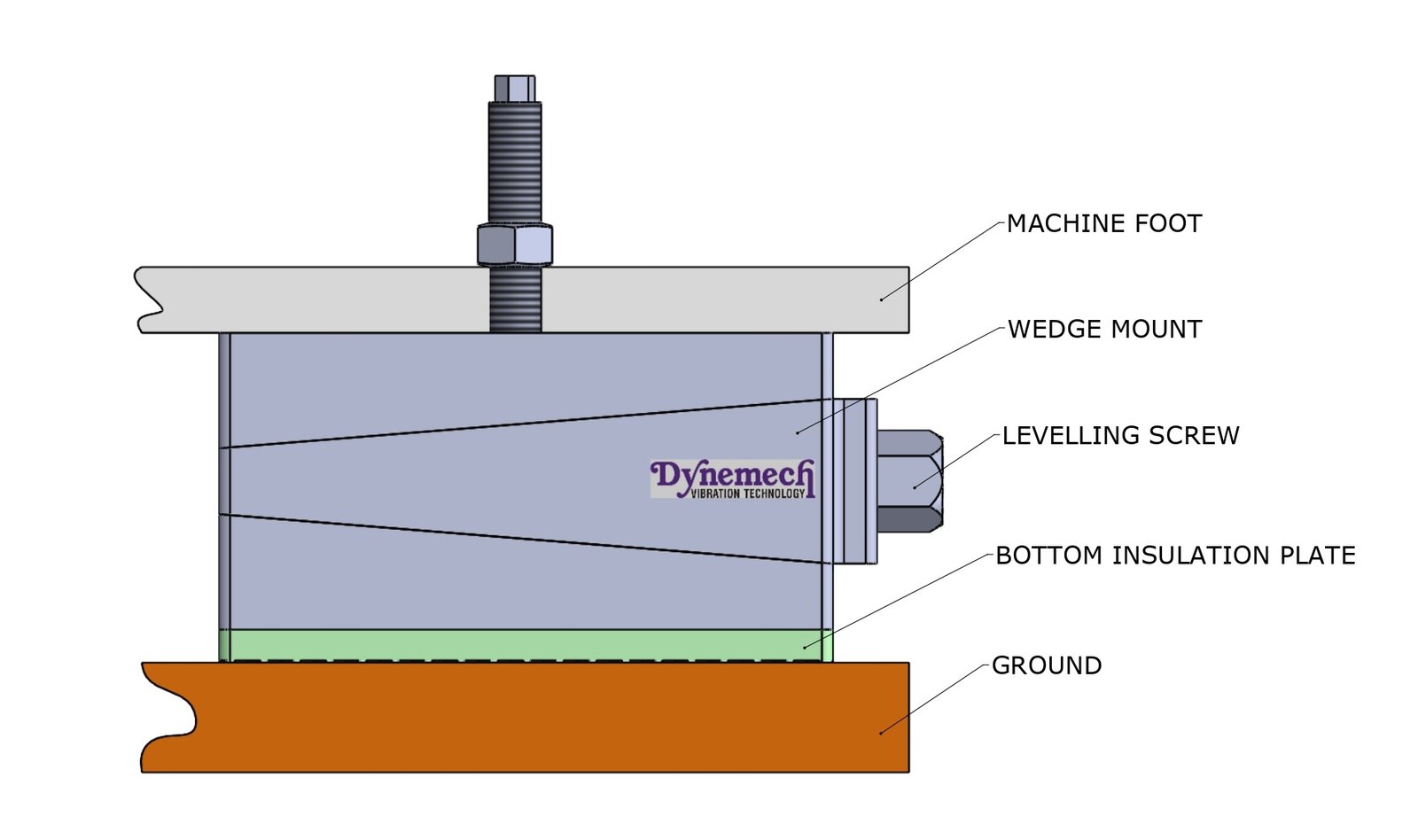

Installation 02
Description
Application:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Technical Data
Load Capacity Kg/pc
4200
Length (L) mm
280
Width (B) mm
170
Height (H) at mean position (mm)
145
Adjustment Range (mm)
+12.5/-12.5
Bottom pad Type
Du-10
Bottom pad Thickness (mm)
10
BOLT SIZE (mm)
M20
SW1 (mm)
39
SW2 (mm)
22
Coeff. of Friction against Concrete
0.9
Natural Frequency at Max. Load (Hz)
25
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
