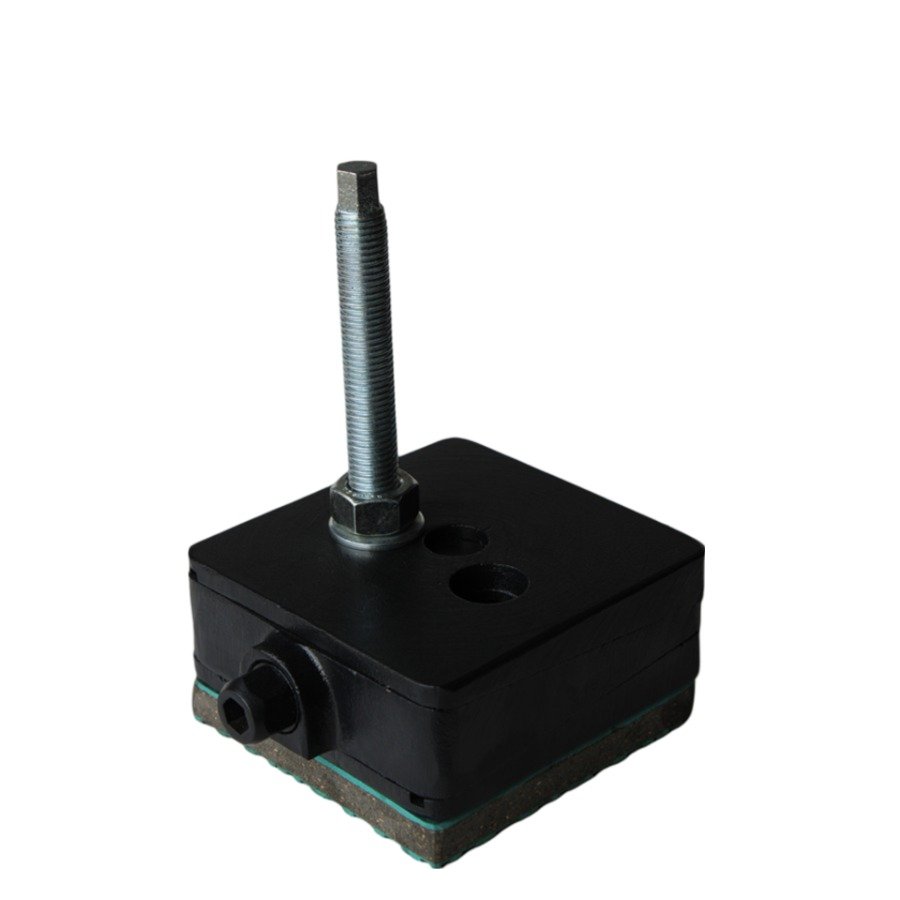

Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DB-u-10
Description
Catalogue
Series:
DB-u-10
Applications:
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

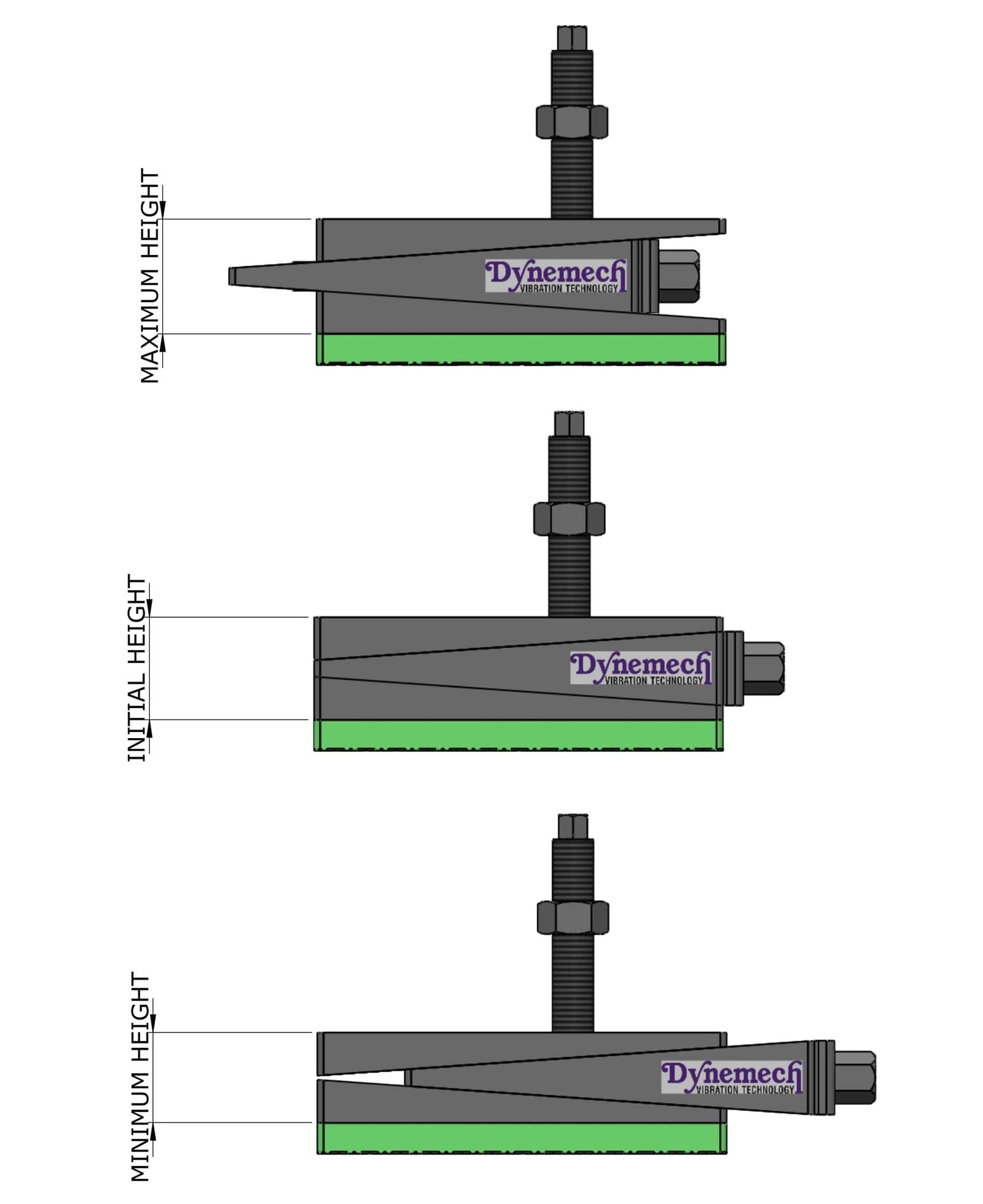

| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DB0-u-10-FG-M12x1.75x150-S-Z-8-DG | 900 | 100 | 100 | 48 |
| DB1-u-10-FG-M16x2.0x150-S-Z-8-DG | 1100 | 115 | 115 | 54 |
| DB2-u-10-FG-M18x2.5x150-S-Z-8-DG | 1800 | 150 | 150 | 60 |
| DB3-u-10-FG-M20x2.5x150-S-Z-8-DG | 3200 | 200 | 200 | 60 |
| DB4-u-10-FG-M20x2.5x200-S-Z-8-DG | 4000 | 200 | 250 | 80 |
| DB5-u-10-FG-M24x3.0x200-S-Z-8-DG | 6400 | 250 | 320 | 85 |
| DB6-u-10-FG-M24x3.0x200-S-Z-8-DG | 9600 | 300 | 400 | 85 |
| DB7-u-10-FG-M24x3.0x200-S-Z-8-DG | 16000 | 400 | 500 | 90 |
