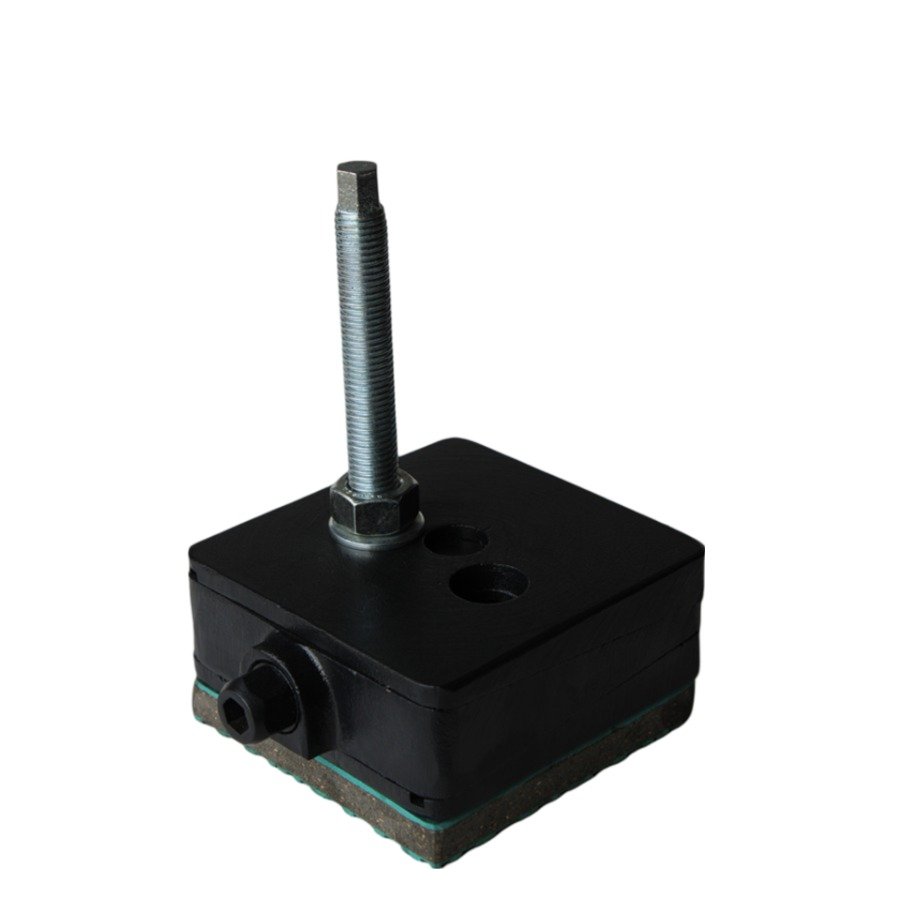

Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
DB-u
Description
Catalogue
Series:
DB-u
Applications:
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DB0-u-FG-M12x1.75x150-S-Z-8-DG | 900 | 100 | 100 | 53 |
| DB1-u-FG-M16x2.0x150-S-Z-8-DG | 1100 | 115 | 115 | 59 |
| DB2-u-FG-M18x2.5x150-S-Z-8-DG | 1800 | 150 | 150 | 65 |
| DB3-u-FG-M20x2.5x150-S-Z-8-DG | 3200 | 200 | 200 | 65 |
| DB4-u-FG-M20x2.5x200-S-Z-8-DG | 4000 | 200 | 250 | 85 |
| DB5-u-FG-M24x3.0x200-S-Z-8-DG | 6400 | 250 | 320 | 90 |
| DB6-u-FG-M24x3.0x200-S-Z-8-DG | 9600 | 300 | 400 | 90 |
| DB7-u-FG-M24x3.0x200-S-Z-8-DG | 16000 | 400 | 500 | 95 |
