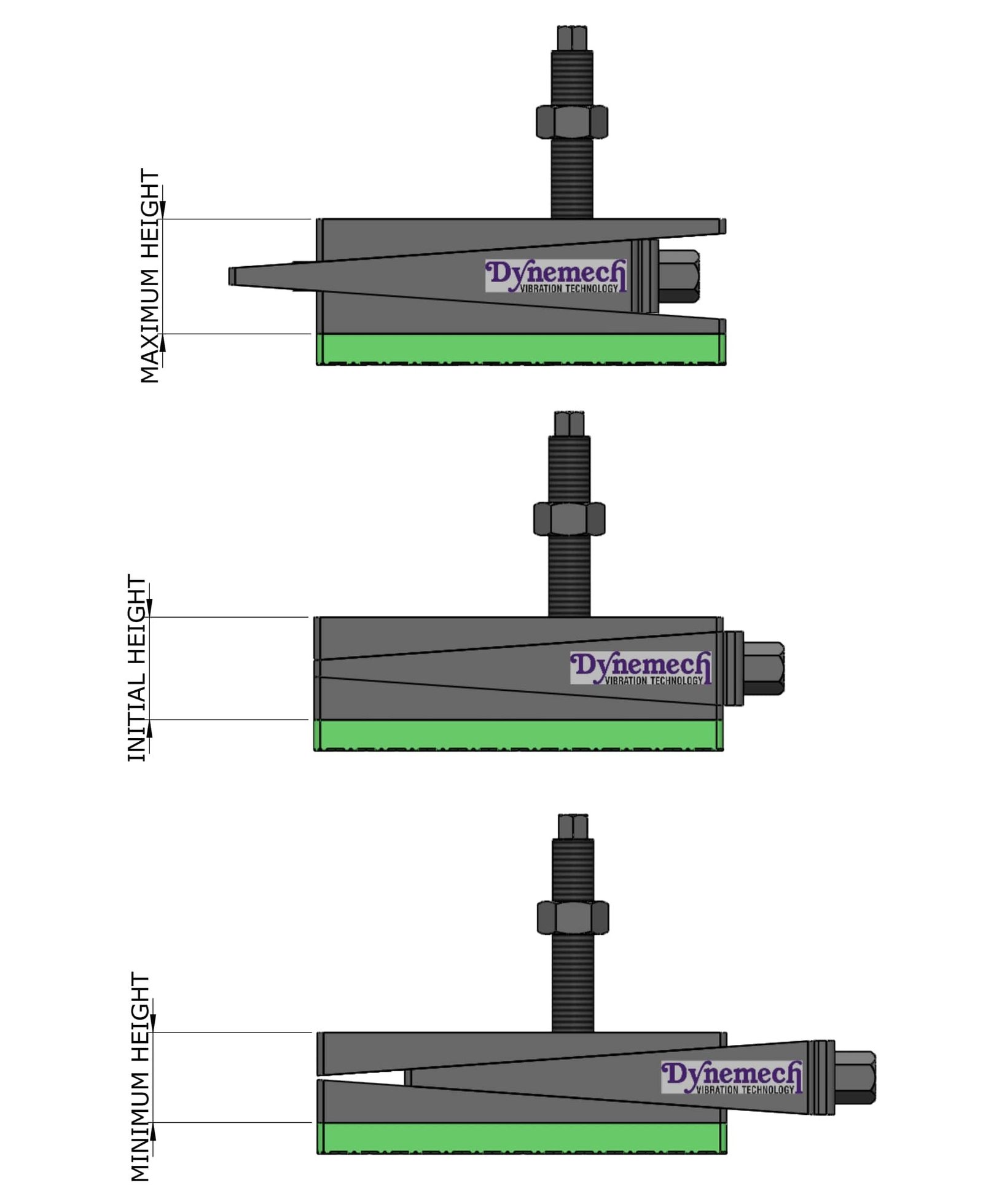

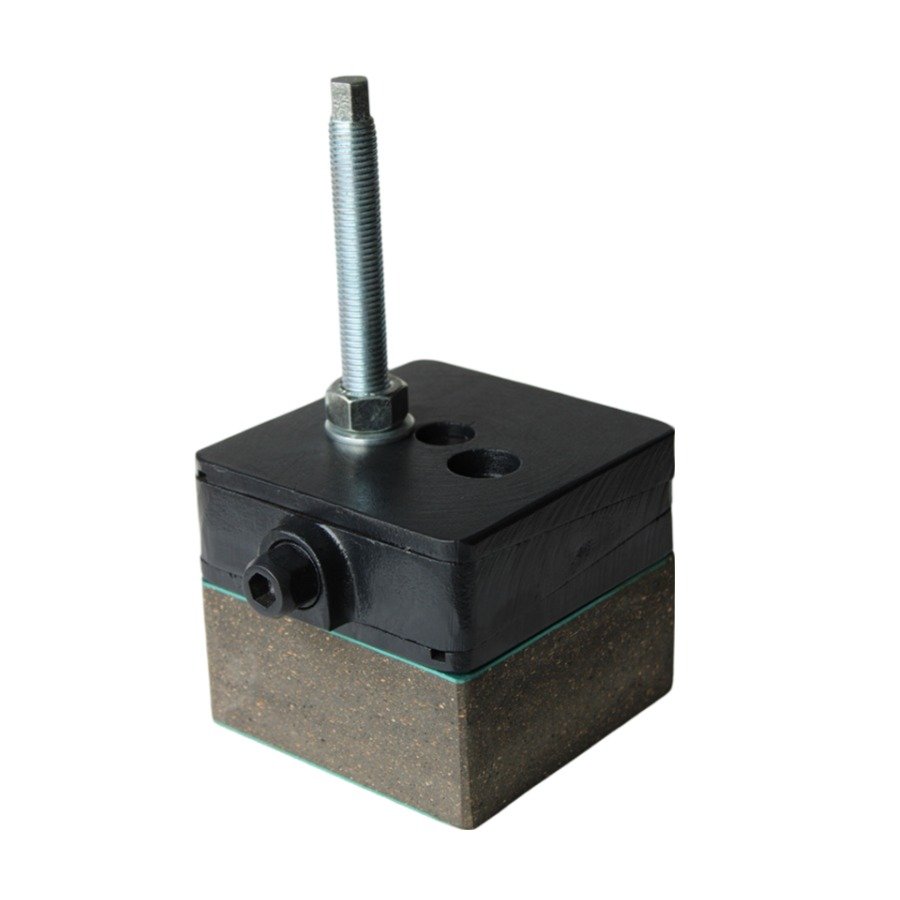

Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DB-hs3
Description
Catalogue
Series:
DB-hs3
Applications:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm |
|---|---|---|---|
| DB0-hs3-FG-M12x1.75x150-S-Z-8-DG | 2800 | 100 | 100 |
| DB1-hs3-FG-M16x1.75x150-S-Z-8-DG | 3700 | 115 | 115 |
| DB2-hs3-FG-M18x2.5x150-S-Z-8-DG | 6300 | 150 | 150 |
| DB3-hs3-FG-M20x2.5x150-S-Z-8-DG | 11200 | 200 | 200 |
| DB4-hs3-FG-M20x2.5x200-S-Z-8-DG | 14000 | 200 | 250 |
| DB5-hs3-FG-M24x3.0x200-S-Z-8-DG | 22400 | 250 | 320 |
| DB6-hs3-FG-M24x3.0x200-S-Z-8-DG | 33600 | 300 | 400 |
| DB7-hs3-FG-M24x3.0x200-S-Z-8-DG | 56000 | 400 | 500 |
