DRC-100

Description

DYNEMECH MACHINERY RAISER DAMPING BLOCKS offer easy and quick installation of CNC machines. These blocks offer both levelling and vibration damping besides raising height of the machine for proper cleaning and repairing under it. Raiser Damping Blocks are assembled with insulation plates for vibration reduction. Ideal for CNC Turning/ Machining Centres, Cylindrical & Centreless Grinding Machines, Precision Machine Tools. Help implement TPM norms for machine installation. Proper maintenance, cleanliness, vibration reduction results in enhanced machine tool reliability (zero breakdowns), reduced operation and life cycle costs which are the driving factors for adoption of Total Productive Maintenance (TPM) practices. Machines are installed at a height of 100-150 mm which help implement TPM norms for machine installation. Series DRC are suitable for machines having plain hole in the base. Levelling is done by turning the bolt which lifts the cover plate along with the machine. Available both in 100mm height.

Catalogue

Series:

DRC-U

Application:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-u-100-FG-GR 350 98 109 100
DRC2-u-100-FG-GR 600 125 150 100
DRC3-u-100-FG-GR 900 150 170 100
DRC4-u-100-FG-GR 1400 180 210 100
DRC5-u-100-FG-GR 1900 204 240 100
DRC6-u-100-FG-GR 2500 235 270 100

Series:

DRC-U-10

Application:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-u-10-95-FG-GR 350 98 109 95
DRC2-u-10-95-FG-GR 600 125 150 95
DRC3-u-10-95-FG-GR 900 150 170 95
DRC4-u-10-95-FG-GR 1400 180 210 95
DRC5-u-10-95-FG-GR 1900 204 240 95
DRC6-u-10-95-FG-GR 2500 235 270 95

Series:

DRC-U-12

Application:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-u-12-97-FG-GR 350 98 109 97
DRC2-u-12-97-FG-GR 600 125 150 97
DRC3-u-12-97-FG-GR 900 150 170 97
DRC4-u-12-97-FG-GR 1400 180 210 97
DRC5-u-12-97-FG-GR 1900 204 240 97
DRC6-u-12-97-FG-GR 2500 235 270 97

Series:

DRC-M

Application:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-m-100-FG-GR 450 98 109 100
DRC2-m-100-FG-GR 800 125 150 100
DRC3-m-100-FG-GR 1150 150 170 100
DRC4-m-100-FG-GR 1750 180 210 100
DRC5-m-100-FG-GR 2400 204 240 100
DRC6-m-100-FG-GR 3200 235 270 100

Series:

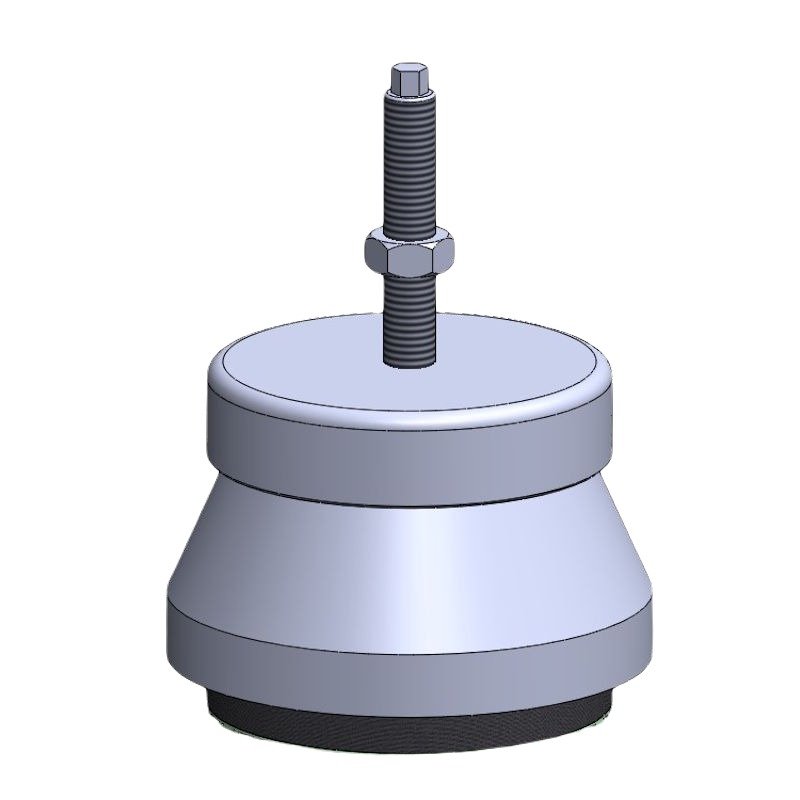

DRC-I

Application:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-i-110-FG-GR 890 98 109 110
DRC2-i-110-FG-GR 1720 125 150 110
DRC3-i-110-FG-GR 2470 150 170 110
DRC4-i-110-FG-GR 3180 180 210 110
DRC5-i-110-FG-GR 5320 204 240 110
DRC6-i-110-FG-GR 6870 235 270 110

Series:

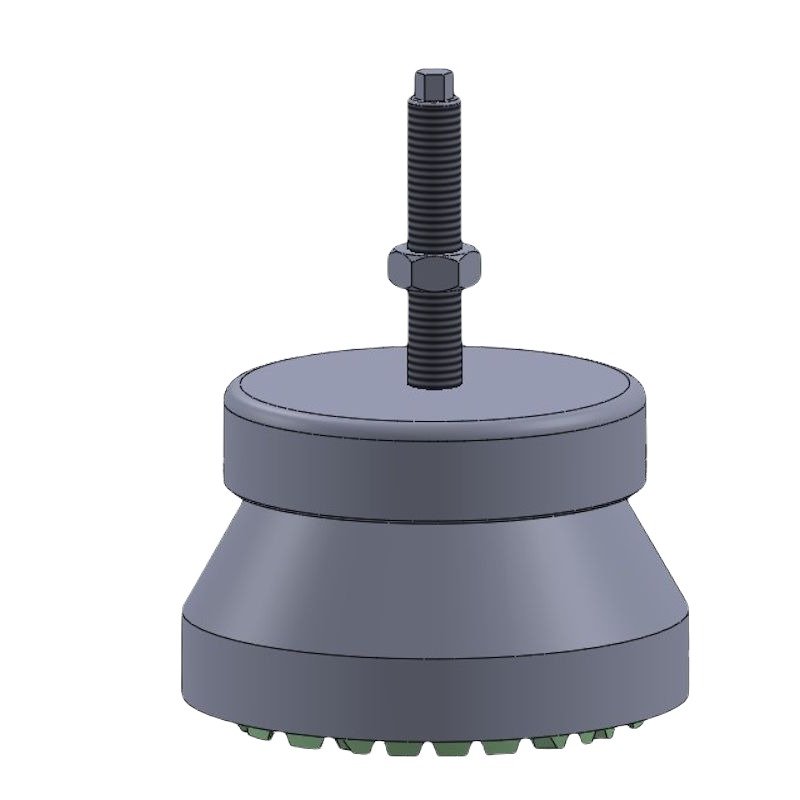

DRC-P1

Application:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-p1-100-FG-GR 250 98 109 100
DRC2-p1-100-FG-GR 490 125 150 100
DRC3-p1-100-FG-GR 700 150 170 100
DRC4-p1-100-FG-GR 900 180 210 100
DRC5-p1-100-FG-GR 1520 204 240 100
DRC6-p1-100-FG-GR 1960 235 270 100

Series:

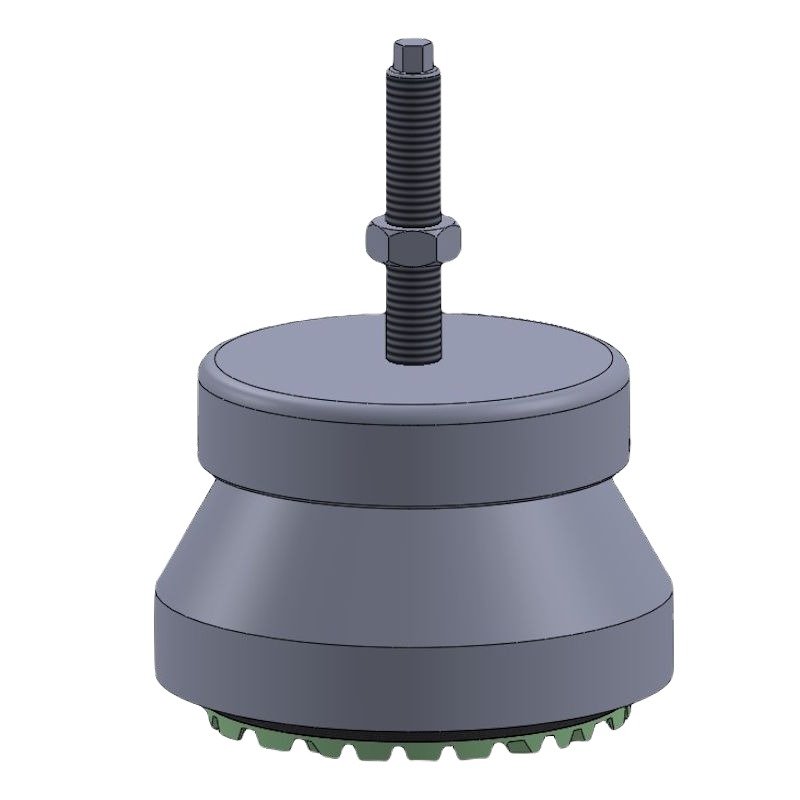

DRC-P2

Application:

Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-p2-105-FG-GR 320 98 109 105
DRC2-p2-105-FG-GR 610 125 150 105
DRC3-p2-105-FG-GR 880 150 170 105
DRC4-p2-105-FG-GR 1130 180 210 105
DRC5-p2-105-FG-GR 1900 204 240 105
DRC6-p2-105-FG-GR 2450 235 270 105

Series:

DRC-P3

Application:

Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-p3-109-FG-GR 380 98 109 109
DRC2-p3-109-FG-GR 730 125 150 109
DRC3-p3-109-FG-GR 1060 150 170 109
DRC4-p3-109-FG-GR 1360 180 210 109
DRC5-p3-109-FG-GR 2280 204 240 109
DRC6-p3-109-FG-GR 2940 235 270 109

Series:

DRC-S1

Application:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-s1-105-FG-GR 200 98 109 105
DRC2-s1-105-FG-GR 375 125 150 105
DRC3-s1-105-FG-GR 575 150 170 105
DRC4-s1-105-FG-GR 800 180 210 105
DRC5-s1-105-FG-GR 1100 204 240 105
DRC6-s1-105-FG-GR 1500 235 270 105

Series:

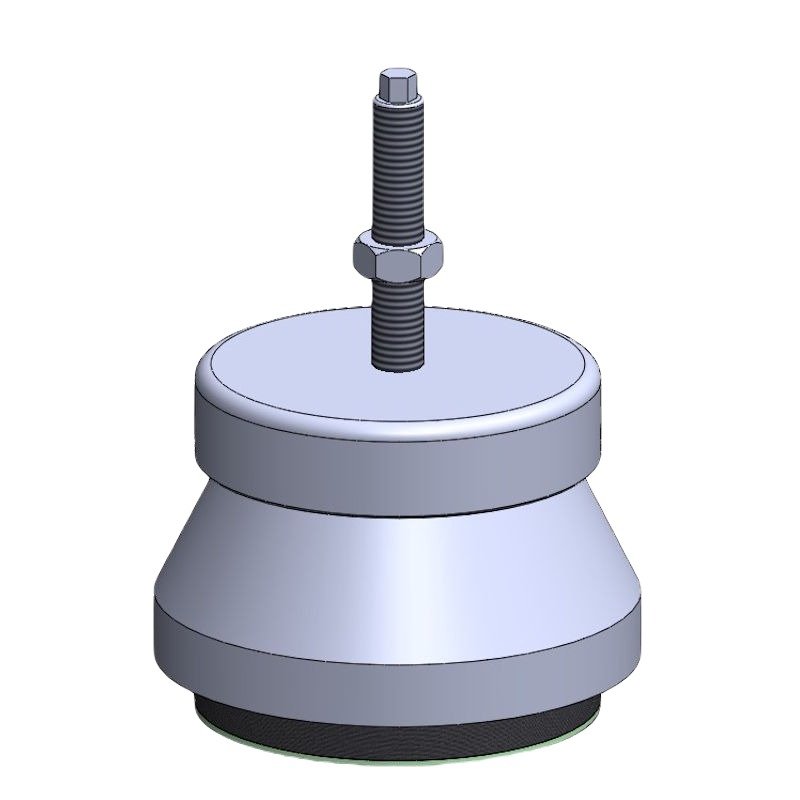

DRC-S2

Application:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-s2-110-FG-GR 300 98 109 110
DRC2-s2-110-FG-GR 550 125 150 110
DRC3-s2-110-FG-GR 850 150 170 110
DRC4-s2-110-FG-GR 1250 180 210 110
DRC5-s2-110-FG-GR 1700 204 240 110
DRC6-s2-110-FG-GR 2200 235 270 110

Series:

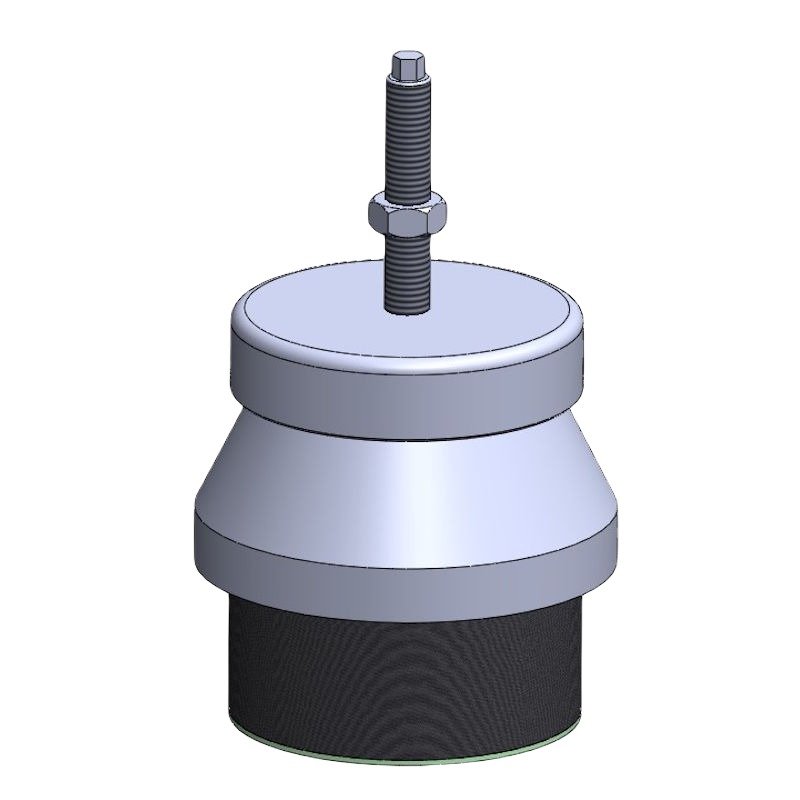

DRC-HS1

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-hs1-150-FG-GR 1270 98 109 150
DRC2-hs1-150-FG-GR 2450 125 150 150
DRC3-hs1-150-FG-GR 3530 150 170 150
DRC4-hs1-150-FG-GR 4540 180 210 150
DRC5-hs1-150-FG-GR 7600 204 240 150
DRC6-hs1-150-FG-GR 9820 235 270 150

Series:

DRC-HS2

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-hs2-150-FG-GR 510 98 109 150
DRC2-hs2-150-FG-GR 900 125 150 150
DRC3-hs2-150-FG-GR 1410 150 170 150
DRC4-hs2-150-FG-GR 1810 180 210 150
DRC5-hs2-150-FG-GR 3040 204 240 150
DRC6-hs2-150-FG-GR 3930 235 270 150

Series:

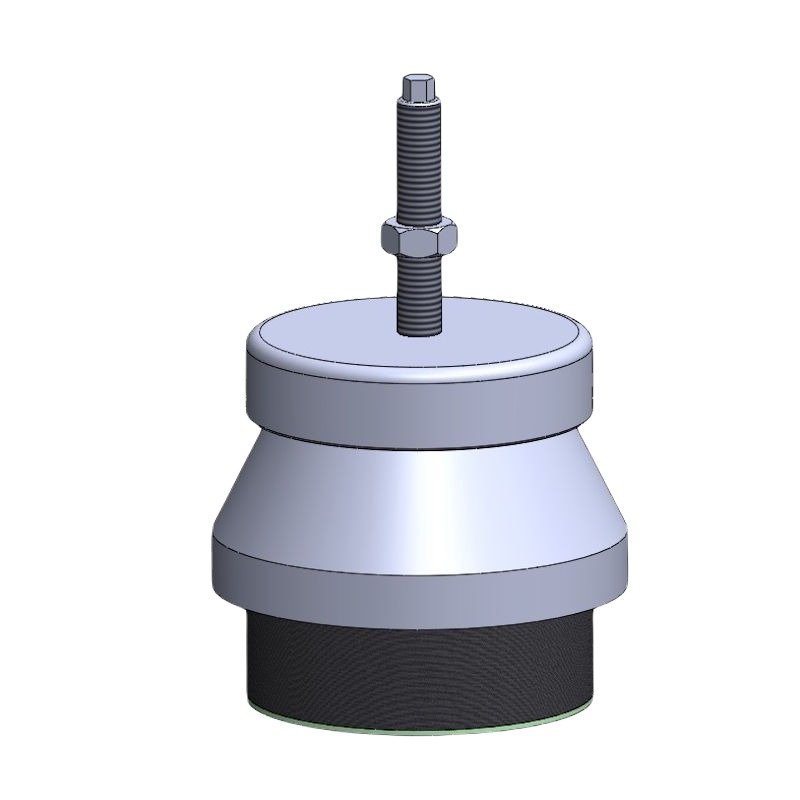

DRC-HS3

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-hs3-135-FG-GR 1780 98 109 135
DRC2-hs3-135-FG-GR 3440 125 150 135
DRC3-hs3-135-FG-GR 4950 150 170 135
DRC4-hs3-135-FG-GR 6350 180 210 135
DRC5-hs3-135-FG-GR 10640 204 240 135
DRC6-hs3-135-FG-GR 13740 235 270 135

Series:

DRC-HS4

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-hs4-135-FG-GR 760 98 109 135
DRC2-hs4-135-FG-GR 1470 125 150 135
DRC3-hs4-135-FG-GR 2120 150 170 135
DRC4-hs4-135-FG-GR 2720 180 210 135
DRC5-hs4-135-FG-GR 4960 204 240 135
DRC6-hs4-135-FG-GR 5890 235 270 135

Series:

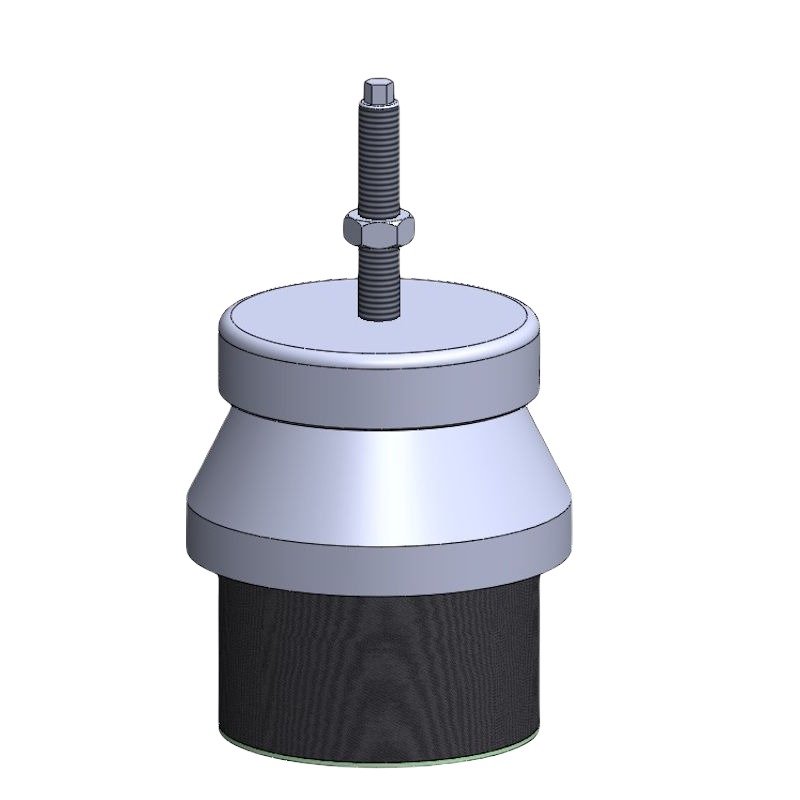

DRC-HS5

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-hs5-165-FG-GR 1780 98 109 165
DRC2-hs5-165-FG-GR 3440 125 150 165
DRC3-hs5-165-FG-GR 4950 150 170 165
DRC4-hs5-165-FG-GR 6350 180 210 165
DRC5-hs5-165-FG-GR 10640 204 240 165
DRC6-hs5-165-FG-GR 13740 235 270 165

Series:

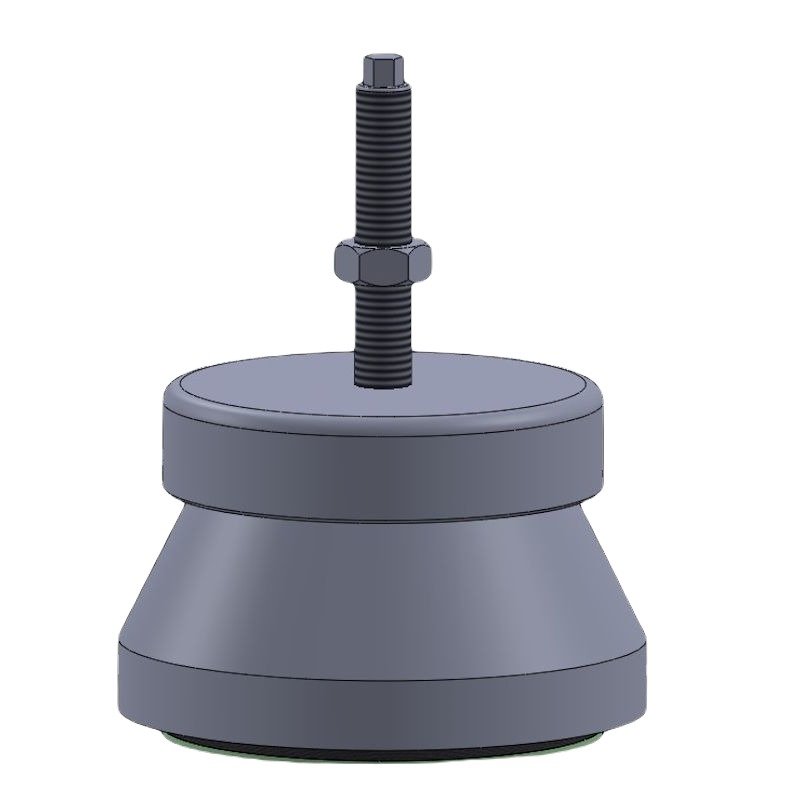

DRC-H

Application:

Very Heavy and long bed machines, long machining centres, planners etc.
Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-h-100-FG-GR 1200 98 109 100
DRC2-h-100-FG-GR 2400 125 150 100
DRC3-h-100-FG-GR 3500 150 170 100
DRC4-h-100-FG-GR 5200 180 210 100
DRC5-h-100-FG-GR 7200 204 240 100
DRC6-h-100-FG-GR 9600 235 270 100

Series:

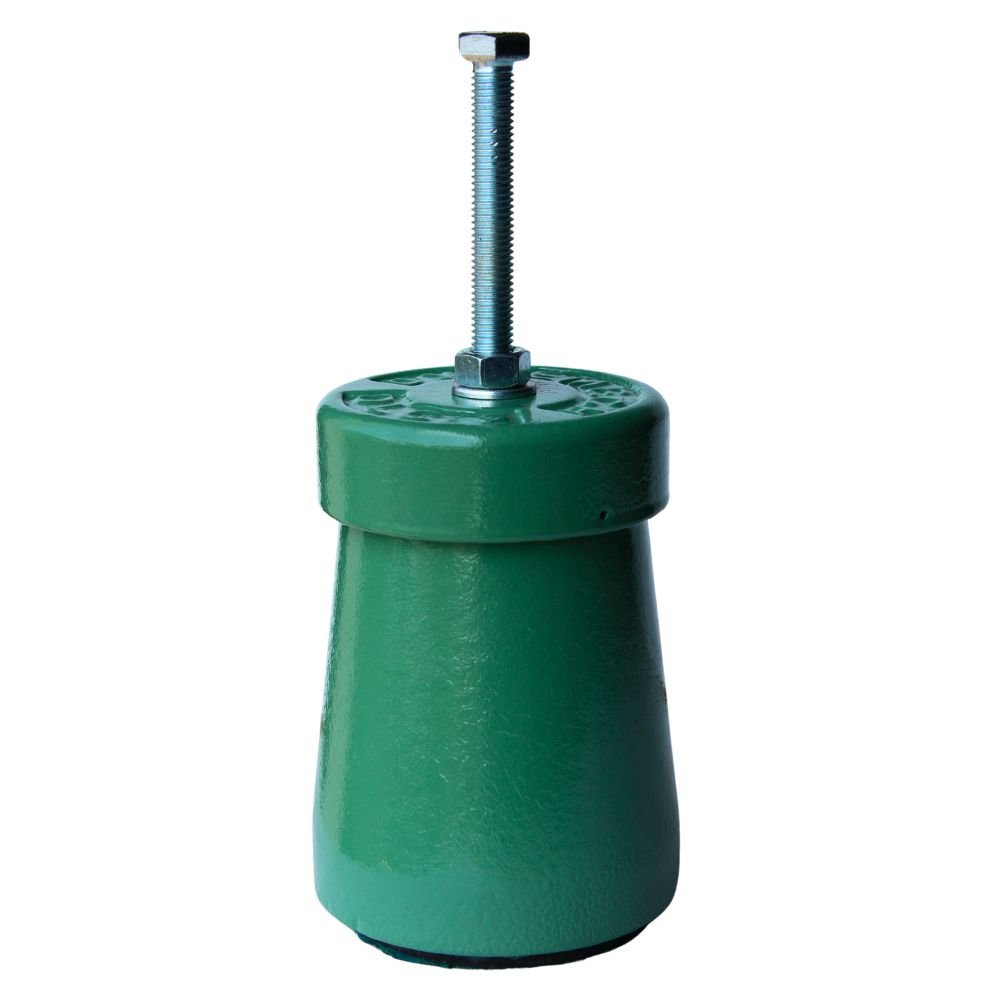

DRC-A2

Application:

Model Load Capacity (Kg/pc) d (mm) Dia D (mm) H (mm)
DRC1-a2-93-FG-GR 640 98 109 93
DRC2-a2-93-FG-GR 1230 125 150 93
DRC3-a2-93-FG-GR 1770 150 170 93
DRC4-a2-93-FG-GR 2270 180 210 93
DRC5-a2-93-FG-GR 3800 204 240 93
DRC6-a2-93-FG-GR 4900 235 270 93
