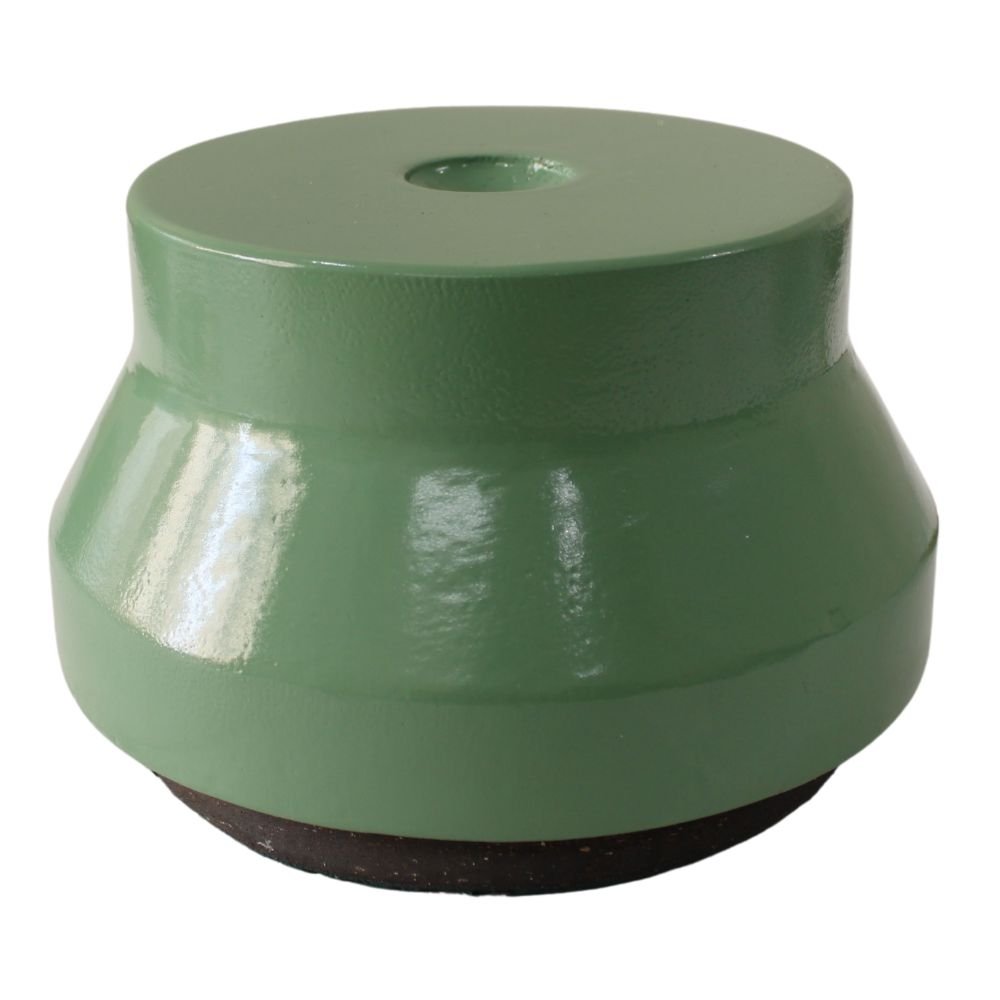

DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
DRC-U-12
Description
Catalogue
Series:
DRC-U-12
Applications:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
| Model | Load Capacity (Kg/pc) | d (mm) | Dia D (mm) | H (mm) |
|---|---|---|---|---|
| DR1-u-12-147-FG-GR | 350 | 87 | 109 | 147 |
| DR2-u-12-147-FG-GR | 600 | 108 | 150 | 147 |
| DR3-u-12-147-FG-GR | 900 | 136 | 170 | 147 |
| DR4-u-12-147-FG-GR | 1400 | 161 | 210 | 147 |
| DR5-u-12-147-FG-GR | 1900 | 185 | 240 | 147 |
| DR6-u-12-147-FG-GR | 2500 | 215 | 270 | 147 |
