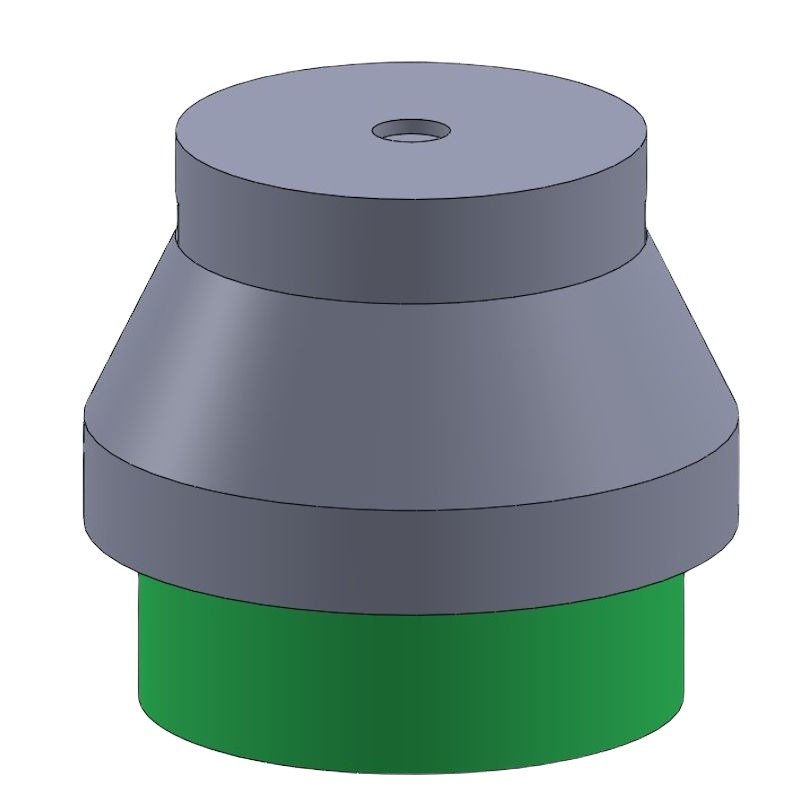

DYNEMECH Series DR-150, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.
DRC-HS3
Description
Catalogue
Series:
DRC-HS3
Applications:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
| Model | Load Capacity (Kg/pc) | d (mm) | Dia D (mm) | H (mm) |
|---|---|---|---|---|
| DR1-hs3-185-FG-GR | 1780 | 87 | 109 | 185 |
| DR2-hs3-185-FG-GR | 3440 | 108 | 150 | 185 |
| DR3-hs3-185-FG-GR | 4950 | 136 | 170 | 185 |
| DR4-hs3-185-FG-GR | 6350 | 161 | 210 | 185 |
| DR5-hs3-185-FG-GR | 10640 | 185 | 240 | 185 |
| DR6-hs3-185-FG-GR | 13740 | 215 | 270 | 185 |
