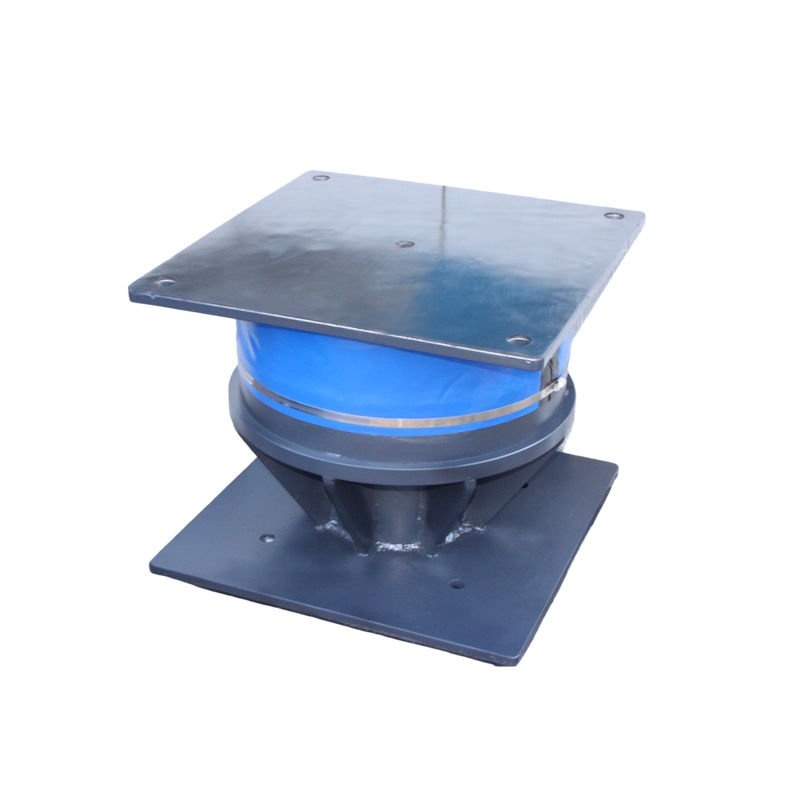

Spring Isolators with viscous damping

Product:

SPR

Description:

Spring viscous dampers with viscous damping series SPR are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as centrifuges, coal crushers etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
DSI-3.25 190.135-SPR 2500-10000 550X550 550X550 430
DSI-4.25 190-SPR 3300-13300 550X550 550X550 430
DSI-6.25 190-SPR 4950-19950 550X550 550X550 430
