Vibration Mounts India

Customized Spring isolators

Product:

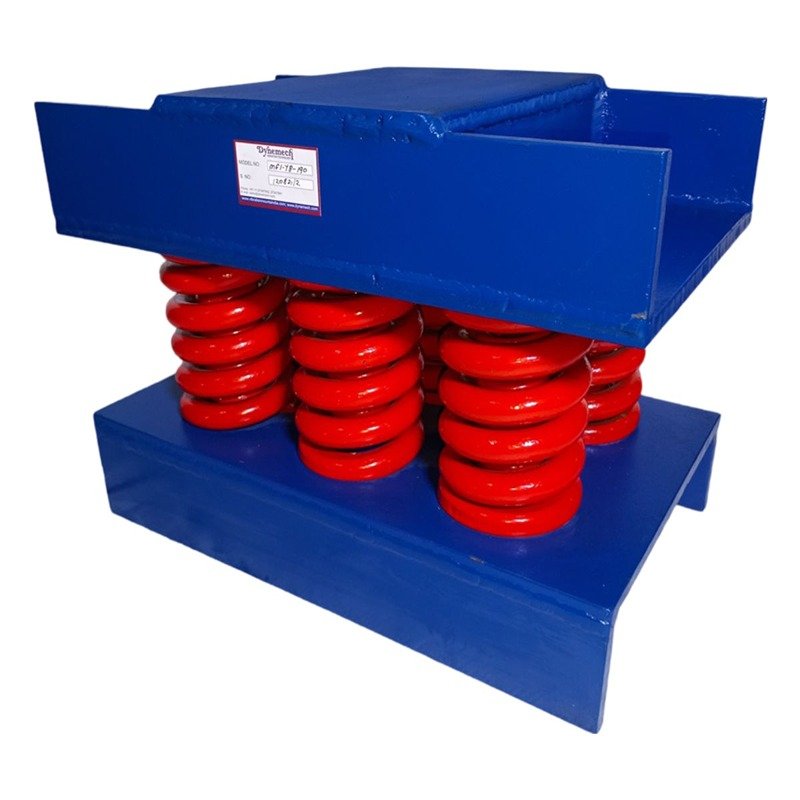

MFI-Y8-190

Description:

Heavy duty spring isolators model MFI-Y8-190 are designed to effectively isolate and reduce vibrations and noise from heavy machinery and equipment. They substantially reduce vibration transmission to the supporting structure Heavy duty spring isolators are particularly effective in equipment such as coal crushers, boiler feed pumps, and ID/FD fans.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
MFI-Y8-190 27000 520x320 520x320 420

Product:

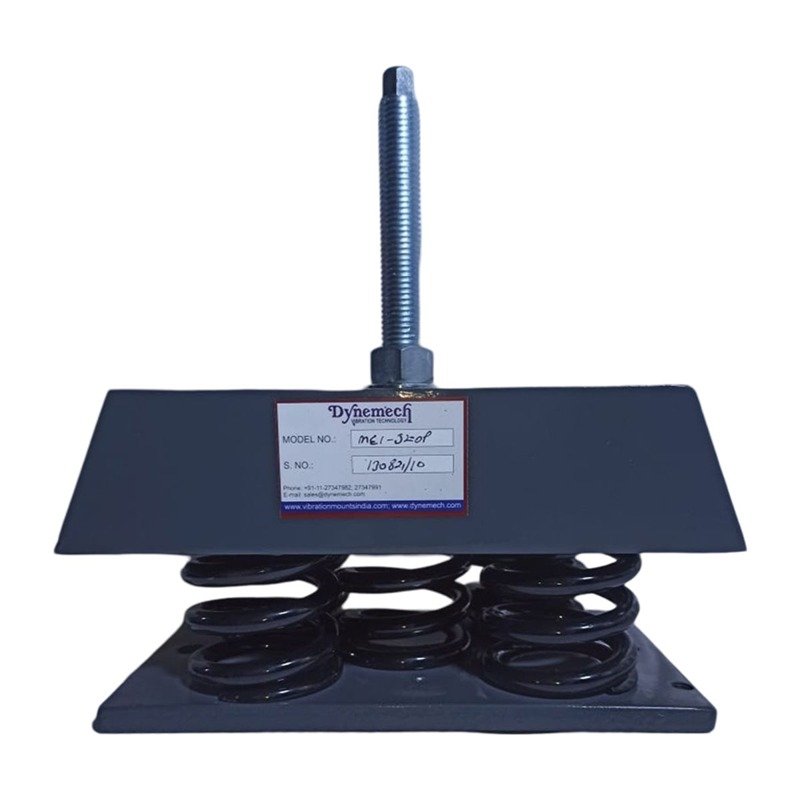

MEI-J2-OP

Description:

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
MEI-J2-OP 150-1500 222x163 255x150 139

Product:

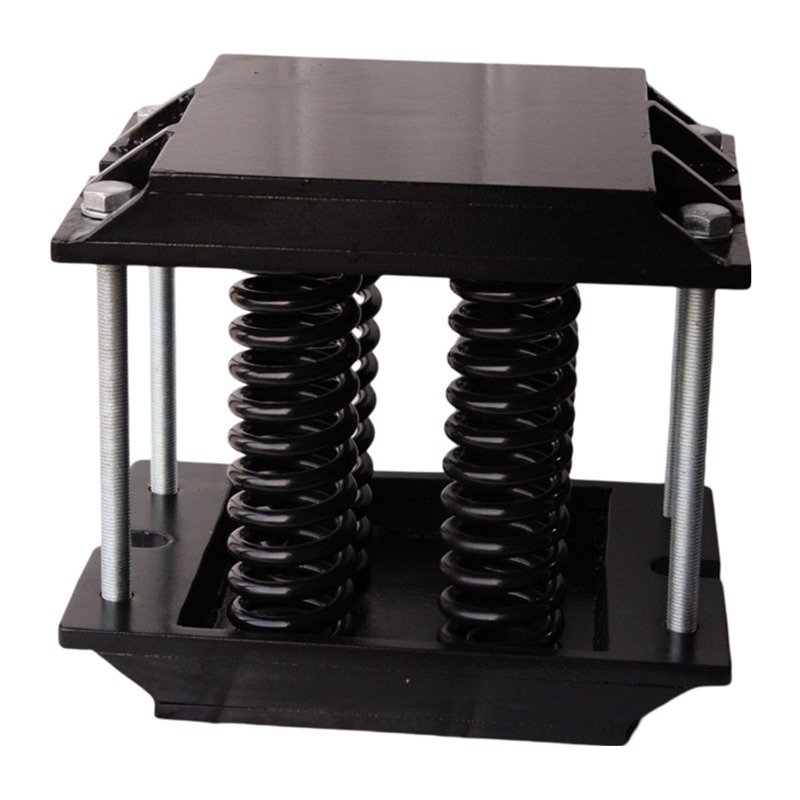

MDI-P242

Description:

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
MDI-P242 2670 250x240 250x240 218

Product:

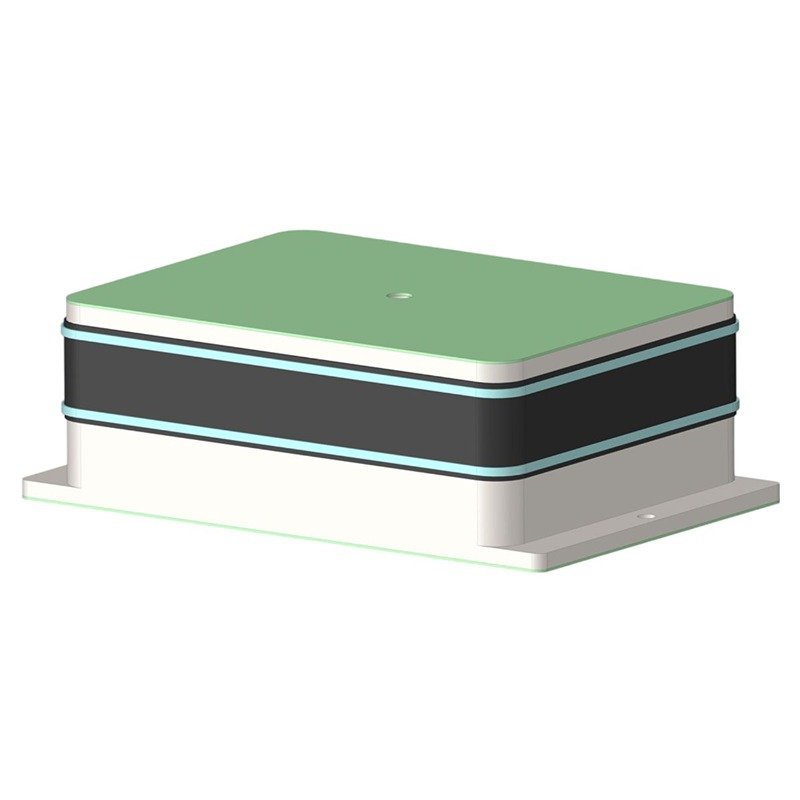

RFD-Y4.135

Description:

Spring viscous dampers with viscous damping mounts are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, also high shock and vibration creating machines installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RFD-Y4.135 23400 500x375 580x375 185
