Vibration Mounts India

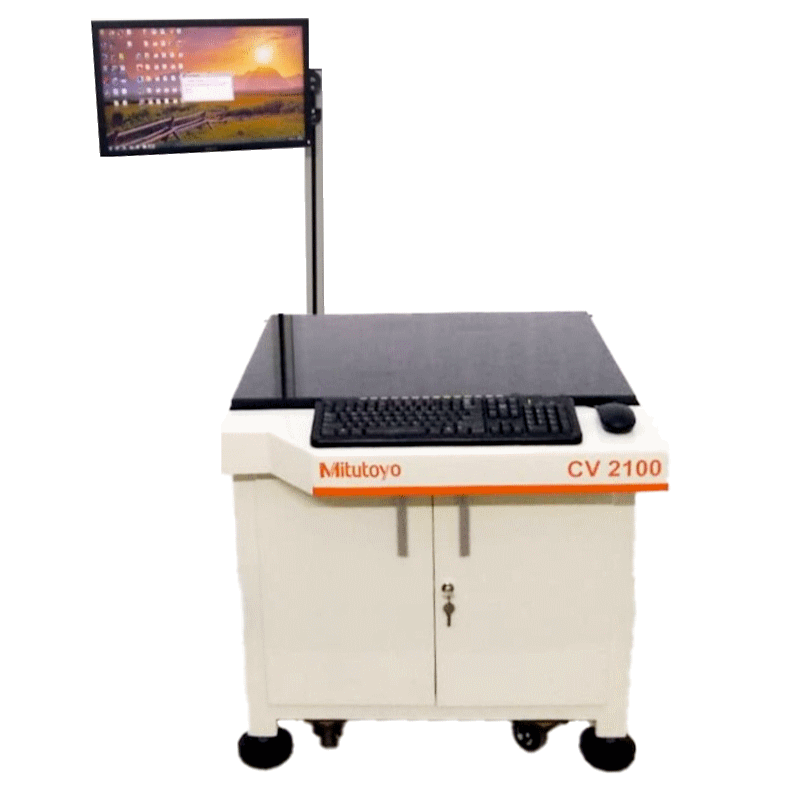

AVT P-90-01-A

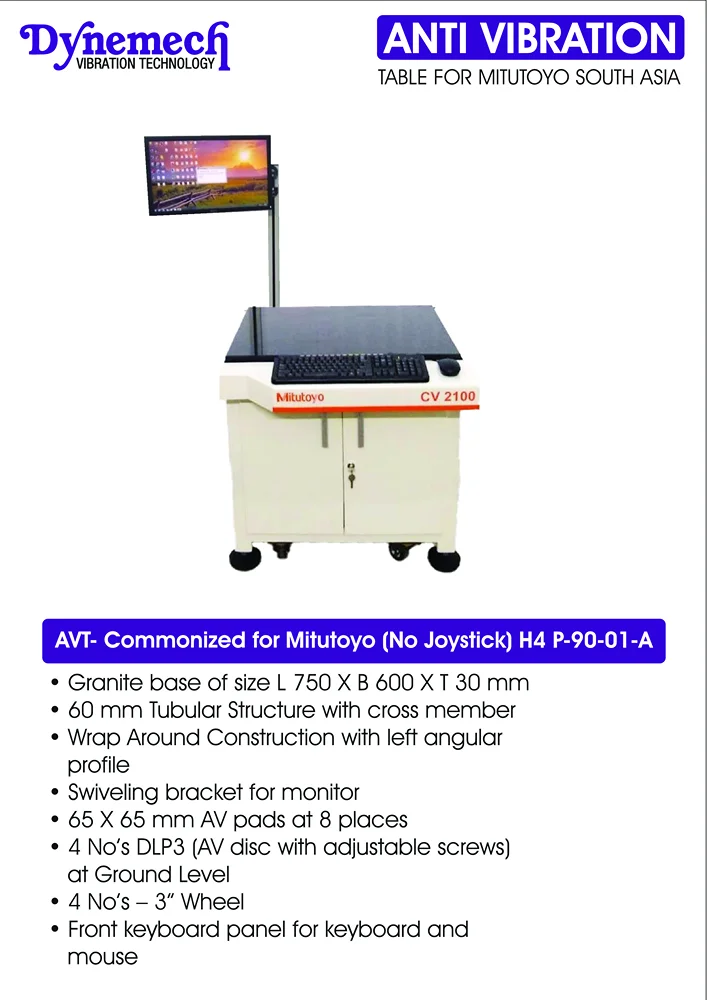

AVT- Commonized for Mitutoyo (No Joystick) H4 P-90-01-A

AVT- Commonized for Mitutoyo (No Joystick) H4 P-90-01-A

1. Granite base of size L 750 X B 600 X T 30 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. Swiveling bracket for monitor
5. 65 X 65 mm AV pads at 8 places
6. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
7. 4 No’s – 3” Wheel
8. Front keyboard panel for keyboard and mouse
9. Power Strip in Rear; controller, CPU and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Front double door with handles and lock
12. Leveling Ball, Spanner 24/27
13. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
14. Instrument sticker
15. Overall dimensions: L 770 X B 620 X H 730 (over granite base) mm
16. Execution in wooden box
