AVT P-86-02-B

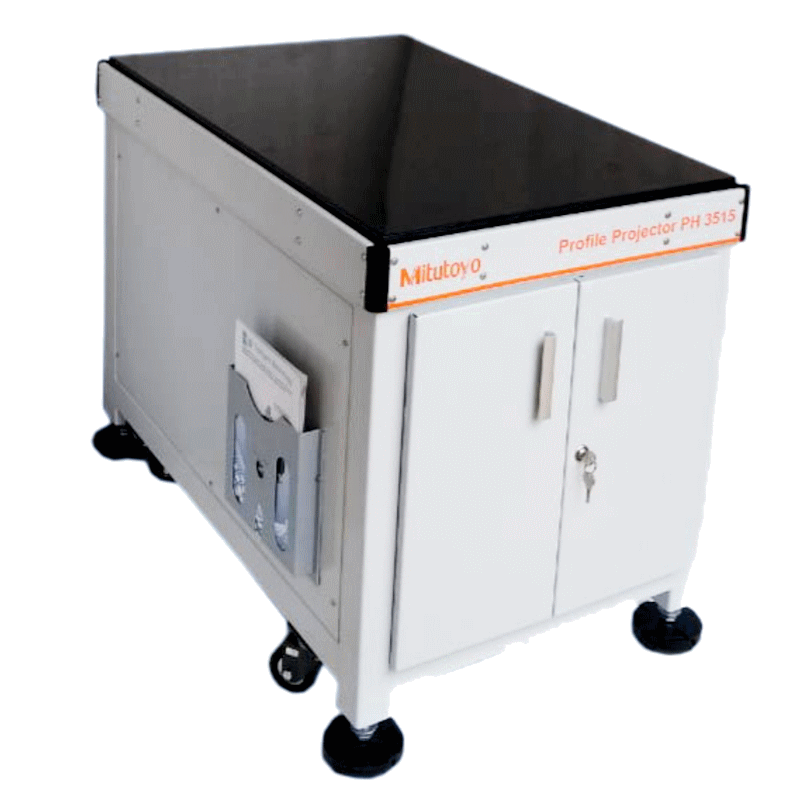

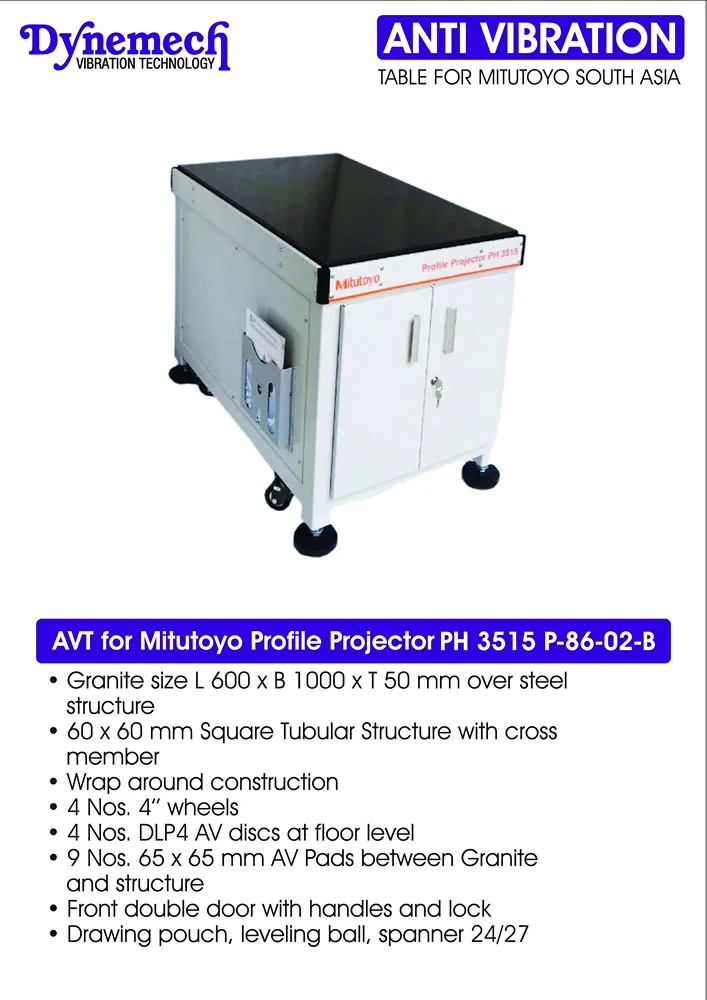

AVT- Mitutoyo Profile projector PH 3515 P-86-02-B

AVT- Mitutoyo Profile projector PH 3515 P-86-02-B

1. Granite size L 600 x B 1000 x T 30 mm over steel structure
2. 60 x 60 mm Square Tubular Structure with cross member
3. Wrap around construction
4. 4 Nos. 3’’ wheels
5. 4 Nos. DLP3 AV discs at floor level
6. 9 Nos. 65 x 65 mm AV Pads between Granite and structure
7. Front double door with handles and lock
8. Drawing pouch LH Side, leveling ball, spanner 24/27
9. Power Strip in Rear
10. Drawing Pouch
11. Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
12. Instrument sticker
13. Overall dimensions: L 620 X B 1020 X H 730 (over granite base) mm
14. Front monitor and keyboard swing arm assembly our P. Code 79-50
15. Execution in wooden box
