Dp3
Model

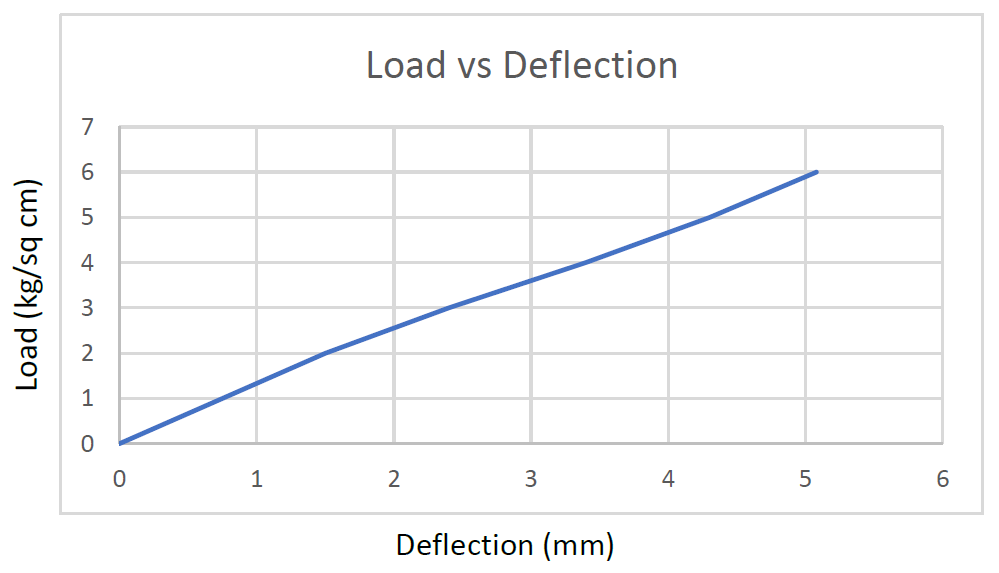

Load vs Deflection
Load vs Natural Frequency
Description
Dynemech Insulation Plates are made from the compund of Nitrile Rubber, Cork, Synthetic Fibre which at varying compositions gives different natural frequencies for providing vibration damping solution to almost every machine tool. Also the Insulation Plates are resistant to fuels, lubricating oils, water etc.
Application
Tuned to low natural frequency, suitable for both active & passive vibration isolation of metrology and production machines.
Technical Data
Thickness (mm)
24
Hardness (+/-5) (Shore A)
40-45
Tensile Strength (min) Kg/cm²
50
Elongation at break (min) %
450%
Temperature Range ° C
-20 to +70
Load (Kg/ sq cm)
02-06
Natural Frequency (Hz)
07-15
Coeff. of Friction
0.8
Oil & Chemical Resistance
Resistant to fuels, lubricating oils, water etc. used in the shop floor
Construction
Composite material made from Nitrile Rubber
Cork Particles & Synthetic Particles
Compression Set
25% (Max.)
