Model

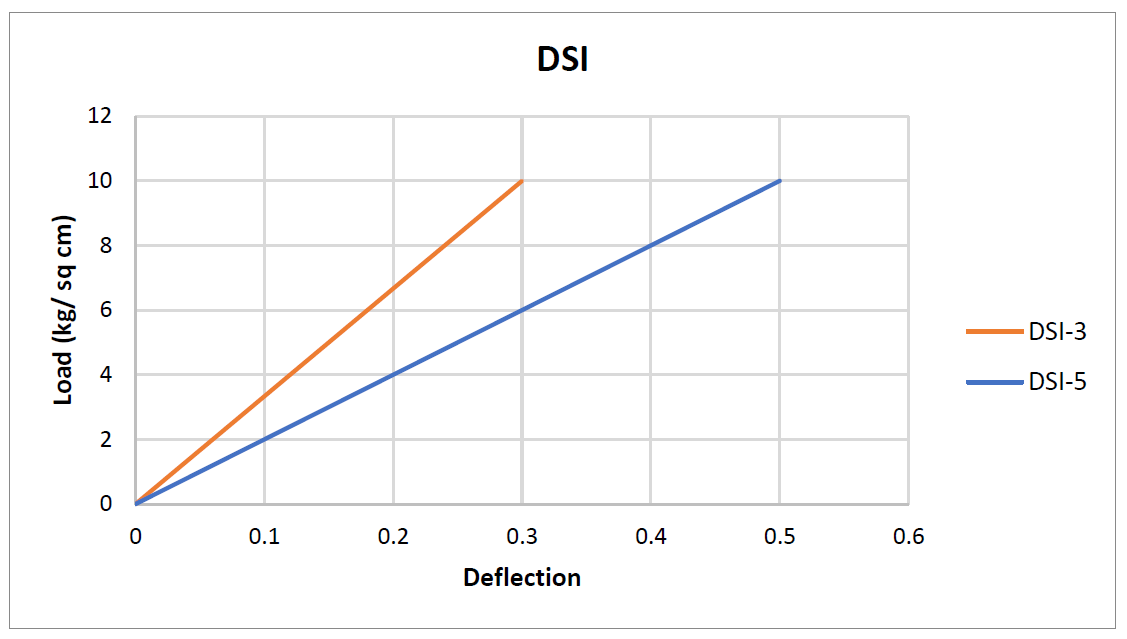

Graph
dimensional diagram

Description

Silicone rubber is physiologically inert, thus making it the preferred choice of medical, phramaceutical and food processing industries. Silicone have comparatively low mechanical properties, tensile strength elongation and tear strength, however they keep constant even at high temperature but should not be used with high-pressure steam. Its resistance to oiland hydrocarbon products is fairly limited and similar to that of Choloprene rubbers. Reasonable resistance to a whole range of general chemical products, but acids, alkalis, esters and kerosene should be avoided. Silicone has excellent resistance to heat (dry air), at +200° C intermittent. It remains flexible at low temperatures of -70° C and it is also resistant to ultra-violet light, Ozone and weathering. Exhibits low inflammability and low smoke toxicity. It has good electrical insulation properties.

Application

Low flammability and low smoke toxicity levels, Good electrical insulation properties, Physiologically mert and non-toxic composition

Technical Data

Thickness (mm)
3
Specific Gravity (gm/cm³)
1.3
Hardness (+/-5) (Shore A)
60
Tensile Strength (min) Kg/cm²
60
Elongation at break (min) %
200
Compress on Set at 70° C for 22 Hrs (%)
45
Temperature Range ° C
-70 to +200
Colour
Brick Red
Maximum Width
1.2 Mtr
Length
10 Mtr
