DLKR-03-M20x1.5x150
Dynemech Screw Support Mounts Series DLKR provides a large rectangular surface to support machines along with the levelling adjustment. The longer side is installed parallel to the line of operation of the horizontal force generated by the machine thus ensuring better grip and higher shock isolation.
DLKR mounts are suitable for machines which generate high vertical and horizontal forces and have a plain hole in the base.
Images

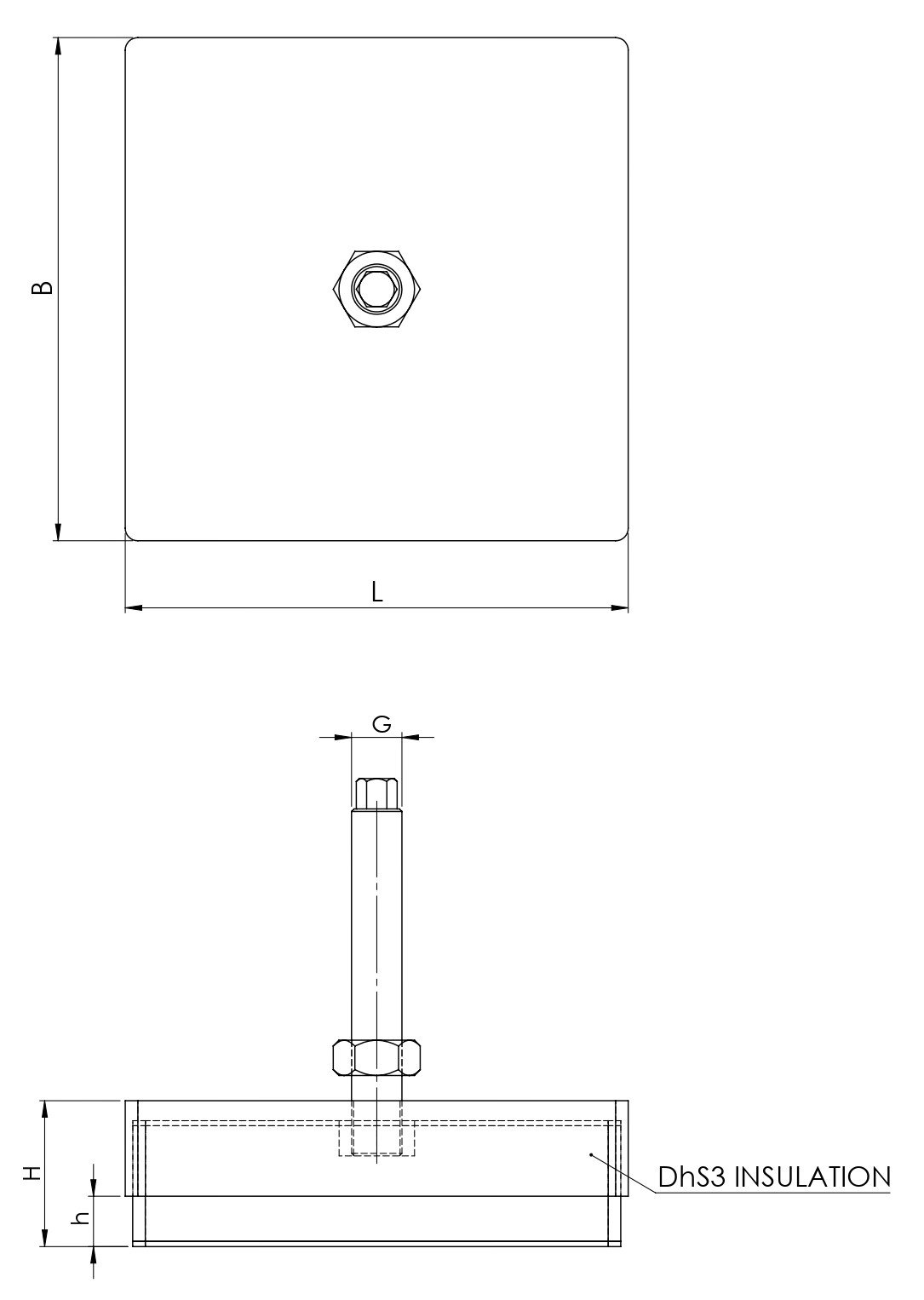

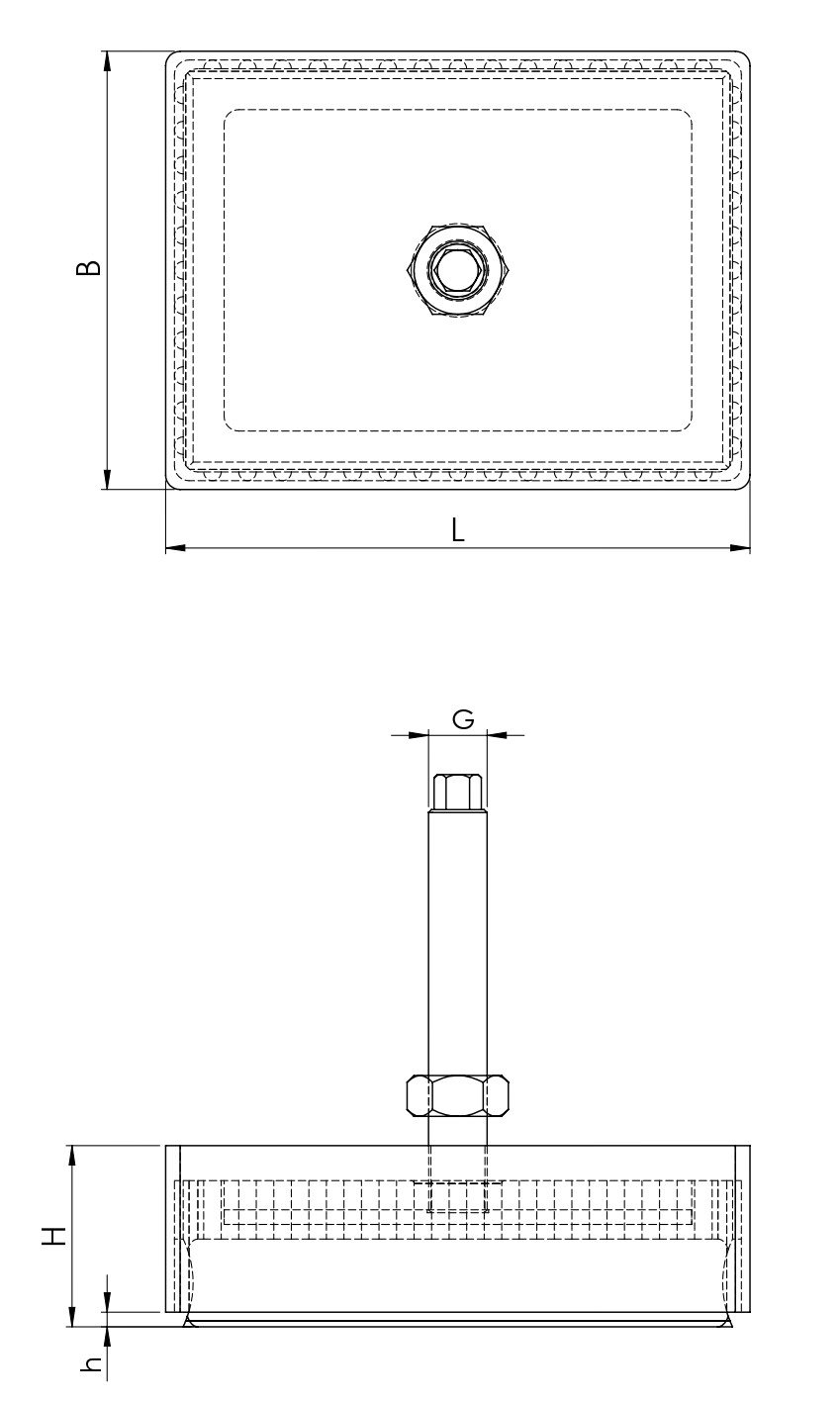

Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 4000 |
| Height H (Mm) | 62 |
| Adjustment Range (Mm) | 32 |
| Thread | M20x1.5x150 |
| Length L (Mm) | 200 |
| Width B (Mm) | 150 |
| H (Mm) | 5 |
| Applications | Plastic Injection Moulding Machines, Pressure Die casting Machines, Lathe Machines etc. |
