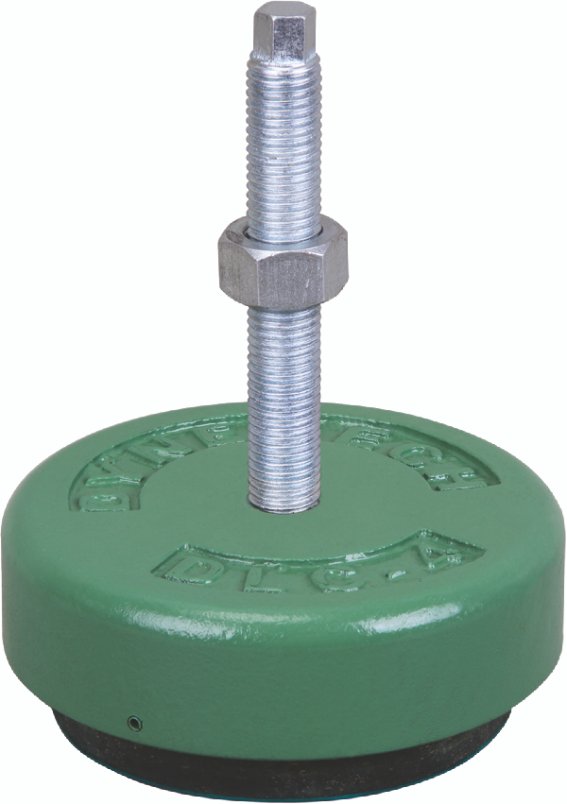

DLC7-s2-M20x2.5×150-B-Z-GR
Model
line diagram
Description
Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Applicatons
High vibration insulation for both active and passive range, Medium Presses, Stamping Machines, also well suited for high-speed rotating machines on upper floors.
Technical Data
Load Capacity Kg/pc
2200
Diameter (D) mm
235
Height (H) mm
67
Bolt Size (mm)
M20X150
Adjustment Range (mm)
+6
Possible Bolts
M10/12/16/20/24
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
8
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
