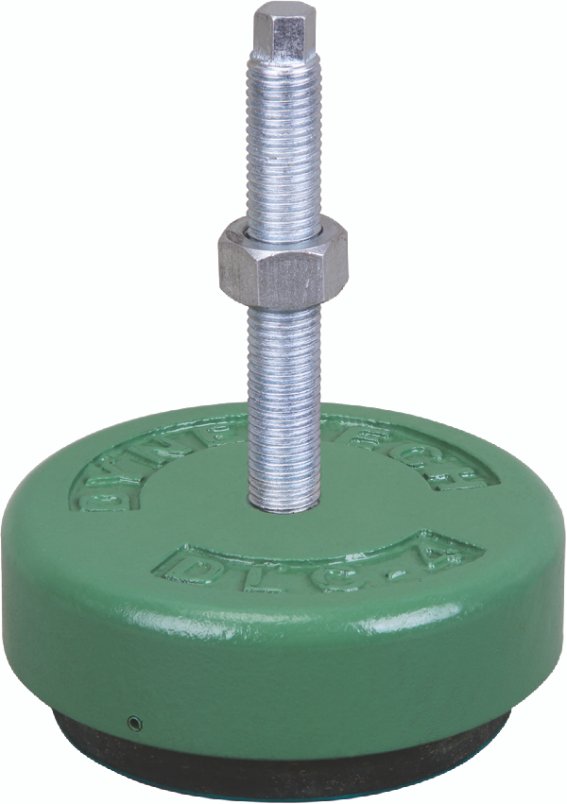

Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
DLC-m
Series:
DLC-m
Description
Application:
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Catalogue
| Code | Load Capacity Kg/pc | Diameter (D) mm | Height (H) mm |
|---|---|---|---|
| DLC1-m-M12x1.75x100-B-Z-GR | 190 | 65 | 30 |
| DLC2-m-M12x1.75x100-B-Z-GR | 450 | 98 | 37 |
| DLC3-m-M16x2.0x100-B-Z-GR | 800 | 125 | 44 |
| DLC4-m-M16x2.0x100-B-Z-GR | 1150 | 150 | 46 |
| DLC5-m-M18x2.5x150-B-Z-GR | 1750 | 180 | 48 |
| DLC6-m-M20x2.5x150-B-Z-GR | 2400 | 204 | 52 |
| DLC7-m-M20x2.5x150-B-Z-GR | 3200 | 235 | 57 |
| DLC8-m-M24x3.0x200-B-Z-GR | 4000 | 270 | 72 |
| DLC9-m-M24x3.0x200-B-Z-GR | 5000 | 302 | 84 |
