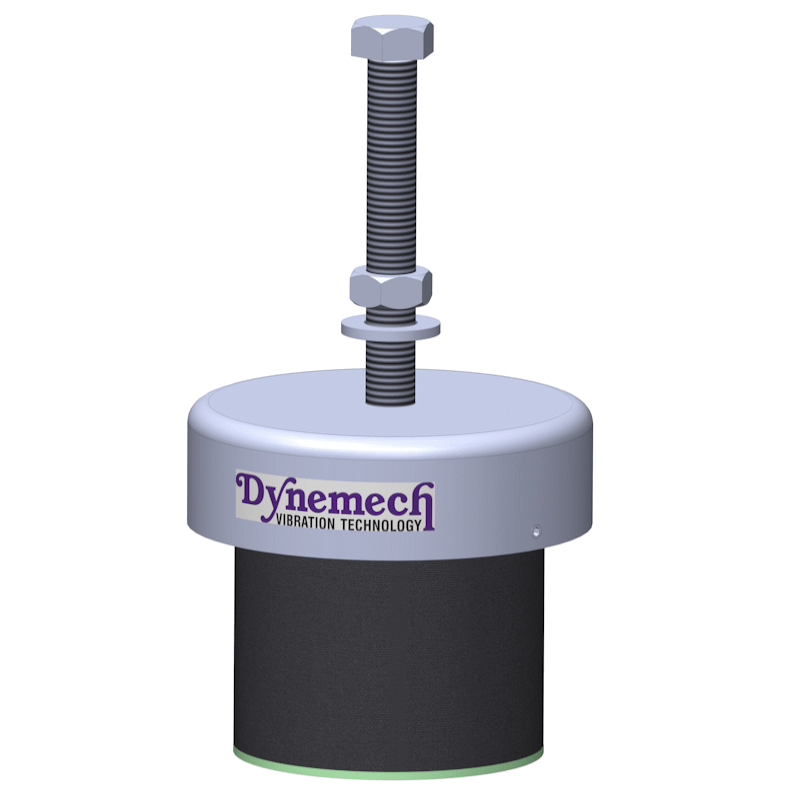

Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
DLC-hs2
Series:
DLC-hs2
Description
Application:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Catalogue
| Code | Load Capacity Kg/pc | Diameter (D) mm | Height (H) mm |
|---|---|---|---|
| DLC1-hs2-M12x1.75x100-B-Z-GR | 120 | 65 | 80 |
| DLC2-hs2-M12x1.75x100-B-Z-GR | 350 | 98 | 87 |
| DLC3-hs2-M16x2.0x100-B-Z-GR | 650 | 125 | 94 |
| DLC4-hs2-M16x2.0x100-B-Z-GR | 980 | 150 | 96 |
| DLC5-hs2-M18x2.5x150-B-Z-GR | 1410 | 180 | 98 |
| DLC6-hs2-M20x2.5x150-B-Z-GR | 1900 | 204 | 102 |
| DLC7-hs2-M20x2.5x150-B-Z-GR | 2590 | 235 | 107 |
| DLC8-hs2-M24x3.0x200-B-Z-GR | 3180 | 270 | 122 |
| DLC9-hs2-M24x3.0x200-B-Z-GR | 4180 | 302 | 134 |
