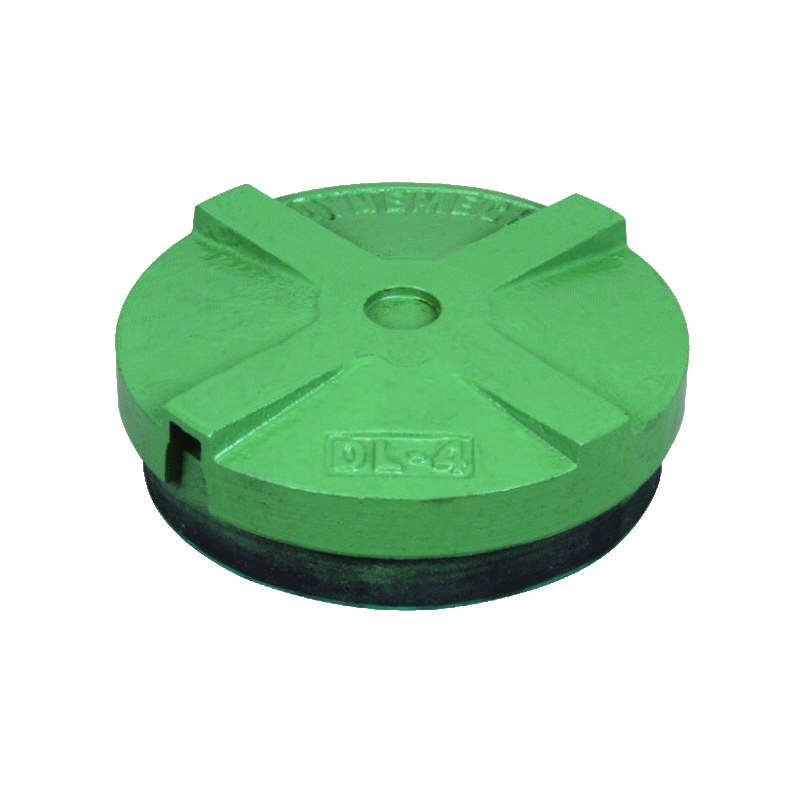

Dynemech DL series is used for light to medium weight machines suited to levelling screw support or having tapped hole in the Base Machine Levelling.

Catalogue

Series:

DL-u

Applications:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-u-55-FG 150 55 21
DL2-u-85-FG 350 85 28
DL3-u-112-FG 600 112 28
DL4-u-135-FG 900 135 30
DL5-u-160-FG 1400 160 30
DL6-u-185-FG 1900 185 34
DL7-u-215-FG 2500 215 35
DL8-u-249-FG 3500 249 44
DL9-u-276-FG 4200 276 43

Series:

DL-u-10

Applications:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-u-10-55-FG 150 55 16
DL2-u-10-85-FG 350 85 23
DL3-u-10-112-FG 600 112 23
DL4-u-10-135-FG 900 135 25
DL5-u-10-160-FG 1400 160 25
DL6-u-10-185-FG 1900 185 29
DL7-u-10-215-FG 2500 215 30
DL8-u-10-249-FG 3500 249 39
DL9-u-10-276-FG 4200 276 38

Series:

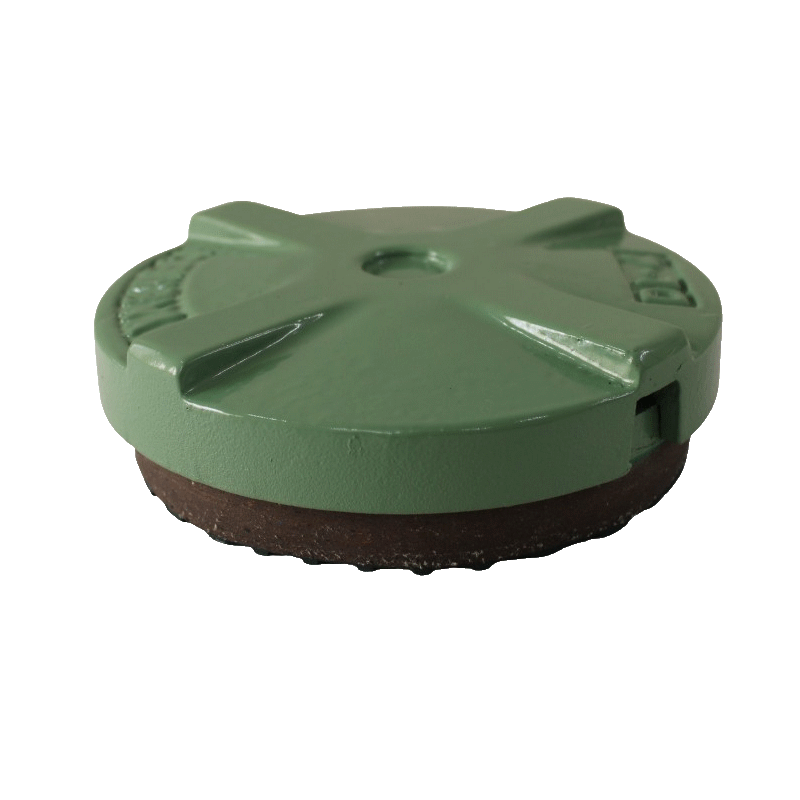

DL-u-12

Applications:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-u-12-55-FG 150 55 18
DL2-u-12-85-FG 350 85 25
DL3-u-12-112-FG 600 112 25
DL4-u-12-135-FG 900 135 27
DL5-u-12-160-FG 1400 160 27
DL6-u-12-185-FG 1900 185 31
DL7-u-12-215-FG 2500 215 32
DL8-u-12-249-FG 3500 249 41
DL9-u-12-276-FG 4200 276 40

Series:

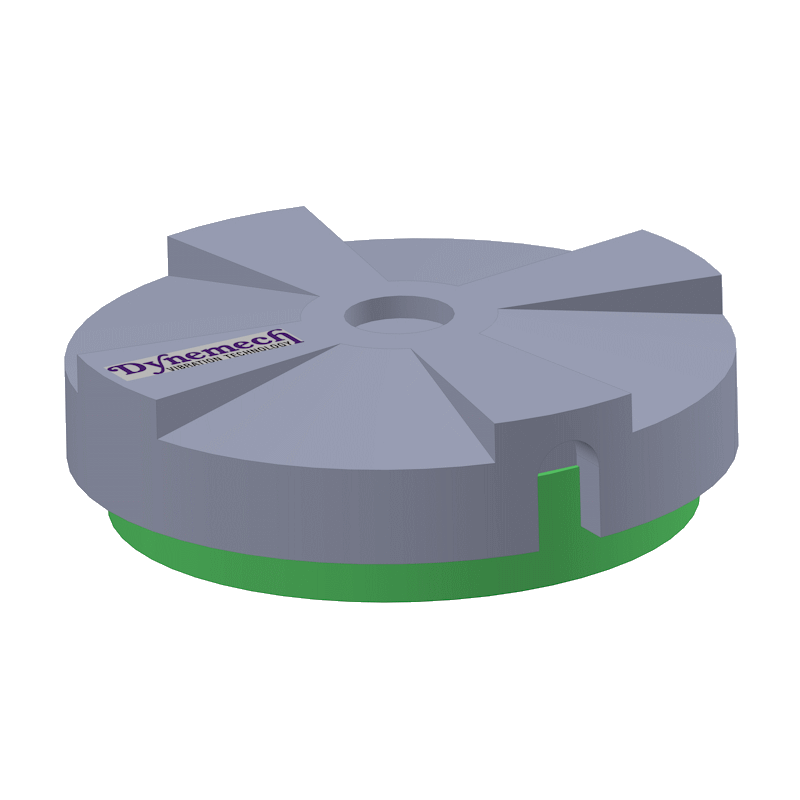

DL-m

Applications:

Lathe Machines, Milling Machines, Grinding Machines, Machining Centres, Turning Centres etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-m-55-FG 190 55 21
DL2-m-85-FG 450 85 28
DL3-m-112-FG 800 112 28
DL4-m-135-FG 1150 135 30
DL5-m-160-FG 1750 160 30
DL6-m-185-FG 2400 185 34
DL7-m-215-FG 3200 215 35
DL8-m-249-FG 4000 249 44
DL9-m-276-FG 5000 276 43

Series:

DL-i

Applications:

Power Presses, Punching Machines, Stamping Machines, Shearing Machines etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-I-55-FG 250 55 31
DL2-I-85-FG 575 85 38
DL3-I-112-FG 1000 112 38
DL4-I-135-FG 1600 135 40
DL5-I-160-FG 2300 160 40
DL6-I-185-FG 3100 185 44
DL7-I-215-FG 4000 215 45
DL8-I-249-FG 5200 249 54
DL9-I-276-FG 6500 276 53

Series:

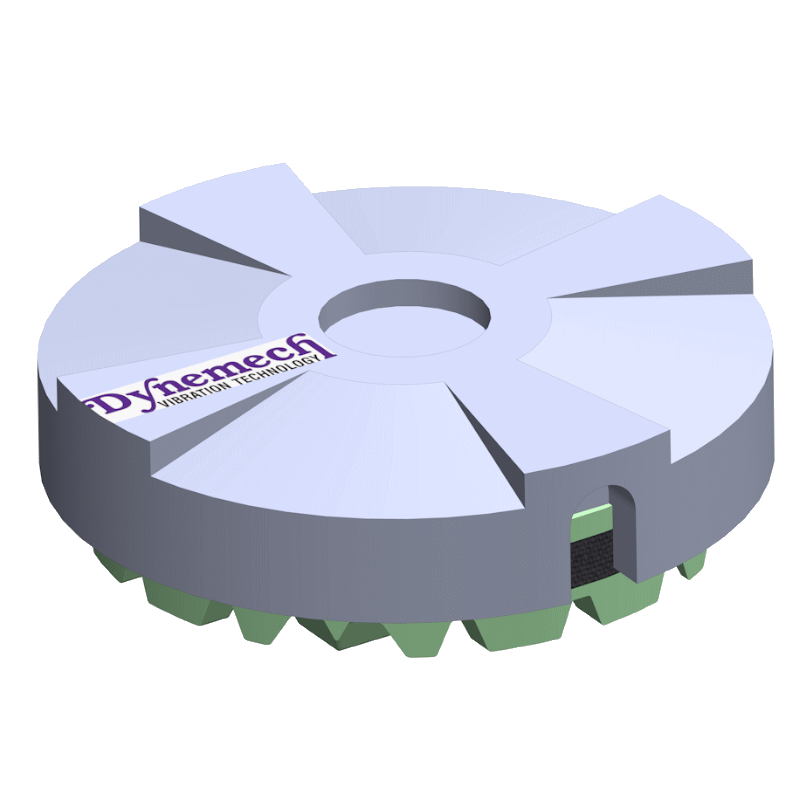

DL-p1

Applications:

Tuned to low natural frequency; suitable for passive vibration control of Measuring & Testing Machines, Grinders etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-p1-55-FG 75 55 21
DL2-p1-85-FG 175 85 28
DL3-p1-112-FG 300 112 28
DL4-p1-135-FG 500 135 30
DL5-p1-160-FG 700 160 30
DL6-p1-185-FG 950 185 34
DL7-p1-215-FG 1250 215 35
DL8-p1-249-FG 1500 249 44
DL9-p1-276-FG 1900 276 43

Series:

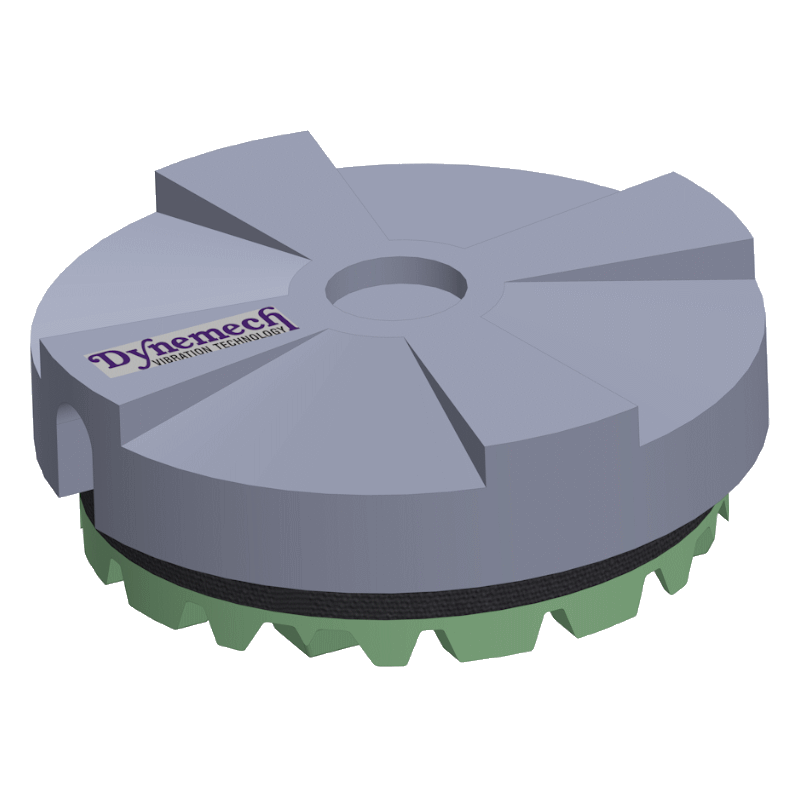

DL-p2

Applications:

Suitable for passive vibration control of Measuring & Testing Machines; maintains machine stability along the vibration reduction.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-p2-55-FG 80 55 26
DL2-p2-85-FG 220 85 33
DL3-p2-112-FG 410 112 33
DL4-p2-135-FG 620 135 35
DL5-p2-160-FG 900 160 35
DL6-p2-185-FG 1200 185 39
DL7-p2-215-FG 1600 215 40
DL8-p2-249-FG 2000 249 49
DL9-p2-276-FG 2600 276 48

Series:

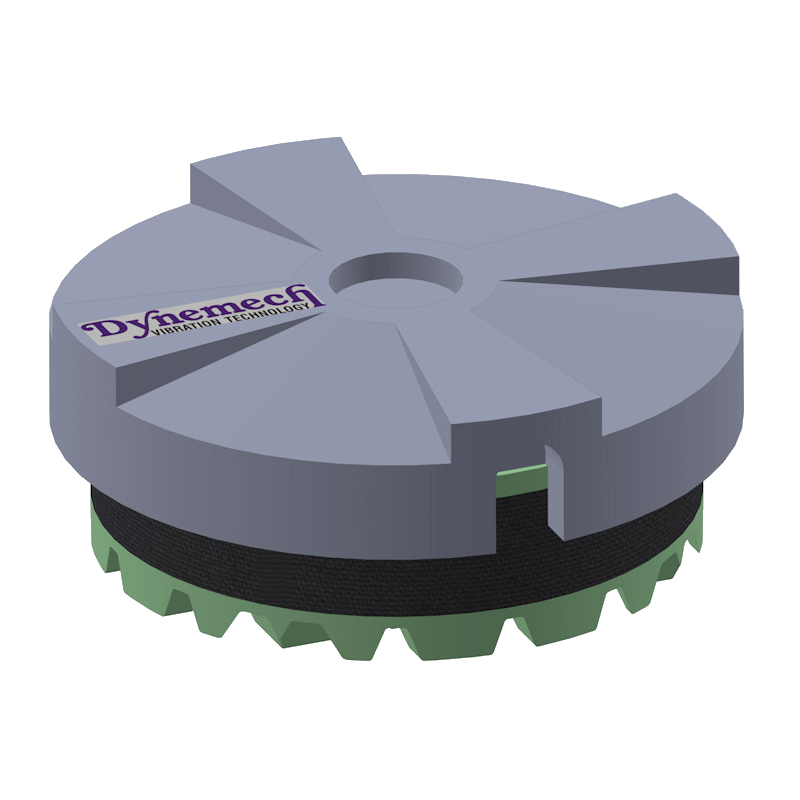

DL-p3

Applications:

Tuned to low natural frequency; suitable for both active & passive vibration isolation of metrology and production machines.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-p3-55-FG 95 55 30
DL2-p3-85-FG 270 85 37
DL3-p3-112-FG 490 112 37
DL4-p3-135-FG 740 135 39
DL5-p3-160-FG 1060 160 39
DL6-p3-185-FG 1400 185 43
DL7-p3-215-FG 1950 215 44
DL8-p3-249-FG 2400 249 53
DL9-p3-276-FG 3150 276 52

Series:

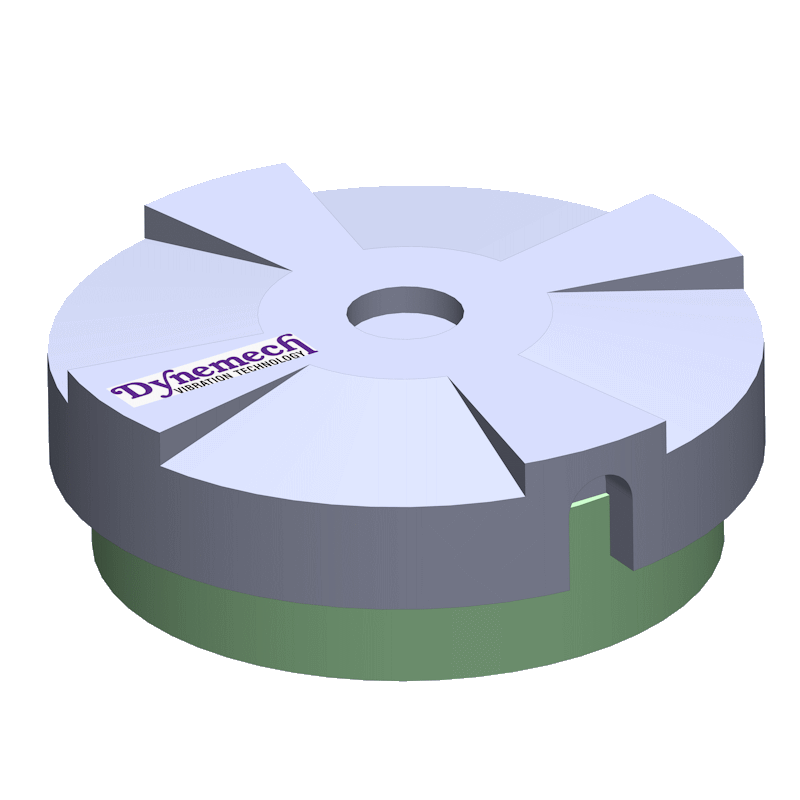

DL-s1

Applications:

Light weight presses, tool room machines, compressors etc. on ground floor as well as upper floor.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-s1-55-FG 80 55 26
DL2-s1-85-FG 200 85 33
DL3-s1-112-FG 375 112 33
DL4-s1-135-FG 575 135 35
DL5-s1-160-FG 800 160 35
DL6-s1-185-FG 1100 185 39
DL7-s1-215-FG 1500 215 40
DL8-s1-249-FG 1900 249 49
DL9-s1-276-FG 2400 276 48

Series:

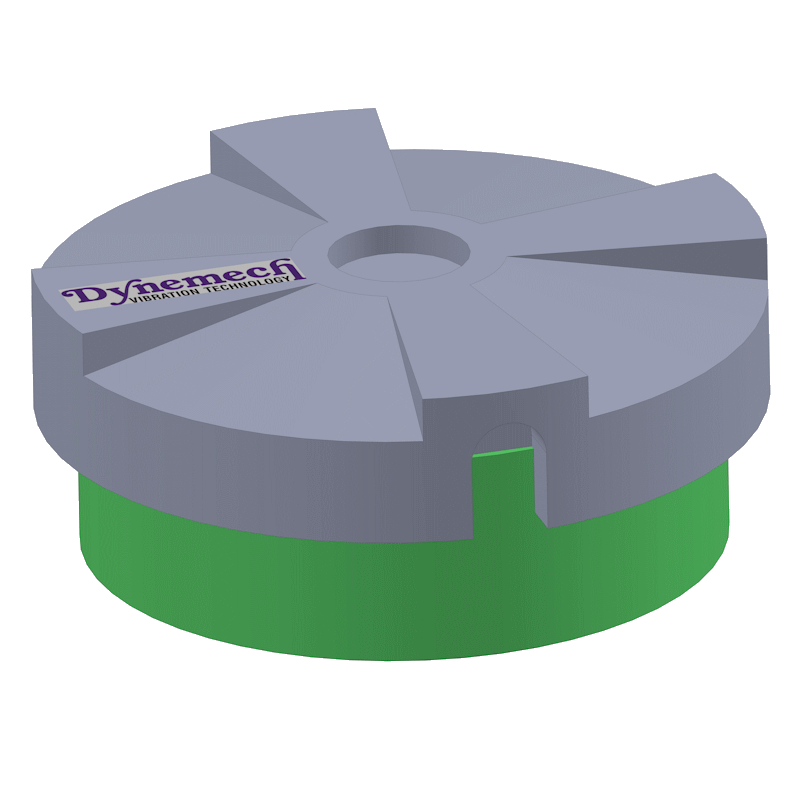

DL-s2

Applications:

High vibration insulation for both active and passive range, Medium Presses, Stamping Machines, also well suited for high-speed rotating machines on upper floors.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-s2-55-FG 125 55 31
DL2-s2-85-FG 300 85 38
DL3-s2-112-FG 550 112 38
DL4-s2-135-FG 850 135 40
DL5-s2-160-FG 1250 160 40
DL6-s2-185-FG 1700 185 44
DL7-s2-215-FG 2200 215 45
DL8-s2-249-FG 2800 249 54
DL9-s2-276-FG 3500 276 53

Series:

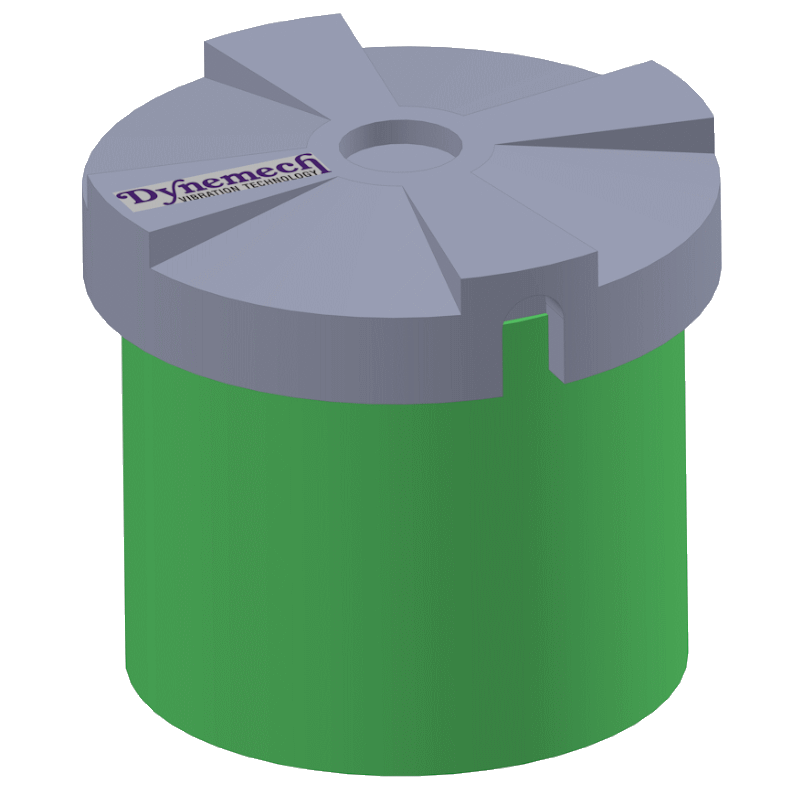

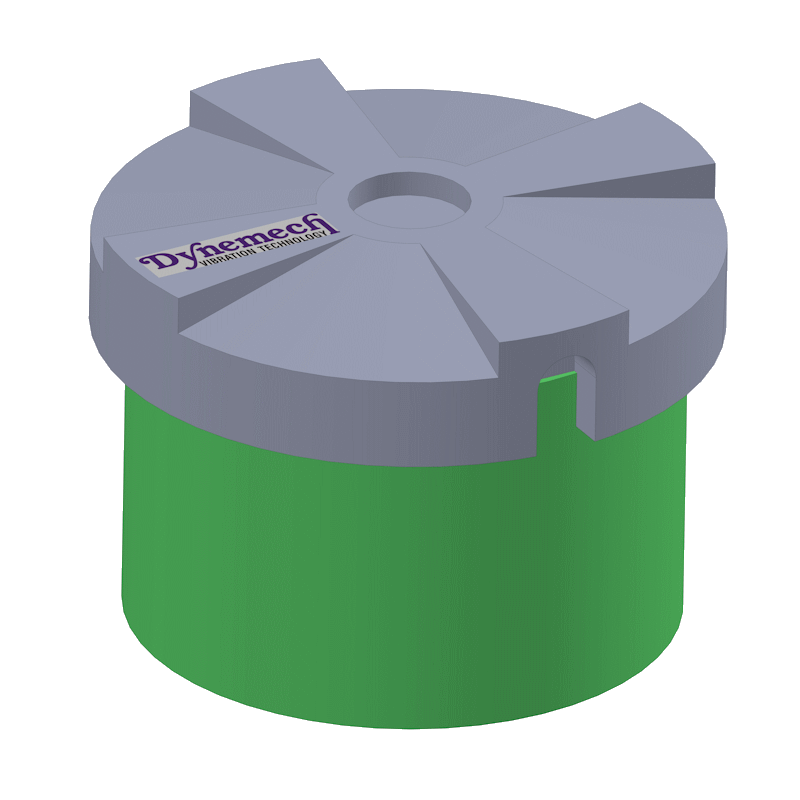

DL-hs1

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-hs1-55-FG 300 55 71
DL2-hs1-85-FG 880 85 78
DL3-hs1-112-FG 1630 112 78
DL4-hs1-135-FG 2450 135 80
DL5-hs1-160-FG 3530 160 80
DL6-hs1-185-FG 4750 185 84
DL7-hs1-215-FG 6470 215 85
DL8-hs1-249-FG 7950 249 94
DL9-hs1-276-FG 10450 276 93

Series:

DL-hs2

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-hs2-55-FG 120 55 71
DL2-hs2-85-FG 350 85 78
DL3-hs2-112-FG 650 112 78
DL4-hs2-135-FG 980 135 80
DL5-hs2-160-FG 1410 160 80
DL6-hs2-185-FG 1900 185 84
DL7-hs2-215-FG 2590 215 85
DL8-hs2-249-FG 3180 249 94
DL9-hs2-276-FG 4180 276 93

Series:

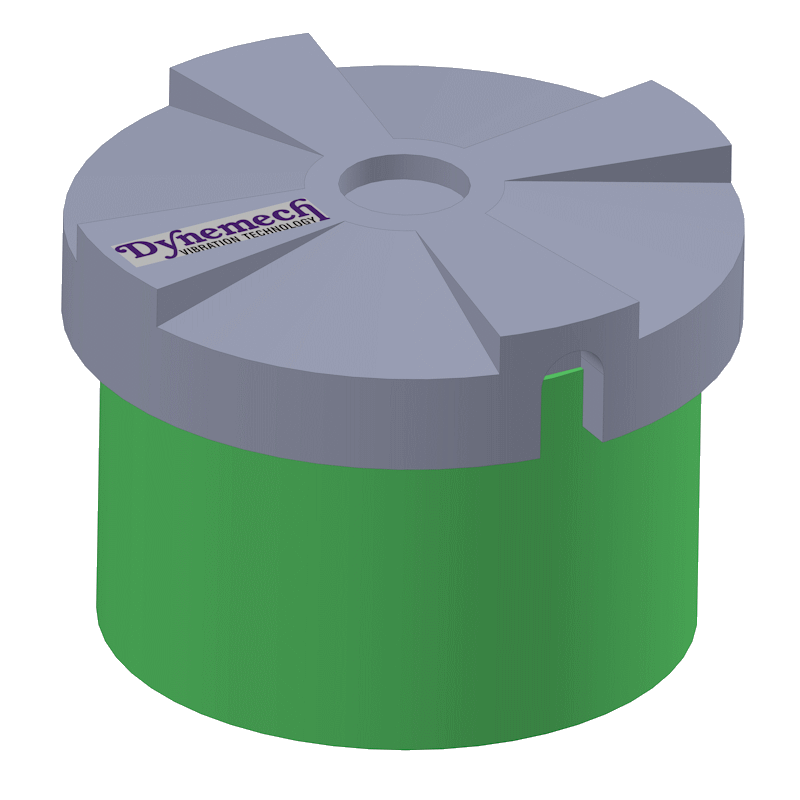

DL-hs3

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-hs3-55-FG 430 55 56
DL2-hs3-85-FG 1240 85 63
DL3-hs3-112-FG 2290 112 63
DL4-hs3-135-FG 3440 135 65
DL5-hs3-160-FG 4950 160 65
DL6-hs3-185-FG 6500 185 69
DL7-hs3-215-FG 9070 215 70
DL8-hs3-249-FG 11140 249 79
DL9-hs3-276-FG 17870 276 78

Series:

DL-hs4

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-hs4-55-FG 180 55 56
DL2-hs4-85-FG 530 85 63
DL3-hs4-112-FG 980 112 63
DL4-hs4-135-FG 1470 135 65
DL5-hs4-160-FG 2120 160 65
DL6-hs4-185-FG 2850 185 69
DL7-hs4-215-FG 3880 215 70
DL8-hs4-249-FG 4770 249 79
DL9-hs4-276-FG 6270 276 78

Series:

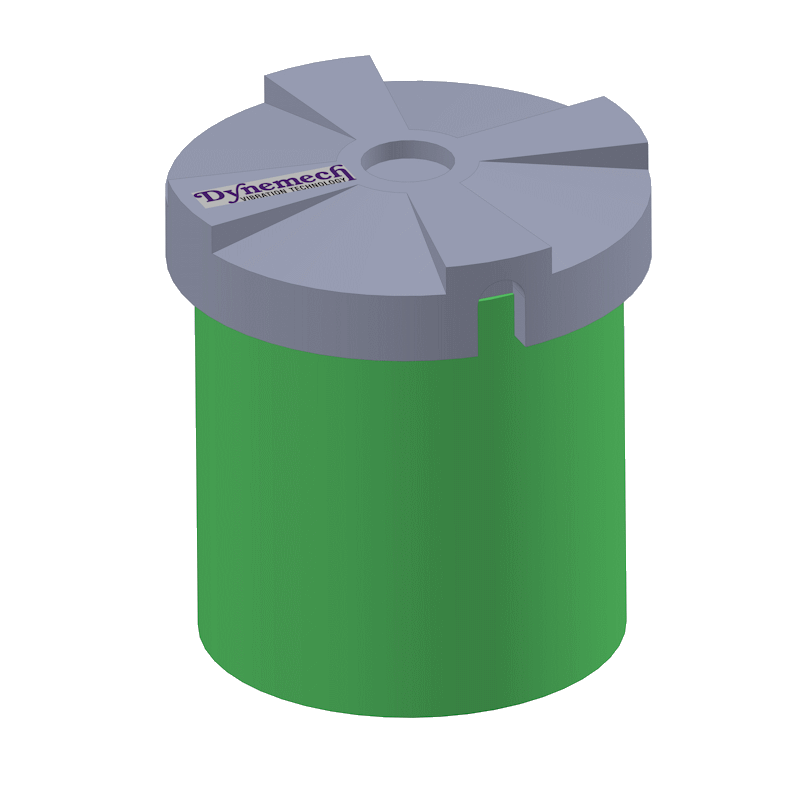

DL-hs5

Applications:

Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-hs5-55-FG 430 55 86
DL2-hs5-85-FG 1240 85 93
DL3-hs5-112-FG 2290 112 93
DL4-hs5-135-FG 3440 135 95
DL5-hs5-160-FG 4950 160 95
DL6-hs5-185-FG 6500 185 99
DL7-hs5-215-FG 9070 215 100
DL8-hs5-249-FG 11140 249 109
DL9-hs5-276-FG 17870 276 108

Series:

DL-h

Applications:

Very Heavy and Long Bed Machines, Long Machining Centres, Planners etc.
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
DL1-h-55-FG 520 55 21
DL2-h-85-FG 1330 85 28
DL3-h-112-FG 2360 112 28
DL4-h-135-FG 3680 135 30
DL5-h-160-FG 5300 160 30
DL6-h-185-FG 7050 185 34
DL7-h-215-FG 9710 215 35
DL8-h-249-FG 12460 249 44
DL9-h-276-FG 15680 276 43

Series:

DL1-a2-55-FG
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
Data not found! Data not found! Data not found! Data not found!

Series:

DL2-a2-85-FG
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
Data not found! Data not found! Data not found! Data not found!

Series:

DL3-a2-112-FG
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
Data not found! Data not found! Data not found! Data not found!

Series:

DL4-a2-135-FG
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
Data not found! Data not found! Data not found! Data not found!

Series:

DL5-a2-160-FG
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
Data not found! Data not found! Data not found! Data not found!

Series:

DL6-a2-185-FG
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
Data not found! Data not found! Data not found! Data not found!

Series:

DL7-a2-215-FG
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
Data not found! Data not found! Data not found! Data not found!

Series:

DL8-a2-249-FG
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
Data not found! Data not found! Data not found! Data not found!

Series:

DL9-a2-276-FG
Code Load Capacity Kg/pc Diameter (D) mm Height (H) mm
Data not found! Data not found! Data not found! Data not found!
