DFX2-2515
Model

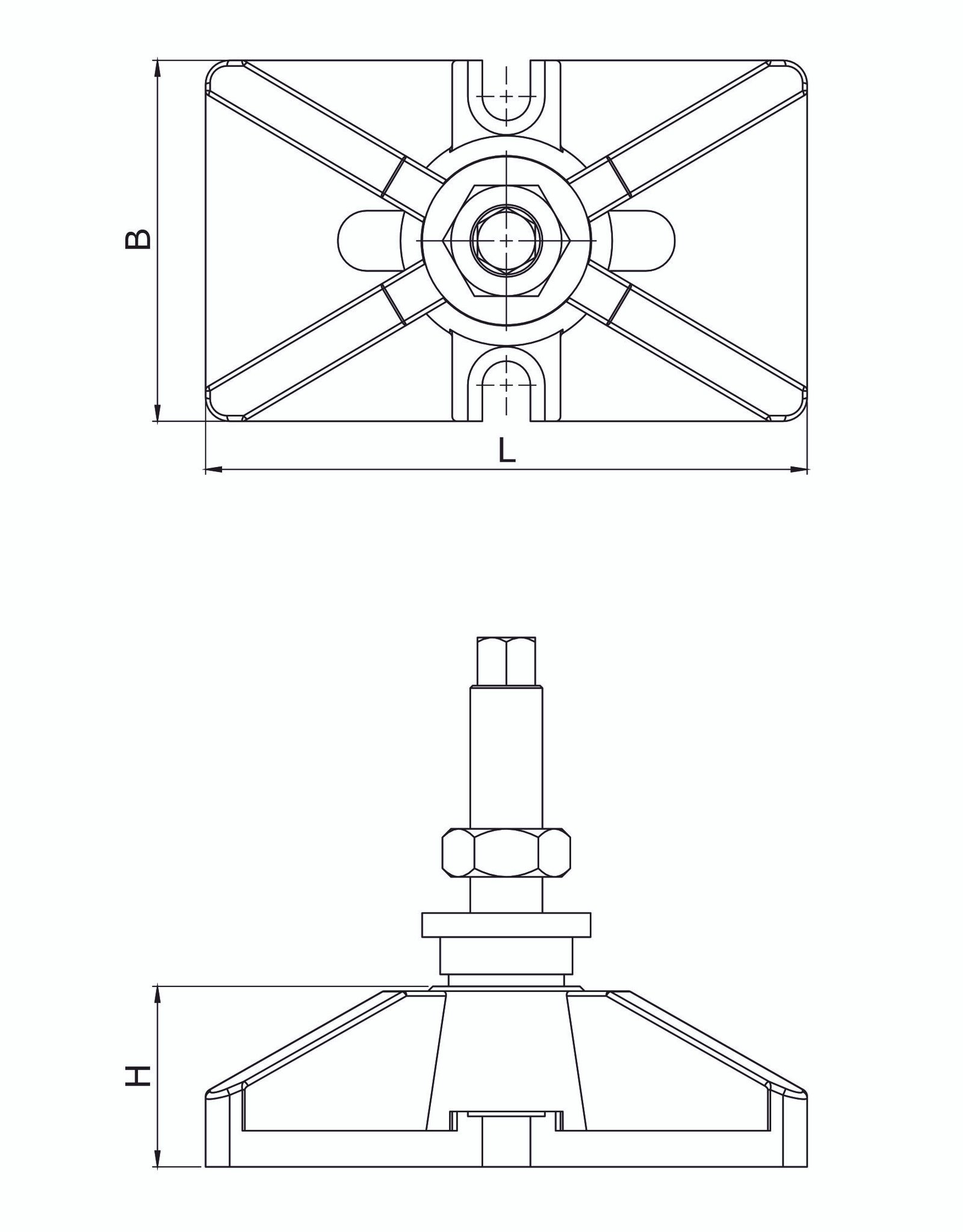

line diagram
Description
DFX mounts offer broad base support, high load capacity, and large leveling adjustment for heavy machinery. The Levelling Nut lifts up while rotating the top bolt.
Applicatons
Test Rigs, Double Column VMC, Eccentric Turning Lathes Etc.
Technical Data
Load Capacity Kg/pc
5800
Height (H) mm
75
Thread
M30
Length (L) (mm)
250
Width (B) (mm)
150
