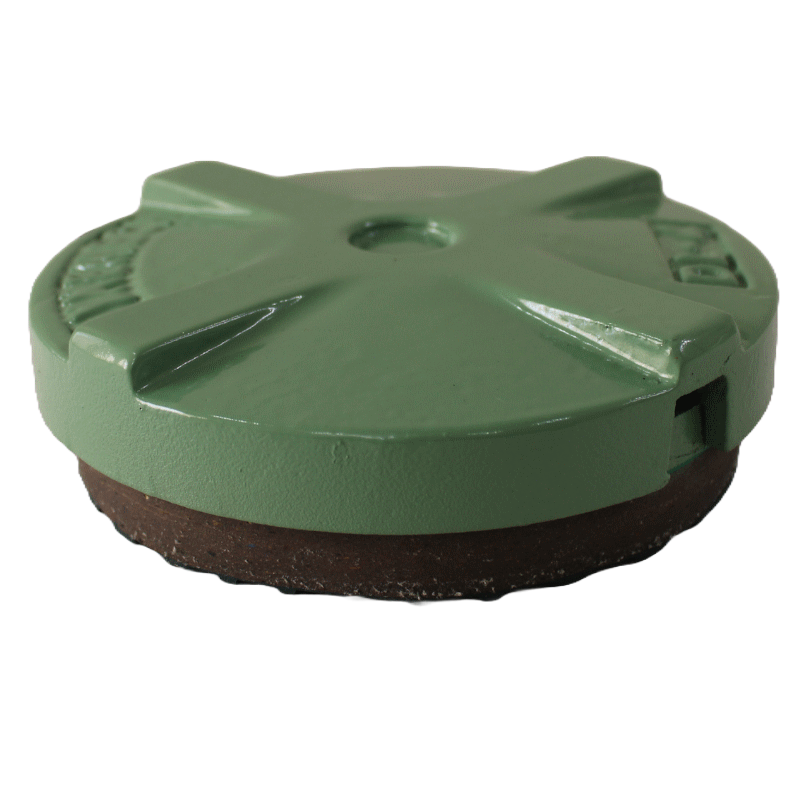

DYNEMECH Series DR , are suitable for machines having tapped hole in the base.The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.

Model Load (Kg/pc) Dia(D) mm d mm H mm Applications
DR1-u 350 109 87 150 Applications: Compressors, Tool Room Machines, Plastic injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
DR2-u 600 150 108 150
DR3-u 900 170 136 150
DR4-u 1400 210 161 150
DR5-u 1900 240 185 150
DR6-u 2500 270 215 150
DR1-m 450 109 87 150 Applications: Lathe Machines, Machining Centers, CNC Machines, Milling Machines, Precision Grinding Machines, Drilling Machine, Turning Centers, Transfer Lines etc.
DR2-m 800 150 108 150
DR3-m 1150 170 136 150
DR4-m 1750 210 161 150
DR5-m 2400 240 185 150
DR6-m 3200 270 215 150
DR1-p 175 109 87 155 Applications: Measuring & Testing Machines, Surface Plates, Hardness Testers, Microscopes, EDM Machine, Profile Projectors etc.
DR2-p 300 150 108 155
DR3-p 500 170 136 155
DR4-p 700 210 161 155
DR5-p 950 240 185 155
DR6-p 1250 270 215 155
DR1-s2 300 109 87 160 Applications: Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
DR2-s2 550 150 108 160
DR3-s2 850 170 136 160
DR4-s2 1250 210 161 160
DR5-s2 1700 240 185 160
DR6-s2 2200 270 215 160
DR1-s1 200 109 87 155 Applications: Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
DR2-s1 375 150 108 155
DR3-s1 575 170 136 155
DR4-s1 800 210 161 155
DR5-s1 1100 240 185 155
DR6-s1 1500 270 215 155
