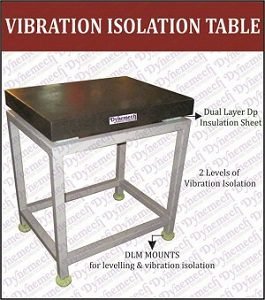

Our Anti Vibration Tables – Series DIT-E are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. These Anti-Vibration Tables have a Granite Surface Plate with Grade-1 accuracy for very precise measuring accuracies. We can select single or dual layer insulation plate depending upon the vibrations present in the Testing Laboratory. These Vibration Tables provide the most economical solution where high frequency vibrations need to be removed. The passive vibrations from nearby motors and other heavy machinery is reduced by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets.
APPLICATIONS: The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations.
With this specialized design, we obtain a very precise and highly Shock Resistant Anti-Vibration Table.
| Model | Length (L) (mm) | Width (B) (mm) | Height (H) (mm) | Surface Plate Thickness (mm) | Table Loading Capacity (Kg) | Adjustment range (mm) |
| DIT-E/01 | 500 | 500 | 800 | 50 | 100 – 250 | 8 |
| DIT-E/02 | 700 | 550 | 800 / 1000 | 80 | 200 – 450 | 8 |
| DIT-E/03 | 900 | 600 | 1000 | 100 | 500 – 1250 | 12 |
| DIT-E/04 | 1000 | 800 | 1000 | 100 | 800 – 1600 | 12 |
*Special table sizes and designs like closed cabinet for storage purposes can also be ordered as per client’s requirement.
